Product description: BitMaker V2 - expansion board for BBC micro: bit - Seeedstudio 114992653
The BitMaker V2 expansion board for BBC micro: bit is equipped with Grove connectors that allow for trouble-free connection of modules with the same interface. On the board you can find six Grove connectors corresponding to GPIO, PWM and I2C interfaces. In addition to Grove connectors, the board has solder pads , four RGB LEDs and a 2 mm JST connector for battery power and a power switch. This is a new version of the BitMaker board from Seeedstudio.

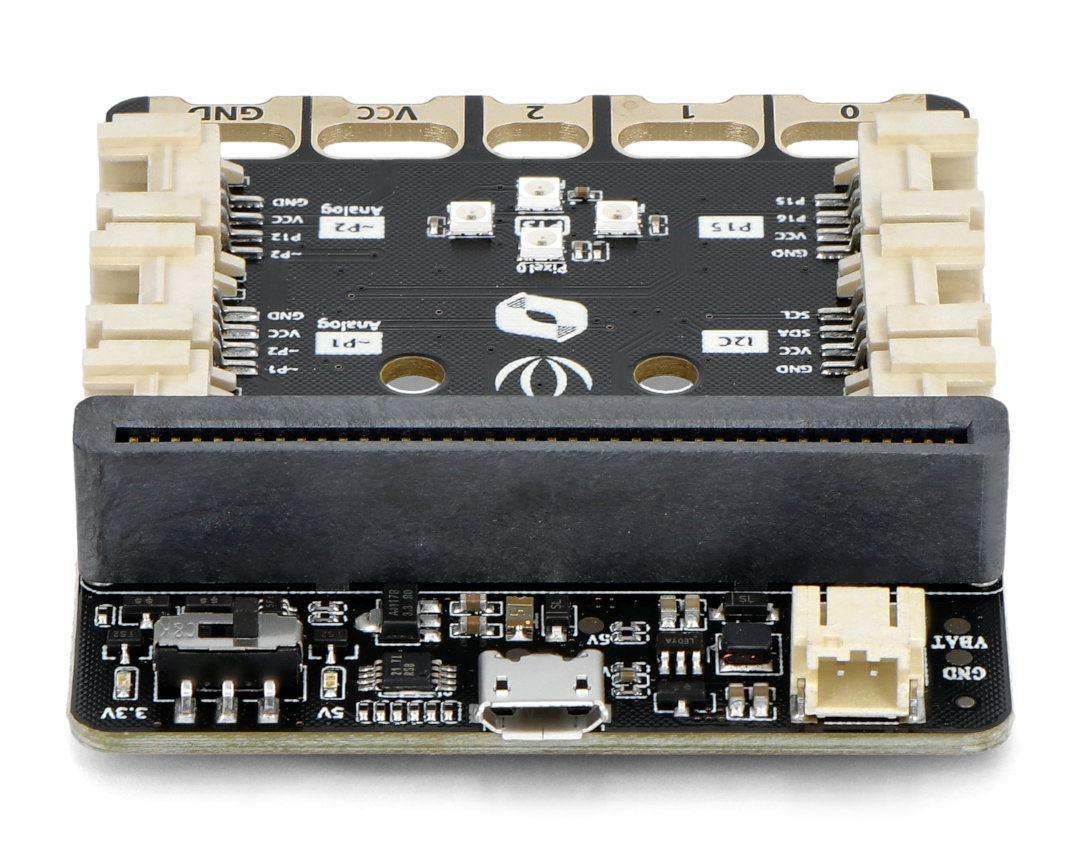

BitMaker V2 expansion board for BBC micro: bit.

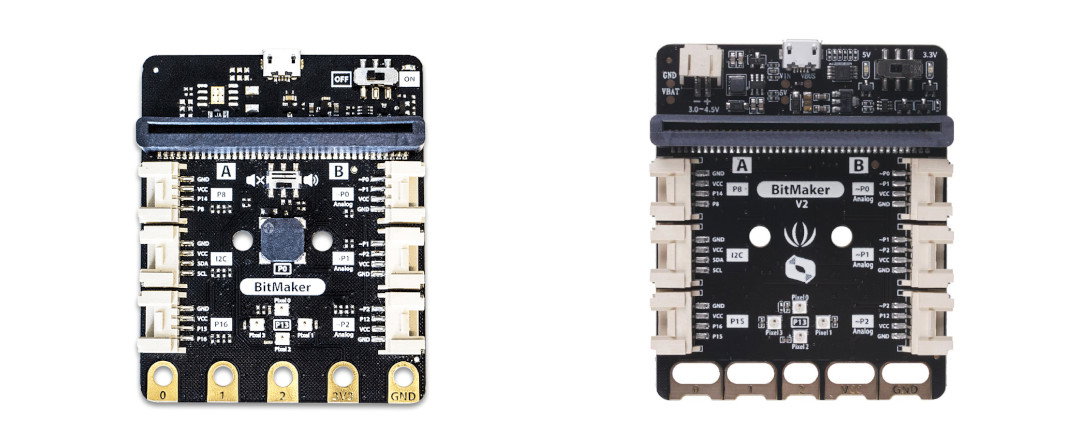

Comparison of BitMaker versions.V1.0 on the left and V2.0 on the right.
Comparison of BitMaker versions
| BitMaker V1.0 | BitMaker V2.0 | |
|---|---|---|
| Programmable LED | Yes | Yes |
| Power switch | Yes | Yes |
| Power status LED | Yes | Yes |
| 6 Grove connectors | Yes | Yes |
| JST 2.0 connector | no | Yes |
| Buzzer | Yes | no |
The main features of the BitMaker V2
- Plug & Play assembly
- 6 Grove connectors, including one I2C for quick connection of sensors from this series
- The board has a JST 2.0 mm connector and 4 RGB LEDs
- Powered from the built-in microUSB socket or JST connector
- Compatible with Microsoft MakeCode
- Programming in microPython

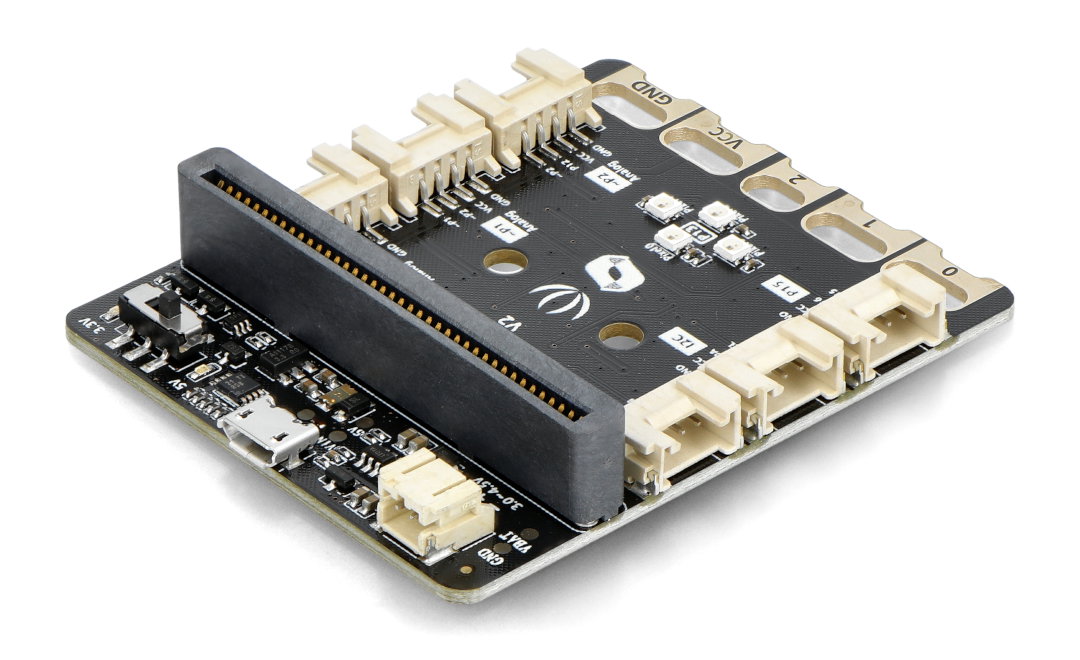

BitMaker V2 board for BBC micro: bit.

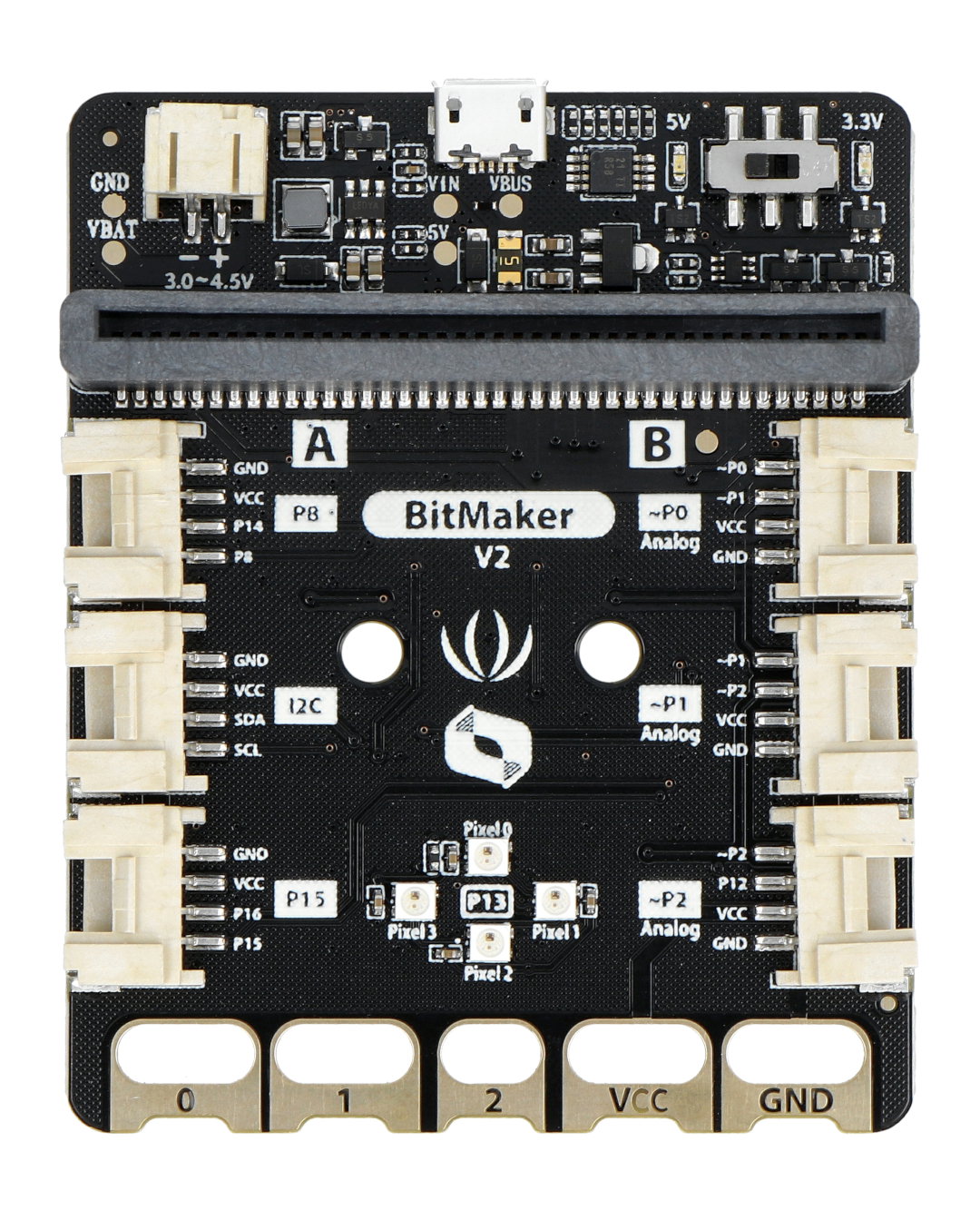

BitMaker V2 - BBC micro: bit expansion board - Seeedstudio 114992653.
BitMaker V2
- Power socket: microUSB / JST 2.0 mm
- Installation: Plug & Play
- Connectors:
- 6 x Grove
- 5 x ring terminals
- Built-in 4 RGB LEDs
- Intended for children from 8 years of age
- Dimensions: 70 x 57 mm
Kit contents
- 1 x BitMaker V2 - BBC micro: bit expansion board - Seeedstudio 114992653
- 1x user guide
