Product description: Grove - Shield for micro:bit v2.0
TheBBC micro:bit is a small and programmable board whose main purpose is to encourage children to learn coding and computing. It allows users to easily introduce and apply ideas to digital games, projects and robotics. Grove Shield v2.0 works as an extension for the micro:bit and with the Grove system providing hundreds of different modules including sensors, actuators, communication modules, input/output creating new projects will become much easier.

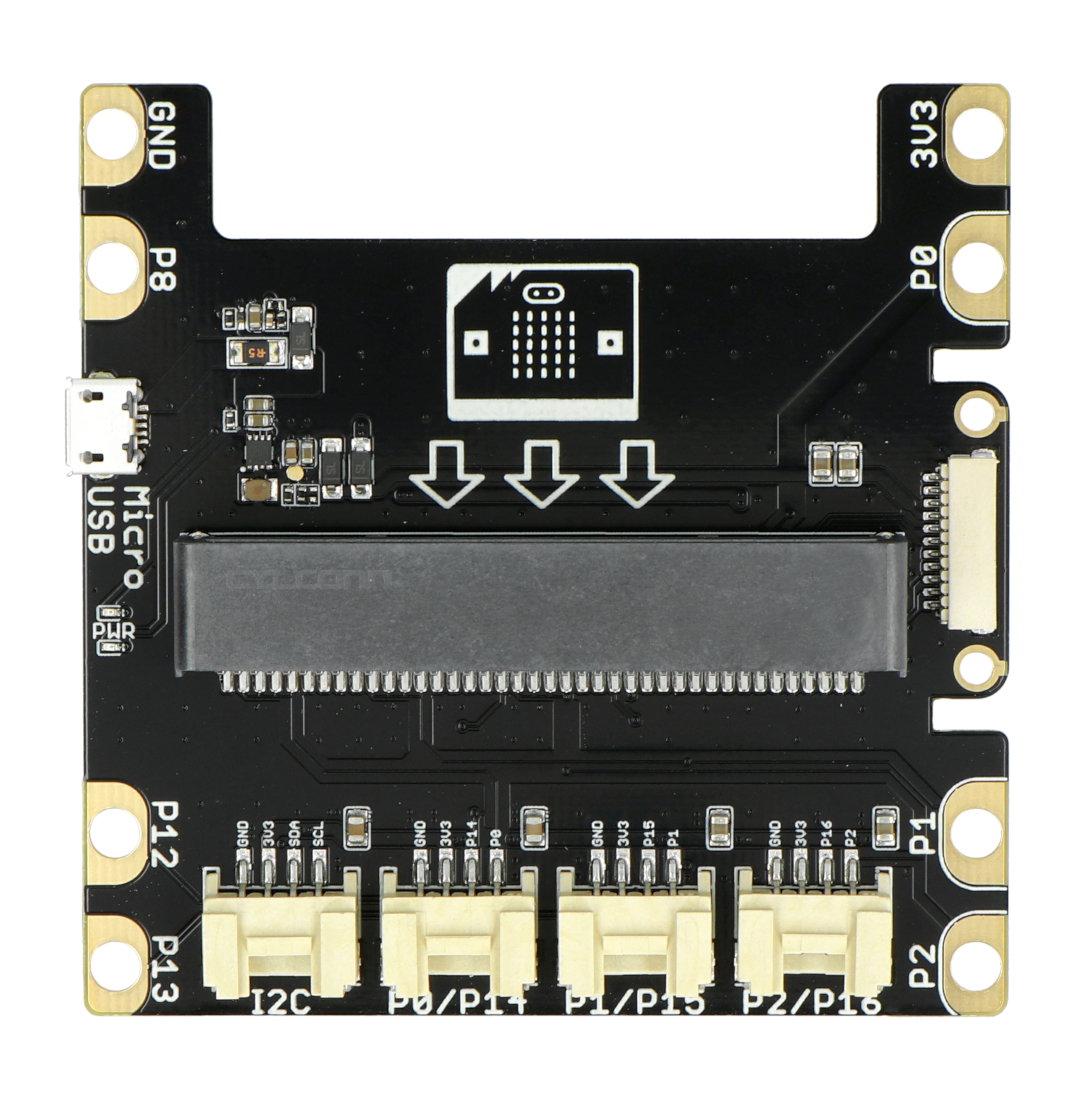

Grove - Shield v2.0 - expansion board for BBC micro:bit.
Grove Shield for micro:bit v2.0 has 4 built-in Grove connectors and an additional 4 pins to add additional sensors to your project. The Grove Shield extension has pins that have touch recognition allowing you to create projects such as the fruit piano.
If this is your first contact with the BBC micro:bit and you still don't know how to program and have no idea which Grove modules to use for your project, Seeed Well has prepared a Grove Inventor Kit for the Micro:bit which includes the Grove Shield and 8 sensors to get you started.
Features and functions of Grove - Shield for micro:bit v2.0
- 4 Grove ports to support different interfaces
- Edge connectors for crocodile clips and 4 mm banana plugs
- Built-in USB port for powering the micro:bit
Technical specifications for Grove Shield
| Parameter | Range |
|---|---|
| Dimensions | 72 mm x 72 mm x 13 mm |
| Weight | 27.5 g |
| Power supply | Micro USB x 1 |
| Grove interface |
P0 / P14 P1 / P15 P2 / P16 I2C |
| Logic interface | 3V3 / P0 / P1 / P2 / P8 / P12 / P13 / GND |
| Grove ZERO Interface | Grove ZERO x 1 |
