The kit does not include the BBC micro:bit minicomputer or Ni-MH batteries , these items must be purchased separately.
Product description: Maqueen Plus V3 - advanced educational STEM robot with matrix laser navigation for micro:bit - DFRobot MBT0050-AA
Maqueen Plus V3 is a modern educational robot compatible with micro:bit , designed for learning programming and participating in robotics competitions . Compared to simpler designs , it offers significantly greater movement precision, better environmental awareness, and broader expansion options . The use of a matrix laser sensor allows not only to measure distance but also to determine the location of obstacles, facilitating route planning and the implementation of more complex autonomous tasks. Furthermore, the robot utilizes built-in line-tracking and intersection-recognition algorithms , making it ideal for use in classrooms, workshops, and preparation for robotics competitions. It features a robust construction with fully removable N20 metal motors . Furthermore, a built-in voltage regulator ensures constant movement speed regardless of the AA battery charge level, eliminating program errors during long-term testing.

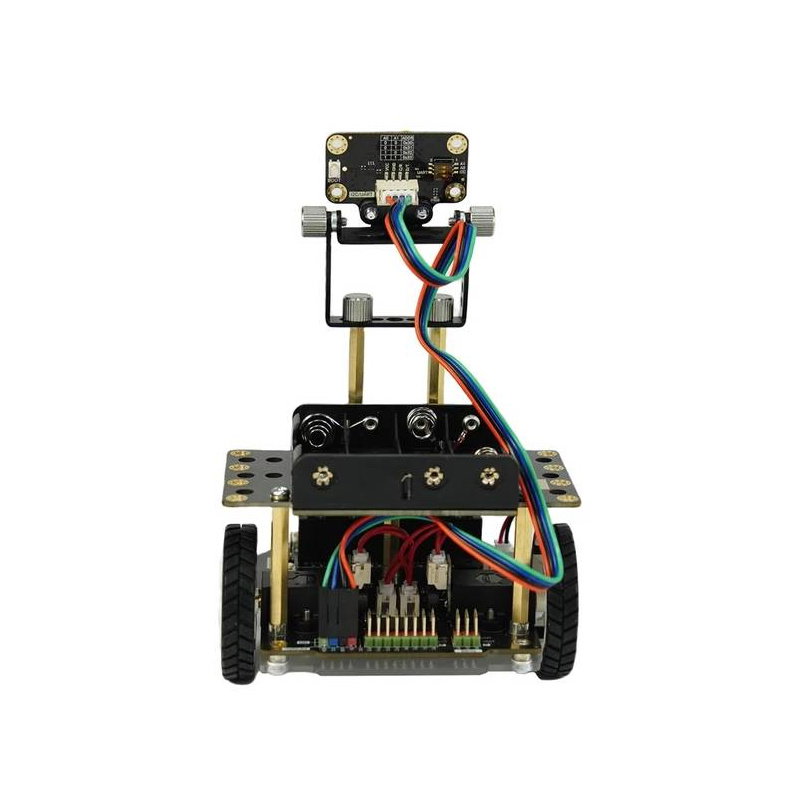

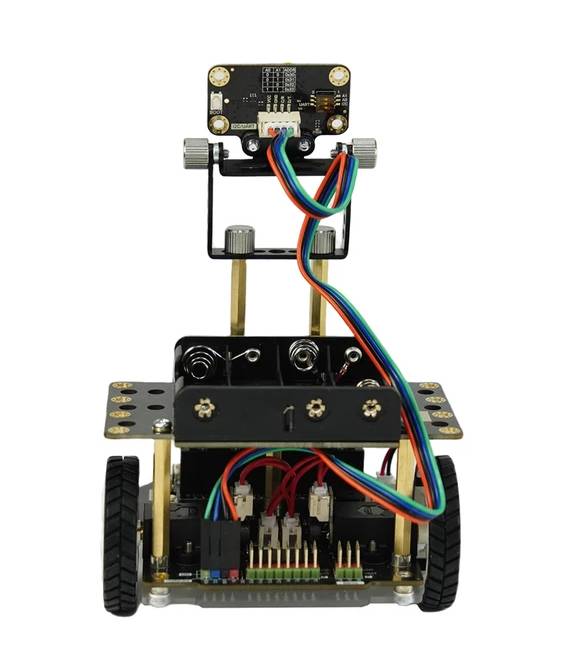

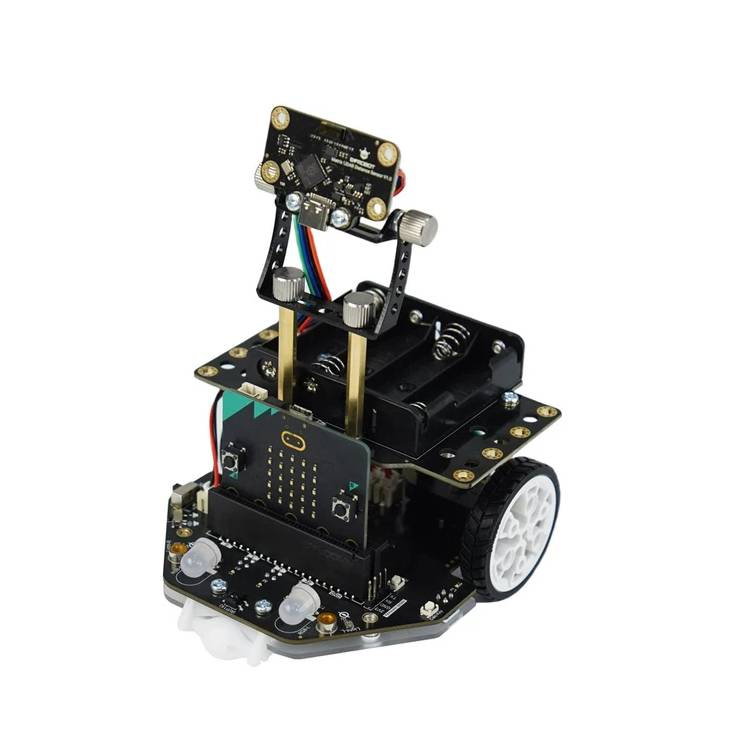

Maqueen Plus V3 - advanced STEM educational robot with matrix laser navigation for micro:bit - DFRobot MBT0050-AA.

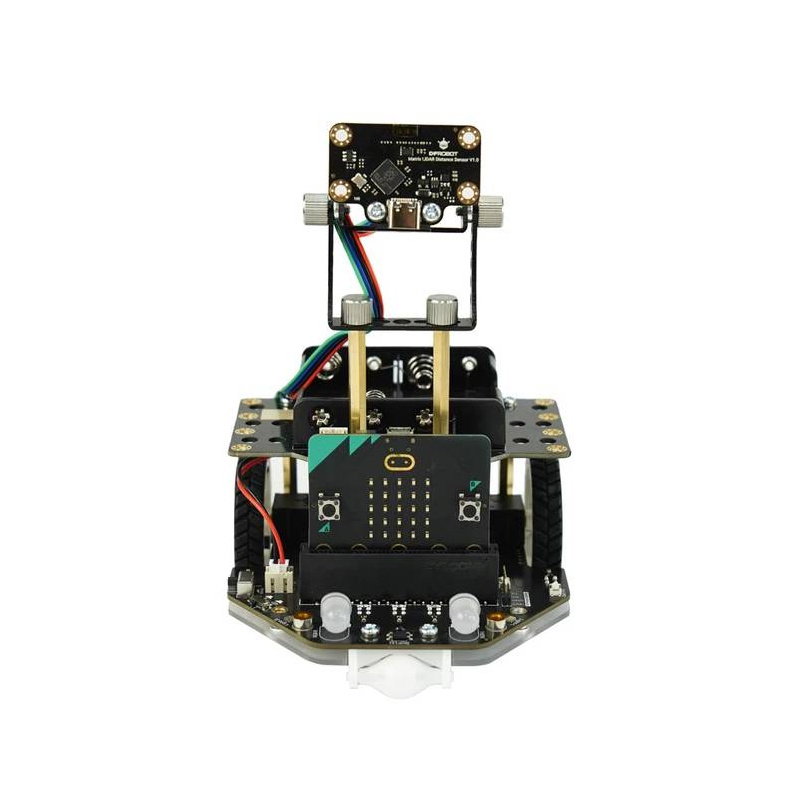

Maqueen Plus V3 is perfect for learning programming and robotics competitions for students.
Main features of the micro:bit Maqueen Plus V3 robot

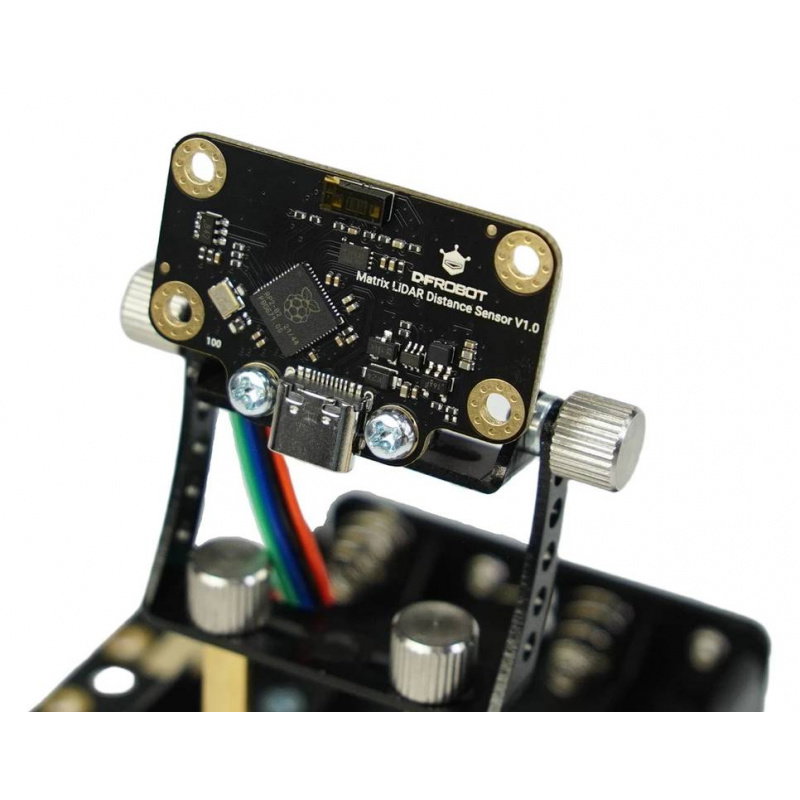

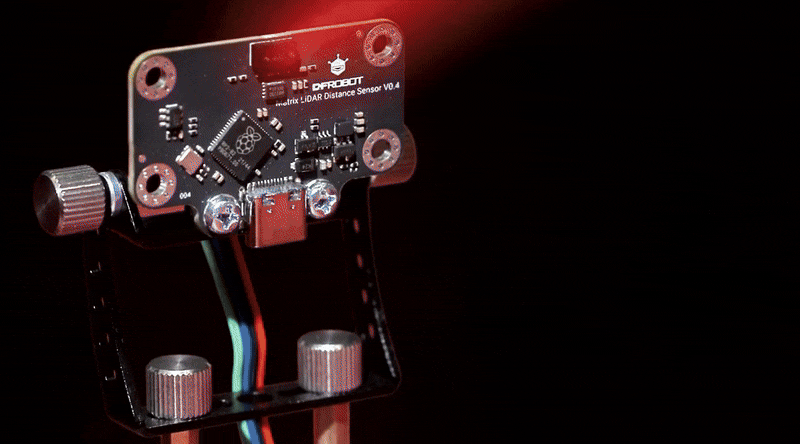

- Laser navigation : 8 x 8 matrix laser sensor enables precise obstacle detection and analysis of their location
- Advanced line tracking : 5 sensors and 4 intersection type recognition facilitate complex routes
- Accurate movement : encoders and PID control allow precise control of distance and steering angle
- Built-in algorithms : line tracking and intersection recognition at the chip level reduce the load on the micro:bit module
- Light sensors : 2 sensors with a range from 0 to 1023 allow you to create projects that respond to lighting
- Lighting effects : 4 WS2812 diodes and 2 RGB spotlights increase the attractiveness of educational projects
- Durable drive : 2 N20 metal motors with encoders ensure stable and repeatable operation
- Easy maintenance : detachable, bolt-on motors for quick replacement in case of damage
- Highly expandable : 14 extended GPIOs and I2C, UART and USB interfaces allow you to connect additional modules
- Stable drive operation : A dedicated voltage stabilization system for the motors helps maintain a constant speed despite a drop in battery voltage.
Programming the micro:bit robot for advanced STEM projects
Maqueen Plus V3 is designed for learning coding using the BBC micro:bit platform , making it suitable for both school education and more advanced hobby projects. Thanks to ready-made examples and built-in algorithms, you can quickly move from basic tasks to creating autonomous driving scenarios, avoiding obstacles, and analyzing sensor data. The robot supports the development of programming, automation, and logical thinking skills, while allowing you to focus on strategy instead of manually fine-tuning each basic function. This is an excellent solution for learning practical robotics in a modern STEM environment.

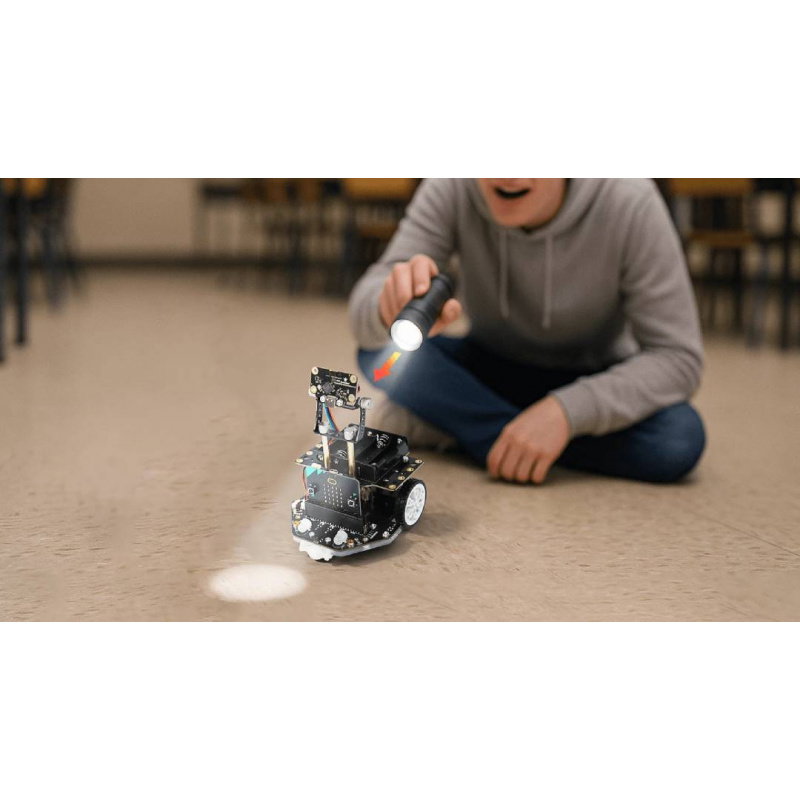

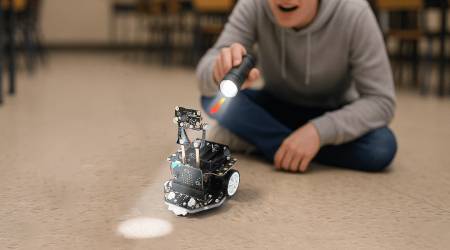

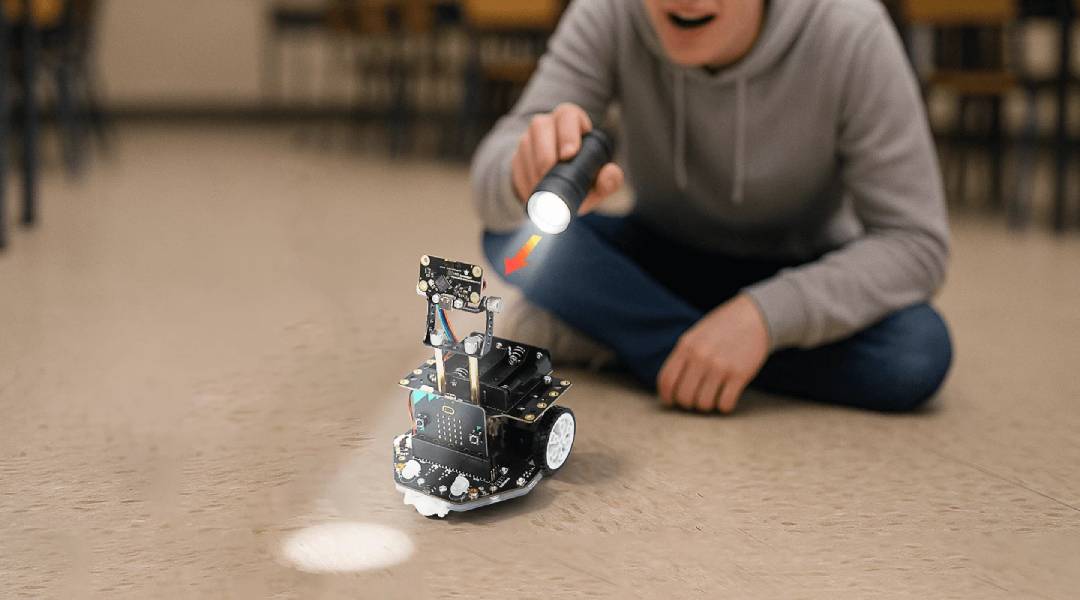

Two light intensity sensors ensure better interaction with the robot.

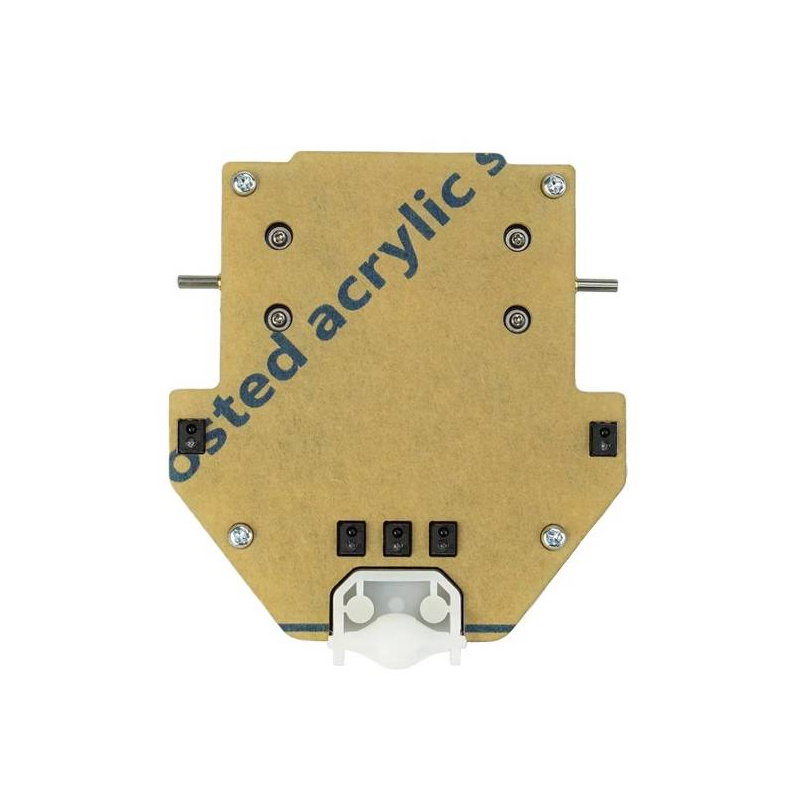

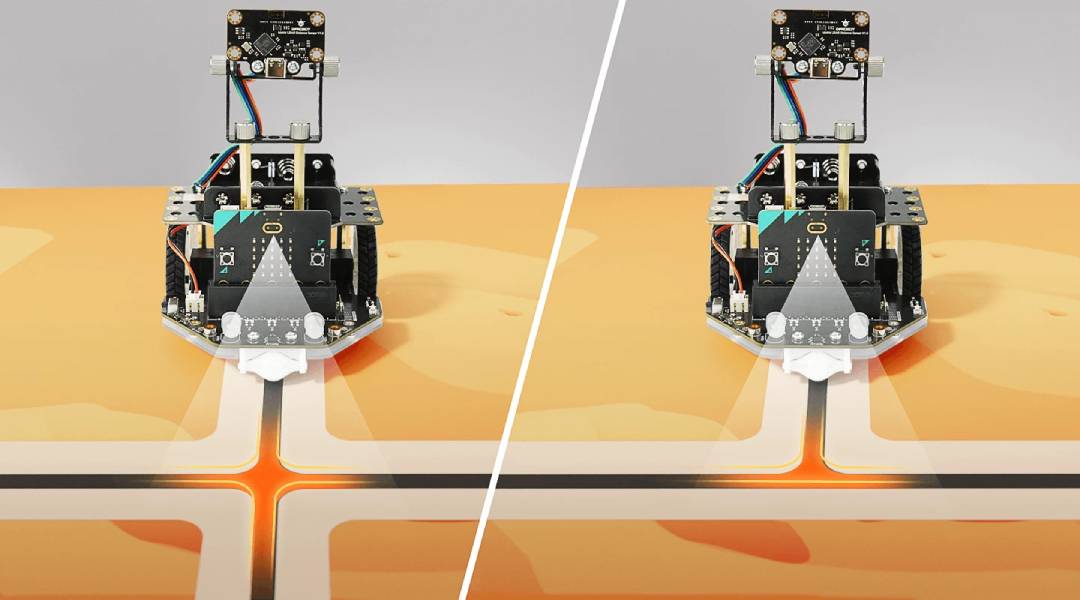

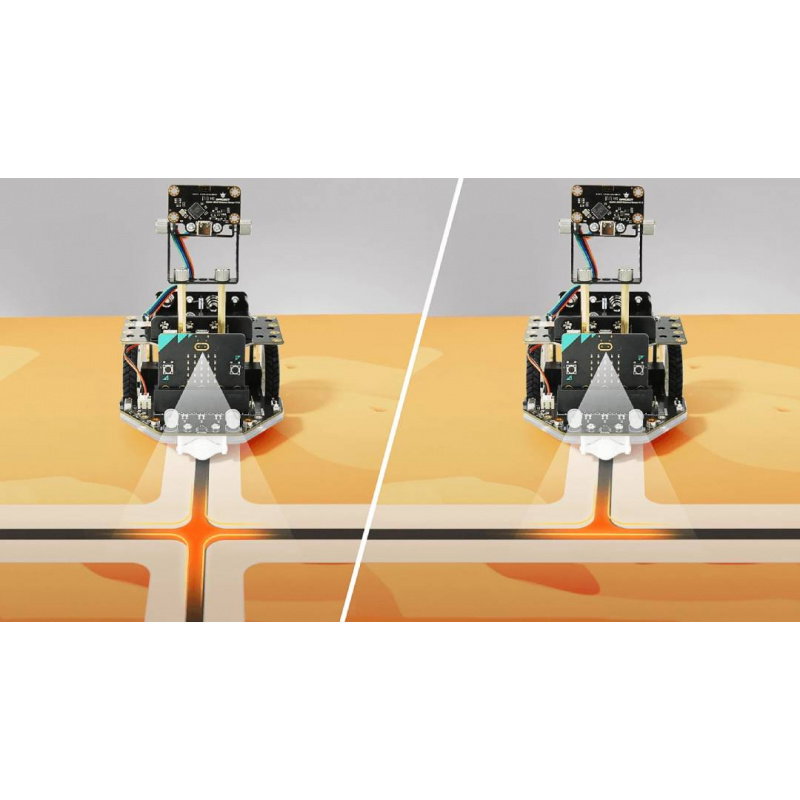

The robot has a built-in line tracking system and identifies different types of intersections.
Improvements over Maqueen Plus V2 in the new V3 version
Maqueen Plus V3 introduces many significant changes compared to the previous version, Maqueen Plus V2. The most important is the use of a matrix laser sensor instead of a traditional ultrasonic sensor, which translates into greater measurement accuracy and improved environmental awareness. The new version also adds PID-controlled encoders , light sensors, built-in line tracking and intersection recognition algorithms, detachable motors, and a motor voltage stabilization system. These changes allow the robot to offer higher precision, enhanced functionality, and improved preparation for competition tasks and more complex educational projects.
Kit contents

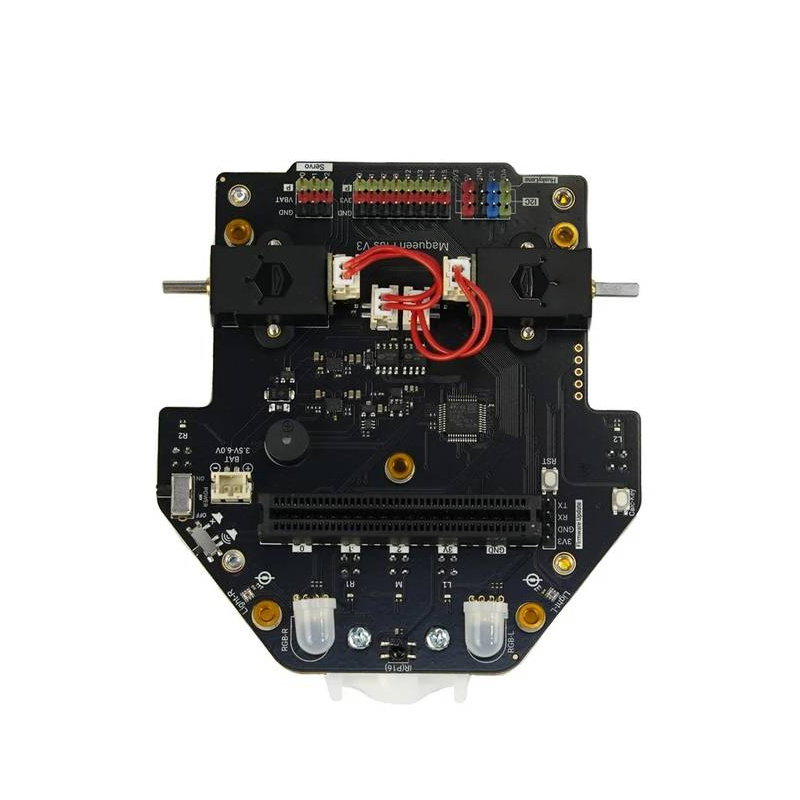

- 1x Maqueen Plus V3 Base Plate
- 2x N20 metal motor with encoder and connection cable (factory installed)
- 1x AA battery power module
- 1x Matrix Laser Distance Sensor
- 1x Sensor Cable PH2.0 - 4P
- 2x Wheels
- 1x Line Tracing Mat
- 1x Screwdriver
- 1x Metal mounting frame
- 1x Metal mounting bracket
- 5x Brass spacers 35 mm
- 5x M3 mounting screws
- 4x M3 thumb screws

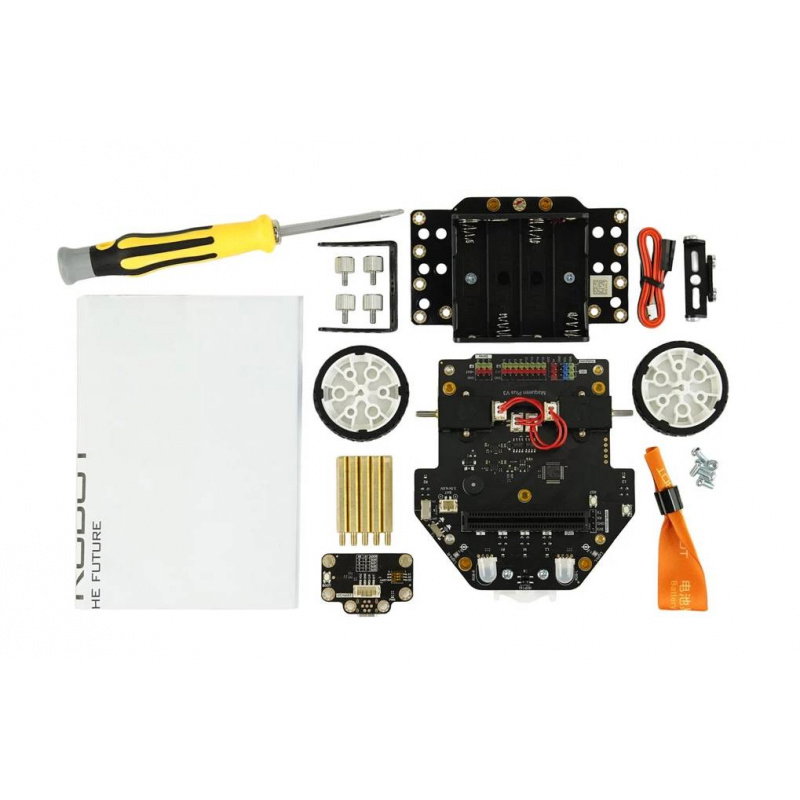

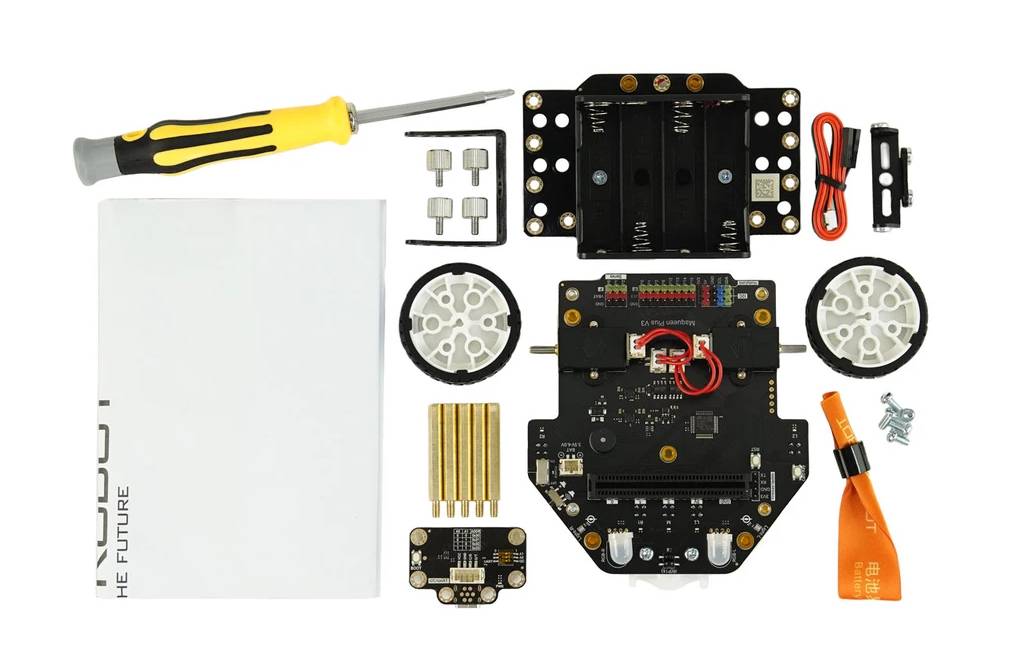

Elements included in the set.
| Maqueen Plus V3 Technical Specifications | |
|---|---|
| Power supply | 3.5 V to 6 V (4 x AA: 1.5 V alkaline or 1.2 V Ni-MH) |
| Battery protection | reverse polarity protection |
| Battery level indicator | 5-segment display |
| Line tracking sensors | 5 |
| Sensor calibration | dedicated button |
| Sensor output | digital / analog |
| Intersection recognition | 4 types: intersection, T, right and straight, left and straight |
| Line Trace Speed Levels | 5 levels |
| Laser sensor | 8 x 8 matrix (64 points) |
| Sensor interface | I2C/UART/USB (PH2.0-4P, USB Type-C) |
| Operating modes | matrix measurement / intelligent obstacle avoidance |
| I2C address | from 0x30 to 0x33 |
| Measurement frequency | from 15 Hz to 60 Hz |
| Measurement range | from 20 mm to 4000 mm |
| Accuracy (from 20 mm to 200 mm) | ±11 mm (white), ±12 mm (gray) |
| Accuracy (from 200 mm to 4000 mm) | ±5% (white), ±6% (gray) |
| Detection angle | 60° horizontal, 60° vertical, 90° diagonal |
| Laser safety | class 1 |
| Sensor firmware update | via USB |
| Light sensors | 2 |
| Light sensor data range | from 0 to 1023 |
| Infrared receiver | 1 |
| Engines | 2 x metal N20 engine |
| Engine interface | PH2.0 - 2P |
| Power supply for engines | independent stabilized 5 V |
| Engine assembly | screwed, detachable |
| Encoders | 2, magnetic induction, 4-line resolution |
| PID control | distance control ±2 cm, angle ±5° |
| Unit of speed | cm/min |
| RGB diodes | 4 x WS2812 (R255 x G255 x B255) |
| RGB spotlights | 2 (red, green, yellow, blue, purple, cyan, white) |
| Buzzer | 1 |
| Mounting elements | 2 x metal elements, 1-axis adjustment |
| Handle adjustment range | 270° |
| Threaded PCB holes | 2 |
| Extensions | 14 x GPIO |
| Security | acrylic bottom plate |
| Firmware update | dedicated button and interface |
