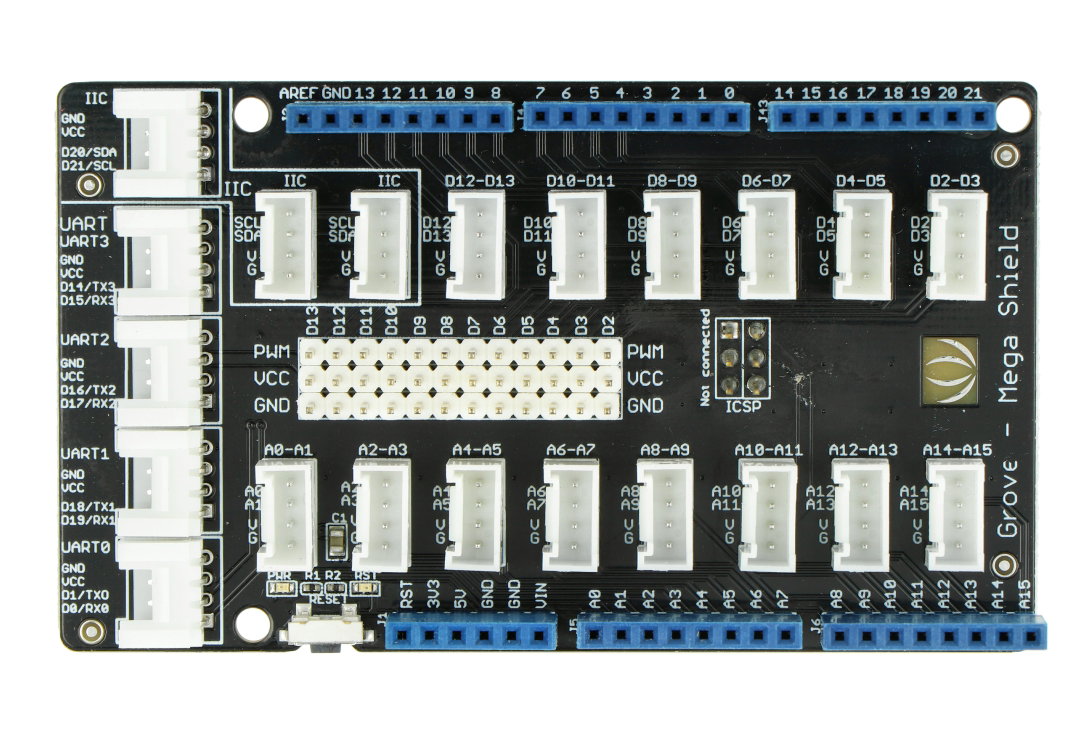

Description: Grove - Mega Shield v1.2 - Arduino cap.
The overlay for ArduinoMegaextends the capabilities of I/O pins. Adaptedto the modules and sensors of the Grove series. It is equipped with 4-pin Grove connectors, as well as all the leads known from Arduino. It works with voltages3,3 V and 5 V. The module has separate leads for UART,PWM and I2CinterfacesandRESET button.

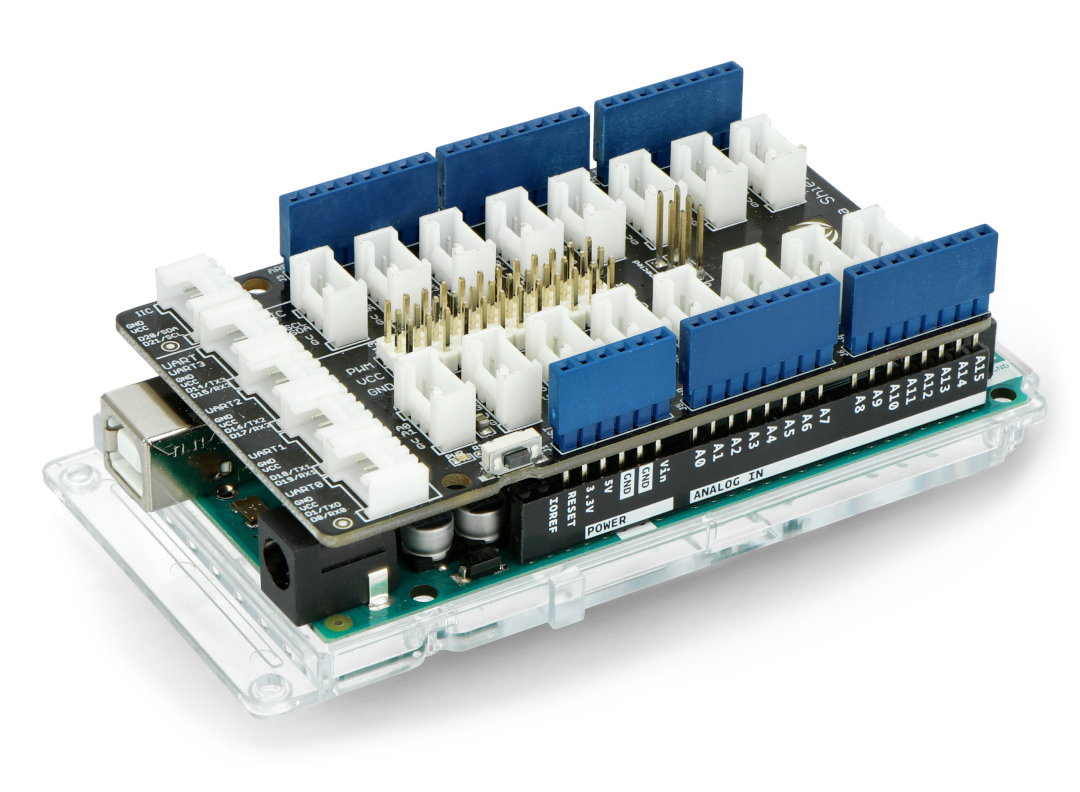

Grove - Mega Shield v1.2 is adapted to work with Arduino Mega 2560.
Specification Grove - Mega Shield v1.2 - overlays on Arduino
- Overlay compatible with ArduinoMega 2560
- Standardized 2 mm 4-pin Grove connectors
- outputs for UART, PWMand I2Cinterface connectors.
- RESET button
- Dimensions: 93 x 57 x 15 mm
- Weight: 58 g
The offer applies to the cap itself, ArduinoMegamust be purchased separately.
