Product description: MyoWare 2 Muscle Sensor - development kit for measuring muscle activity (EMG) - SparkFun KIT-27920
The MyoWare 2 Muscle Sensor is a complete development kit for measuring muscle activity (EMG) , designed for education, prototyping, and research and development projects. The kit is fully compatible with Arduino platforms and allows for quick testing of various MyoWare 2 system configurations without the need for soldering. The MyoWare 2 sensor measures surface electromyography (sEMG) by analyzing the electrical signals generated by muscles during contraction. The stronger the muscle contraction, the higher the output signal. Data can be visualized using a dedicated LED display or read as an analog signal by a microcontroller. The EMG electrodes are intended for single use.
Attention!
MyoWare 2.0 and Cable Shield are not intended to diagnose, treat, cure, mitigate, or prevent disease or other conditions in humans or other animals.
MyoWare 2 Muscle Sensor - development kit for measuring muscle activity (EMG) - SparkFun KIT-27920.
MyoWare 2 Muscle Sensor is a complete development kit for measuring muscle activity (EMG), designed for education, prototyping and research and development projects.
Special features
- Complete kit for testing and prototyping EMG sensors
- Measurement of muscle activity using sEMG
- Analog output proportional to the force of muscle contraction
- MyoWare 2 modular design with no soldering required
- Possibility of signal visualization using the LED overlay
- Compatibility with Arduino and popular development boards
- Battery powered with USB charging option
Practical applications
- Controlling robots and manipulators using muscle signals
- Biofeedback and Human Machine Interface (HMI) Projects
- Education in biology, electronics and mechatronics
- Prototyping of rehabilitation and wearable devices
- Research experiments with EMG signals
MyoWare 2 Modularity and Ecosystem
The kit is based on the MyoWare 2 modular ecosystem, which allows for quick configuration customization for a specific project. Snap-in connectors allow for easy connection of various shields, reference cables, and sensors, significantly accelerating prototyping and functional testing.
The data can be visualized using a dedicated LED overlay or read as an analog signal by a microcontroller. The kit is fully compatible with Arduino platforms and allows you to quickly test different configurations of the MyoWare 2 system without the need for soldering. Technical specifications of the MyoWare 2 kit
- Sensor type: surface electromyography (sEMG)
- Analog output range: 0 V to VIN
- Compatibility: Arduino and Arduino-compatible boards
- Power supply: 40 mAh Li-Pol battery (USB charging)
- Noise immunity: increased resistance to ground loops
- Connections: MyoWare 2 snap-in connector system
- Signal visualization: LED diodes (depending on the overlay used)

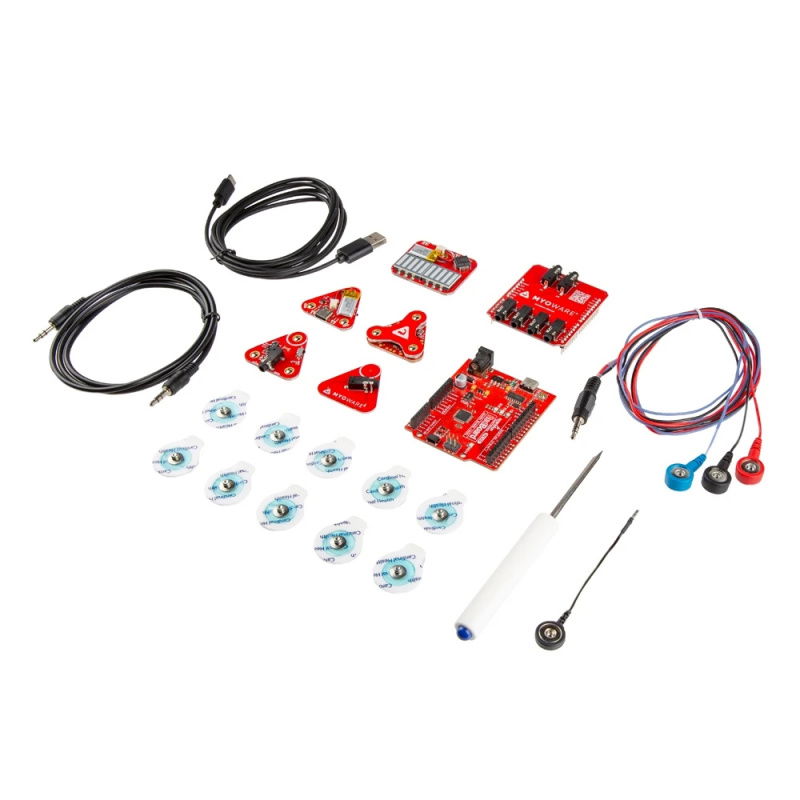

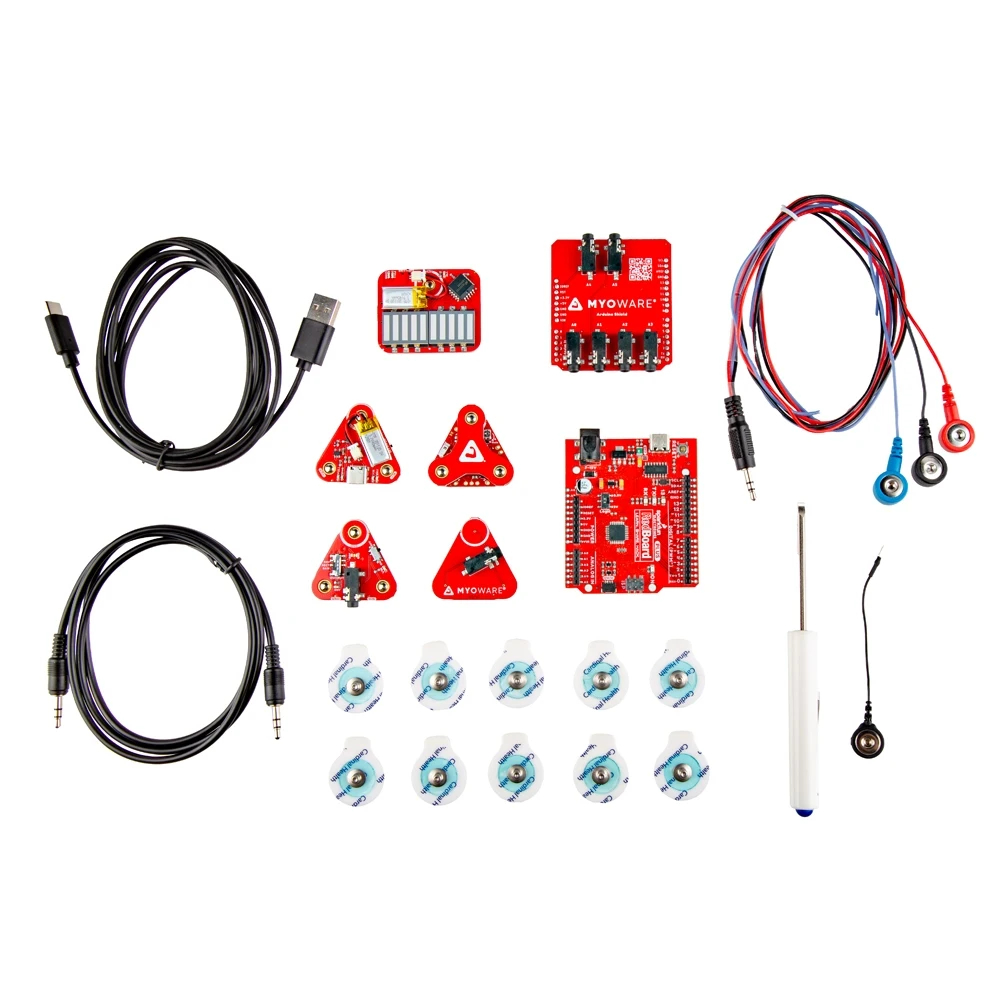

Contents of the set

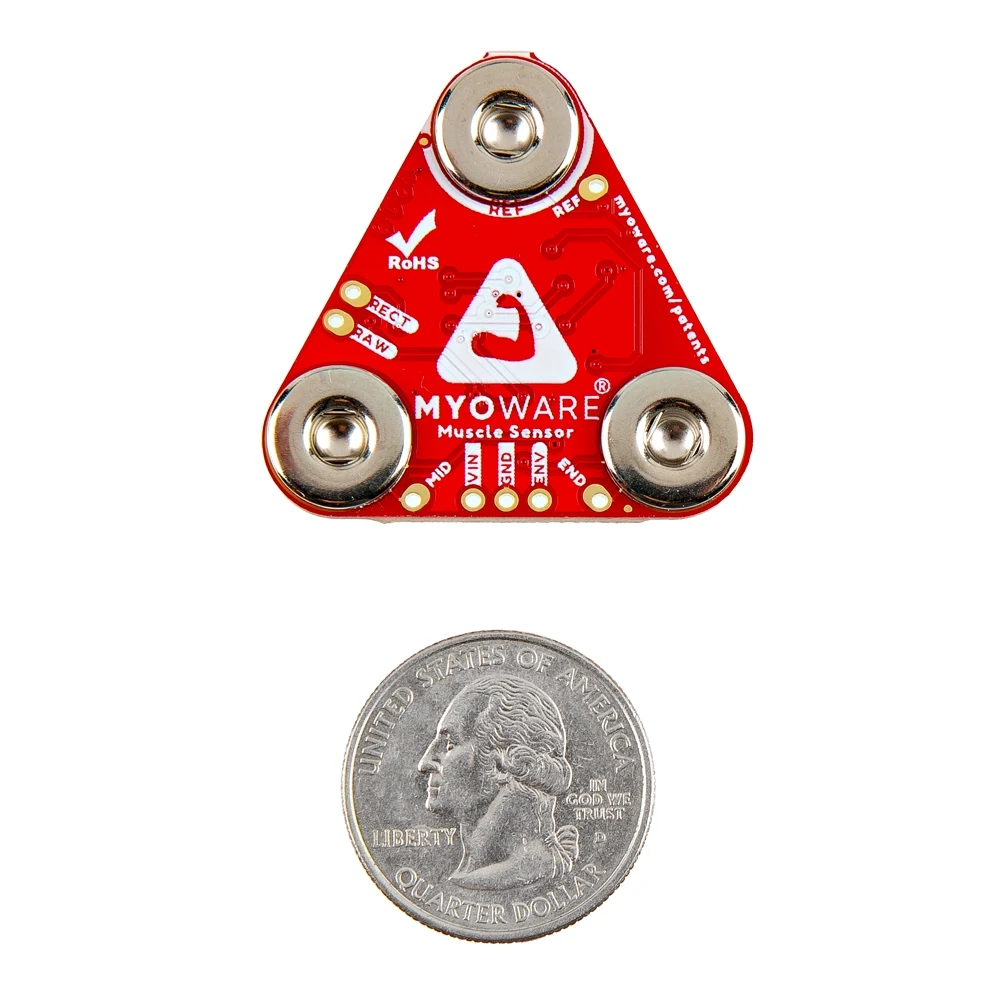

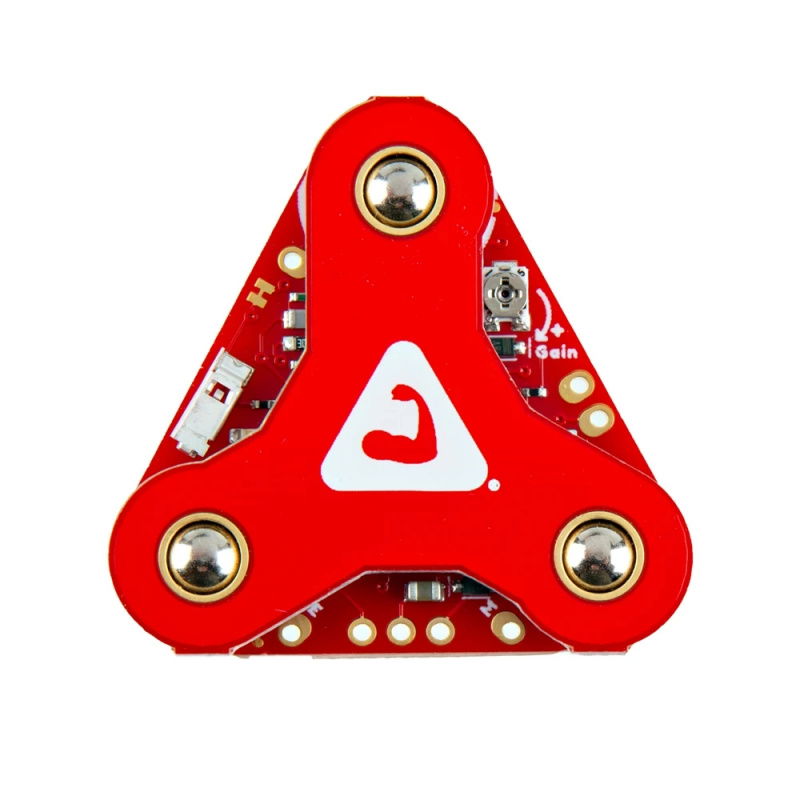

- 1x MyoWare 2 muscle sensor
- 1x MyoWare 2.0 LED Shield
- 1x MyoWare 2.0 Power Shield
- 1x MyoWare 2.0 Link Shield
- 1x MyoWare 2.0 Cable Shield
- 1x MyoWare 2.0 Arduino Shield
- 1x SparkFun RedBoard Plus development board
- 1x MyoWare 2.0 Reference Cable
- 1x TRS audio cable - 1 m
- 1x USB Type-A to USB Type-C cable - 2 m
- 1x sensor cable with electrodes (3-pin)
- 1x SparkFun Mini Screwdriver
- 10x disposable EMG/ECG/EKG surface electrodes - 24 mm
