Product description: M5Stack Cardputer Adv Version - portable computer with M5Stamp S3A module - ESP32-S3FN8 - M5Stack K132-Adv
The M5Stack Cardputer-Adv is a compact, multi-function computer designed for rapid prototyping, education, and IoT application development. The computer's core component is the connected M5Stamp S3A development board, powered by the ESP32-S3FN8 chip, offering powerful processing power and a wide range of features. Its built-in 56-key keyboard and 1.14-inch LCD display ensure convenient operation, while additional ports, such as Grove and a 14-pin expansion port, allow for connecting additional accessories. The M5Stack Cardputer-Adv is equipped with a 1750 mAh battery , ensuring long battery life and enabling field use. The device also includes a MEMS microphone with a high signal-to-noise ratio, a 1W speaker , and a 3.5mm audio jack for connecting headphones or external speakers. Additionally, an IR emitter and a BMI270 motion sensor allow for expanded functionality in projects requiring interaction with the environment.
M5Stack Cardputer Adv Version - portable computer with M5Stamp S3A module - ESP32-S3FN8 - M5Stack K132-Adv.

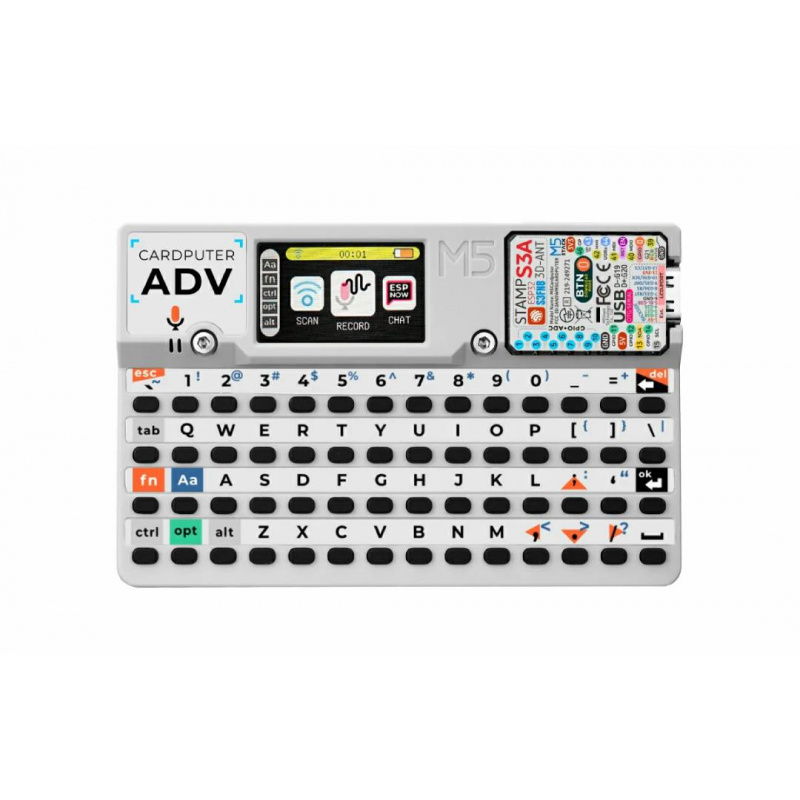

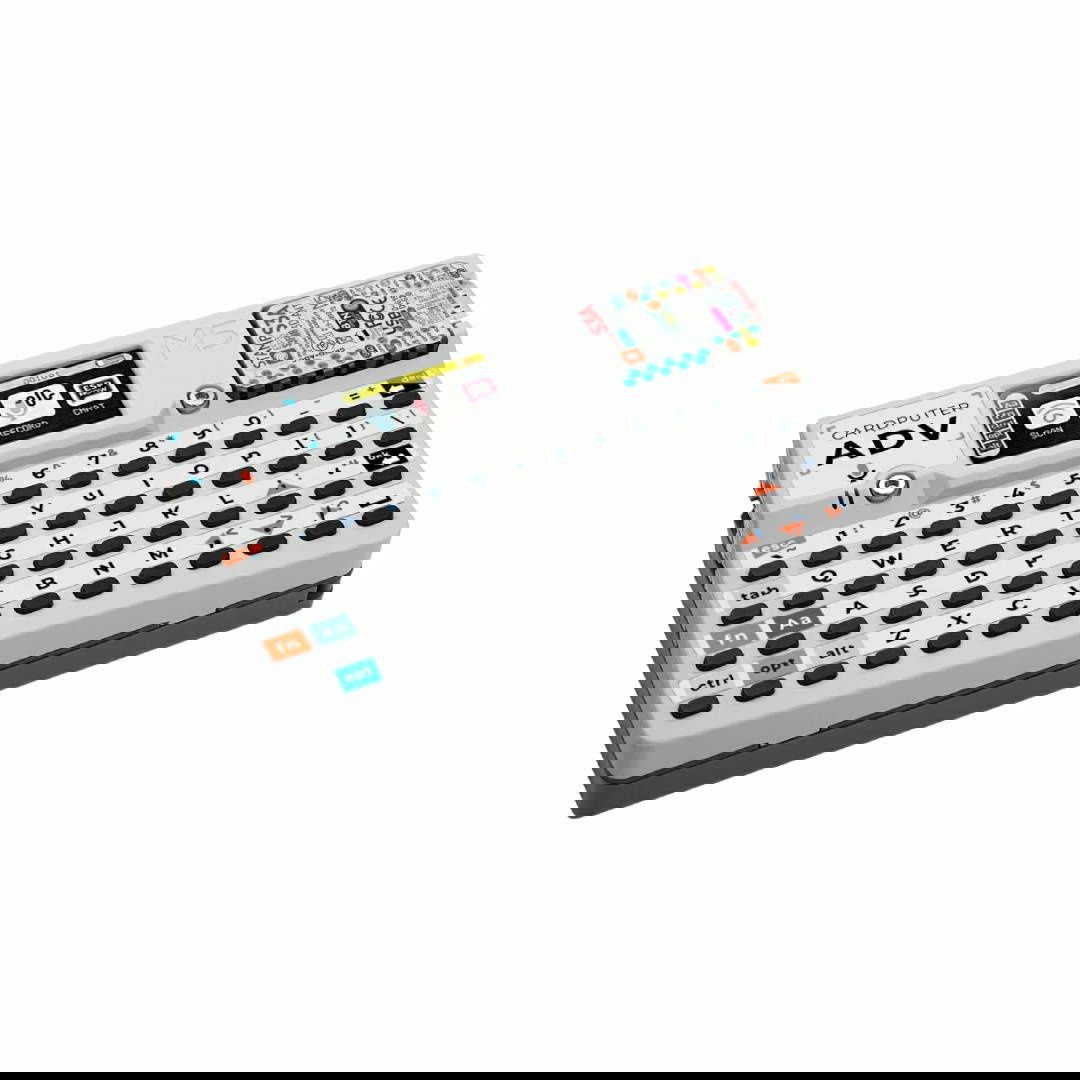

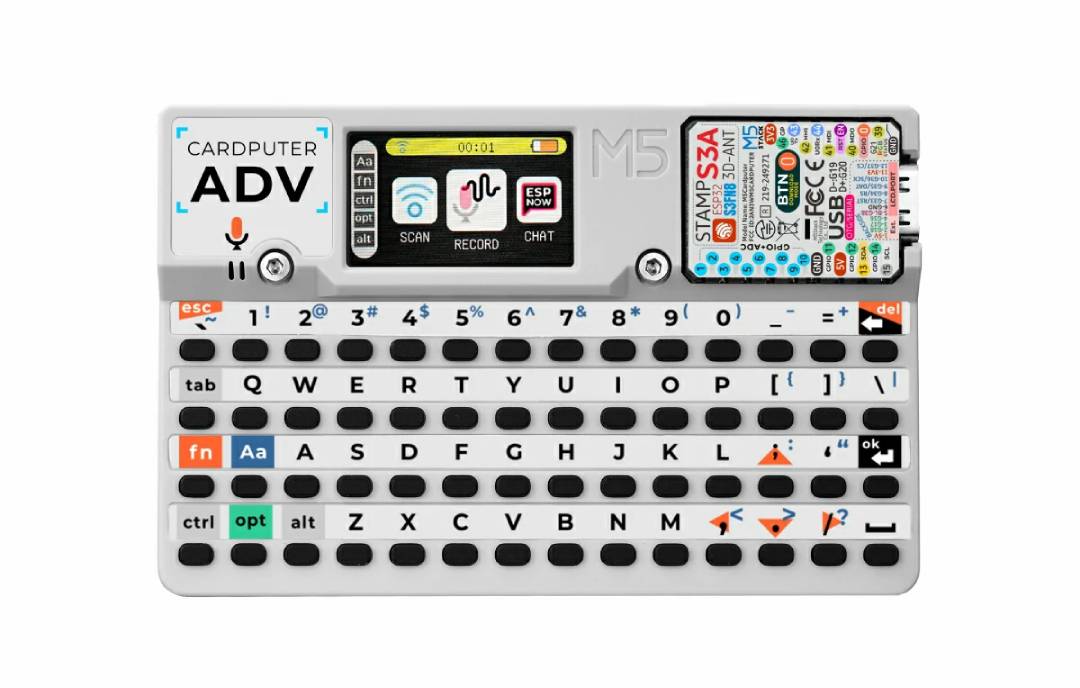

The M5Stack Cardputer-Adv allows you to control other devices using a 56-key keyboard.
Main Features of M5Stack Cardputer Adv Version
- ESP32-S3FN8 module : powers the device with a dual-core Xtensa LX7 processor with a frequency of up to 240 MHz
- 1.14'' LCD display : 240 x 135 px screen, ideal for displaying information and interacting with the user
- 56-key keyboard : ensures comfortable and precise operation of the device, with a pressing force of 160g
- Audio : ES8311 codec, high signal-to-noise ratio MEMS microphone, and 1W speaker with NS4150B amplifier

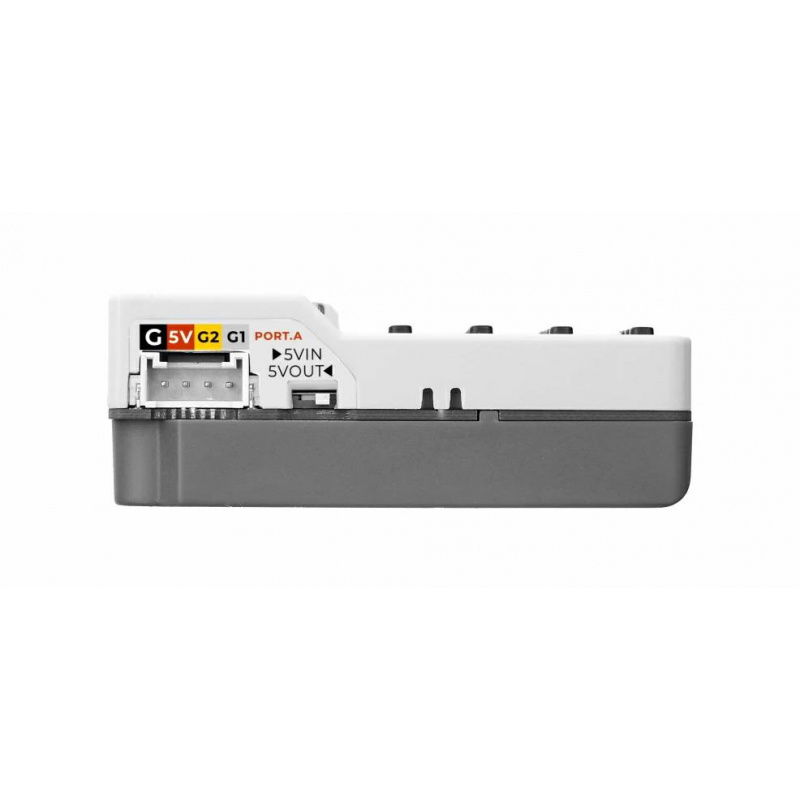

- Expansion ports : 4-pin with 2 mm pitch (Grove) and 14-pin expansion port (EXT 2.54-14P) for connecting sensors, modules and other peripherals
- microSD slot : for data storage and device memory expansion
- Built-in Li-Ion 1750 mAh battery : ensures long operating time and independence from external power supply
- BMI270 motion sensor : 6-axis sensor for recording acceleration and gyroscope
- LEGO compatibility : has holes compatible with LEGO bricks and magnets in the base for mounting on metal surfaces
- IR emitter : allows short-range communication with other IR-enabled devices
Programming and compatibility
The M5Stack Cardputer-Adv is fully compatible with popular development environments, including Arduino IDE , PlatformIO , ESP-IDF , and UiFlow2 . With UiFlow2, you can use an intuitive, graphical interface to create applications without writing extensive code. Advanced users can take advantage of the full functionality of the Arduino IDE and ESP-IDF, allowing for deeper system integration and complete project control .

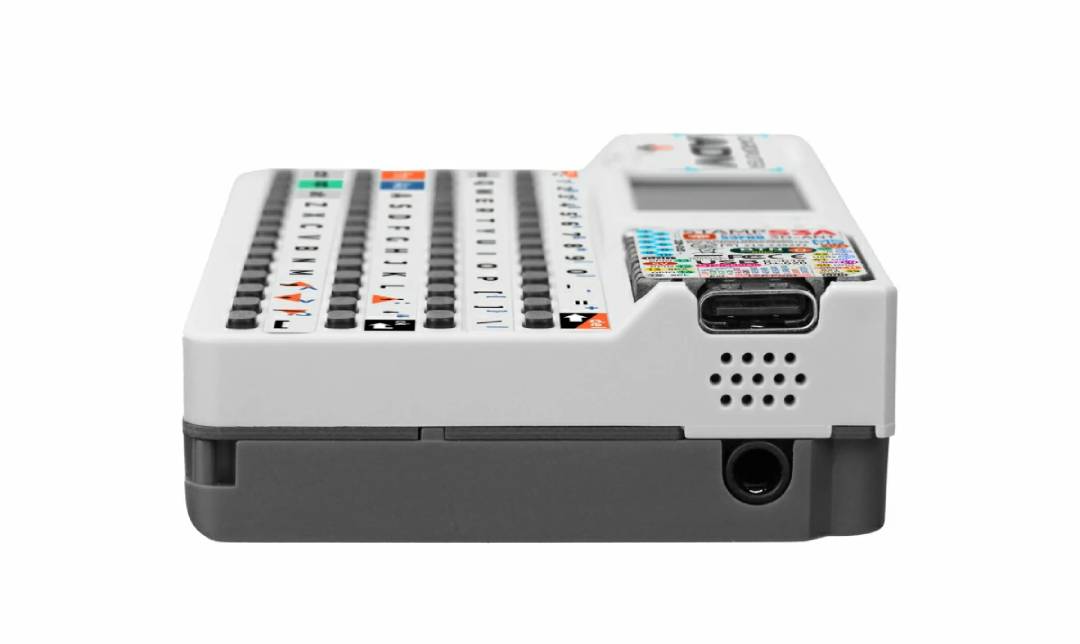

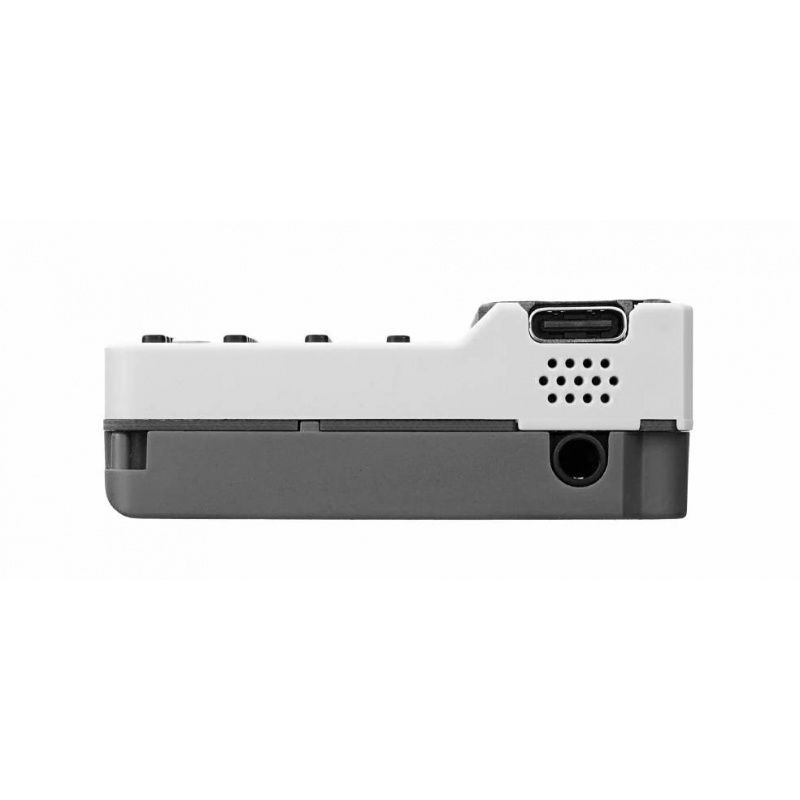

It has a built-in speaker and a MEMS digital microphone for recording and playing sound.

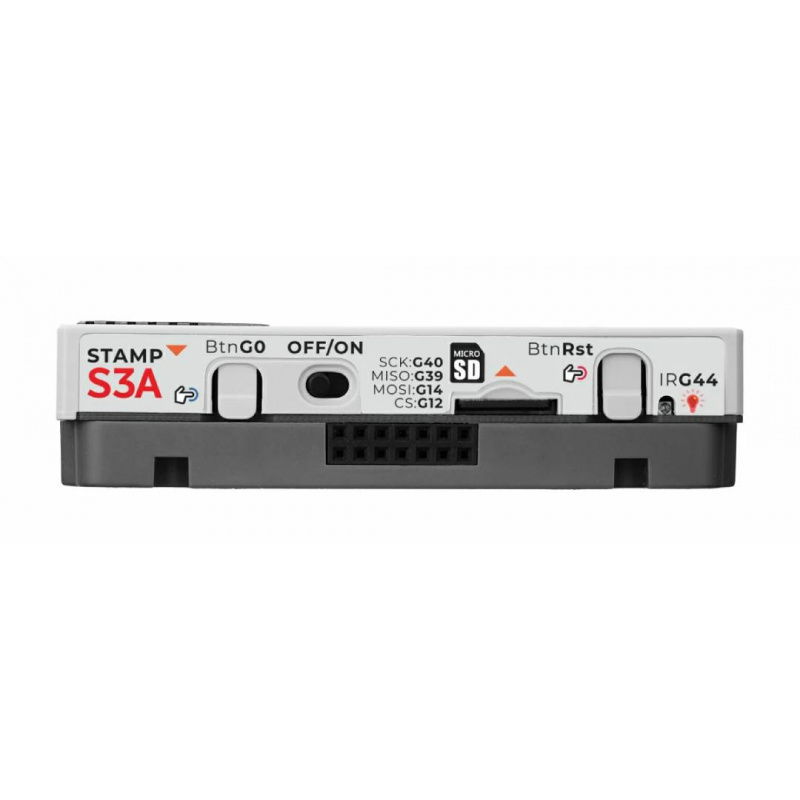

Enables interaction with external devices via the built-in IR infrared emitter.
IR emitter in M5Stack Cardputer-Adv
The M5Stack Cardputer-Adv is equipped with an infrared (IR) emitter , enabling short-range communication with other IR-enabled devices. The IR emitter can be used to transmit data, control devices, or implement various interactions in automation, IoT, and robotics projects . This feature allows the Cardputer-Adv to function as a remote control, opening up a wide range of possibilities for controlling devices in home automation systems and other applications requiring short-range wireless communication.
M5Stack Cardputer Version Comparison
| Model | Cardputer-Adv | Cardputer v1.1 | Cardputer |
|---|---|---|---|
| Central module | Stamp-S3A (ESP32-S3FN8) | Stamp-S3A (ESP32-S3FN8) | Stamp-S3 (ESP32) |
| RGB LED logic | Shares power supply with display backlight, optimized control logic | Shares power supply with display backlight, optimized control logic | Directly powered |
| Antenna | Optimal antenna design for better reception | Optimal antenna design for better reception | Standard antenna |
| Battery capacity | 1750 mAh | 120mAh + 1400mAh | 120mAh + 1400mAh |
| Audio solution | ES8311 | NS4168 + SPM1423 | NS4168 + SPM1423 |
| Audio port | 3.5mm audio jack | / | / |
| IMU | BMI270 | / | / |
| Expansion ports | HY2.0-4P + EXT 2.54-14P | HY2.0-4P | HY2.0-4P |
| Lanyard hole | Yes | NO | NO |
M5Stack Cardputer Adv Version Technical Specifications
- Device type: portable computer with development board attached
- Development Board: M5Stamp S3A
- Microcontroller: ESP32-S3FN8
- Built-in chip: Xtensa LX7 dual-core, up to 240 MHz
- Flash memory: 8 MB
- External memory: microSD
- Display: ST7789V2 1.14'', 240 x 135 px
- Keyboard: 56 keys (4 x 14)
- Keystroke force: 160 gf
- Expansion ports: 4-pin with 2 mm pitch (HY2.0-4P) + 14-pin expansion port (EXT 2.54-14P)
- IR Emitter: 1x IR emitter
- Audio encoding: ES8311
- Speaker: NS4150B amplifier + 8Ω 1W speaker
- Microphone: MEMS microphone, SNR: 65 dB
- IMU sensor: BMI270
- Battery capacity: 1750 mAh
- Operating temperature range: 0°C to 40°C
- Dimensions: 84 x 54 x 19.6 mm
- Weight: 81 g
Contents of the set
- 1x M5Stack Cardputer Adv Version

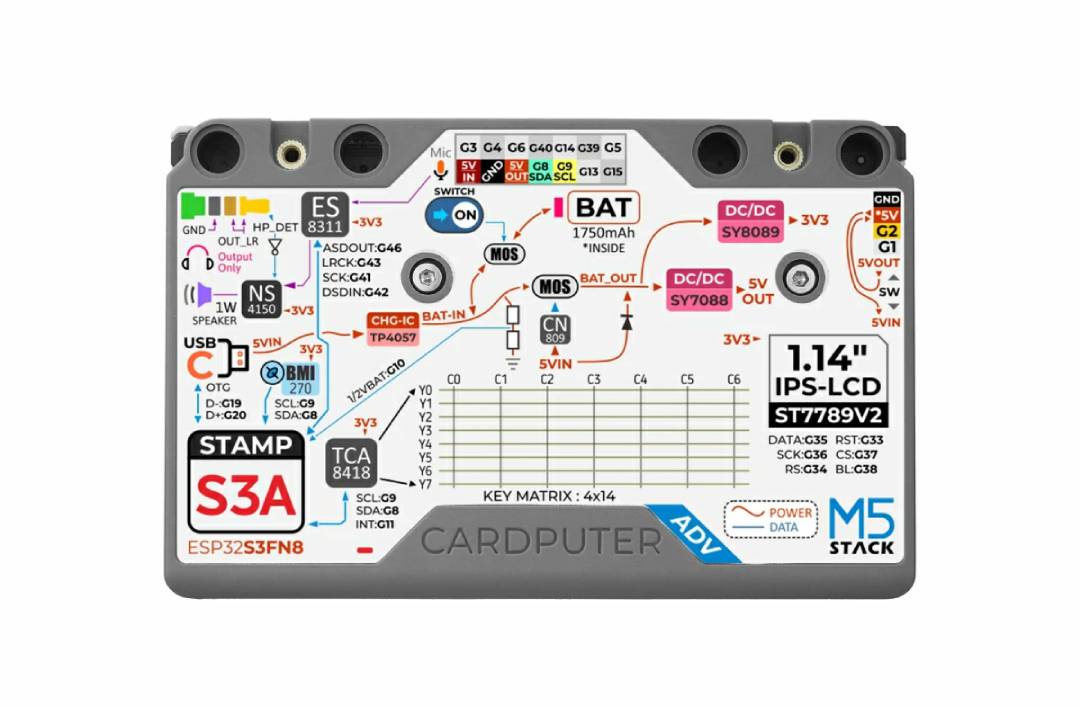

The main component of the computer is the connected M5Stamp S3A development board.
