Product description: Cardputer Mesh Kit for Meshtastic - Portable LoRa Mesh Computer with GPS - M5Stamp S3A - ESP32-S3FN8 - M5Stack K152
The M5Stack Cardputer Mesh Kit is a turnkey solution for users requiring independent, long-range communication and GPS location in the field. At the heart of the kit is the Cardputer-Adv , based on the ESP32-S3FN8 module with a dual-core Xtensa LX7 processor clocked at up to 240 MHz. The device is equipped with a 1.14" color LCD display, a 56-key keyboard , a speaker, a microphone, a microSD card reader, and a 1750 mAh battery. Communication is handled by the Cap LoRa-1262 module, based on the SX1262 chip , supporting the 868 MHz to 923 MHz band. The module offers a receiver sensitivity of up to -147 dBm and transmit power of up to +22 dBm, enabling the construction of efficient LoRa Mesh networks over long distances . The built-in AT6668 GNSS receiver provides precise positioning using GPS, Galileo, GLONASS, and BeiDou. With Meshtastic pre-installed, the device is ready to go right out of the box.

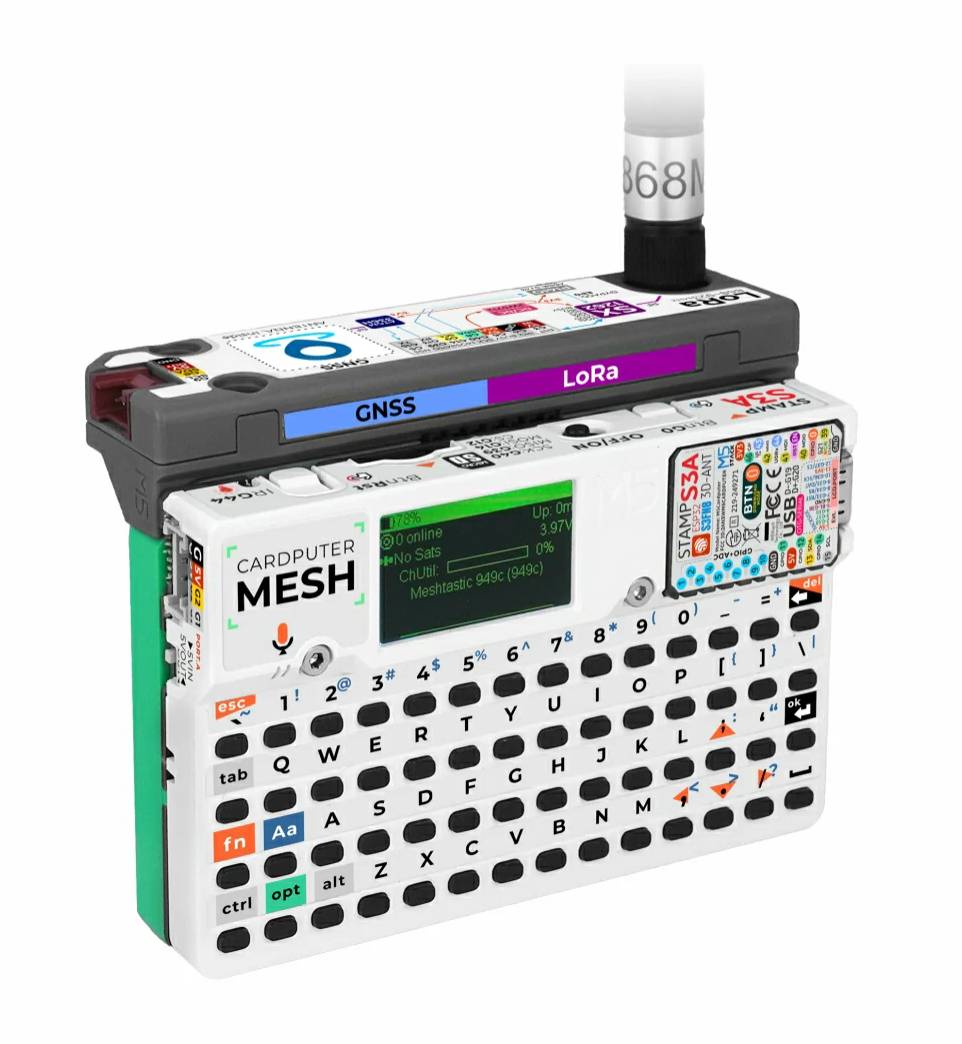

Cardputer Mesh Kit for Meshtastic - Portable LoRa Mesh Computer with GPS - M5Stamp S3A - ESP32-S3FN8 - M5Stack K152.

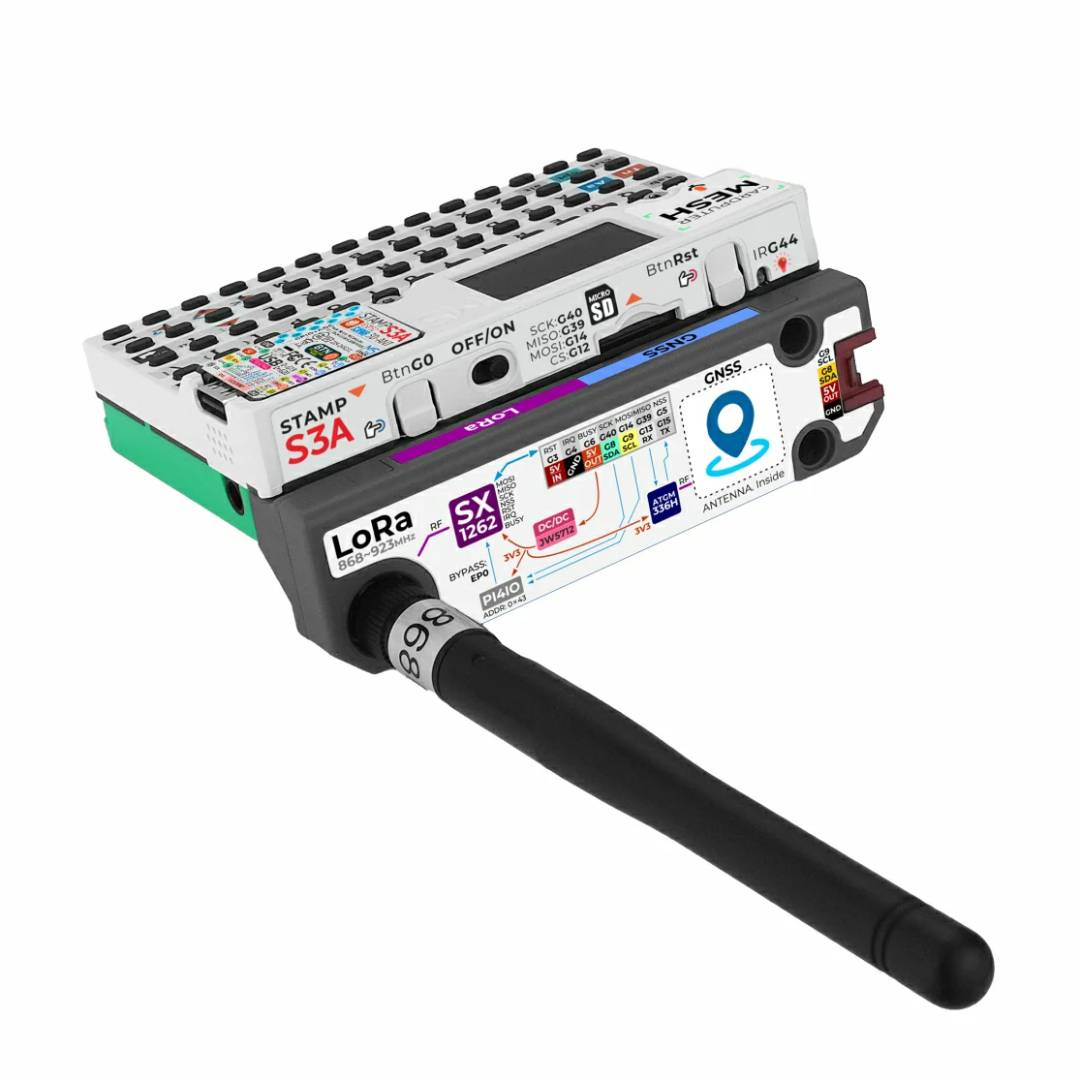

The kit consists of a Cardputer-Adv controller and a Cap LoRa-1262 communication expansion module .
Main Features of the Cardputer Mesh Kit for Meshtastic
- ESP32-S3FN8 : Xtensa LX7 dual-core microcontroller clocked at up to 240 MHz
- Pre-installed Meshtastic : ready to go, no additional configuration required
- LoRa communication : SX1262 chip operating in the 868 MHz to 923 MHz band
- High receiver sensitivity : up to -147 dBm for long-range communication
- Transmitting power up to +22 dBm : stable transmission in large mesh networks
- Built-in GNSS module : supports GPS, QZSS, BeiDou, Galileo and GLONASS
- 1.14'' color LCD display : 240 x 135 px resolution
- 56-key keyboard : convenient data entry and device operation
- Audio system : ES8311 codec, MEMS microphone, 1W speaker and 3.5mm audio output
- 1750 mAh battery : mobile operation without external power supply
- microSD card reader : expand storage
- BMI270 6-axis IMU sensor : motion and orientation measurement
- Compatibility with Arduino, ESP-IDF, PlatformIO and UiFlow2 : extensive programming possibilities

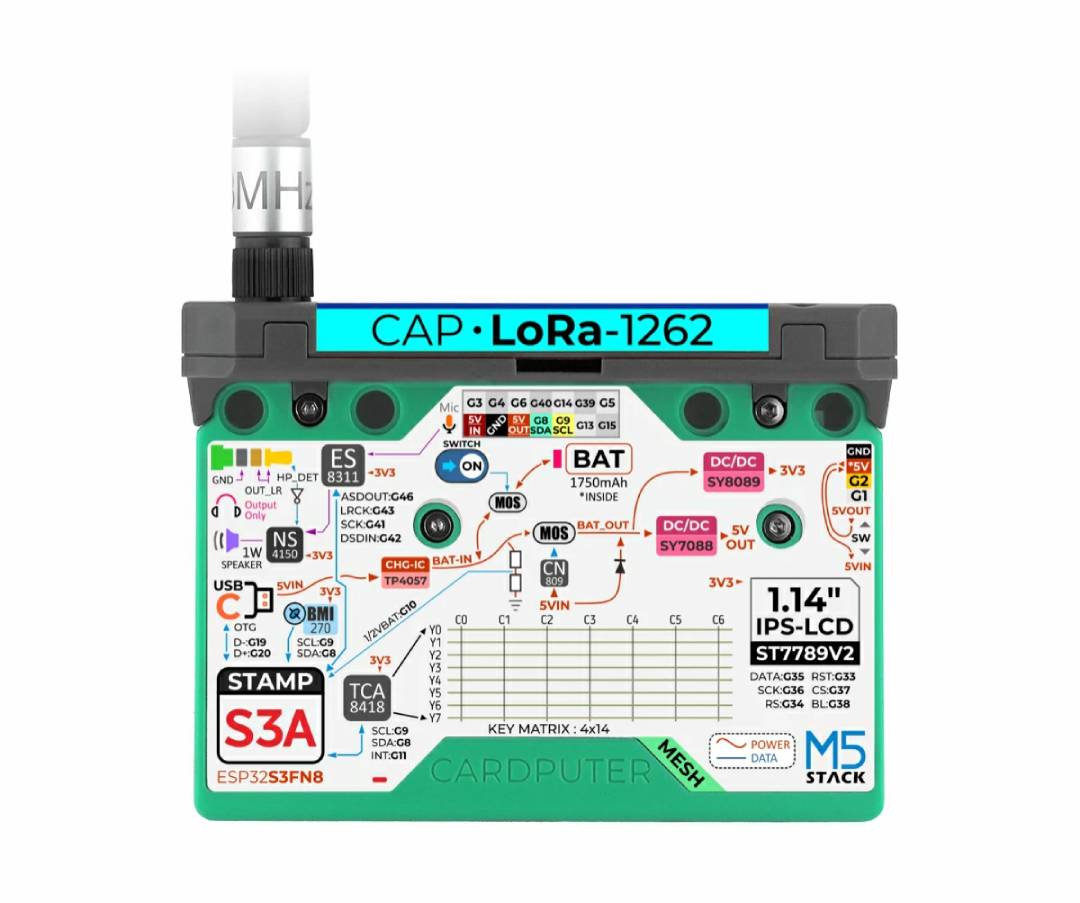

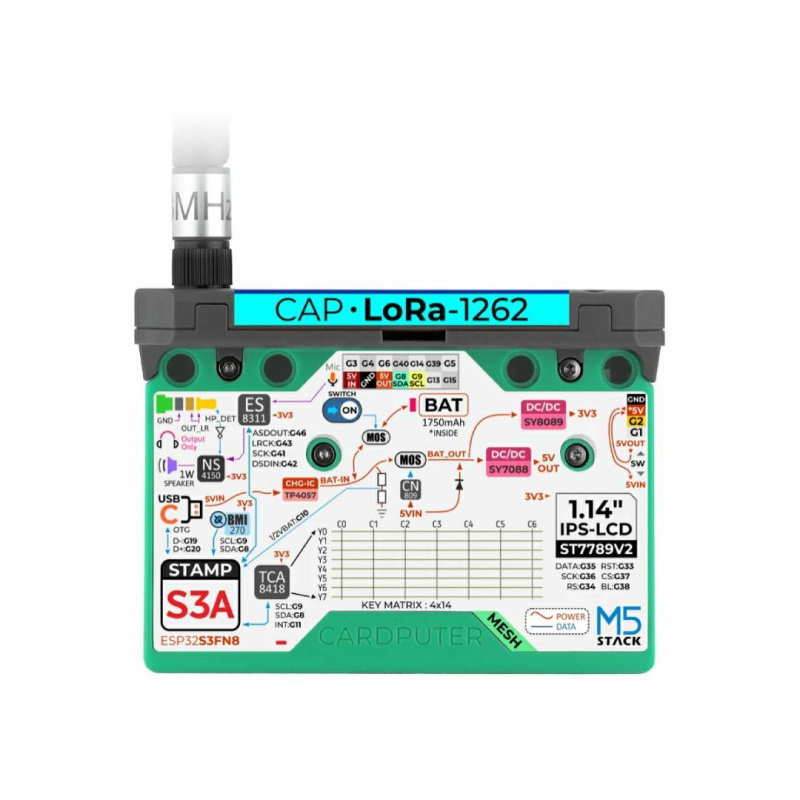

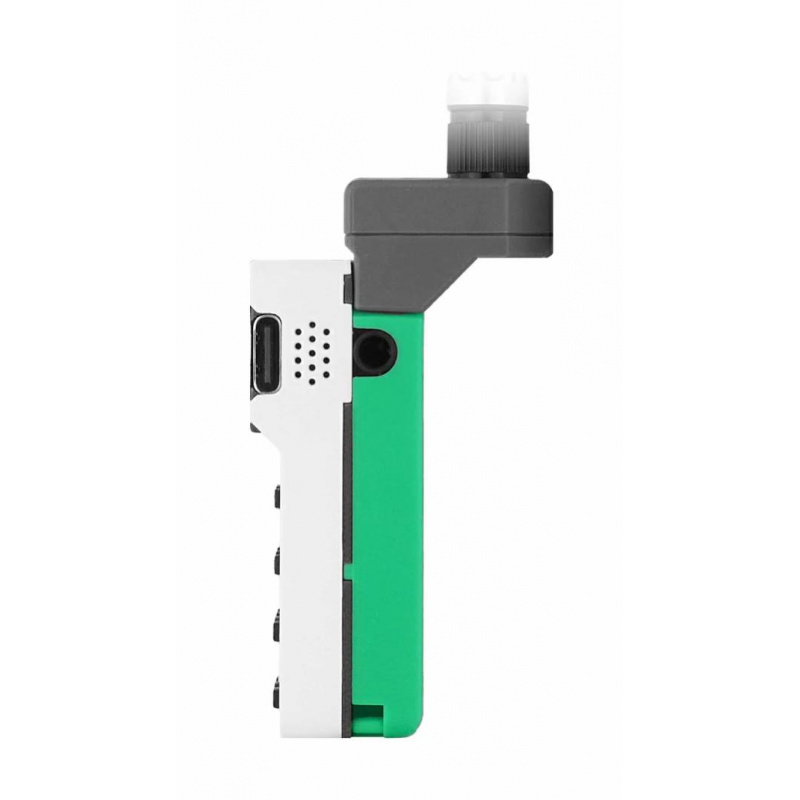

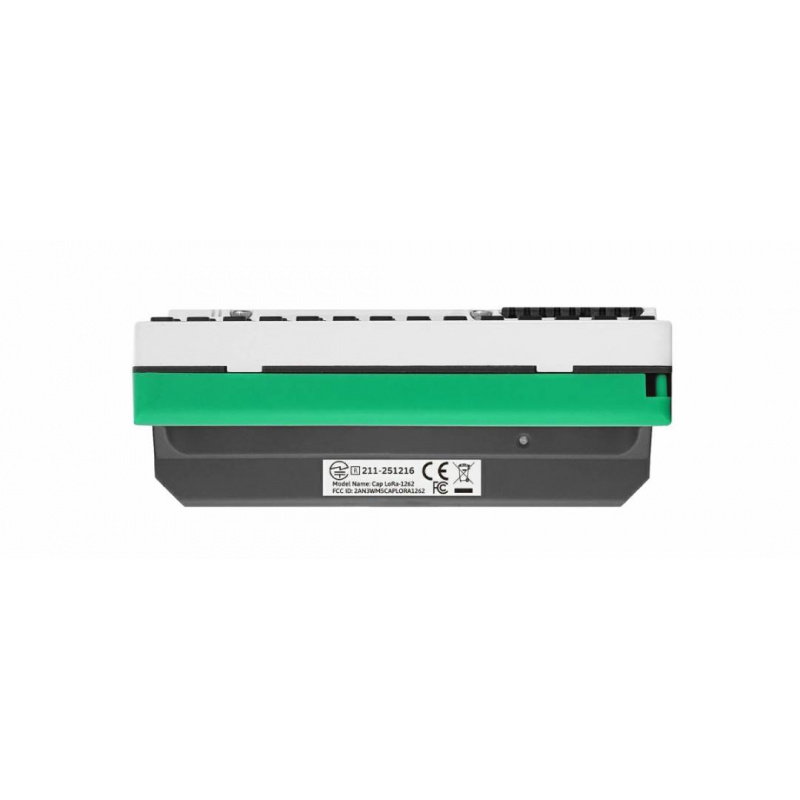

Pinout and Connectivity in Cardputer Mesh Kit

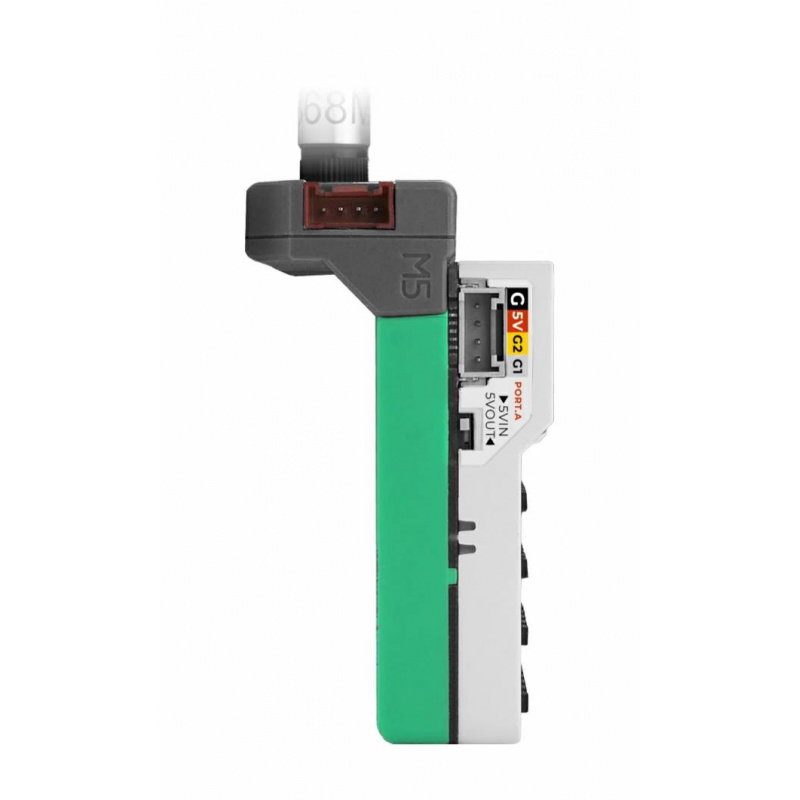

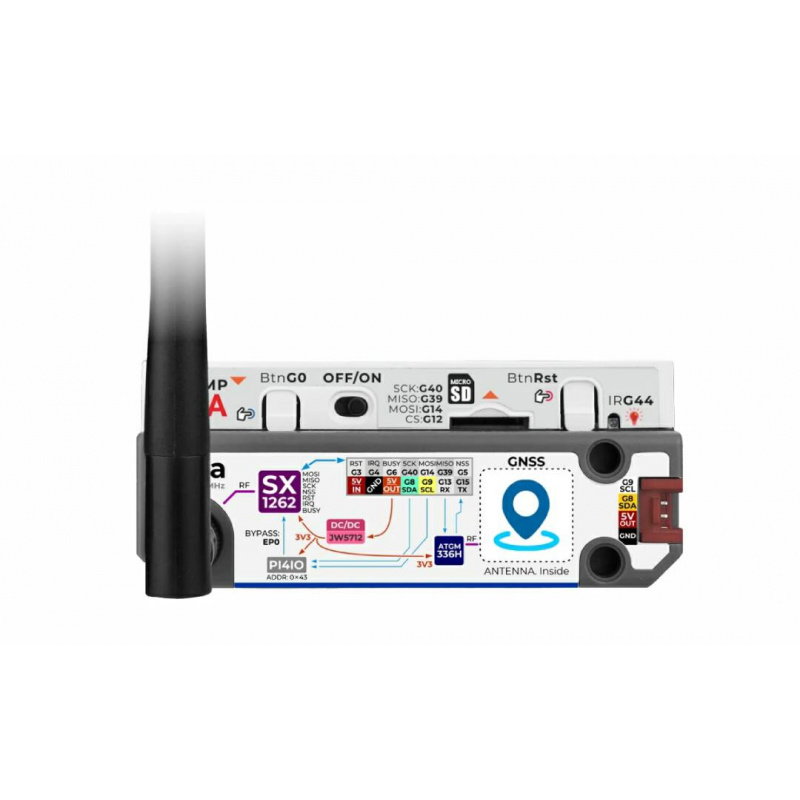

The kit is equipped with an HY2.0-4P Grove interface and an EXT 2.54-14P expansion bus , enabling the connection of additional modules, sensors, and peripherals. The LoRa-1262 Cap communicates with the controller via SPI, UART, and I2C buses, ensuring full integration of radio and positioning functions. The LoRa module uses an external RP-SMA antenna with 3 dBi gain , ensuring stable communication in Mesh networks. An additional HY2.0-4P port on the LoRa module allows for easy connection of additional sensors without the need to design your own electronics.

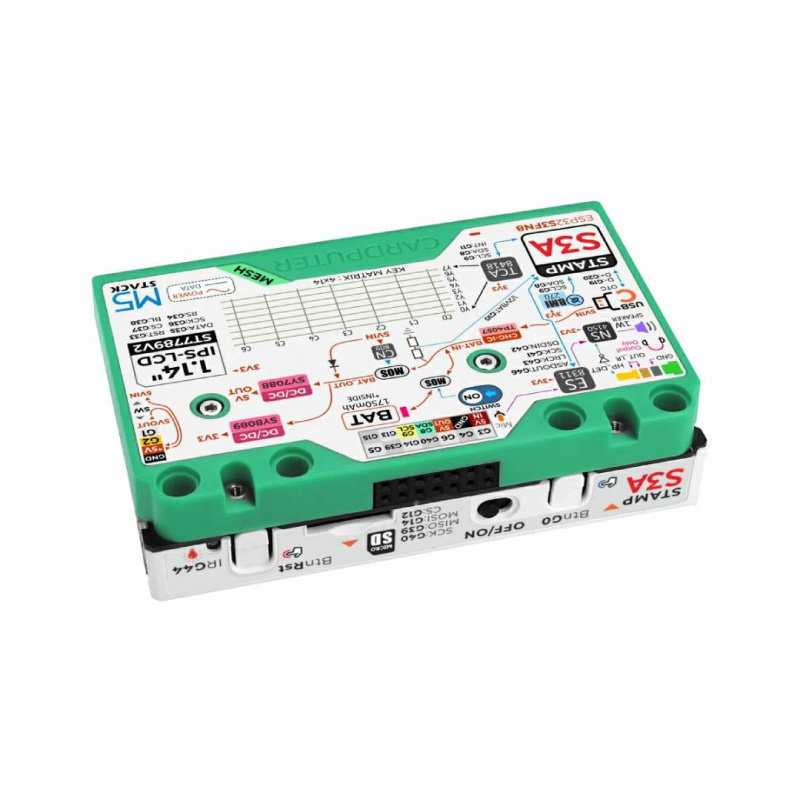

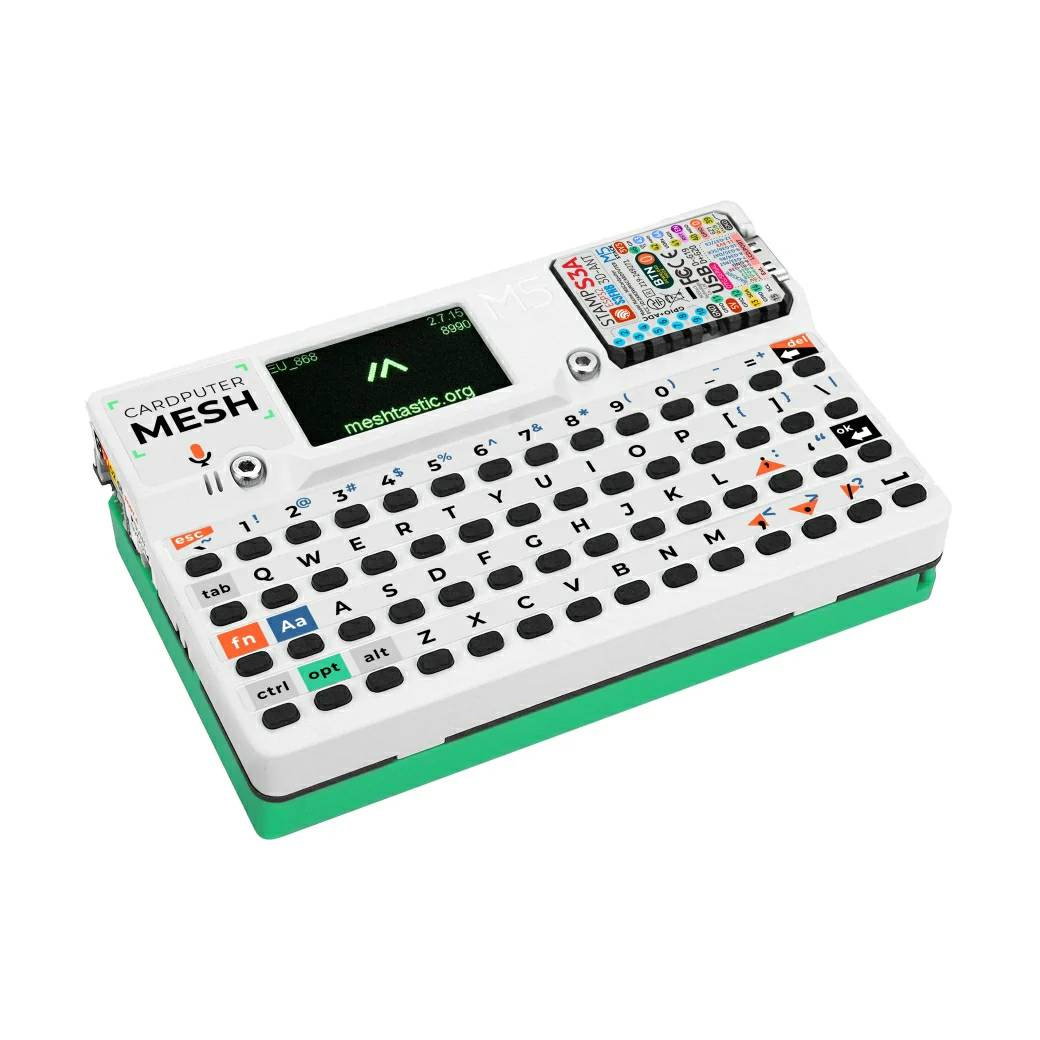

Cardputer-Adv is built on the Stamp-S3A module.

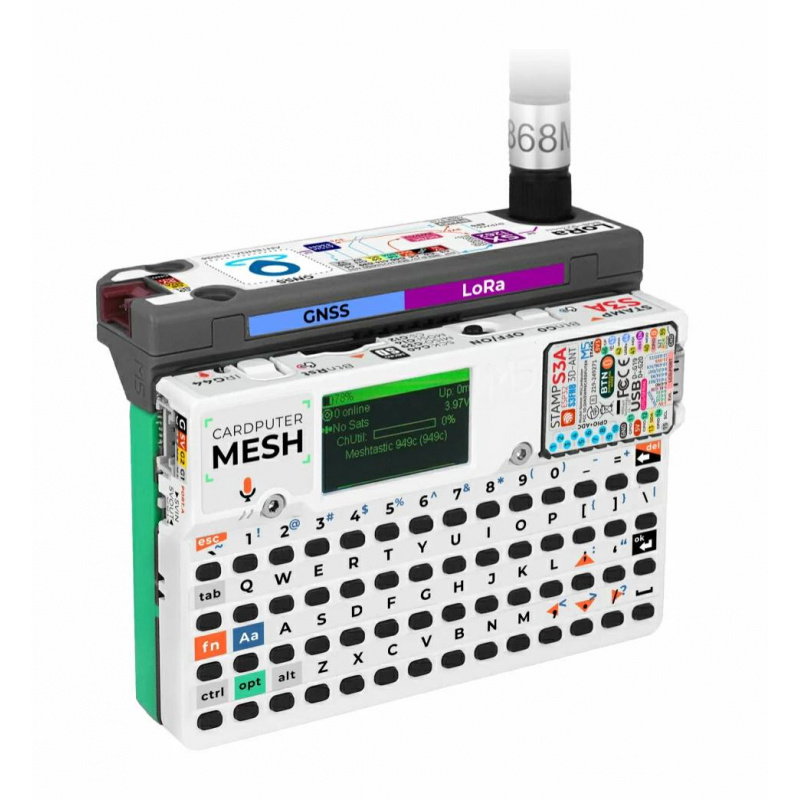

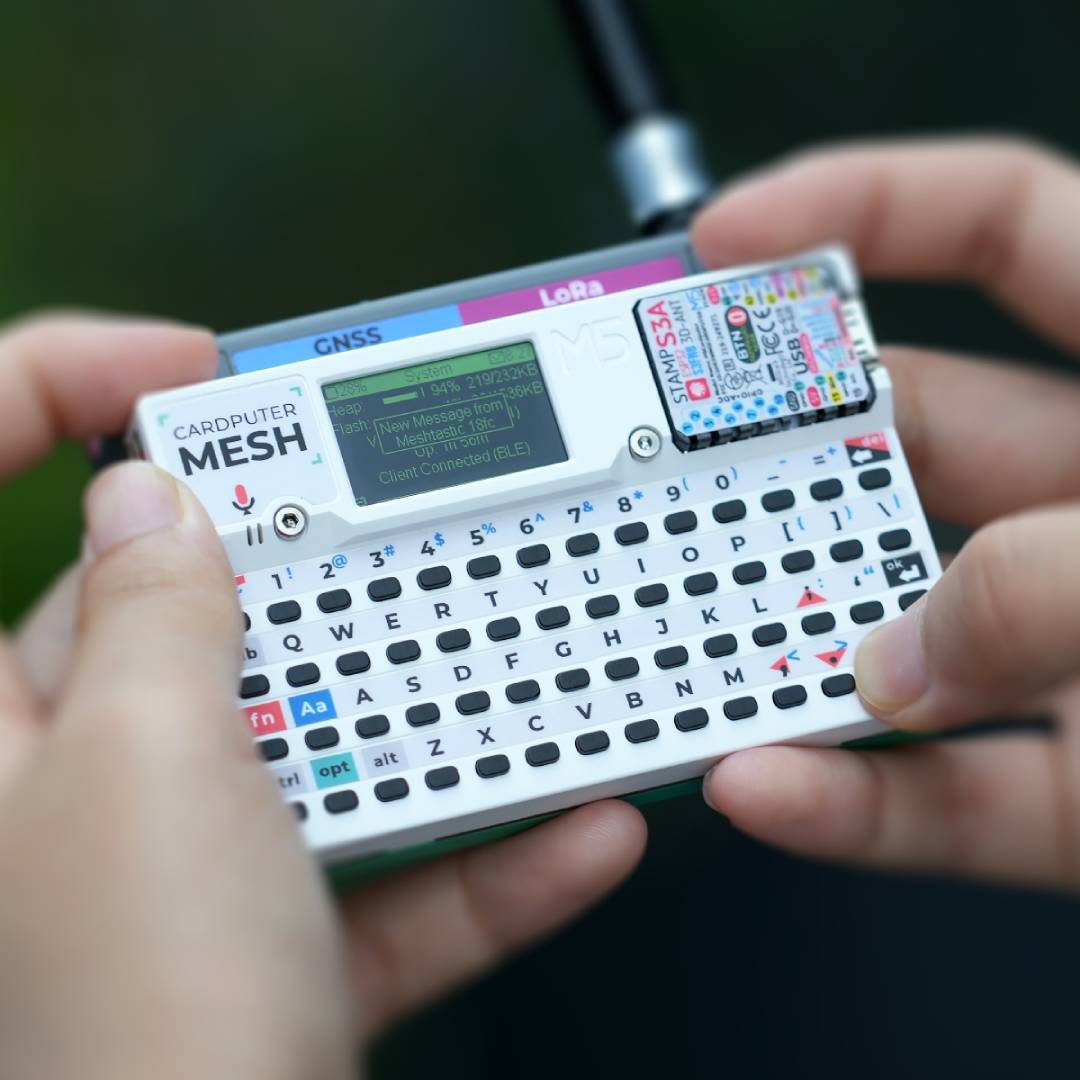

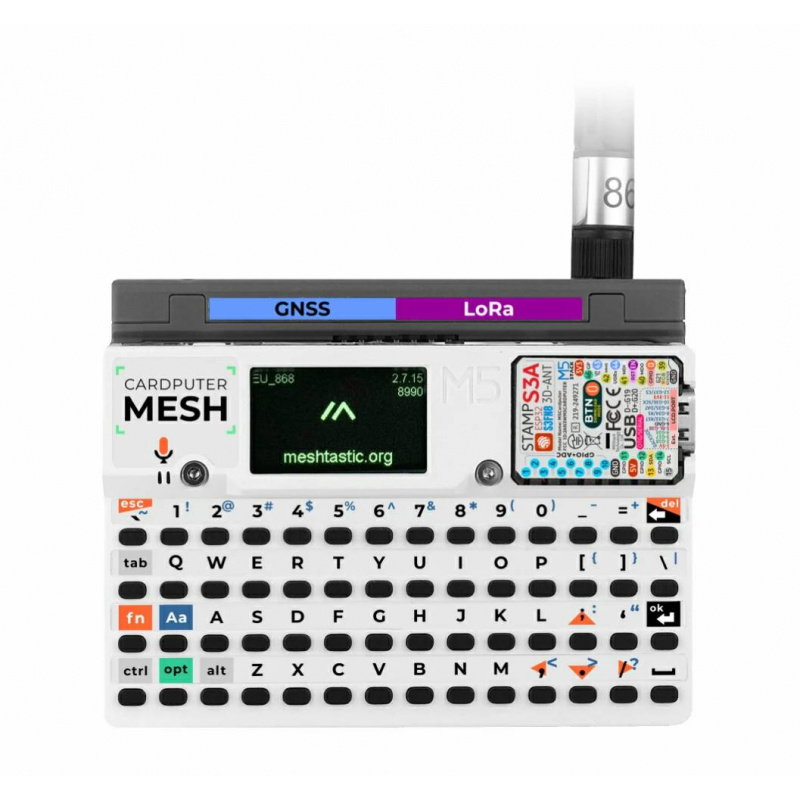

The 1.14-inch LCD screen and 56-key compact keyboard provide convenient information display and command entry.
Programming and project development with ESP32-S3
The Cardputer Mesh Kit is designed for both beginners and advanced programmers. The manufacturer provides libraries and examples for the Arduino IDE, ESP-IDF, PlatformIO, and the UiFlow2 graphical environment . This allows you to quickly get started, regardless of your preferred programming method. The ESP32-S3 platform offers support for Wi-Fi and Bluetooth wireless communication, as well as a rich set of hardware interfaces. The available RadioLib and TinyGPSPlus libraries allow you to easily create your own applications using LoRa communication, GPS location, telemetry, and object monitoring and tracking systems.
Contents of the set
- 1x Cardputer-Adv in green case version
- 1x Cap LoRa-1262
- 1x LoRa Rubber Duck Antenna with RP-SMA Connector
- 2x M2 x 4mm screw
- 1x Allen key 1.5 mm
- 1x Warning sticker
The Cardputer Mesh Kit comes pre-installed with Meshtastic firmware.
| Technical Specifications of the Cardputer Mesh Kit for Meshtastic | |
|---|---|
| SoC | ESP32-S3FN8, Dual-Core Xtensa LX7 up to 240 MHz |
| Flash memory | 8 MB |
| External memory | microSD |
| Display | ST7789V2 1.14'', 240 x 135 px |
| Keyboard | 56 keys, 4 x 14 layout, 160 gf actuation force |
| Extension interfaces | HY2.0-4P Grove, EXT 2.54-14P |
| IR | 1x infrared emitter (IR) |
| Audio | ES8311 codec, NS4150B amplifier, 8 Ω 1 W speaker, MEMS microphone |
| IMU | BMI270 |
| Battery | 1750 mAh |
| Operating temperature | from 0°C to 40°C |
| Cardputer-Adv operating current | DC 4.2V @ 120.2mA |
| LoRa module | SX1262 |
| LoRa band | from 868 MHz to 923 MHz |
| LoRa throughput | up to 300 kb/s |
| LoRa transmitting power | +22 dBm |
| LoRa receiver sensitivity | -147 dBm |
| LoRa antenna | RP-SMA, 3 dBi, 108 x 9.3 mm |
| Supported modulations | FSK, GFSK, MSK, LoRa, OOK |
| GNSS module | ATGM336H-6N @ AT6668 |
| GPS interface | UART, default 115200 bps @ 8N1 |
| Supported GNSS systems | GPS, QZSS, BD2, BD3, GAL, GLO |
| Number of GPS channels | 50 |
| GPS positioning accuracy | < 1.5 m CEP50 |
| GPS update frequency | up to 10 Hz |
| Time of first position fix | cold start 23 s, hot start 1 s |
| Cardputer-Adv Dimensions | 84 x 54 x 19.6 mm |
| Dimensions of Cap LoRa-1262 | 84 x 24 x 15.2 mm |
| Mass | 77.2 g |
