Product description: Cardputer Accessory Kit v1.1 - repair kit for Cardputer - M5StampS3A + 1.14'' display - M5Stack A145-V033

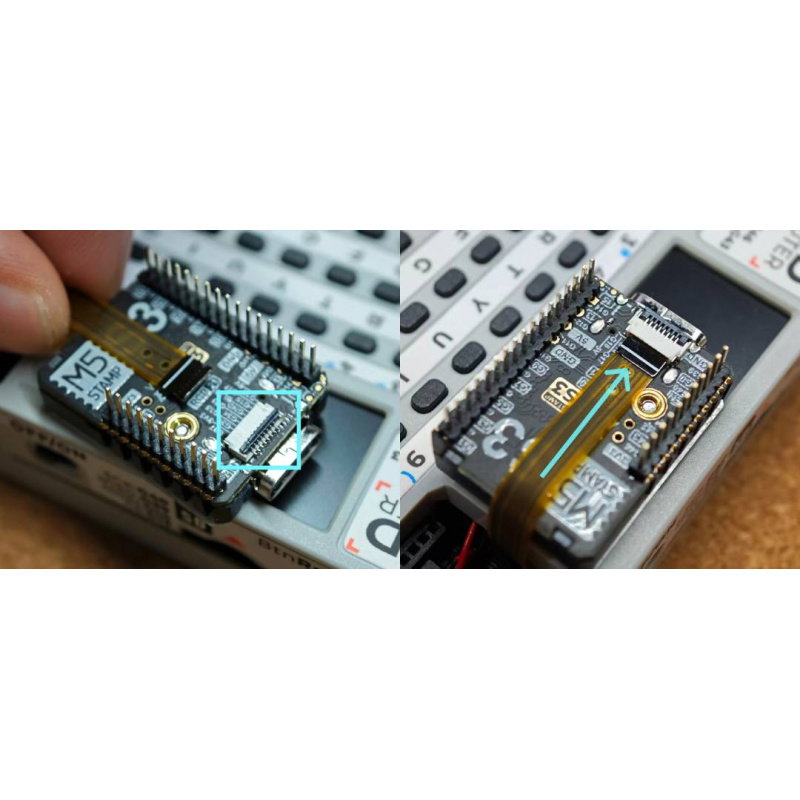

The M5Stack Cardputer Accessory Kit v1.1 was designed for DIY repairs of Cardputer v1.1 and Cardputer-Adv computers . The kit allows you to replace key components in the event of bent or broken pins on the Stamp-S3A module connector, or a damaged or disconnected display FPC connector. The kit includes a new Stamp-S3A controller and a 1.14" ST7789V2 display . The manufacturer also includes a 1.5mm Allen key for M2 screws and a sticker for easy pin identification . The available documentation includes instructions for replacing components. When connecting the Stamp-S3A module , pay special attention to the correct orientation of the FPC connector .
Cardputer Repair Kit Technical Specifications
- Compatibility: Cardputer v1.1 and Cardputer-Adv

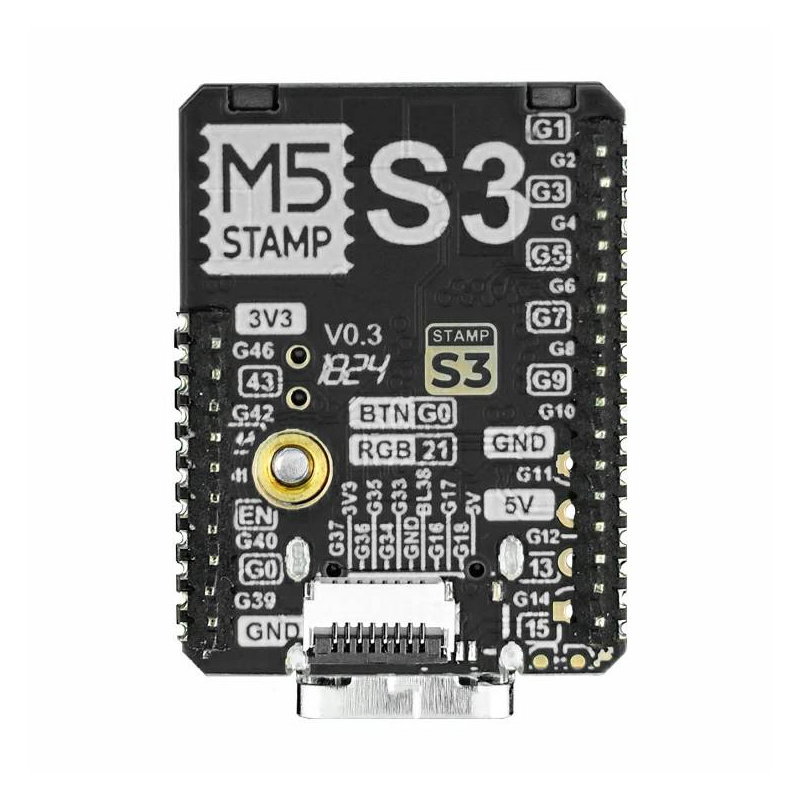

- Control Module: Stamp-S3A
- Display: ST7789V2
- Display diagonal: 1.14''
- Allen key: 1.5 mm

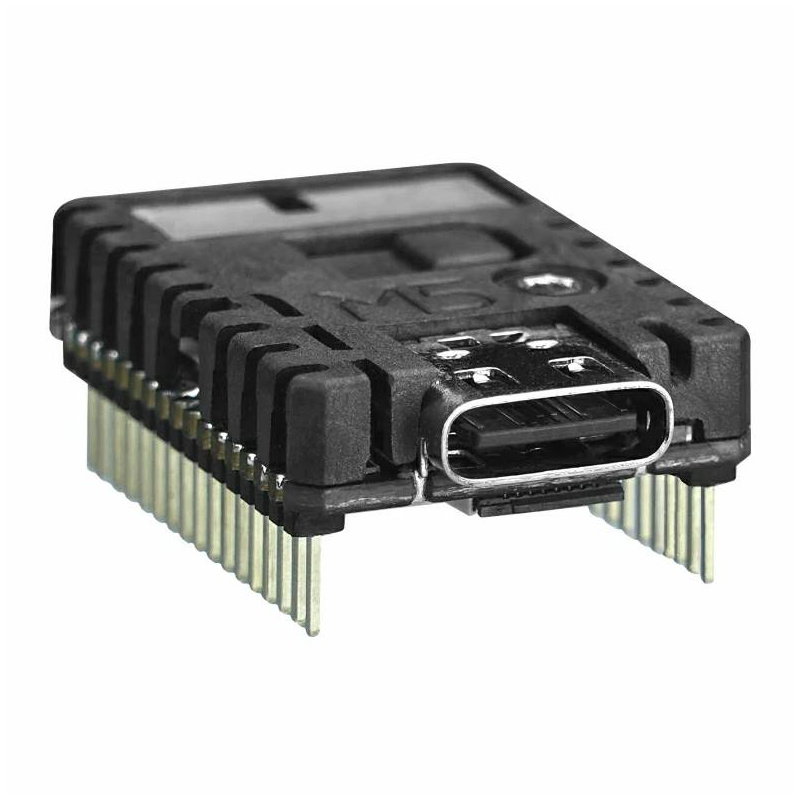

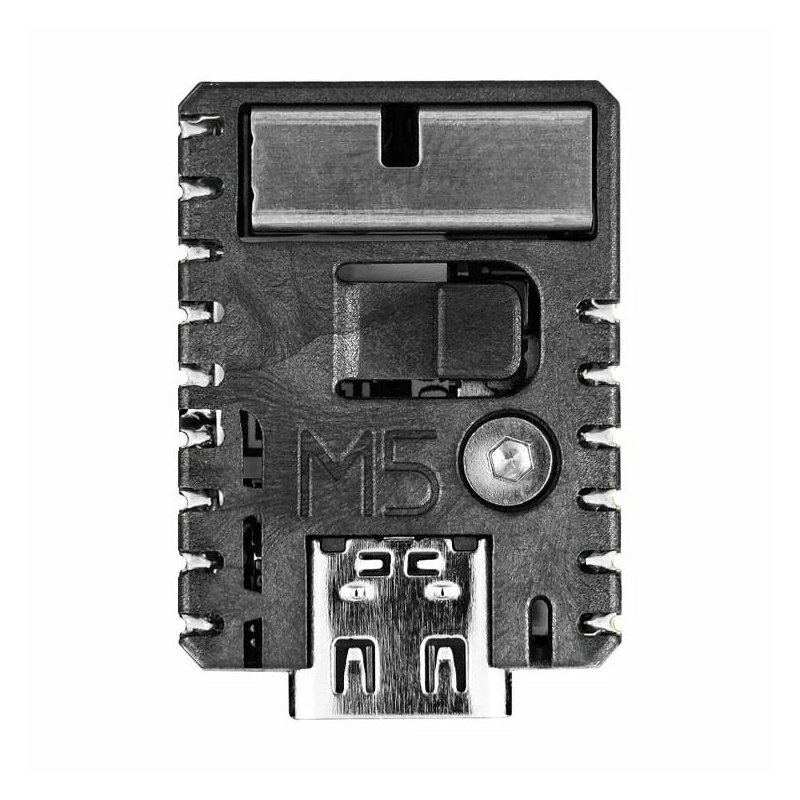

- Stamp-S3A module dimensions: 26 x 18 x 4.7 mm
- Display dimensions: 17.6 x 31 x 1.6 mm
- Stamp-S3A module weight: 3.4 g
- Display weight: 1.7 g

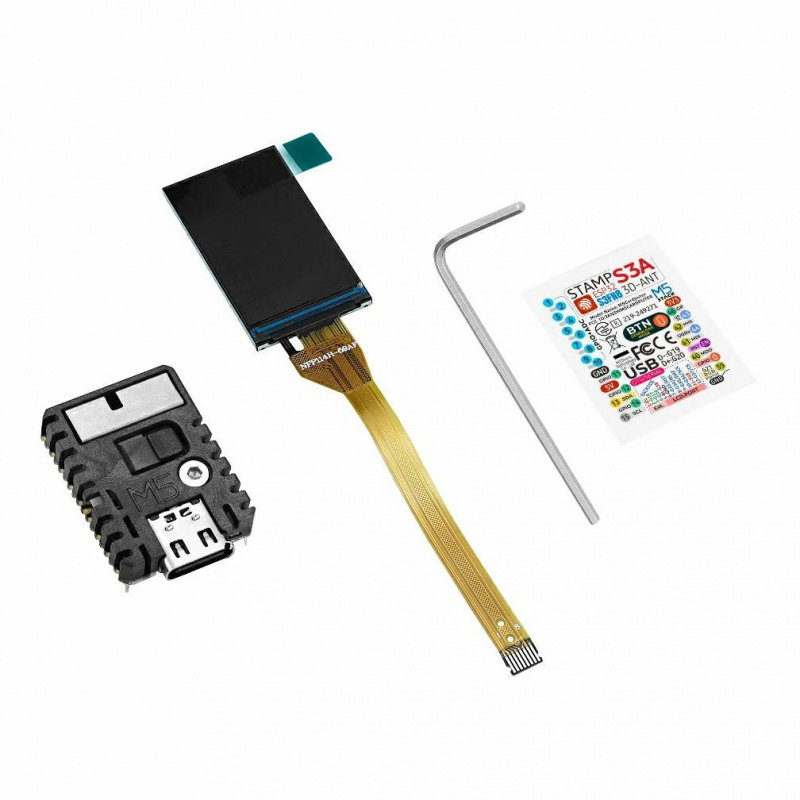

Kit contents
- 1x Stamp-S3A Module
- 1x ST7789V2 1.14'' display
- 1x L-shaped Allen key 1.5 mm for M2 screws
- 1x Pin Marking Sticker
