Product description: M5Stamp - I / O expansion module - M5Stack S002
M5Stamp - I / O expansion module from M5Stack increases the number of pins by 8 inputs / outputs in the main module. It is based on the STM32F030 chip, and uses the I2C interface for communication. Each digital input / output can be freely configured as ADC, servo / LED RGB interface. It can be used for multi-channel digital / analog signal acquisition and LED lighting / servo control applications.

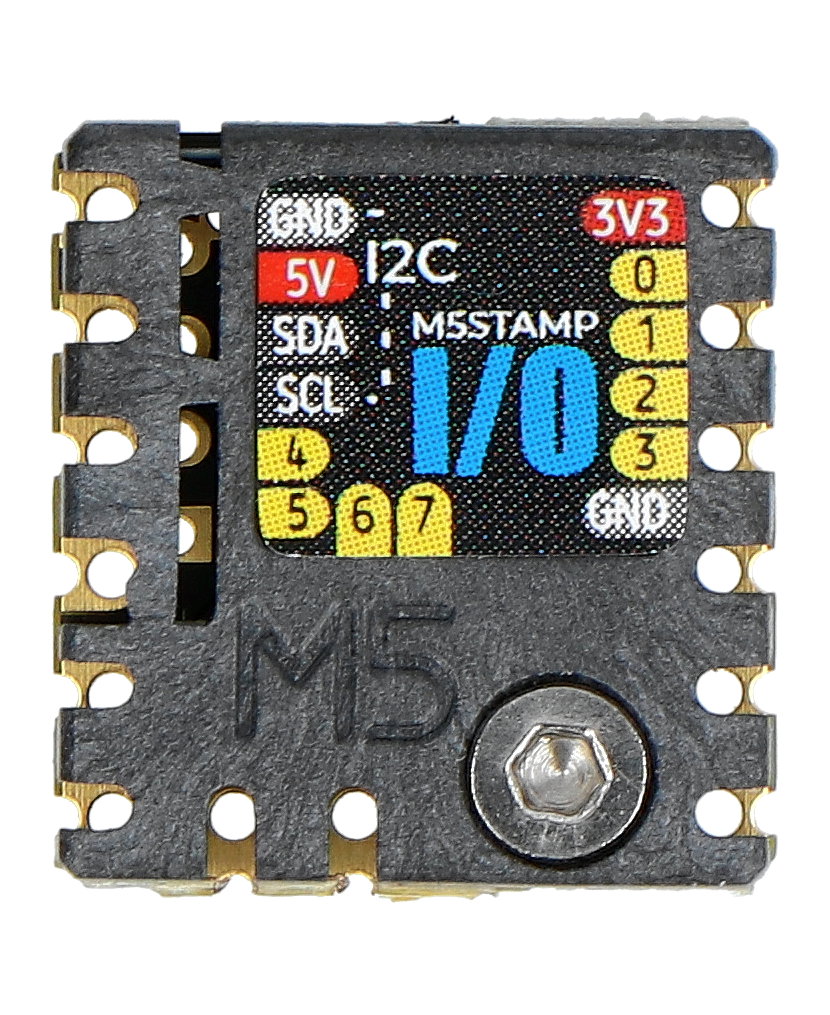

M5Stamp - I / O expansion module - M5Stack S002.

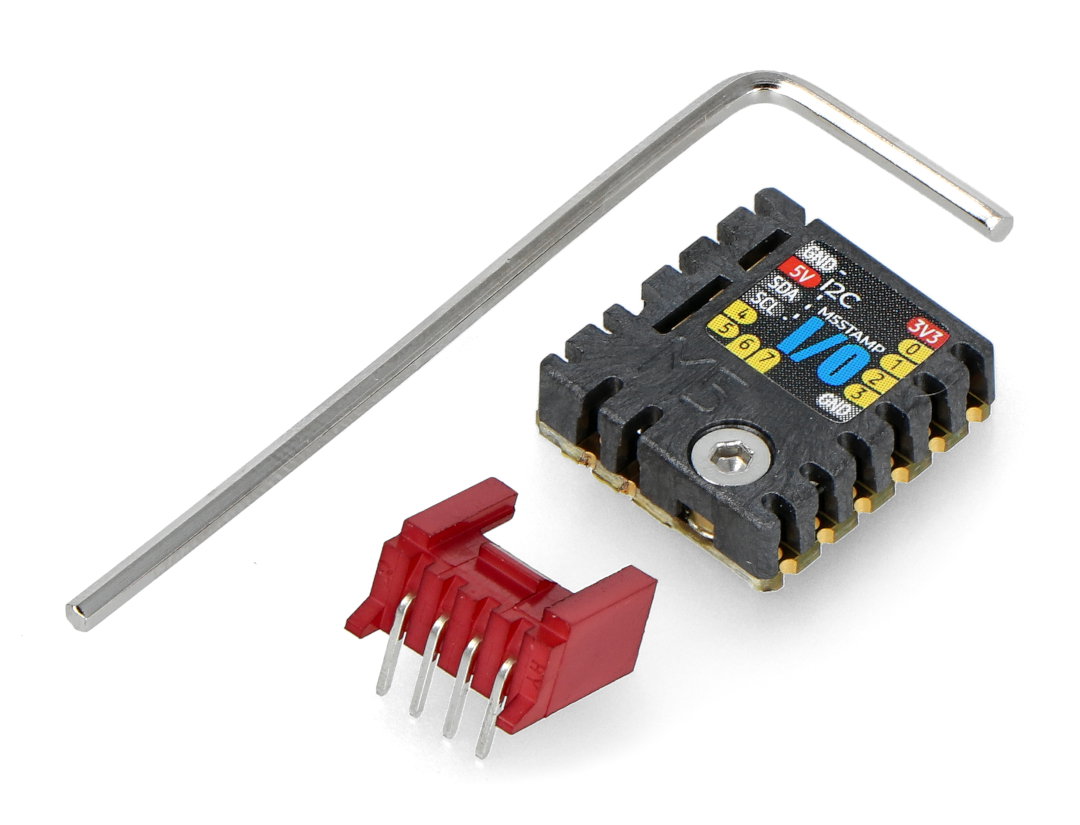

M5Stamp - I / O expansion module - M5Stack - kit.
Product features
- 8-channel expansion of inputs and outputs
- Digital input / output
- ADC input
- SERVO control (PWM)
- RGB LED control
- Supports I2C address configuration
- Three types of connection are possible (SMT, DIP, wired)
- Peak temperature: 230 ° C
Set contains
- 1x M5Stamp - extended IO module - M5Stack - SKU: S002
- 1x HY2.0-4P female connector (red)
- 1x 1.5mm hex key
Technical Specifications
- Microcontroller: STM32F030
- I2C address: 0x45
- Number of IO extensions: 8
- IO support mode: Digital IO, ADC, SERVO control, RGB LED control
- Power supply: 3.3 V
- Peak temperature: 230 ° C
- Dimensions: 15 x 4.7 x 16 mm
- Weight: 2.5 g

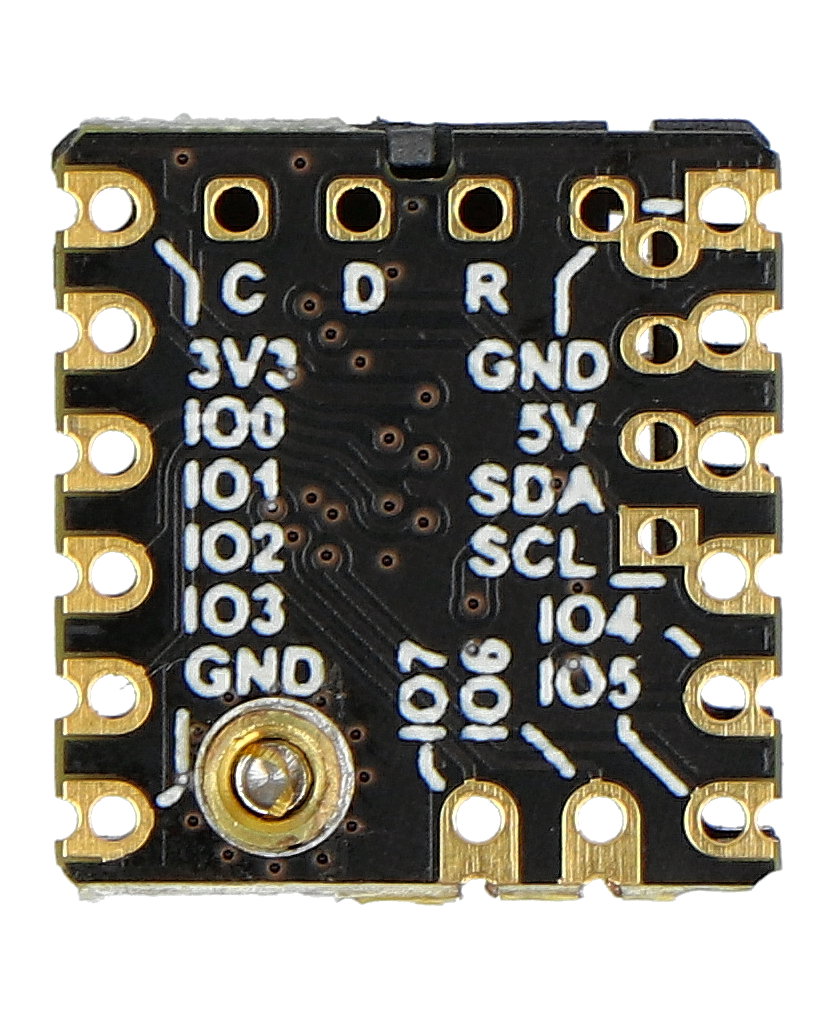

M5Stamp - I / O expansion module - M5Stack - rear view .
