Product description: M5Stamp Timer Power - power control module - BM8563 - M5Stack S005
M5Stamp Timer Power is a module manufactured by the M5Stack company that allows remote power control of connected modules. It allows for switching on and off declared by software or manually (by means of a button located in the central part of the board). It has a built-in RTC real-time clock and BM8563 chip. M5Stamp Timer Power is also equipped with the TP4057 system, which is responsible for powering the connected components. The module is used in the implementation of broadly understood Smart Home and IoT applications. With its help, you can make projects such as a low-power time-lapse camera or a battery-operated doorbell. It can also be a power supply for components that do not require large amounts of energy.
The manufacturer has also prepared a detailed user's guide , which includes, among other things, a description of the pins and sample program code.

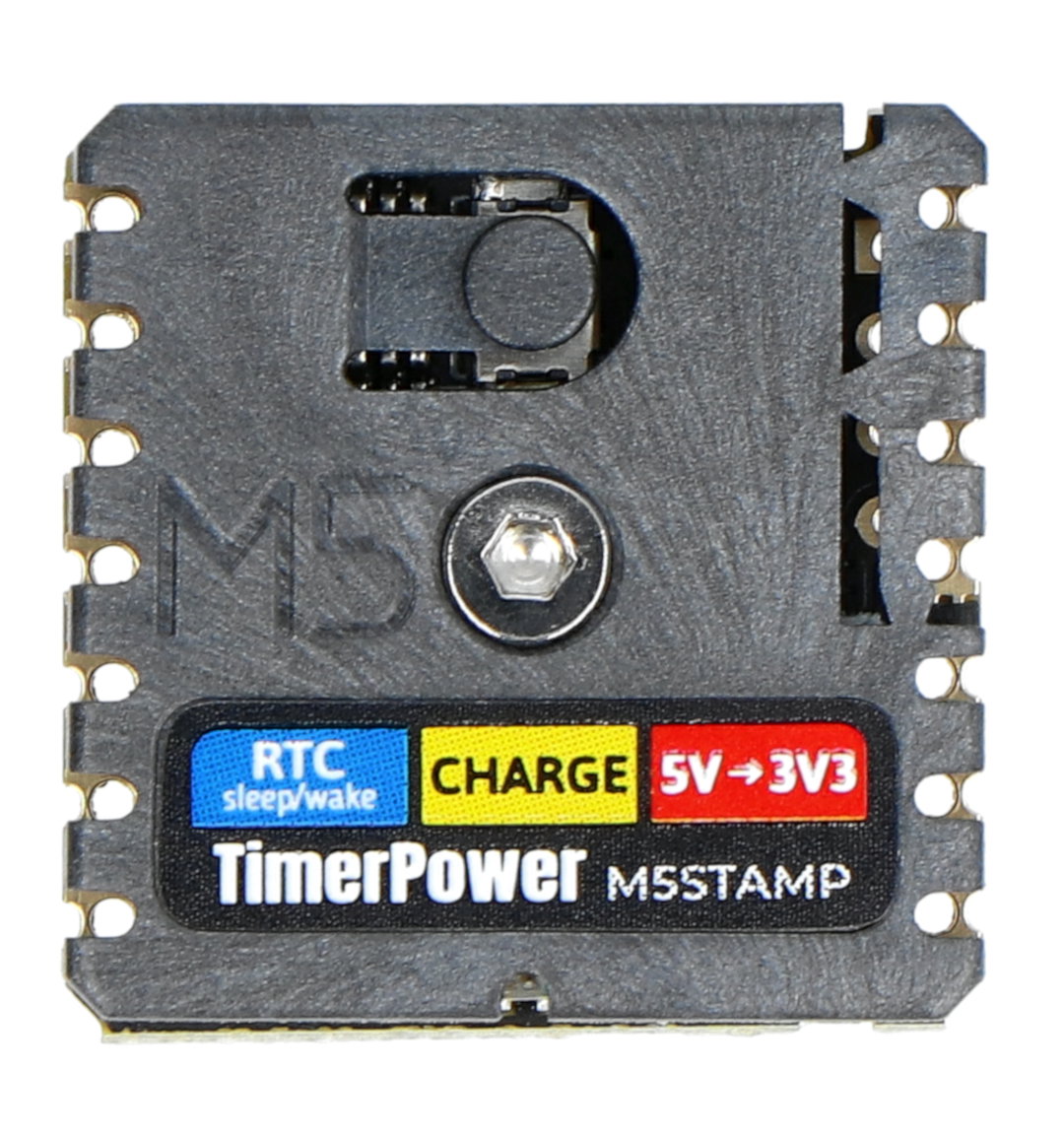

M5Stamp Timer Power - power control module - BM8563 - M5Stack S005.

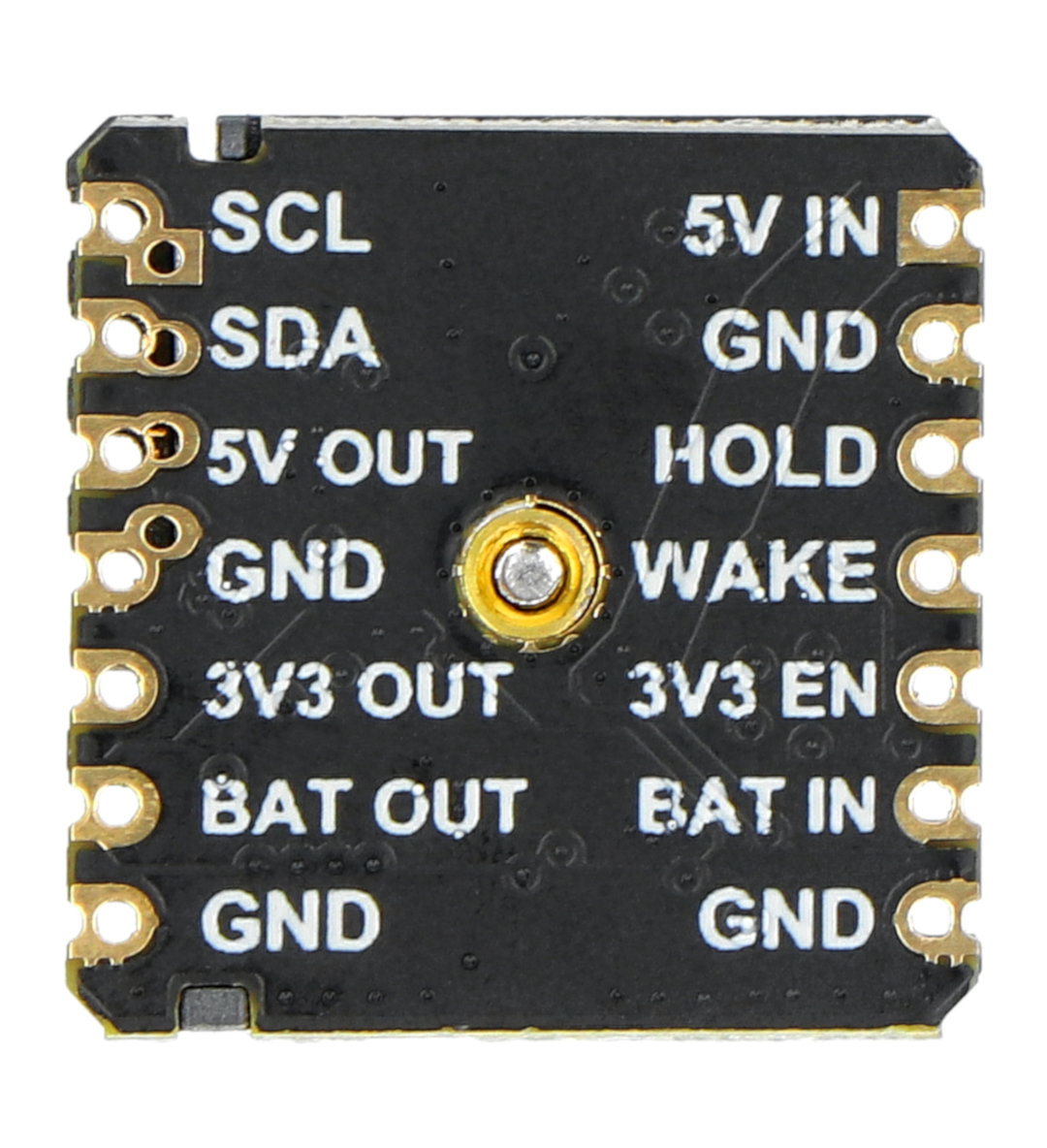

All the pins of the module are described on the back of the board.
Special features of the module
- Multi-IO lead, support SMT, DIP, flying wire
- Manual or software controlled wake up or hibernation
- Built-in DC - DC 5 V to 3.3 V voltage converter
M5 Stamp Timer Power technical specification
- Built-in RTC chip: BM8563
- Built-in power chip: TP4057
- Communication interface: I2C bus
- Interface address:
- default: 0x51
- record: 0xA2
- reading: 0xA3
- Pin pitch: 2.54 mm
- Operating temperature: 0°C to 60°C
- Module dimensions: 20 x 20 x 5 mm
- Weight: 2.6g
Kit contents
- M5Stamp Timer Power - power control module - BM8563 - 1 piece
- HY2.0 4 pin connector - 1 piece
- Allen key - 1 piece

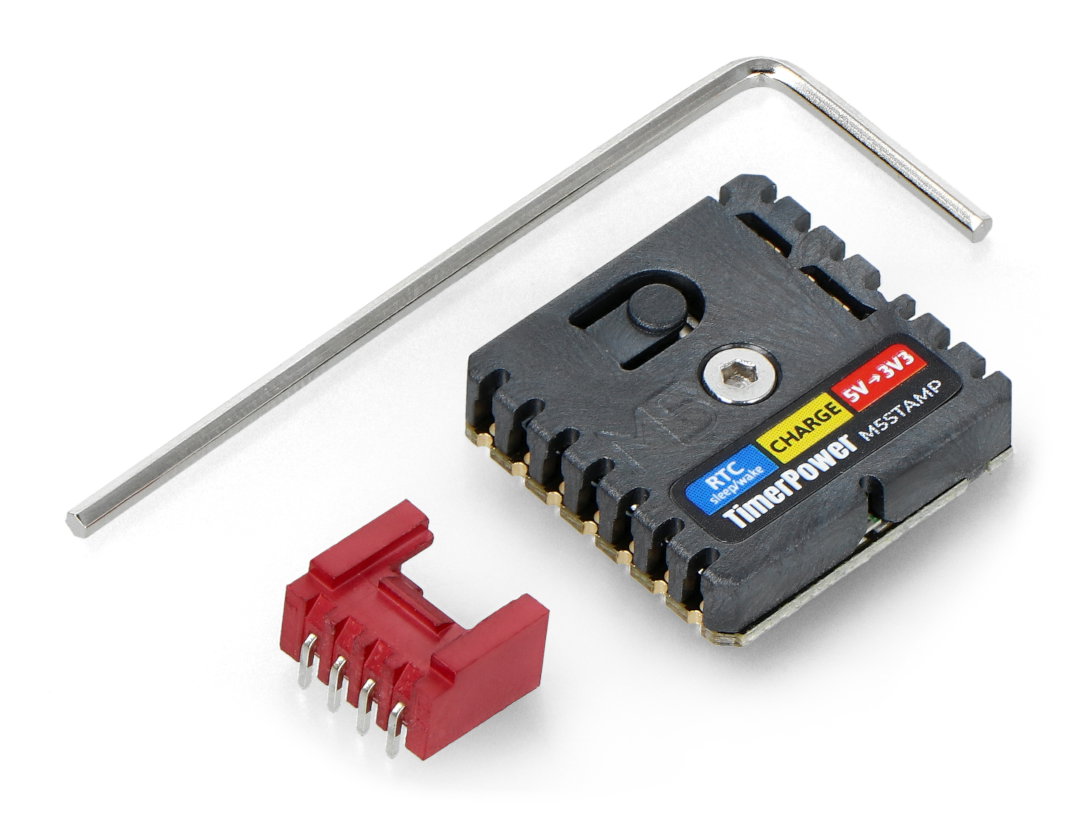

Components included in the set.
