Product description: LED Sequins - LEDs - Royal Blue - 5 pcs - Adafruit 1757
The set consists of 5 miniature Royal Blue LED modules, which will work well as creative lighting elements for clothing or everyday items. Each LED module requires connection to a power source with a voltage of 3.3 V to 6 V to the "+" pin and connecting ground to the "-" pin. It is also possible to power the modules using a Li-Pol battery or a CR2032 coin cell battery. The modules can also be connected to microcontrollers such as Adafruit Gemma or Flora to achieve advanced lighting effects, such as flickering or dimming. At 3.3V, each diode consumes approximately 5mA, allowing up to 4 or 5 diodes to be connected in parallel to a single microcontroller pin. The modules are available on a strip from which they can be easily separated as needed.

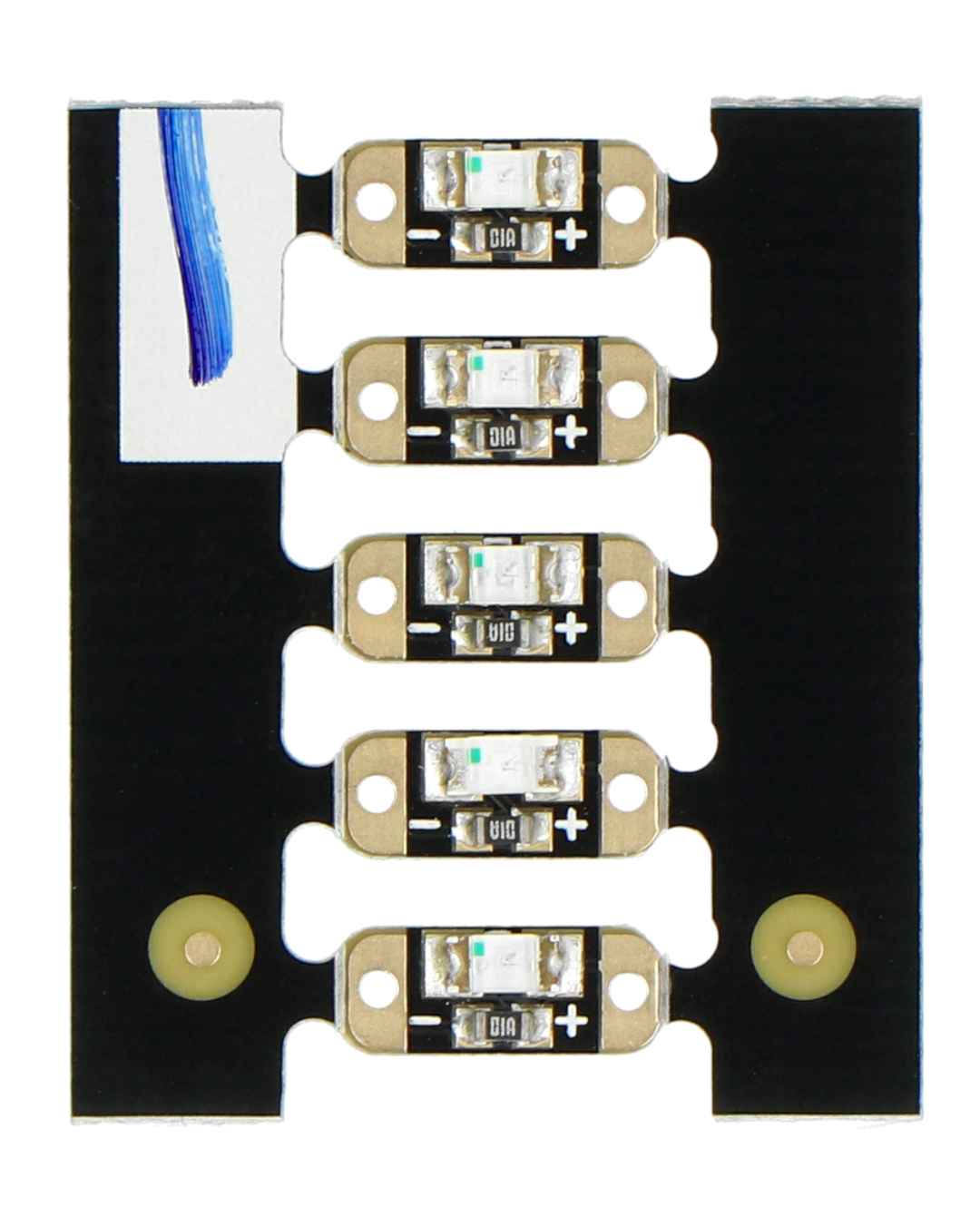

LED Sequins - LEDs - Royal Blue - 5 pcs. - Adafruit 1757.

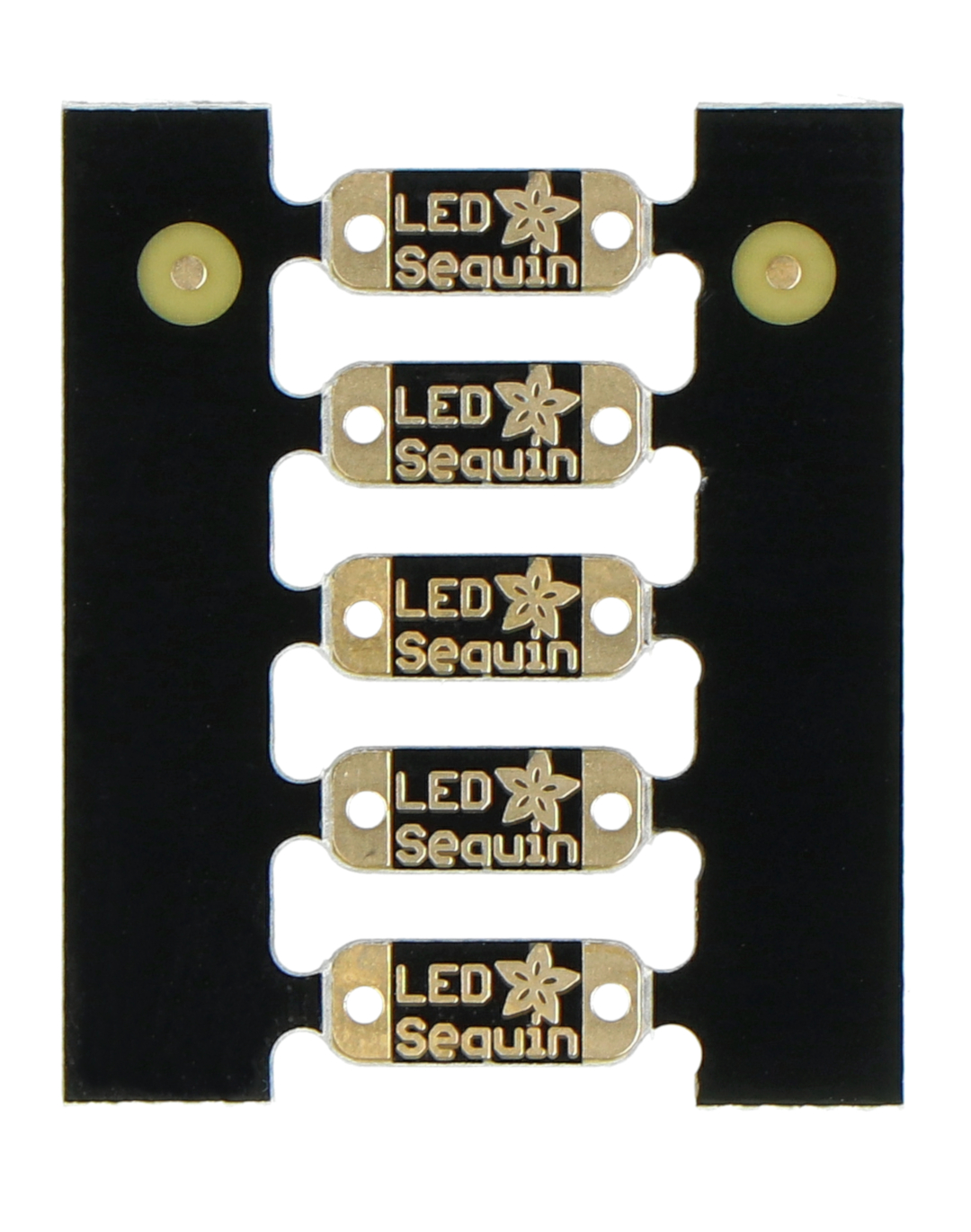

There are 5 LEDs on the strip.
LED Sequins technical specifications
- Producer: Adafruit
- Module type: LED
- Light color: Royal Blue (blue)
- Supply voltage: 3.3 V to 6 V DC
- Current consumption by one LED: approx. 5 mA
- Number of diodes in the set: 5 pieces
- Spacing of mounting holes: 7 mm
- Dimensions of a single diode: 4 x 9 x 2 mm
