Quick connector with thread M10 for 4mm PTFE tube pipe
Quick connector with thread M10 for 4mm PTFE tube pipe
Quick connector with thread M10 for 4mm PTFE tube pipe
Quick connector with thread M10 for 4mm PTFE tube pipe - zdjęcie 1
Quick connector with thread M10 for 4mm PTFE tube pipe - zdjęcie 2
Quick connector with thread M10 for 4mm PTFE tube pipe - zdjęcie 3

Quick connector with thread M10 for 4mm PTFE tube pipe

Index: AMS-18954 EAN: 5904422355227
Connector PC4M10 which allows you to connect the PTFE tube to the hotend of your 3D printer. It is made of high quality material, which ensures long life of the product. Connector on one side ends with M10 thread, which is used to mount in hotend's body. On the other side, there is a movable plastic groove of a 4mm diameter PTFE tube, whose main task is to transport the filament from the extruder to the 3D printer hotend. The pneumatic quick connector is 18 mm high and 10 mm wide.
€1.43
€1.16 tax excl.

Available
(Check quantity)
Shipping in 24 hours
30-day returns
PayPal payment

Product description: Connector with M10 thread for 4 mm Teflon tube

Connector PC4M10 which allows you to connect the PTFE tube to the3D printerhotend. It is made of high quality material, which ensures long life of the product. On one side, the connector ends withM10 thread, which is used to mount it in the hotend's body. On the other side, there is a movable plastic groove of a4mm diameter PTFEtube, whose main task is to transport thefilamentfrom the extruder to the 3D printer hotend. The pneumatic quick connector is 18 mm high and 10 mm wide.

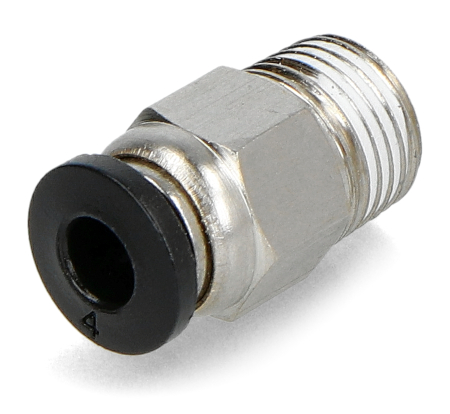

Przedmiotem sprzedaży jest jeden konektor

Offer includsoneconnector (preview photo only)

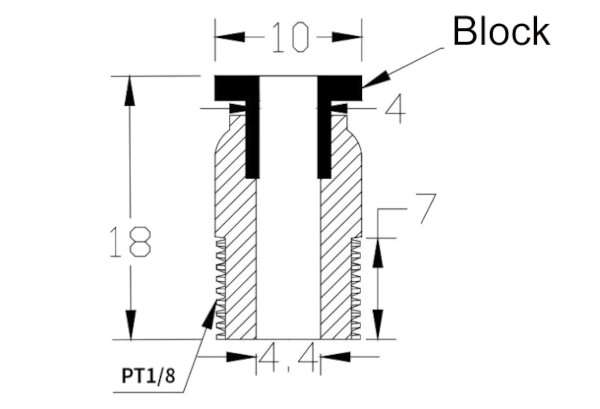

Szczegółowe wymiary konektora

Detailed connector dimensions (in mm).

Specifications of the PC4M10 connector

  • Thread material: metal
  • Material of the key: plastic
  • Total height of the connector: 18 mm
  • Connector total width: 10 mm
  • Thread size (hotend assembly): M10
  • Compatible with PTFE pipes with a diameter of 4 mm

In the offer of our shop you can also find a connector withM6 threadand PTFE pipes with a diameter of 4 mm inwhiteandblue.
