Product Description: Trapezoidal Screw Nut 8mm
Brass nut with flange. Designed for trapezoidal screws with a thread diameter of8mm and pitch of2 mm. The nut flange has four 3.5mm holes. The product is used primarily as a structural element used in3D printersand CNC equipment. When mounted on a trapezoidal screw, it allows linear transmission of loads in two directions at low speed. High quality material from which the nut was made ensures high precision of movement. This allows for better quality 3D prints and more accurateCNC milling.

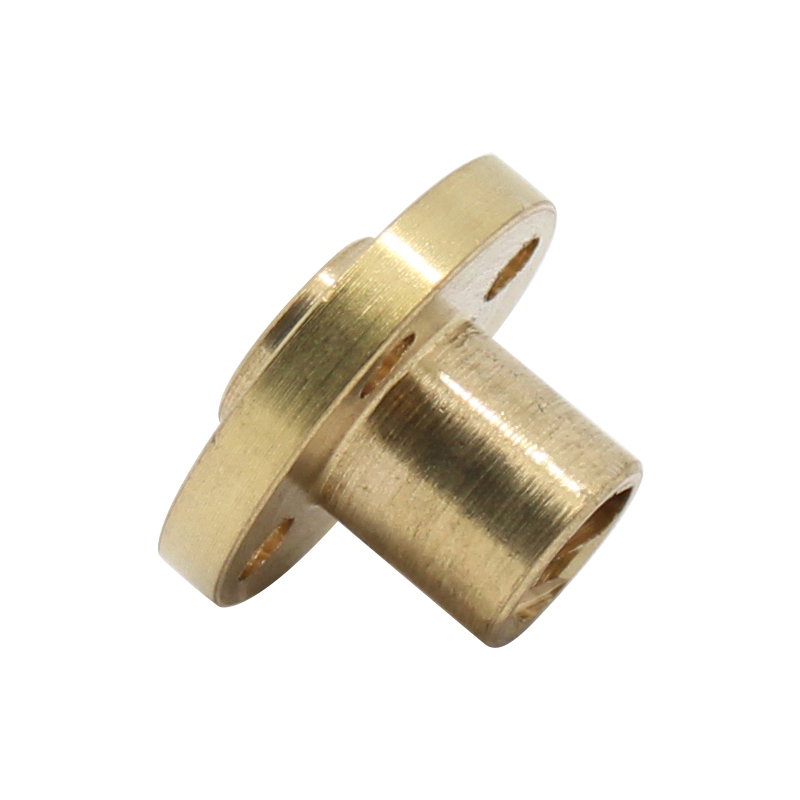

Nutfor trapezoidal screw.
Detailed dimensions of thenut.
Application of the nut
Nuts with flanges for trapezoidal screws are commonly used in devices that require very high precision during operation. They can be found in, among others:
Specifications of the nut
- Manufacturing material: brass
- Compatible with trapezoidal screws with a diameter of 8 mm
- Thread pitch: 2 mm
- Nut flange diameter: 22 mm
- Diameter of mounting holes in the flange: 3.5 mm
