Product description: LM10UU linear bearing for 3D printer
Steel linearbearingused in RepRap3D printers, among others. The bearing is shaped as a sleeve with rows of balls inside. It is used to move elements which move linearly on the guides. The product is made of high quality material which gives high precision of work. Theinner diameterof the bearing is10 mm. The sleeve is 29 mm high.

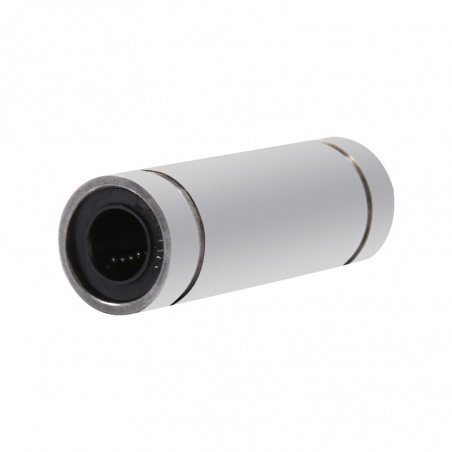

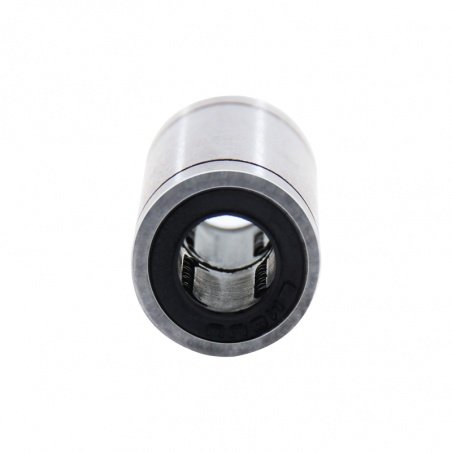

LM10UU LinearBearing.
Detailed bearing dimensions (mm).
Application of linear bearings
Linear bearings are used in numerous devices using linear displacement technology. The accuracy of movement of individual sliding elements of the equipment depends on their precision. The bearings, which usually take the form of a small sleeve, can be found in
- 3D printers
- CNC milling machines
- Plotters
- Sorters
Bearing specifications
- Material of manufacture: steel
- Number of rows of balls: 4
- Inner diameter: 10 mm (tolerance from 0 to 0.009 mm)
- Outer diameter: 19 mm (tolerance from 0 to 0.013 mm)
- Total height: 29 mm
- Weight: 24 g
