Description: Linear shaft bracket SK8 - 8 mm
Aluminium mount, which acts as abracket forthe linear roller. Compatible with shafts of8mm diameter. Used as a construction element in RepRap3D printersandCNC devices. The mount has two mounting holes, allowing to screw it to the frame of the device. It is most often used as a shaft end bracket. It can be mounted on any of the three axes of device movement: X, Y, Z. Additionally, the support is equipped with a grub screw, which allows for adjusting the clamp on the shaft. The total height of the product is 32.8 mm. The width of the base where the mounting holes are located is 42 mm
Linear shaft mount SK8 - 8 mm.

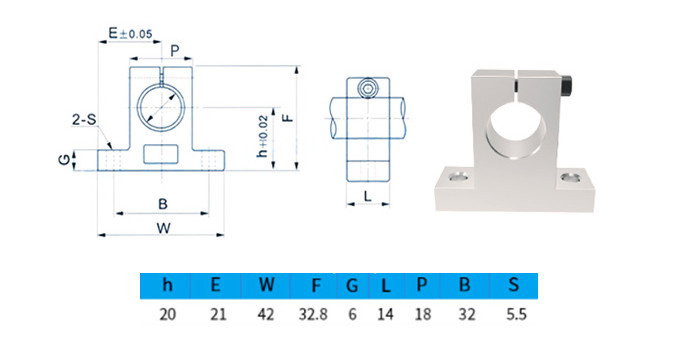

Detailed dimensions of the linear shaft fixing (mm).
Specifications of SK8 Linear Shaft Fixing
- Material: aluminum
- Diameter of compatible linear shafts: 8 mm
- Mounting height: 32.8 mm
- Clamping base width: 42 mm
- Clamping mounting screw size: M5
- Clamping screw size: M4
- Weight: 24 g
