Product description: Bus Servo Adapter (A) - controller for ST / SC series serial bus servos - UART - Waveshare 25514
The Waveshare Serial Bus Servo Adapter Board integrates servo power and control circuitry , providing stable and efficient operation of serial servos. With support for a wide range of input voltages from 9V to 12.6V and a compact size, this board is easy to integrate into projects with limited space. It can control up to 253 ST and SC servos simultaneously, but requires an appropriate power supply for all connected servos. The board is ideal for advanced robotic projects , such as building quadruped and hexagonal robots , creating robotic arms , designing humanoid robots, or projects requiring closed-loop automatic control.
The manufacturer has prepared a detailed user guide that will help you get started with the device - check it out!

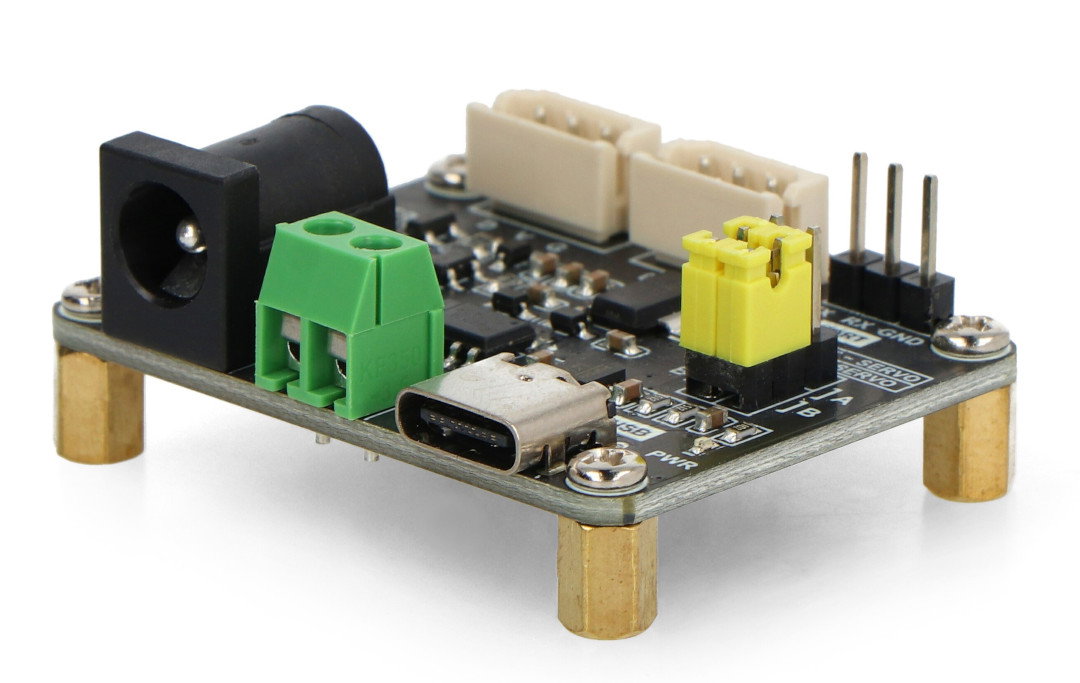

Bus Servo Adapter (A) - driver for ST / SC series serial bus servos - UART - Waveshare 25514.
The device supports ST and SC type servos.
Special features of the controller
- Host and MCU Support : Allows connection to a host or microcomputer to control serial servos.
- Multitasking : allows you to control up to 253 ST/SC servos simultaneously (with appropriate power supply).
- Wide input voltage range : input voltage is from 9V to 12.6V (the input voltage of the controller and the voltage of the servo must be the same).
- Stable operation : integrated control circuit ensures stable operation of the servos.
- Compact design : small and space-saving, ideal for integration into projects with limited space.
- Communication Interface : Supports UART and USB for communication and control.

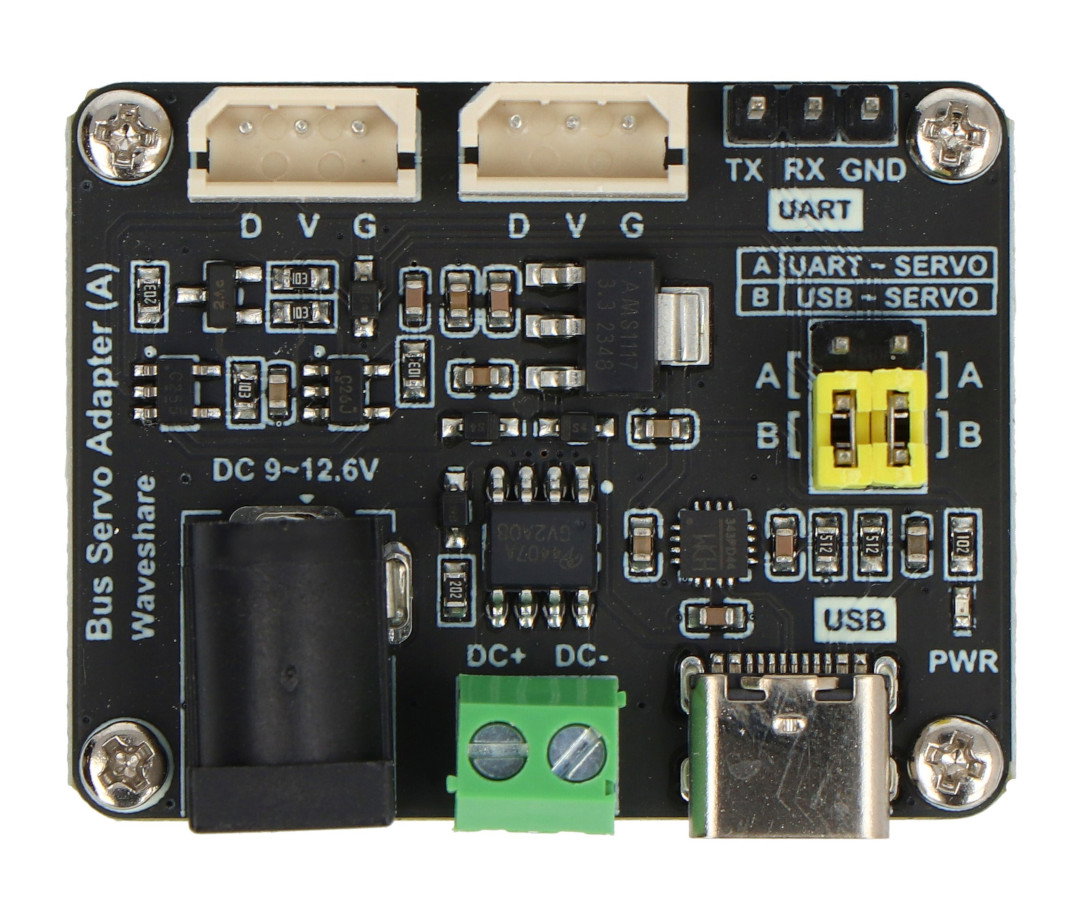

Arrangement of components on the board
- 5.5/2.1mm DC power jack
- Power screw terminal
- USB Type-C connector
- Control mode switch jumper
- Serial Bus Servo Control Interface
- UART communication interface
Arrangement of components on the board.
The servo is not part of the kit and can be purchased separately in our store.
Bus Servo Adapter (A) compatible servos
Compatible servos include both ST and SC series models , however, please note that simultaneous use of servos from both series is not recommended. For the ST series, the following models are supported: ST3215-HS , ST3215 , ST3025 and ST3020 . For the SC series, the SC09 and SC15 models are available. When using different models within a single series, it is important to ensure that the input power of the power supply is sufficient to meet the requirements of all connected servos simultaneously.
Serial bus servo rotation control
The board supports control via UART and USB. Depending on the device used, you can switch control modes using a jumper.
- UART Control : enables direct control of serial servos via UART, supports hardware platforms such as Raspberry Pi Zero, ESP32, Arduino and STM32.
- USB Control : Allows you to easily control serial servos and receive data back from USB-equipped hosts such as PCs, Raspberry Pi 4B, or Jetson Orin Nano.
Supports UART and USB for communication and control.
The input voltage is from 9 V to 12.6 V.
Product Technical Specifications
- Supply voltage range: 9V to 12V DC (the input voltage of the controller and the voltage of the servo must be the same)
- Control: UART serial bus
- Programming connector: USB Type-C
- Power Connector: 5.5/2.1mm DC
- Plate dimensions: 42 x 33 mm
- Mounting hole size: 2.5mm
- Mounting hole spacing: 42 x 28 mm
- Weight: 0.016 kg
Contents of the set
- 1x Bus Servo Adapter (A) - ST/SC series serial bus servos driver - UART - Waveshare 25514
