Servo Trigger - Continuous Rotation - SparkFun WIG-13872

Index: SPF-06555 EAN: 5904422369910

Module facilitating servo operation. On receiving an external signal, the controller moves the servo from position A to position B at a predetermined speed. The supply voltage of the module is equal to 5 V.

€17.95
€14.59 tax excl.
Available, 24 hours shipping!
Check quantity
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: SparkFun

Product description: simple continuous servo controller - Servo Trigger Continuous

A module to facilitate the operation of a 360 degree continuous servo. When an external signal is received, the controller moves the servo from position A to position B at a predetermined rate. These values are set by three built-in potentiometers. The module allows you to control the servo without programming. It has a built-in Atmel ATtiny84 microcontroller, which already has the necessary software.

Module works with voltage 5 V and current 5 mA. Be careful not to damage it with too high voltage. The driver allows cascading of several units by connecting VCC and GND on adjacent boards.

Specification

  • Supply voltage:
    • Recommended: 5 V
    • Maximum: 5,5 V
  • Current consumption: 5 mA
  • Controls the continuous rotation of the servo

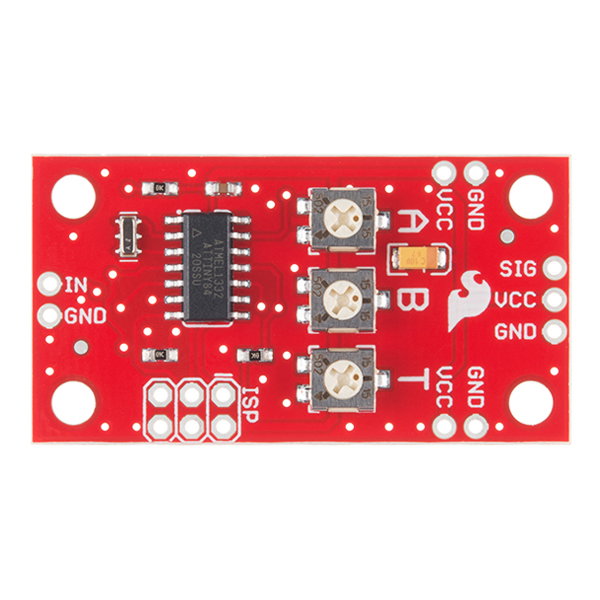

  • Built-in three potentiometers:
    • A: sets servo position when switch is open
    • B: sets servo position when switch is closed
    • T: Sets the travel time between A and B and B and A
  • Configurable input polarity
  • Compatible with analog servos
  • Built-in ISP connector for reprogramming

Voltage to 5.0 V
Voltage from 5.5 V
Current sources
Channels 1
