Description

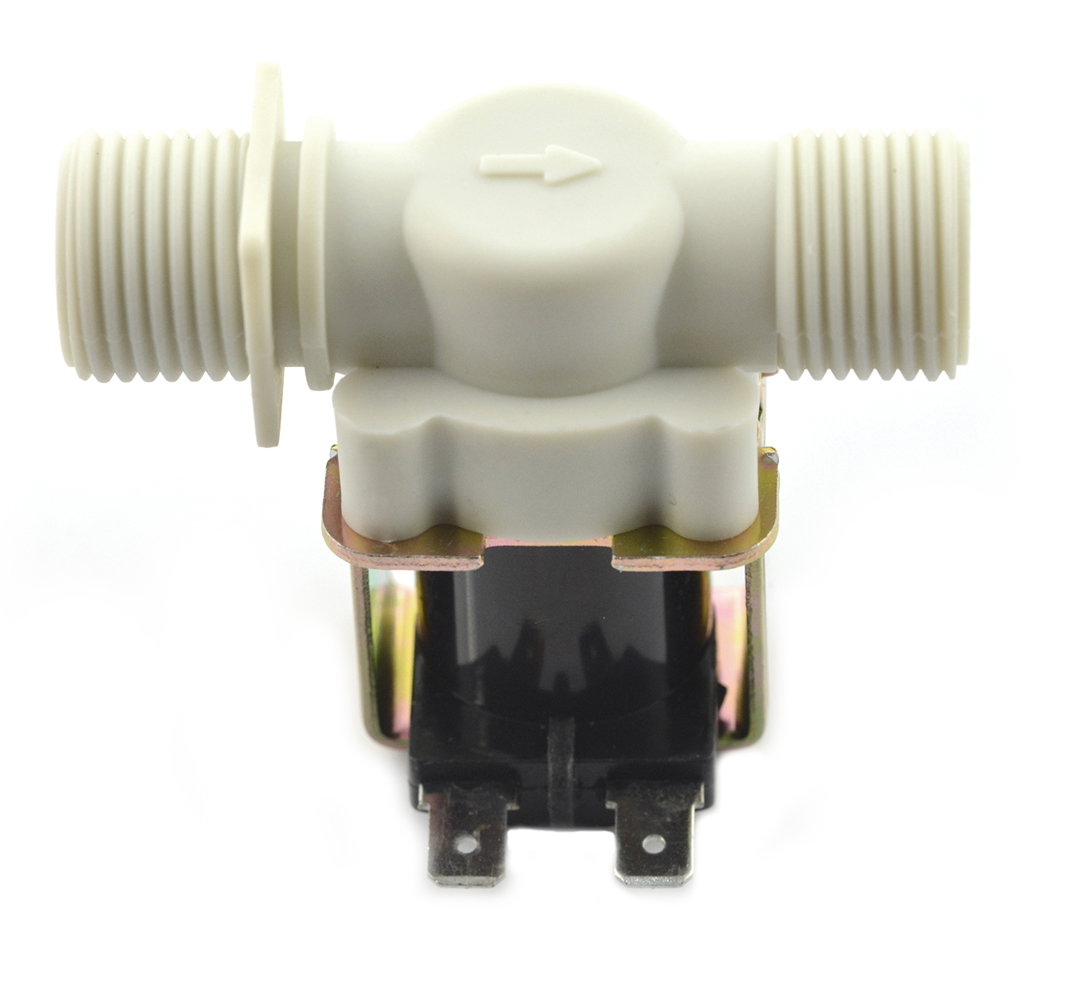

The device supports control of fluid flow using a computer or microcontroller. The electromagnetic valve is closed before connecting the 12 V power supply. It is working under pressure of up to 0.8 MPa. Together witha flow sensor, it can serve as a water control system in real time. It has protection IP00 to withstand pressure of up to 2 MPa. The dimensions of the module is 70 x 57 x 45 mm.
Specification
- Supply voltage: 12 V
- Current consumption: 0.42 A
- Thread connection: 1/2 "
- Working pressure: 0.02 MPa to 0.8 MPa
- Durability to static pressure: up to 2 MPa
- Service life: 200 000 cycles
- Liquid temperature: 0 °C to 60 °C
- Relative humidity: 95 %
- Degree of protection: IP00
- Dimensions: 70 x 57 x 45 mm
- Weight: 116 g
