Liquid flow sensor YF-S402 6l / min - M11x1,25mm thread
Sensor of liquid flow operating in the range from 0.3 to 6 liters per minute. Is supplied with the voltage from 3,5 V to 24 V, the output signal is a frequency proportional to the measured value.
We could not load the price.
The promotional price does not combine with quantity discounts.
Specification
- Supply voltage: 3,5 V to 24 V
- Power consumption for 3,5 V: 15 mA
- Measuring range: from 0.3 to 6 l/min
- Operating temperature: to 80 °C
- Permissible humidity: 35 % - 90% RH
- Permissible water pressure: 0.8 MPa
- Mounting on a pipe with a diameter of M11 x 1,25 mm
- Material: plastic
- Dimensions: 58 x 34.9 x 28.2 mm
Description

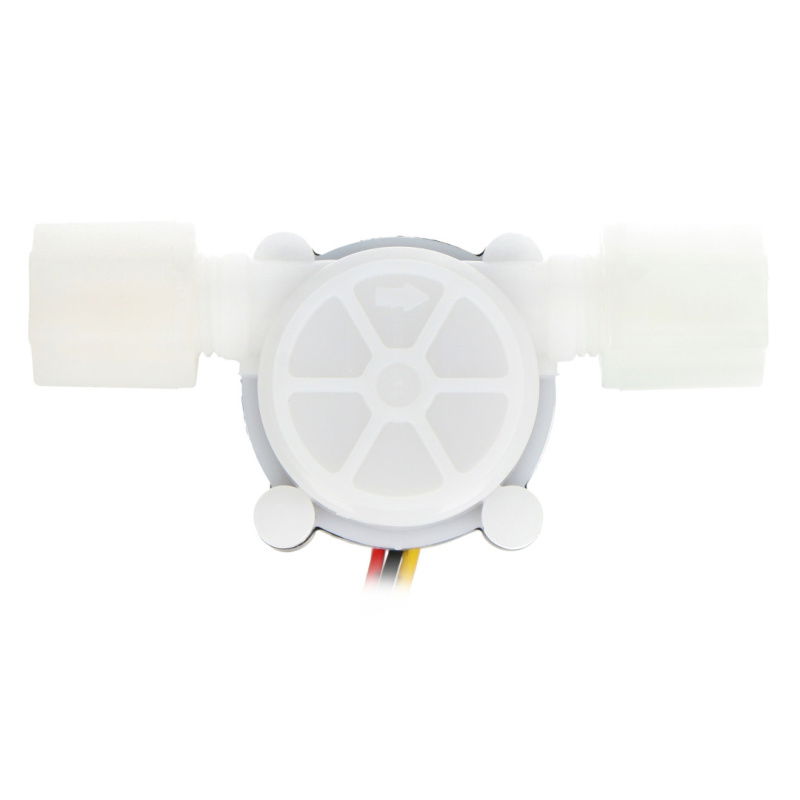

A simple sensor for measuring the flow of liquids. Consists of a pinwheel that has a magnet and Hall sensors. By counting the pulses of a hanging fan, in a simple way, you can measure the flow of liquids. With this method, the electronic part of the sensor has no contact with water.

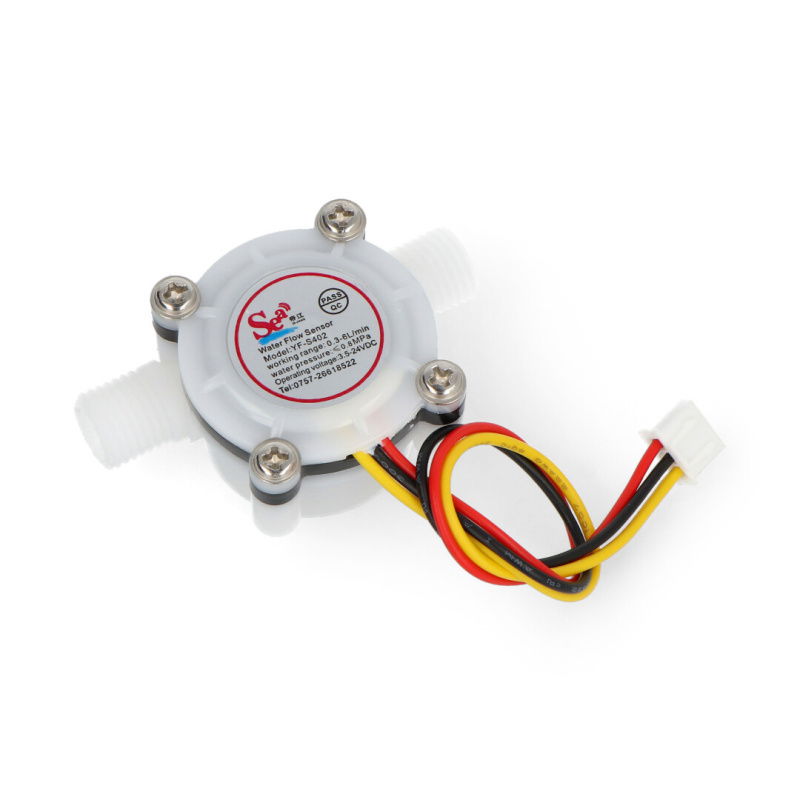

The device has three wires:
- red - supply voltage from 3.5 V to 24 V
- black - ground
- yellow - pulse output signal
Wires
- red: - supply voltage from 3.5 V to 24 V
- black: - ground
- yellow: - pulse output signal
By counting pulses you can track the fluid flow in a simple way. It should be noted that this is not a sensor for precision measurements. However, it is ideal for use in hobbies that do not require greater accuracy than 10 %.
Useful links
| Name | Value |
|---|---|
| Width | 7 cm |
| Height | 2 cm |
| Depth | 10 cm |
| Weight | 0.031 kg |
GLS
Shipping in 24 hours
from €8.07
Raben - pallet delivery
Delivery in 3–5 days, no inside delivery
from €96.75
The full delivery terms are on the page Delivery and payment.
30 days to return, without giving a reason
If the product does not meet your expectations, you have 30 days from receiving the parcel to withdraw from the contract. The product only has to be complete. The right of return belongs to consumers (a purchase unrelated to business activity).
Complaints
If the product turns out to be faulty, you can make a claim under the guarantee or the statutory warranty. We handle claims without delay, at the latest within 14 working days of receiving the report together with the goods.
Question: Good evening. What is the pulses per liter parameter of this sensor?
Water-flow Formula: 1L = 5880 square waves
https://wiki.dfrobot.com/Water_Flow_Sensor_-_1_8__SKU__SEN0216
