Laboratory power supply Korad U205 0-60V 3A

Index: KOR-24360 EAN: 5904422386528
Korad U205 is a laboratory power supply that provides power with an adjustable voltage from 0 V to 60 V and current from 0 A to 3 A. Perfect for laboratory applications and electronic projects requiring higher voltage. It has two 24 W USB ports for charging devices and an LED display for monitoring parameters.
Laboratory power supply Korad U205 0-60V 3A
€64.90 -15%
€55.17
€44.85 tax excl.
Lowest price 30 days: €51.49
Available
Shipping in 24 hours
PayPal payment
Korad U200 laboratory power supply - version:
Manufacturer: Korad

Product description: Korad U205 0-60V 3A laboratory power supply

Korad U205 is a laboratory power supply that offers an adjustable voltage range from 0 V to 60 V and current from 0 A to 3 A , making it an excellent choice for various types of experiments and projects requiring higher voltages. The device is easy to use, has built-in protection against overload and excessive temperature increase, and is small in size and weight. Additionally, the power supply has two built-in 24 W USB ports and an LED display with ON/OFF and OCP output buttons.

Our offer also includes other Korad products .

A black Korad laboratory power supply stands on a white background. Korad U205 laboratory power supply 0-60V 3A

Front of a black Korad laboratory power supply. The power supply has two built-in 24 W USB ports for charging devices.

Main features of the laboratory power supply

  • Provides smooth regulation of voltage from 0 V to 60 V and current from 0 A to 3 A
  • Enables coarse voltage regulation in 1 V steps and fine adjustments in the range from 0.01 V to 0.1 V
  • Displays the current value with an accuracy of 0.1 mA
  • Includes two built-in 24W USB ports for fast charging of small devices
  • It has a built-in LED display to monitor the values of voltage, current and power parameters
  • Offers protection against overload and excessive temperature
  • It can remember the set parameter values after turning off the device
  • It is equipped with ON/OFF and OCP output switches

Applications of laboratory power supplies

Laboratory power supplies are an irreplaceable tool in many areas where a stable power source is required. They are used to test, design and repair electronic devices. They are useful, among others, in research laboratories, where they are used to conduct various types of experiments requiring precise control of voltage and current. In addition, they are also used in the electronics industry and repair services - they are necessary for diagnosing and repairing electronic equipment.

Check out other models of laboratory power supplies available in our store!

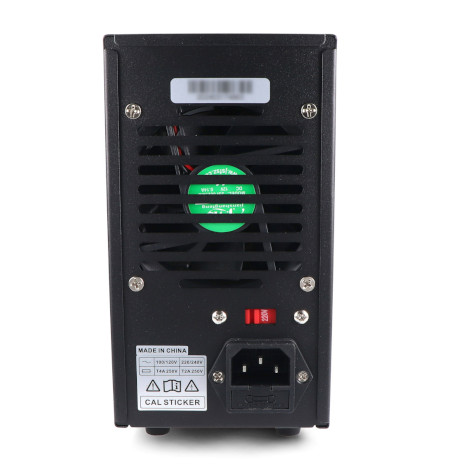

The back of a black Korad laboratory power supply. The device has built-in protection against overload and excessive temperature increase.

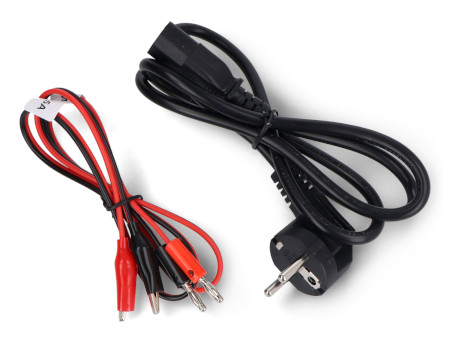

Two cables included in the set - crocodile cable and power supply. Cables included in the set.

Technical specifications of the Korad power supply

  • Voltage range: 0V to 60V
  • Current range: 0 V to 3 A
  • Parameter adjustment
    • Voltage: ≤0.01% + 2mV
    • Current: ≤0.1% + 2 mA
  • Parameter setting accuracy:
    • Voltage: 10 mV
    • Current: 1 mA
  • Setting accuracy:
    • Voltage: ≤0.5% + 10mV
    • Current: ≤0.5% + 5 mA
  • Output voltage ripple:
    • Voltage: ≤20mVrms
    • Intensity: ≤10 mArms
  • Dimensions: 231 x 95 x 168 mm
  • Weight: 2 kg

Set contents

  • Korad U205 laboratory power supply
  • Power cord
  • User manual

Voltage output from 0 V
Output voltage to 60 V
Nominal power 180 W
Current 4 A
Power supply - type laboratory
Package width 18 cm
Package height 30 cm
Package depth 26.5 cm
Package weight 2.348 kg
