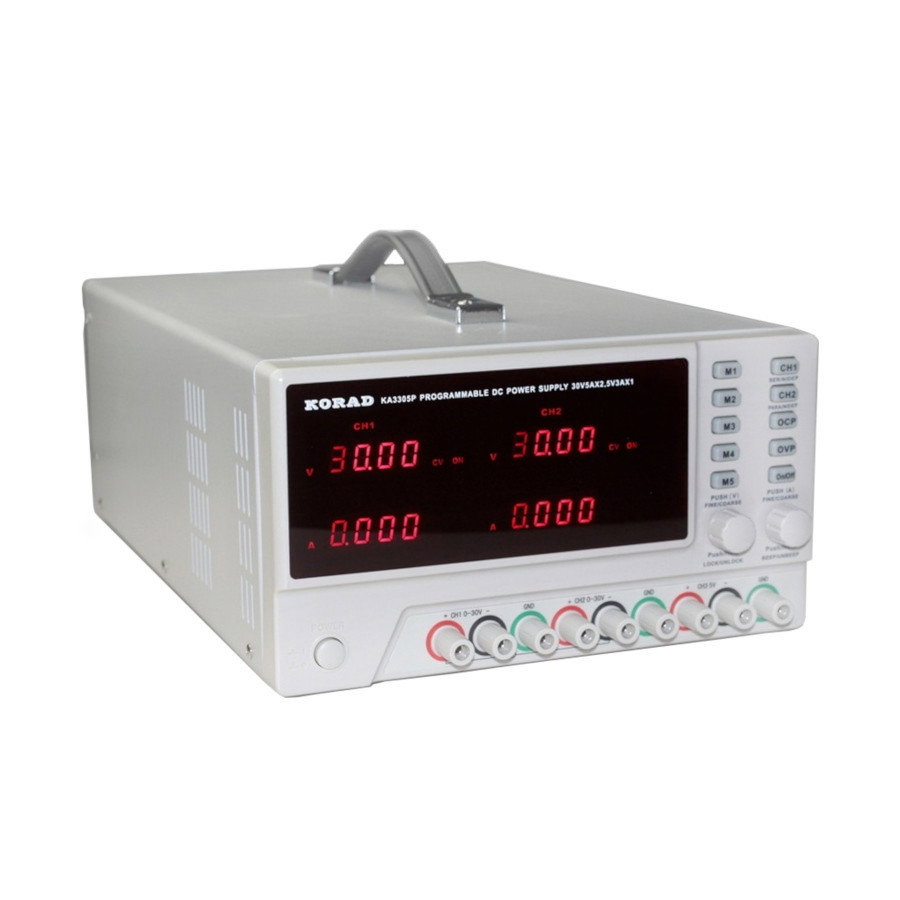

Product description: Laboratory power supply unit triple Korad KA3305P 2x 30 V / 5 A + 5 V / 3 A
Triple stabilizedlaboratorypower supplywith programmablememory. It allows for smooth adjustment of voltage from 0 V to 30 V andcurrentfrom 0 A to 5 A. KA3305P has a largeLED displaythat provides real-time information about the current voltage and load. The power supply can operate in a constant output voltage (C.V.) and a constant load current (C.C.) mode.
Triplelaboratorypower supplyKA3305P Korad2x 30 V / 5 A + 5 V / 3 A.
Design and characteristics of the power supply
The laboratory power supply enables a stepless current regulation from0 A to 5 Aand a stepless voltage regulationfrom 0 V to 30 V. The PSU is based on a transformer. The set includes 2 5 A connection wires. The device can operate as a current and voltage source. It is equipped with a key lock, RS-232 interface, USB interface. It has propersurge and overloadprotection.
Operating modes of the device
- DC output mode(C.V.)
- DC load current mode(C.C.)
- With OVP surge protection
- With OCP overload protection
- In series connection (60 V, 5 A)
- In parallel connection (30 V, 10 A)

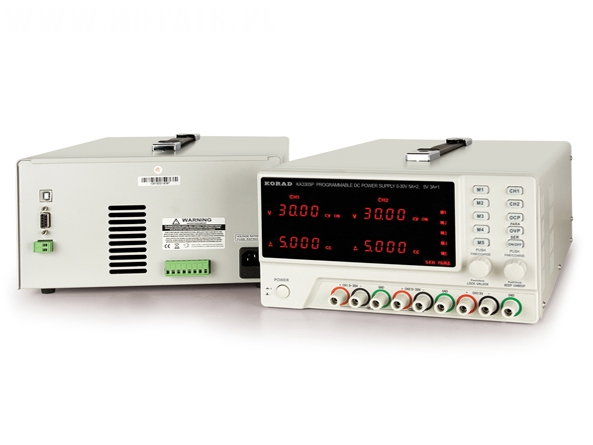

Laboratory power supply unit Triple Korad KA3305P 2x 30 V / 5 A + 5 V / 3 A.
Application of power supply KA3305P
- In industrial institutes
- In research institutes
- Laboratory equipment
- In the electronics industry
- On electronic services
- In education and training
- In hobbyist workshops
- Everywhere where precise power supply is mandatory
Power supply specification KA3305P
- Manufacturer: Coradium
- Voltage range: 2x from 0 V to 30 V
- The intensity range: 2x from 0 A to 5 A
- Independent channel: 5 V / 3 A
- Power: 300 W
- Load adjustment:
- Voltage: ≤ 0.01%+ 5 mV
- Accuracy of parameter setting:
- Tensions: 10 mV
- The intensity: 1 mA
- Output voltage ripple:
- Tension: ≤ 2 mVrms
- The intensity: ≤ 3 mArms
- Response time:
- Voltage build-up: ≤ 100 ms (rated load 10%)
- Voltage drop: ≤ 100 ms (rated load 10%)
- Channel 3:
- Voltage 5 V
- Current 3 A
- Dimensions: 38 x 25 x 14 cm
Set contents
- Laboratory power supply KoradKA3305P
- Power supply cable
- 2x Connection cable (2cores)
- USB cable
- Operating instructions
