Product description: 3D scanner - CR-Scan Ferret
CR-Scan Ferret is a portable device from Creality for 3D scanning of physical objects. The device has been equipped with an innovative ASIC chip, ensuring fast and smooth scanning with low power consumption. Take the handy scanner on a journey and scan objects even in full sun, maintaining high accuracy , and the built-in camera will capture the authentic colors of the object. Ferret can work as a handheld scanner, the handle with a tripod also allows you to work in rotary mode. The key advantages of the CR-Scan Ferret are its performance, scanning accuracy and portability, all at a very affordable price .

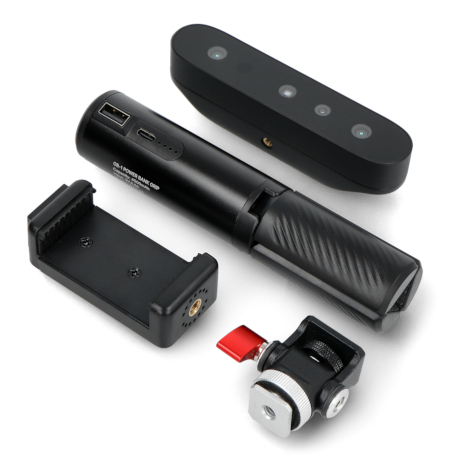

Components of the CR-Scan Ferret scanner.
You can easily transport the scanner in a bag or backpack.
Pocket Scanner
CR-Scan Ferret weighs only 105 g, thanks to which you can easily use it with one hand. Its compact dimensions make it fit in a pocket or backpack. You can always have it with you and use it whenever you feel inspired, wherever you are.
Two operating modes
Depending on your needs, the scanner can work in one of two modes: high accuracy or wide range . The first mode is characterized by precise scanning with an accuracy of 0.1 mm and a resolution of 0.16 mm. It is most often used for small and medium-sized items. Long range mode is suitable for scanning larger objects. The maximum capture area in this mode is 560 x 820 mm.
Adjust the operating mode of the device to your needs.
CR-Scan Ferret can scan at up to 30 fps.
Fast and smooth scanning
The use of a dedicated ASIC guarantees deep megapixel processing at 60 frames per second. This is several times higher than standard chipsets. Equipped with this high-performance computing chip, the CR-Skan Ferret scanner can achieve a scan rate of up to 30 frames per second , making the entire capture process smooth and fast.
Accurate color reproduction
The built-in high-resolution camera captures the textures of the scanned objects in full color and accurately reproduces them on the 3D model. Create high-quality scans with authentic, vibrant colors that are true to life. Even bright sunlight won't stop you, advanced optical technology and an intelligent algorithm ensure detailed capture even in difficult lighting conditions.
Capture the original colors of the scanned object.
Technical specification of the CR-Skan Ferret 3D scanner
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Single Scan Accuracy: | 0.1mm |
| Resolution: | 0.16mm |
| Working distance: | from 150mm to 700mm |
| Single scan range: | 560x820mm |
| Minimum scan dimensions: | 50x50x50mm |
| Scan speed: | up to 30 fps |
| Source of light: | NIR |
| Calibration: | feature, marker, color |
| Scanning outside: | Yes |
| Color scanning: | Yes |
| Communication interface: | USB 3.0, USB 2.0 |
| Compatible OS: | Android, Windows 10/11 (64-bit), Mac OS |
| Output format: | .ply, .obj, .stl |
| Dimensions: | 120 x 30 x 26mm |
| Mass: | 105g |
