Luxonis Oak-D Pro W - IMX378 - AI set for image recognition - Fixed-Focus

Index: LUX-22256
Oak-D Pro W is a camera manufactured by Luxonis that offers 4 TOPS processing power and gives you the ability to run any AI model. It has been equipped with an IR LED (for night-vision) and an IR laser point projector. It also has a wide field of view of 120° / 95° / 70° (DFOV / HFOV / VFOV), which allows for the implementation of even the most advanced projects. The device is equipped with three cameras - two OV9282 1280 x 800 px stereo cameras and one IMX378 Fixed-Focus camera for capturing color images at a resolution of 4032 x 3040 px. The device uses the USB-C interface.
Luxonis Oak-D Pro W - IMX378 - AI set for image recognition - Fixed-Focus
€505.50
€410.98 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Luxonis

Product description: Luxonis Oak-D Pro W - IMX378 - AI set for image recognition - Fixed-Focus

The Oak-D Pro W is a camera manufactured by Luxonis that offers 4 TOPS processing power and gives you the ability to run any AI model. It has been equipped with an IR LED (for night-vision) and an IR laser point projector (off by default). It also has a wide field of view of 120° / 95° / 70° (DFOV / HFOV / VFOV), which allows for the implementation of even the most advanced projects. The device is equipped with three cameras - two OV9282 1280 x 800 px stereo cameras and one IMX378 Fixed-Focus camera for capturing color images at a resolution of 4032 x 3040 px. The device uses the USB-C interface (versions 2.0 / 3.0 with speeds of 5 Gbps / 10 Gbps, respectively).

Luxonis Oak-D-Pro W - IMX378 - zestaw AI do rozpoznawania obrazu - Fixed-Focus. Luxonis Oak-D Pro W - IMX378 - AI set for image recognition - Fixed-Focus.

Zawartość zestawu.

Kit contents.

Myriad X VPU

  • 4 TOPS of processing power (1.4 TOPS for AI)
  • Ability to run any AI model, also with non-standard architecture and construction (models must be converted )
  • Encoding H.264, H.265, MJPEG - 4K / 30fps, 1080p / 60fps
  • Computer Vision : Warp/Distort, Resize, Crop with ImageManip, Edge Detection, Feature Tracking, and Activate Custom CV Functions
  • 120 fps stereo depth perception with filtering
  • 2D and 3D object tracking

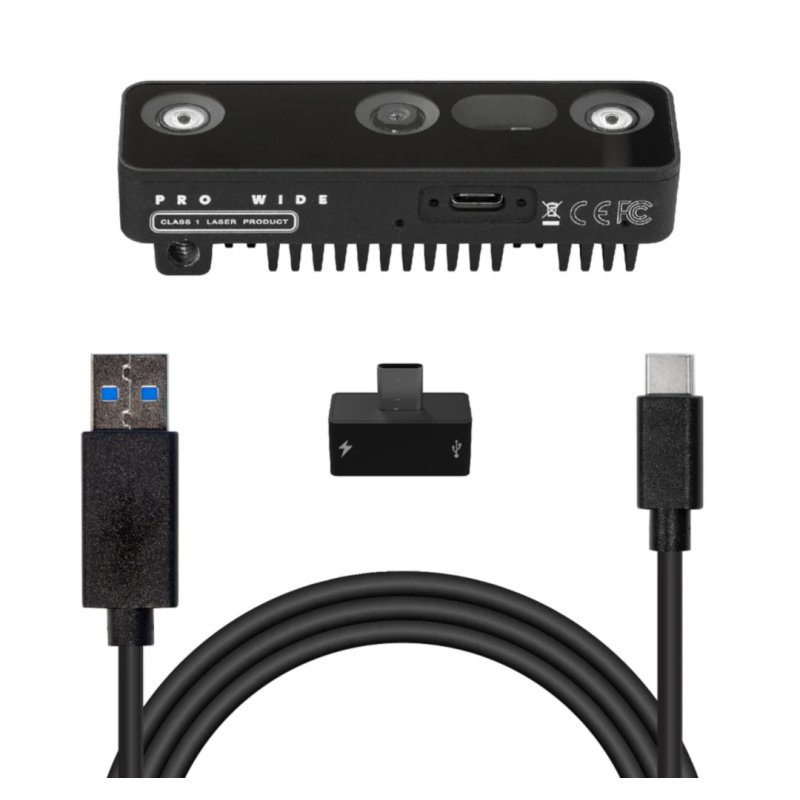

Kit contents

  • Luxonis Oak-D Pro W - IMX378 - AI set for image recognition - Fixed-Focus
  • USB cable - CA - 100 cm long
  • Y-adapter

Due to the high power consumption of the spot projector / LED illuminator, a Y-adapter (included in the package) is required to use these functions.

Luxonis Oak-D Pro W technical specification

  • RGB camera:
    • sensor: IMX378
    • type: Fixed-Focus
    • resolution: 12 Mpx (4032 x 3040 px)
    • maximum frame rate: 60 fps
    • focus: from 60 cm to infinity
    • field of view (D / H / V): 120° / 95° / 70°
    • pixel size: 1.55 µm x 1.55 µm
  • stereo camera
    • sensor: OV9282
    • resolution: 1 Mpx (1280 x 800 px)
    • maximum frame rate: 120 fps
    • focus: from 18 cm to infinity
    • field of view (D / H / V): 150° / 128° / 80°
    • improved FOV depth: 106° / 97° / 70°
    • pixel size: 3µm x 3µm
    • infrared work: yes
  • Spot projector
    • Ams Belago1.1 Dot-Pattern Infrared Illuminator
    • Number of points: 4700
    • HFOI* 50%: 78 ± 7%
    • VFOI* 50%: 61° ± 7%
    • VSCEL wavelength: 940nm
  • Dimensions: 97 x 29.5 x 22.9mm
  • Weight: 91g
Luxonis Oak-D Pro W has a spot projector and LED backlight.

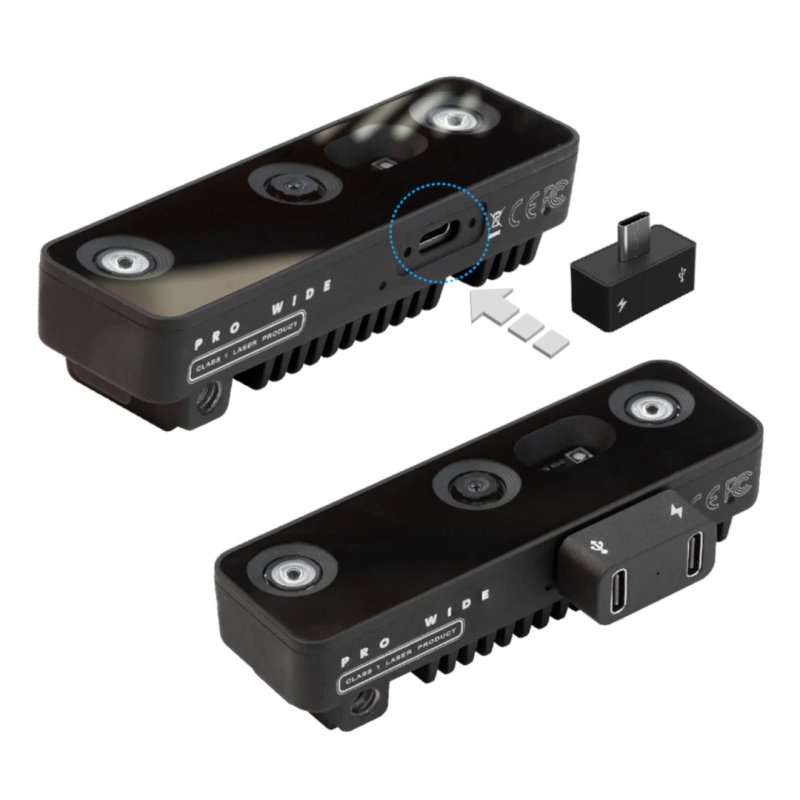

Connection example .

Specification and comparison Luxonis Oak-D, Oak-D-Lite, Oak-D-Pro, Oak-D-S2, Oak-D Pro W
Zawartość zestawu. Zawartość zestawu. Zawartość zestawu. Zawartość zestawu. Zawartość zestawu.
Model Luxonis Oak-D Luxonis Oak-D-Lite Luxonis Oak-Pro Luxonis Oak-D-S2 Luxonis Oak-D Pro W
RGB camera IMX378 IMX214 IMX378 IMX378 IMX378
Type (Camera RGB) Autofocus Fixedfocus Fixedfocus Fixedfocus Fixedfocus
Camera resolution (RGB) 12 MPx (4056 x 3040 px) 13 Mpx (4208 x 3120 px) 12 Mpx (4032 x 3040 px) 12 Mpx (4032 x 3040 px) 12 Mpx (4032 x 3040 px)
Camera angle of view (RGB) DFOV / HFOV : 81° / 68,8° DFOV / HFOV / VFOV: 81° / 69° / 54° FOV / DFOV / HFOV / VFOV: 78° / 81° / 69° / 55° FOV / DFOV / HFOV / VFOV: 78° / 81° / 69° / 55° DFOV /HFOV / VFOV): 120° / 95° / 70°
Camera focus (RGB) from 8 cm to infinity from 50 cm to infinity from 50 cm to infinity from 50 cm to infinity from 60 cm to infinity
Lens (RGB) 1/2,3'' 1/3,1'' 1/2,3'' 1/2,3'' 1/2,3''
F-number (RGB) 1.8 ±5% 2.2 ±5% 1.8 ±5% 1.8 ±5% 2.8 ±5%
Maximum number of frames per second (RGB) 60 fps 60 fps 60 fps 60 fps 60 fps
Effective focal length (RGB) 4.81mm 3.37mm 4.81mm 4.81mm 2.75mm
Distortion (RGB) < 1%  1% < 1.5%  < 1.5%  < - 14.6%
Pixel size (RGB) 1.55µm x 1.55µm 1,12µm x 1,12µm 1.55µm x 1.55µm 1.55µm x 1.55µm 1.55µm x 1.55µm
Stereo camera OV9282 OV7251 OV9282 OV9282 OV9282
Camera resolution (stereo) 1MP (1280x800) 480 px (640 x 480 px) 1MP (1280x800) 1 Mpx (1280 x 800 px) 1 Mpx (1280 x 800 px)
Camera angle of view (stereo) DFOV / HFOV / VFOV - 82° / 72° / 50° DFOV / HFOV / VFOV - 86° / 73° / 58° DFOV / HFOV / VFOV - 82° / 72° / 50° FOV / DFOV / HFOV / VFOV - 89,5° / 89,5° / 80° / 55° DFOV / HFOV / VFOV - 150° / 128° / 80°
Camera focus (stereo) from 19,6 cm to infinity from 6,5 cm to infinity from 19,6 cm to infinity from 19,6 cm to infinity from 18 cm to infinity
Lens (stereo) 1/2,3'' 1/75'' 1/4'' 1/4'' 1/4''
F-number (stereo) 2,2 2,2 2,0 ± 5% 2,0 ± 5% 2,0 ± 5 %
Maximum number of frames per second (stereo) 120 fps 200 fps 120 fps 120 fps 120 fps
Effective focal length (stereo) 2,35 mm 1,3 mm 2, 35 mm 2,35 mm 1,69 mm
Distortion (stereo) < 1% < 1.5% < 1% < 1% < 38%
Pixel size (stereo) 3µm x 3µm 3µm x 3µm 3µm x 3µm 3µm x 3µm 3µm x 3µm
Spot projector doesn't have doesn't have has doesn't have has
Coding H.265 - 30 fps H.264, H.265, MJPEG - 4K / 30 FPS, 1080 P / 60 FPS H.264, H.265, MJPEG - 4K / 30 fps, 1080p / 60 fps H.264, H.265, MJPEG - 4K / 30 fps, 1080p / 60 fps H.264, H.265, MJPEG - 4K / 30 fps, 1080p / 60 fps
Dimensions 110 x 54,5 x 33 mm 91 x 28 x 17,5 mm 97 x 29,5 x 22,9 mm 97 x 29,5 x 22,9 mm 97 x 29,5 x 22,9 mm
Weight 115 g 61 g 91 g 91 g 91 g
Radiator built-in built-in built-in built-in built-in

Package width 15.4 cm
Package height 7.6 cm
Package depth 3.5 cm
Package weight 0.21 kg
