Programmer/debugger STM8/STM32 compatible with ST-LINK/V2 mini - Waveshare 10053

Index: WSR-04481 EAN: 5904422332846

The device is used as the programmer and debugger for STM8 and STM32 modules. It works with voltages 3.3 V and 5 V, selectable by jumper.

Programmer/debugger STM8/STM32 compatible with ST-LINK/V2 mini - Waveshare 10053
€9.50
€7.72 tax excl.
Delivery 10 pcs scheduled for 2024-04-08
Waiting for delivery
PayPal payment
Manufacturer: Waveshare

Description

The device is used as the programmer and debugger for STM8 and STM32modules. It works with voltages 3.3 V and 5 V, selectable by jumper. It has a built-in 500 mA fuse to prevent damage to the programmable modules.

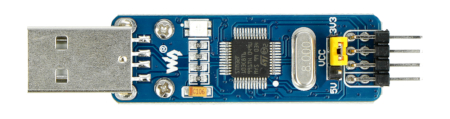

Programator/debugger STM8 / STM32Module with attached cable with 4-pin plug, common.

Specification

  • Programmer / debugger modules STM8 andSTM32
  • Output voltage 3.3 V and 5 V selectable with jumper
  • Connecting to a computer via USB
  • The programmer allows you to access Flash ROM, EEPROM, FAILURE rate, etc.
  • The debugger supports step by step breakpoint functions, viewing variables and registers, etc.
  • The possibility of firmware updates
  • Supported software:
    • ST-LINK Utility v2.0+
    • STVD Version 4.2.1+
    • STVP Version 3.2.3+
    • IAR EWARM Revision v6.20+
    • IAR EWSTM8 Revision v1.30+
    • KEIL RVMDK Revision v4.21+
    • ATOLLIC
    • TASKS

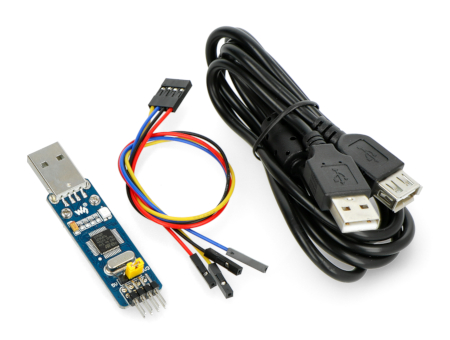

Connection with PC

To connect with computer through the USB interface, you must installdrivers, which are available for Windows 7, Vista and XP. Currently, the manufacturer does not provide software for Windows 8 and 10.

Connection with STM8 / STM32

Connection with STM8 microcontrollers through the interface SWIM



Pin Code Of The Debugger Module Pin Description
VCC MCU VCC The module power.
SWM MCU SWIM Pin SWIM interface.
GND GND Ground of the system.
RST MCU RESET Reset.



Connection with STM32 microcontrollers through the SWD interface



The Pin Code Of The Debugger The Module Pin Description
VCC MCU VCC The module power.
SWDIO MCU SWDIO Pin SWD interface
GND GND Ground of the system.
SWCLK MCU SWCLK Line clock interface SWD.



Kit contents

  • Programmer / debugger STM8 / STM32
  • 1x 4-pin female cable
  • USB A - USB A male female cable

Test 4
Package width 6.5 cm
Package height 3 cm
Package depth 11 cm
Package weight 0.061 kg
