Product description: Xiao ESP32-S3 + Wio-SX1262 Kit for Meshtastic and LoRa/LoRaWAN - Seeedstudio 102010611
The Xiao ESP32-S3 and Wio-SX1262 LoRa module kit is an advanced yet compact solution for projects requiring long-distance wireless communication. The Xiao ESP32-S3 module is based on the Xtensa LX7 dual-core processor clocked at up to 240 MHz , offering high computing performance. With support for 2.4 GHz WiFi and Bluetooth 5.0 , it enables integration with a variety of wireless networks. The Wio-SX1262 module, based on the Semtech SX1262 chip, provides reliable LoRa communication in the 862 MHz to 930 MHz band. In combination with an external antenna, the kit enables data transmission at a distance of up to 5 km in open terrain, making it an ideal solution for IoT applications requiring long-distance communication with low power consumption. The kit is compatible with the Arduino platform, which makes it easy to program and integrate with existing projects. With pre-installed Meshtastic software , the device is ready to go right out of the box, reducing the time it takes to get your project up and running.

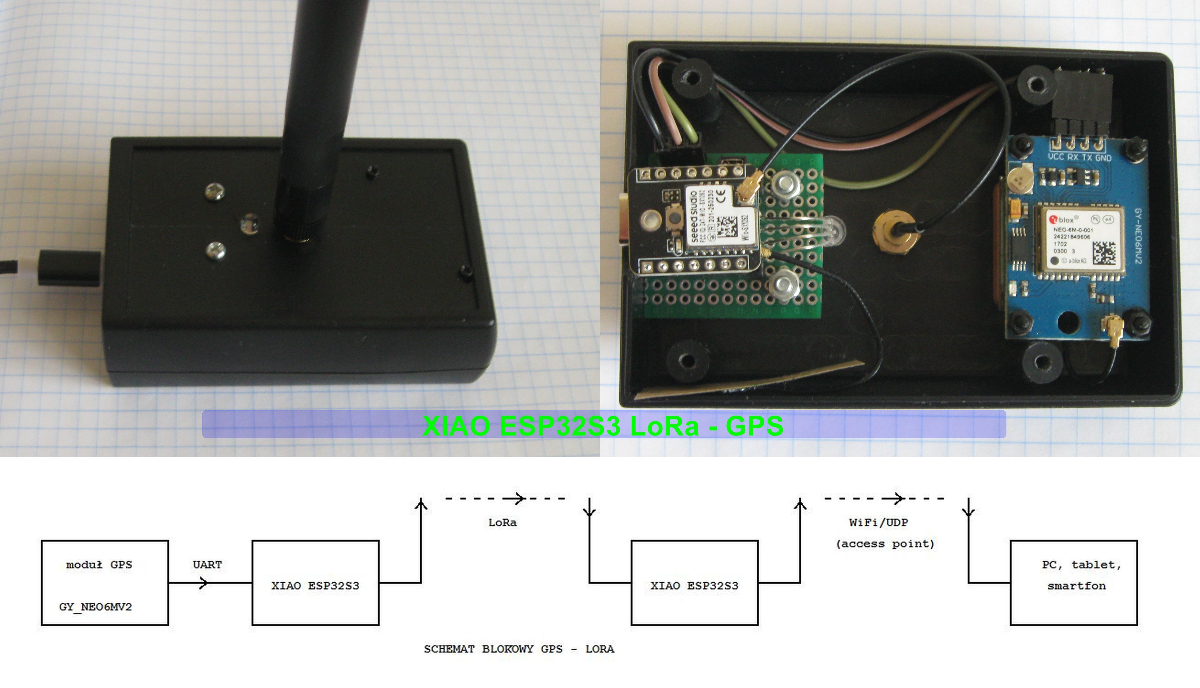

Xiao ESP32-S3 + Wio-SX1262 Kit for Meshtastic and LoRa/LoRaWAN - Seeedstudio 102010611.
The kit containing the Xiao ESP32-S3 and Wio-SX1262 LoRa module is an advanced, yet compact solution.Special Features
- Meshtastic Support : The device comes pre-loaded with Meshtastic software, allowing you to start working on mesh networks right away
- High RF performance : LoRa, 2.4 GHz WiFi and Bluetooth 5.0 support provide flexibility in choosing communication technology
- Compact design : Small dimensions (21 x 18 mm) make the kit ideal for space-constrained projects such as wearable devices
- Powerful microcontroller : Xtensa LX7 dual-core processor clocked at up to 240 MHz for high computing performance
- Advanced power management : USB Type-C power supply and lithium battery charging support for increased device mobility
- Expandability : availability of UART, I2C, SPI and numerous GPIO interfaces enables easy integration with additional modules and sensors
Layout of components on the Xiao ESP32-S3 board
- Reset button
- Start button
- User LED
- Charging LED
- WiFi/Bluetooth Antenna Connector
- B2B connector (for Sense version only)
Layout of components on the Xiao ESP32-S3 board .
Layout of components on the Wio-SX1262 board.
Layout of components on the Wio-SX1262 board
- 2.2mm hole
- User button
- Charging LED
- LoRa Antenna Connector
Technical specification
- Processor: ESP32-S3R8, Dual-Core Xtensa LX7, 32-bit, up to 240 MHz
- Memory: 8MB PSRAM, 8MB Flash
- Wireless communication:
- LoRa: Semtech SX1262, from 862 MHz to 930 MHz
- Bluetooth: 5.0, Bluetooth mesh
- Wi-Fi: 2.4GHz
- Interfaces:
- 1x UART
- 1x I2C
- 1x I2S
- 1x SPI (connection with SX1262)
- 11x GPIO (PWM)
- 9x ADC
- 1x User LED
- 1x Charging LED<
- 1x reset button
- 1x boot button
- Power supply:
- Input voltage (USB Type-C): 5V
- Input voltage (BAT): 4.2 V
- Battery charging current: 100 mA
- Operating temperature: -40°C to 65°C
- Dimensions: 21 x 17.8 mm
Kit Contents
- Xiao ESP32-S3
- Wio-SX1262
- Wi-Fi antenna
- LoRa Antenna
With pre-installed Meshtastic software, the device is ready to go right out of the box.
