CAN Bus BFF Add-On - CAN Bus Module - MCP25625 - SPI - for QT Py and Xiao - Adafruit 5877

Index: ADA-25280 EAN: 5904422386238
Ask a question

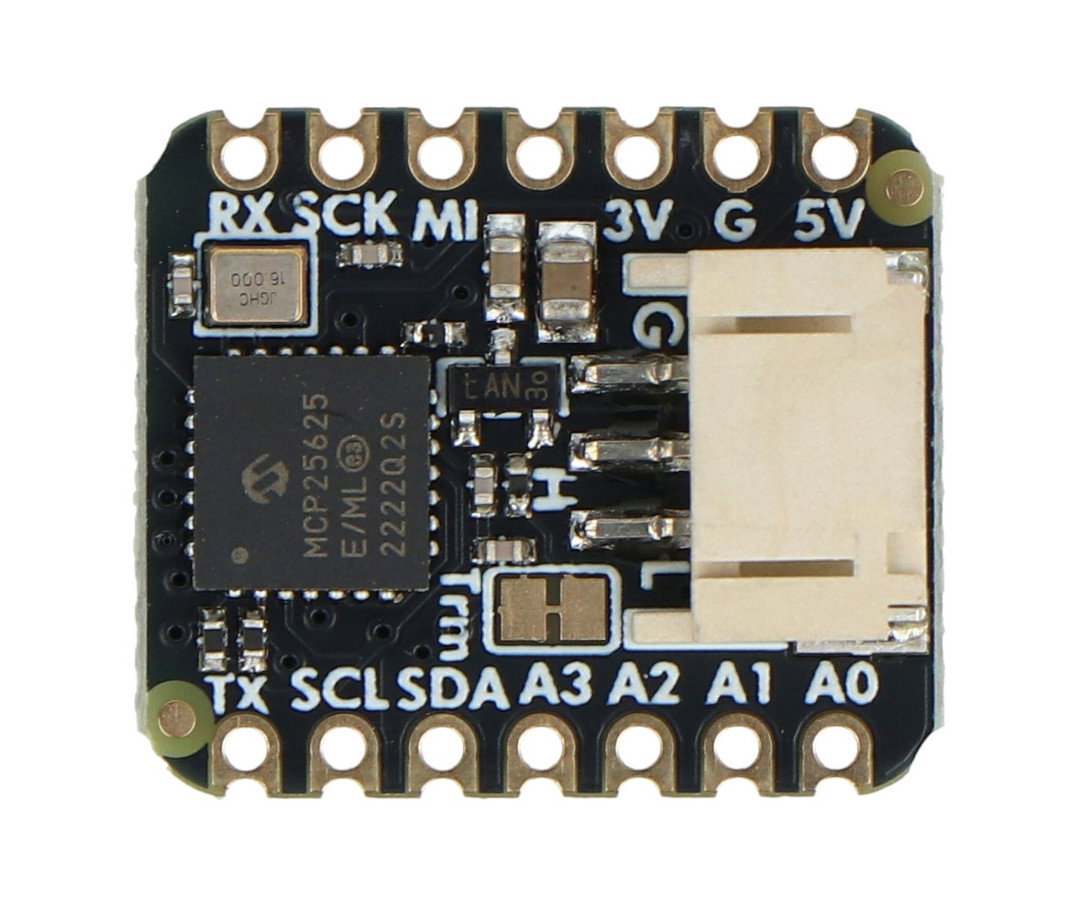

Adafruit CAN Bus BFF Add-On is a practical overlay that allows you to add CAN Bus communication functionality to QT Py and Xiao boards. The module uses the MCP25625 chip, which is a combination of the MCP2515 controller and the MCP2551 transceiver , which ensures compatibility with the most popular Arduino and CircuitPython libraries. Thanks to the JST PH socket and the built-in 120 Ω terminating resistor , integration with existing CAN Bus networks is quick and intuitive.
CAN Bus BFF Add-On - CAN Bus Module - MCP25625 - SPI - for QT Py and Xiao - Adafruit 5877
€12.50
€10.16 tax excl.
Check quantity
Available
Shipping in 24 hours
Free shipping
30 days to return
PayPal payment
Check quantity
Manufacturer: Adafruit

‌

Product description: CAN Bus BFF Add-On - CAN Bus module - MCP25625 - SPI - for QT Py and Xiao - Adafruit 5877

Adafruit CAN Bus BFF Add-On is a practical shield that allows you to add CAN Bus communication functionality to QT Py and Xiao boards. The module uses the MCP25625 chip, which is a combination of the MCP2515 controller and the MCP2551 transceiver , which ensures compatibility with the most popular Arduino and CircuitPython libraries. The shield supports data transmission at up to 1 Mb / s in standard or extended mode. Thanks to the JST PH socket and the built-in 120 Ω terminating resistor , integration with existing CAN Bus networks is quick and intuitive.

The manufacturer has prepared a detailed user guide - check it out!

CAN Bus BFF Add-On - CAN Bus module - MCP25625 - SPI - for QT Py and Xiao - Adafruit 5877 CAN Bus BFF Add-On - CAN Bus module - MCP25625 - SPI - for QT Py and Xiao - Adafruit 5877.
CAN Bus BFF Add-On - CAN Bus module - MCP25625 - SPI - for QT Py and Xiao - Adafruit 5877 The Adafruit CAN Bus BFF Add-On is a practical add-on that allows you to add CAN Bus communication functionality.

Special features of the communication module

  • Support for CAN v2.0B standard - the module provides full compatibility with the CAN bus, supporting transmission speeds up to 1 Mb/s, making it an ideal solution for advanced communication projects
  • Integrated MCP25625 Chip - Uses the powerful MCP25625 chipset that combines the MCP2515 controller and MCP2551 transceiver, ensuring reliable and stable communication
  • Compact design - thanks to its small dimensions (20.7 mm x 17.7 mm x 7.1 mm) the module is ideal for projects where space is limited
  • JST PH 3-pin connector - enables quick and easy connection to the CAN bus. The black wire is ground, the red is CAN H, and the white is CAN L
  • QT Py and Xiao Compatibility - Designed specifically to work with the compact QT Py and Xiao boards, allowing for easy integration into your projects

CAN Bus BFF Add-On Technical Specification

  • Controller: MCP25625 (MCP2515 + MCP2551)
  • CAN Standard: CAN v2.0B
  • Transmission speed: up to 1 Mb/s
  • Bus connector: JST PH 3-pin
  • Interface: SPI
  • Terminating resistor: 120 Ω, built-in (can be removed by cutting the jumper)
  • Compatibility: QT Py, Xiao
  • Power supply: 5V (from base board)
  • Dimensions: 20.7 x 17.7 x 7.1 mm
  • Weight: 1.7 g

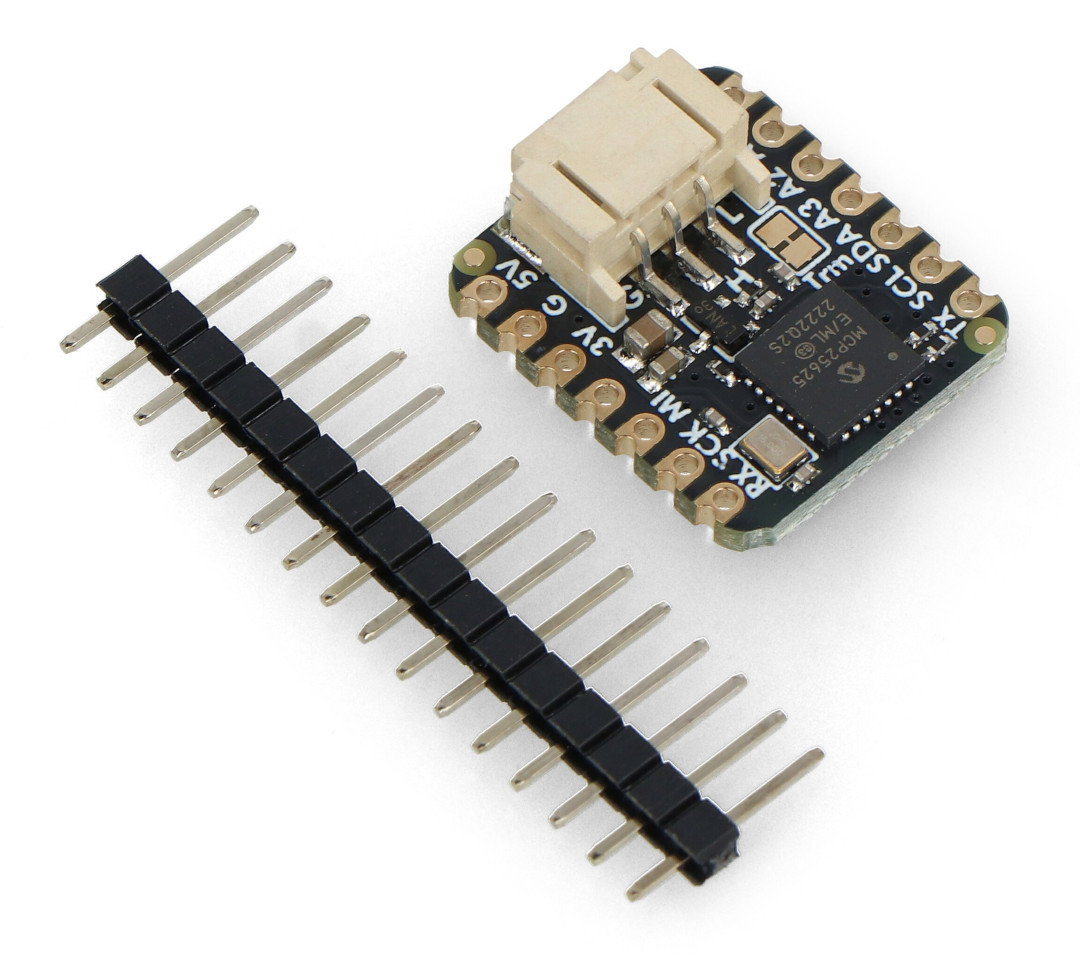

Kit Contents

  • Adafruit CAN Bus BFF Add-On Module
  • DIY soldering pin kit
CAN Bus BFF Add-On - CAN Bus module - MCP25625 - SPI - for QT Py and Xiao - Adafruit 5877 The module uses the MCP25625 chip, which is a combination of an MCP2515 controller and an MCP2551 transceiver.

Package width 7.5 cm
Package height 12 cm
Package depth 1 cm
Package weight 0.004 kg
