Product description: Gravity - O2 oxygen sensor - I2C / UART - factory calibrated - DFRobot SEN0465
Sensor for measuring the content of Oxygen in air. Factory calibrated, it supports three output modes: analog, I2C and UART. It has up to 32 I2C addresses to choose from. The detection range is from 0% to 25% by volume. The module has strong anti-interference properties, has very good sensitivity and high measurement stability.
Contents of the kit
- O2 oxygen sensor - adapter board
- O2 sensor probe
- Gravity 4-pin connection cable
Gravity - oxygen sensor in the air.
Product compatible with Arduino, ESP32, Raspberry Pi
The manufacturer has prepared a detailed user's guide, which includes connection instructions and sample program code.

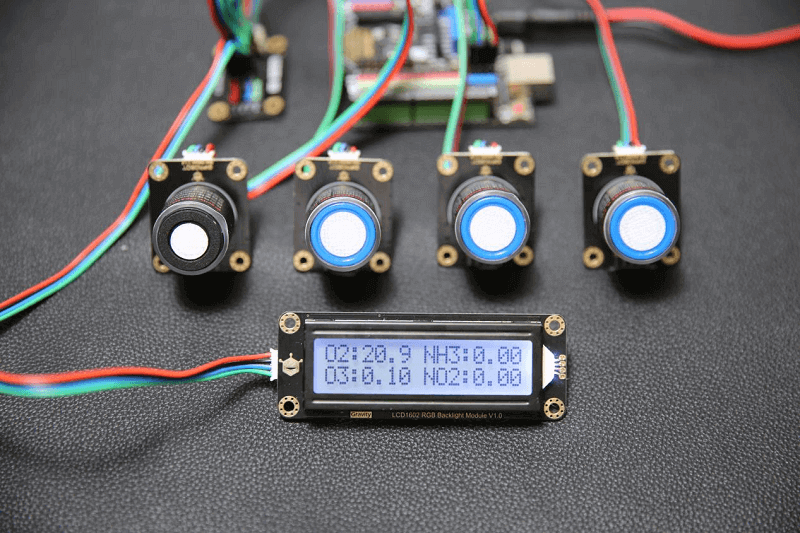

The sensors have the same data format so they can work in parallel.
A series of pre-calibrated sensors from DFRobot
The manufacturer DFRobot has developed a series of sensors that have been factory calibrated. The series consists of up to 12 modules that can detect the most common gases. These include CO, O2, NH3, H2S, NO2, HCL, H2, PH3, SO2, O3, CL2, HF sensors.
In addition, the sensors in this series operate in the same way and have the same data format, so they can work in parallel.
Suggested application
- Air quality monitoring device
- Oxygen sensor in exhaust gases
- Air analysis in mines
- Broadly understood environmental protection
- Intelligent agriculture
Technical specification of the sensor
- Detected gas: oxygen O2
- Compatibility: Arduino, ESP32, Raspberry Pi
- Detection range: from 0% to 25% by volume
- Supply voltage: 3.3 V to 5.5 V DC
- Current consumption: ＜5 mA
- Output signal: analog
- Communication interface: UART / I2C
- Operating temperature range: -20°C to 50°C
- Lifetime: > 2 years
- Sensor adapter board dimensions: 37 x 32 mm
The sensor probe has been factory calibrated which allows fast and precise measurements.
Comparative table of the calibrated sensor series from DFRobot
| DFR-20981 | DFR-20982 | DFR-21003 | DFR-21002 | |
|---|---|---|---|---|
| Gas type | O2 oxygen | CO gas | H2S hydrogen sulphide | CL2 chlorine |
| Detection range | 0% to 25% vol. | 0 ppm to 1000 ppm | 0 ppm to 100 ppm | 0 ppm to 20 ppm |
| Resolution | 0.1% vol. | 1 ppm | 1 ppm | 0,1 ppm |
| Output voltage range V0 | 0 V to 1.5 V | 0.6 V to 3 V | 0.6 V to 3 V | 0 V to 2 V |
| Vout1 | 1 V @ 10% vol. | 0.9 V @ 200 ppm | 1.5 V @ 50 ppm | 1.2 V @ 10 ppm |
| Response time (T90) | ≤ 15 s | ≤ 30 s | ≤ 30 s | ≤ 60 s |
| DFR-21001 | DFR-21000 | DFR-20999 | DFR-20998 | |
|---|---|---|---|---|
| Gas type | NH3 ammonia | SO2 sulphur dioxide | NO2 nitrogen dioxide | O3 ozone |
| Detection range | 0 ppm to 100 ppm | 0 ppm to 20 ppm | 0 ppm to 20 ppm | 0 ppm to 10 ppm |
| Resolution | 1 ppm | 0,1 ppm | 0,1 ppm | 0,1 ppm |
| Output voltage range V0 | 0.6 V to 3 V | 0.6 V to 3 V | 0 V to 2 V | 0 V to 2 V |
| Vout1 | 1.4 V @ 50 ppm | 0.9 V @ 10 ppm | 1,3 V @ 10 ppm | 0.7 V @ 5 ppm |
| Response time (T90) | ≤ 150 s | ≤ 30 s | ≤ 30 s | ≤ 120 s |
| DFR-20997 | DFR-20996 | DFR-21010 | DFR-20995 | |
|---|---|---|---|---|
| Gas type | H2 hydrogen | HCL hydrogen chloride | HF hydrogen fluoride | PH3 hydrogen phosphide |
| Detection range | 0 ppm to 1000 ppm | 0 ppm to 10 ppm | 0 ppm to 10 ppm | 0 ppm to 1000 ppm |
| Resolution | 1 ppm | 0,1 ppm | 0,1 ppm | 0,1 ppm |
| Output voltage range V0 | 0.6 V to 3 V | 0 V to 2 V | 0 V to 2 V | 0.6 V to 3 V |
| Vout1 | 1.3 V @ 500 ppm | 0.7 V @ 5 ppm | 0,7 V @ 5 ppm | 0.7 V @ 50 ppm |
| Response time (T90) | ≤ 120 s | ≤ 60 s | ≤ 60 s | ≤ 30 s |
