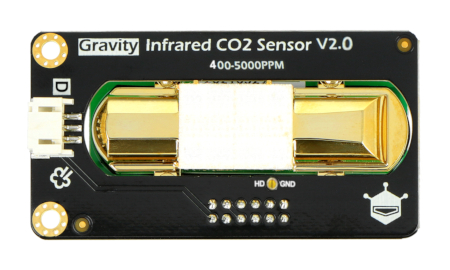

DFrobot Gravity - Carbon Dioxide Sensor CO2 IR V2.0 - analog

Index: DFR-07592 EAN: 6959420912018

High-precision sensor that measures the concentration of CO2 (carbon dioxide) in the air. Equipped with analog output, works with a voltage 5 V. Operates in the range from 400 to 5000 ppm. The kit includes a cable to connect with cap DFRobot IO Expansion Shield.

DFrobot Gravity - Carbon Dioxide Sensor CO2 IR V2.0 - analog
€61.90
€50.33 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: DFRobot
Compatibility: Arduino

Description

High-precision sensor that measures the concentration of CO2 (carbon dioxide) in the air. Equipped with analog output, works with a voltage 5 V. Operates in the range from 400 to 5000 ppm. The kit includes a cable adapted to cap DFRobot IO Expansion Shield. The module is characterized by high sensitivity, high resolution, low power consumption, fast response time, high stability and long service life.



Communication

Sensor with analog output. The voltage at the analog output increases along with the increase of the CO2 concentration.



The product is compatible with Arduino

Sample code and detailed information can be found inthe user guide.



The sensor works with any microcontroller that has analog inputs, includingArduino. To read data, simply connect the power and the output pin for any analog input of the microcontroller and then, read the measurement result.





Example of connection of the sensor.



Specification

  • V2.0
  • Supply voltage: 5 V
  • Current consumption: approx. 40 mA
  • A level of logic signal: 3.3 V / 5 V
  • Output signal: PWM
  • Measuring range: 400 to 5000 ppm
  • Accuracy: +/- 50 ppm + 3% reading
  • Heating time: 1 min
  • Response time: 120 sec
  • Operating temperature: 0°C to 50°C
  • Operating humidity: 0% to 95% RH
  • Dimensions: 37 x 69 mm
  • Weight: 34 g



Set includes:

  • Carbon dioxide sensor CO2
  • Connecting cable



Package width 7 cm
Package height 2.5 cm
Package depth 8 cm
Package weight 0.034 kg
