Description
High-precision sensor that measures the concentration of CO2 (carbon dioxide) in the air. It is equipped with a UART interface, it works with a voltage from 4.5 V to 5.5 V. It operates in the range from 0 to 50000 ppm. The kit includes a cable adapted toDFRobot IO Expansion Shield. The module is characterized by high sensitivity, high resolution, low power consumption, fast response time, high stability and long service life. It is not affected by water vapor and is non-toxic. The sensor finds applications in refrigerating facilities, internal systems of air quality, in the processes of the monitoring of livestock and agricultural production, etc.
Communication
The sensor is equipped with UART interface, works with multiple microcontrolers, includingArduinoandRaspberry Pi.
|
The product is compatible with Arduino Sample code and detailed information can be found inthe user guide. |
Example of connection of the sensor.
Specification
- Supply voltage: 4.5 V to 5.5 V
- Current consumption: approx. 85 mA
- A logic signal's level: 3.3 V / 5 V
- Output signal: UART
- Measuring range: 0 to 50000 ppm
- Accuracy: +/- 50 ppm + 5 % reading
- Heating time: 3 min
- Response time: 120 sec
- Operating temperature: 0 °C to 50 °C
- Operating humidity: 0% to 95% RH
- Service life: more than 5 years
- Module dimensions: 21 x 27 mm
- Weight: 42 g

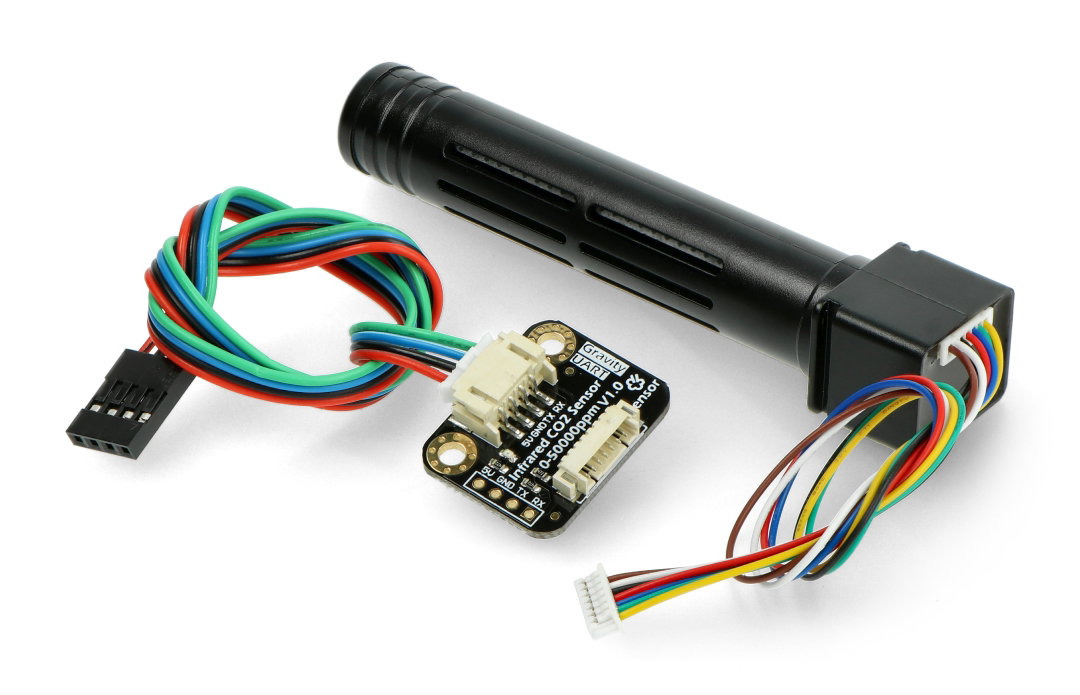

Set includes:
- CO2 sensor
- The main module
- 6-pin connection cable
- Cable Gravity PH2.0
- 4-pin goldpin strip
