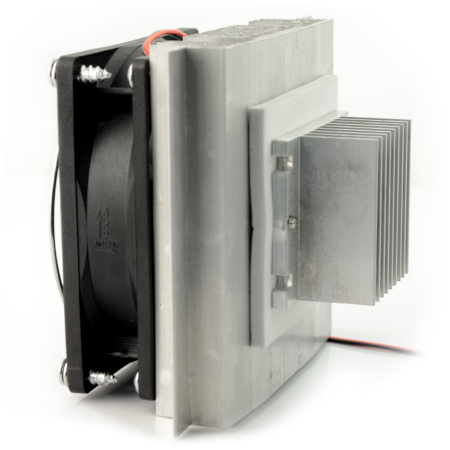

Heatsink with a 92mm fan for the Peltier 40mm cell
The heatsink with fan 92 x 92 mm, designed to dissipate heat from the peltier cell 40 mm. included is also the thermal conductive paste and mounting screws.
We could not load the price.
The promotional price does not combine with quantity discounts.
Description
The heatsink with 92 x 92 mm fan, designed to remove heat fromthe peltier cell 40 mm. Included is also the thermal conductive paste and mounting screws.
The set includes a sponge with a tape having a hole, in which the cell should be, and then glue it to a smaller heatsink, apply thermal conductive paste and connect it using screws with bigger radiator.
Specification
- Supply voltage of fan: 12 V
- Current: 0,18 A
- Dimensions of fan: 92 x 92 x 25 mm
- Dimensions of a large radiator: 118 x 99 x 24 mm
- The dimensions of a small radiator: 60 x 45 x 26 mm
- Matches to cells: 40 mm
Set includes
- Fan with guard
- 2x radiator
- Thermal conductive paste
- Foam self-adhesive tape, single-sided
- Mounting screws
The heatsink with 92 x 92 mmfan, designed to remove heat fromthe peltier cell 40 mm. Included is also the thermal conductive paste and mounting screws.
| Name | Value |
|---|---|
| Width | 13.5 cm |
| Height | 3.5 cm |
| Depth | 22 cm |
| Weight | 0.39 kg |
