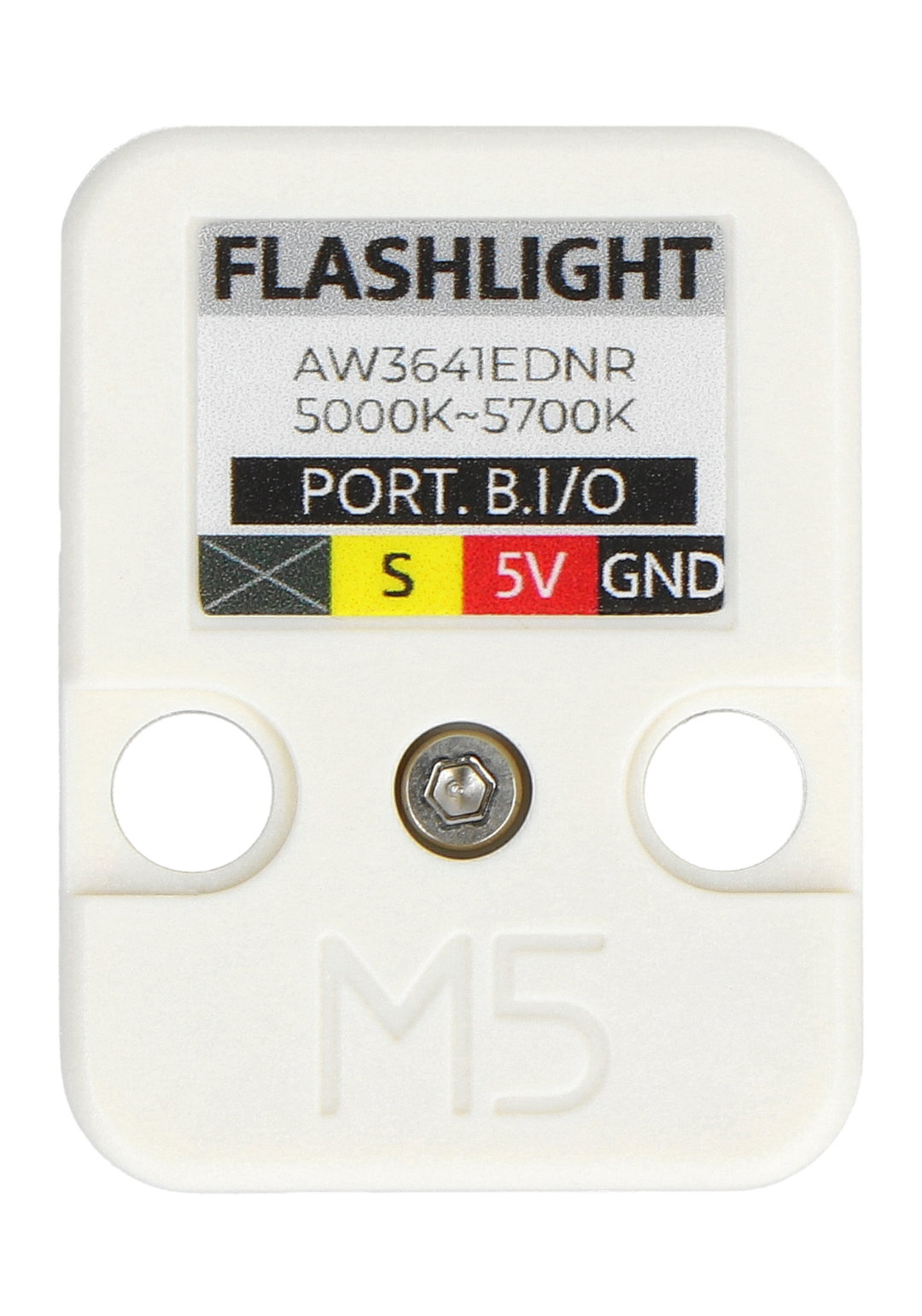

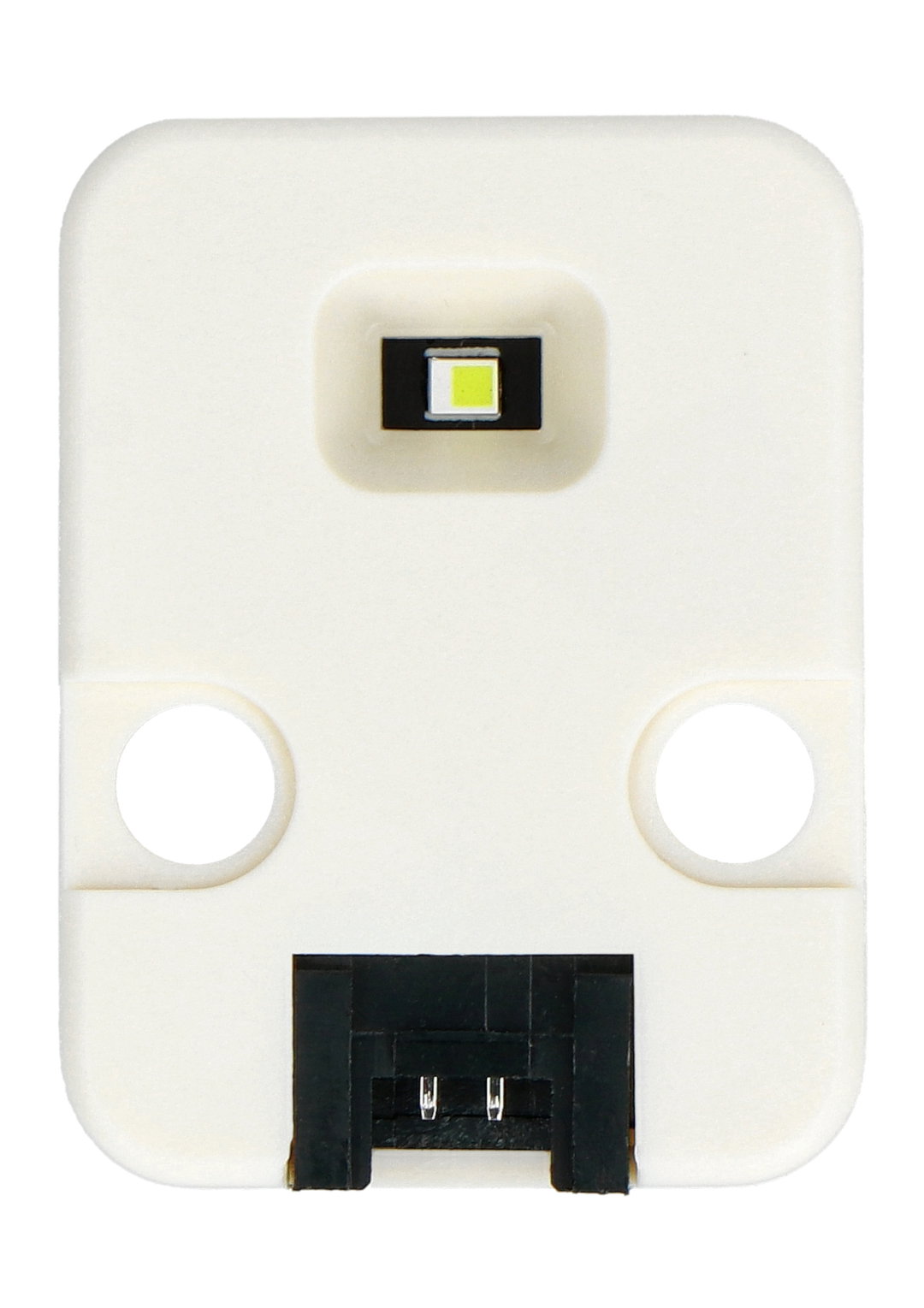

Product description: Flashlight Unit - LED flashlight - 5000-5700 K - AW3641 - Unit expansion module for M5Stack development modules
Module in the form of a Unit extension for M5Stack development modules in the form of a flashlight , the light source of which is a built-in LED . The generated light has a shade of white at a color temperature of 5000 K to 5700 K. In addition, the board also has a built-in switch , with which you can programmatically select the lighting mode - continuous or flashing. The communication interface of the module is GPIO.
The manufacturer has also prepared a user's guide , in which you will find a diagram of the system and sample program codes - check it out!
Flashlight Unit - LED flashlight - 5000-5700 K - AW3641 - Unit expansion module for M5Stack development modules.
The Flashlight Unit can be used to provide visual warnings.Special features of the module
- Adjustment of brightness and lighting mode using PWM
- Built-in driver AW3641EDNR
- Overheating protection and overvoltage and short circuit protection
- Supported development environments Arduino, UIFlow (Blockly, Python)
- 2 LEGO compatible mounting holes
Suggested use of the module
- Universal light source
- DIY flashlight
- Warning module
- Interior lighting
In our offer you will also find other extensions of the Unit type - we invite you to familiarize yourself with the available assortment!
Technical Specifications
- Built-in chip: AW3641EDNR
- Control type: PWM
- LED type: WS2812C-2020
- Light source: LED
- Light shade: white
- Color Temperature: 5000K to 5700K
- Lighting mode: continuous / flashing
- Communication interface: GPIO
- Supply voltage: 5V
- Protections: against overheating, against overvoltage and against short circuit
- Dimensions: 32 x 24 x 8mm
- Weight: 4.7g

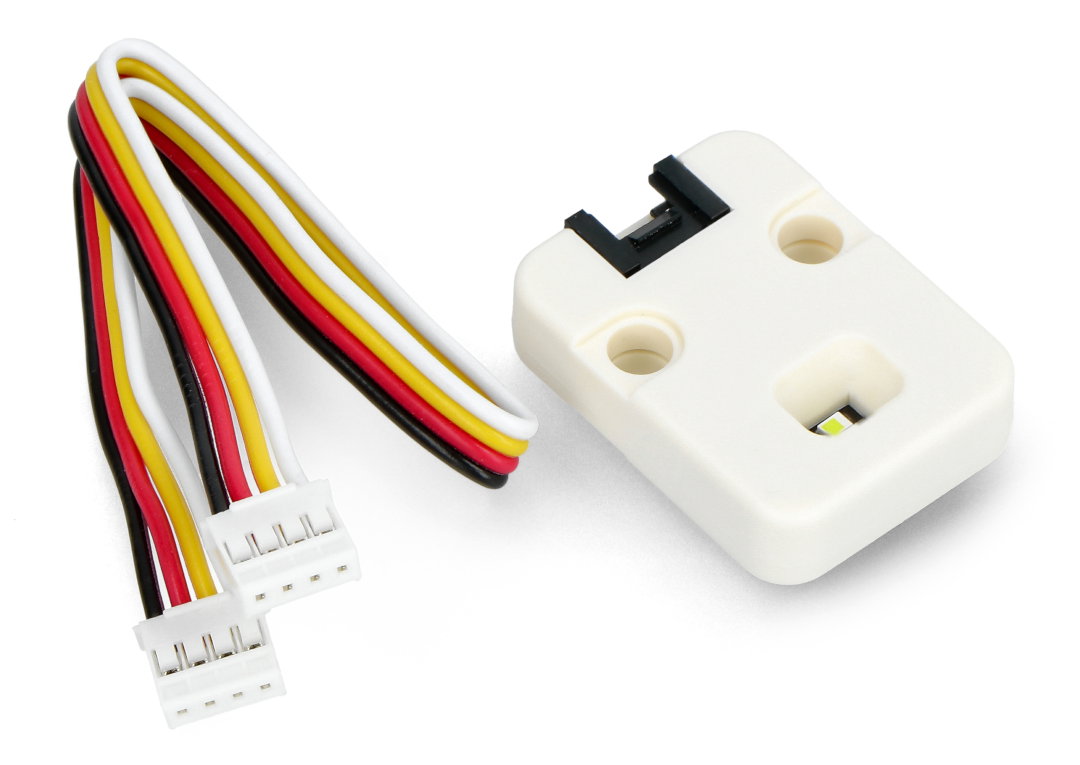

Kit contents
- Flashlight Unit - LED flashlight - 5000-5700 K - AW3641 - Unit expansion module for M5Stack development modules
- Connection cable with Grove connector
Components included in the set.
