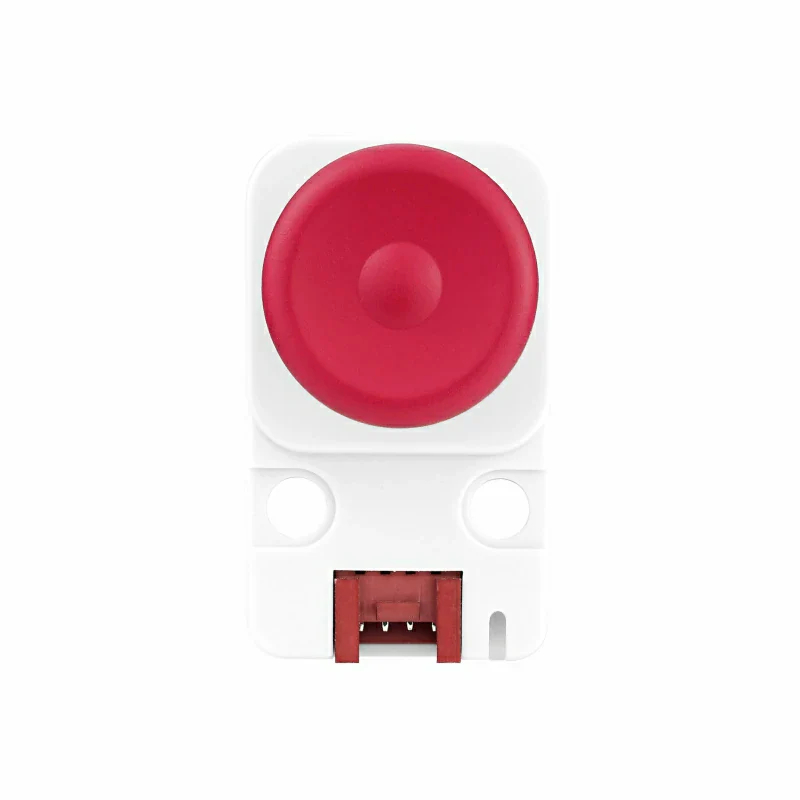

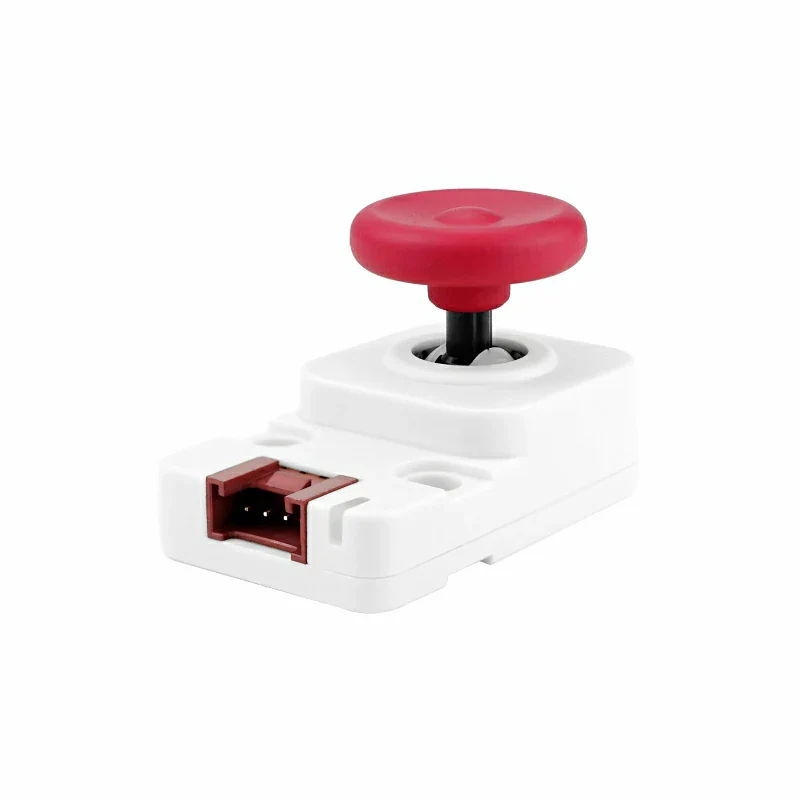

JoyStick2 Unit - push button joystick - expansion module Unit - M5Stack U024-V2
JoyStick 2 Unit is a programmable joystick based on the STM32G030F6P6 microcontroller. It uses the Hall effect , which detects changes in the magnetic field, providing high precision and reliability of control in three axes. The module has analog inputs for the X and Y axes, as well as a digital button on the Z axis, allowing full control over the movement.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: JoyStick2 Unit - joystick with button - Unit expansion module - M5Stack U024-V2
JoyStick 2 Unit is a programmable joystick based on the STM32G030F6P6 microcontroller. It uses the Hall effect , which detects changes in the magnetic field, providing high precision and reliability of control in three axes. The module has analog inputs for the X and Y axes, as well as a digital button on the Z axis, allowing full control over the movement. The I2C protocol guarantees a stable connection, and the built-in WS2812 RGB diodes allow interactive status visualization. JoyStick 2 Unit is compatible with popular platforms such as Arduino IDE and UIFlow , making it an excellent choice for both hobbyists and professionals . Thanks to two Lego -compatible holes, the module can be easily integrated with other projects, and a dedicated STM32 update interface allows you to upload newer versions of firmware.

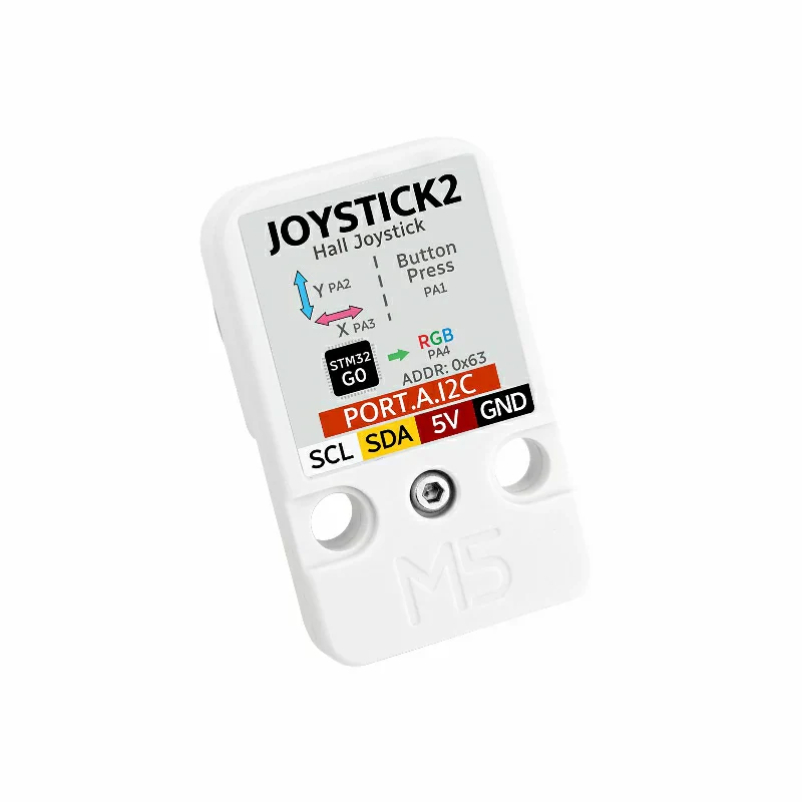

JoyStick2 Unit - joystick with button - Unit expansion module - M5Stack U024-V2.
Botland is an official distributor of the M5Stack module family in Poland. We have extended this system of stackable functional devices with accessories from our range and numerous blog guides. All M5Stack products presented here are original.

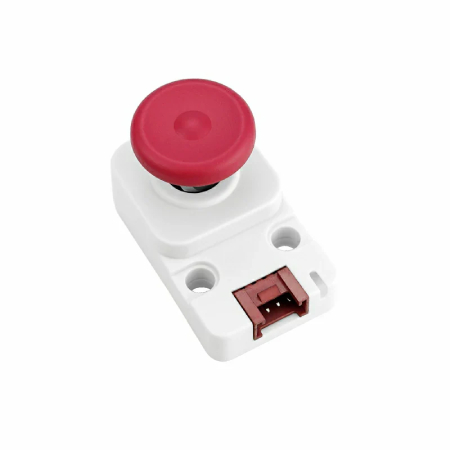

JoyStick2 Unit is a programmable joystick that uses the Hall effect.
Special features of the programmable joystick
- Hall effect joystick : provides precise control by detecting magnetic field changes; features wear resistance, high precision and strong anti-interference ability
- Three-axis input: analog inputs for X and Y axes and digital input for Z axis button
- STM32 Microcontroller: Equipped with STM32G030F6P6 microcontroller with Cortex-M0+ core and 32 KB Flash memory
- I2C communication: standard I2C protocol (address 0x63) ensures easy connection to other devices
- Built-in WS2812 RGB LEDs: for interactive display of device status
- Lego compatibility: two Lego-compatible holes allow easy integration into a variety of projects
- Development Platforms: Supports popular platforms such as Arduino IDE and UIFlow
Practical applications
JoyStick2 Unit finds application in many applications, including computer games , where precise control is crucial. It can be used to control robots , both in amateur and professional applications. Additionally, thanks to built-in RGB diodes , it can be used as an interactive element in educational and DIY projects , allowing for visual indication of status during operation.
Thanks to two LEGO-compatible holes, the module can be easily integrated into other projects.
JoyStick2 Unit Technical Specification
- Microcontroller: STM32G030F6P6 Cortex-M0+, 32 kB Flash, 8 kB SRAM, 64 MHz
- Communication protocol: I2C: 0x63
- X/Y axis input: 16-bit ADC output (0-65535)
- Z-axis button input: 0/1 (digital)
- RGB diodes: 1x WS2812C
- Dimensions: 40 x 24 x 23.9 mm
- Weight: 10.2 g
Kit Contents
- JoyStick2 Unit
- Grove Cable 20cm
Useful links
- Manufacturer website: M5Stack U024-V2
- User Guide
- Arduino Library
- M5Stack - what is it?
| Name | Value |
|---|---|
| UC - Microcontroller | STM32G030F6P6 |
| UC - Core | ARM Cortex-M0+ |
| UC - Flash | 32 kB |
| UC - RAM | 8 kB |
| UC - freq | 64 MHz |
| UC - I2C | yes |
| Width | 2.5 cm |
| Height | 9 cm |
| Depth | 13.5 cm |
| Weight | 0.16 kg |
