Index: MSS-17966 EAN: 6972934171870

Miniature main module with diode RGB LED and a button. The device's capabilities can be easily expanded with additional modules from the series ATOM or Grove-compatible sensors. The module is based on a system ESP32-PICOwhich also enables communication using Wi-Fi i Bluetooth.

€10.78
€8.76 tax excl.

Available, 24h shipping!
(Check quantity)
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: M5Stack
[ID]

Product description: M5Atom Lite - Development module with programmable button - ESP32

Miniature main module withRGB LEDand button. The device's capabilities can be easily expanded with additionalATOMseries modules or Grove compatible sensors. The module is based on theESP32-PICOchip, which also enables communication usingWi-FiandBluetooth. For power supply and programming the device uses theUSB Cport located on the housing.

M5Atom Lite oparty na ESP32.

M5Atom Lite based on ESP32.

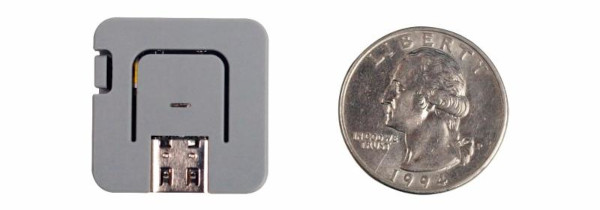

Miniaturowe rozmiary urządzenia pozwalają zastosować go w praktycznie każdym projekcie.

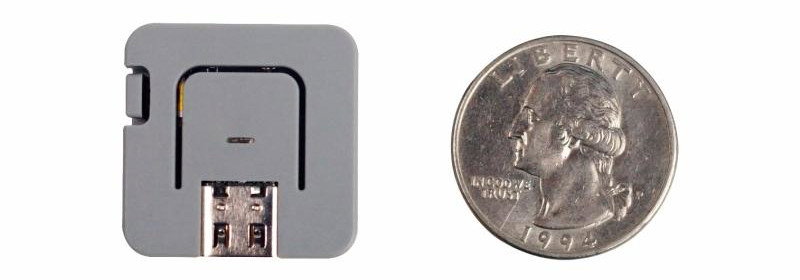

Miniature size of the device allows to use it in virtually any project.



Main product features

  • Module based onESP32-PICO
  • 4 MBintegratedSPI Flash memory
  • Compatible withGrove sensors
  • Wi-Fi and Bluetooth communication
  • Programmable button
  • Built-in infrared diode
  • GPIO connector for connecting additionalATOM modules
  • Programmable with Arduino IDE,UIFlowand MicroPython



What is needed to work with M5Atom Lite?

To work with the module you will need a USB cable, which will be used to program and power our device. To power the device we can also useATOM TailBatextensions, which act as a kind of powerbank. For proper communication between the module and the computer you will also needCP210Xdriver, whose installation wasdescribed by the manufacturer. The manufacturer also providesEasy LoaderandM5Burnerprograms using firmware upload to our device.

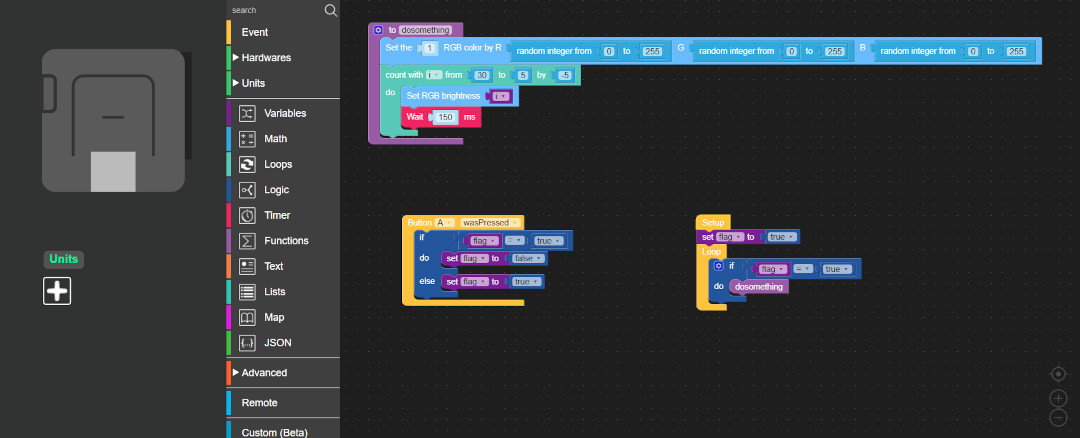

Przygotowane przez producenta graficzne środowisko programistyczne.

Graphicaldevelopment environmentprepared by the manufacturer.

Złącza GPIO umożliwiające podłączenie dodatkowych modułów rozszerzających możliwości M5Atom Lite.

GPIO connectors for connecting additional modules extending M5Atom Lite capabilities.

Application of the module

Thanks to its miniature size, the device can be successfully used inintelligent homesystems and intelligent toys and robots. The process of connecting sensors and extensions to the device is very simple. Grove andGPIOconnectors on the back of the device are used for this purpose. Thanks to the use ofGroveconnectors by the manufacturer we can also use sensors fromGrove system. Working with the device does not require from us knowledge of coding, all functions of the system can be programmed using UIFlow, which is an original,graphical programming languagecreated forM5Stackdevices.

Technical Specification

  • Controller:ESP32-PICO,
  • Flash memory: 4
  • Power supply: 5 V / 500 mA
  • Connectors: GPIO, USB C, Grove
  • Operating temperature: 0°C to 40°C
  • Dimensions: 24 x 24 x 10 mm
  • Weight: 3 g

9261
Voltage to 5.0 V
Voltage from 5.0 V
UC - Microcontroller ESP-32
UC - Core ESP-32
UC - Flash 4 MB
UC - WiFi yes
UC - USB USB C
UC - Bluetooth yes
UC - I2C yes
UC - UART yes
UC - Connector USB typ C
