ATOM HUB DIY Proto Board Kit - prototyping kit for M5Atom development module

Index: MSS-18724 EAN: 5904422363611

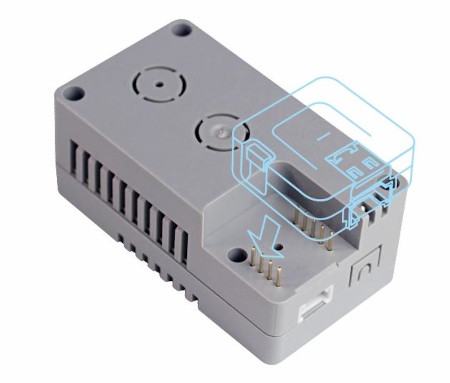

The ATOM HUB DIY Proto Board Kit allows for convenient prototyping of projects using the M5Atom development module. It allows users to build circuits and connect additional peripherals - all according to individual needs and scenarios. The prototyping board is equipped with Grove connector, and the kit also includes VH-3.96mm 4-pin and 3-pin connectors or DC power connector. In addition, the housing has been designed in such a way as to facilitate the arrangement of the wiring used.
ATOM HUB DIY Proto Board Kit - prototyping kit for M5Atom development module
€12.80
€10.41 tax excl.
Available
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: M5Stack
Compatibility: M5Atom

Product description: ATOM HUB DIY Proto Board Kit - prototyping kit - for M5Atom development module

The ATOMHUB DIY Proto BoardKit allows you to convenientlyprototypeyour projects using theM5Atomdevelopment module. It allows users tobuild circuitsand connectadditional peripherals- all according to individual needs and scenarios. The prototyping board is equipped withGroveconnector, and the kit also includesVH-3.96mm 4-pin and 3-pinconnectors orDCpower connector. In addition, the case has been designed in such a way as to facilitate the arrangement of the wiring used.

ATOM HUB DIY Proto Board Kit - zestaw do prototypowania

ATOM HUB DIY Proto Board Kit. TheM5Atomdevelopment module must be purchased separately.

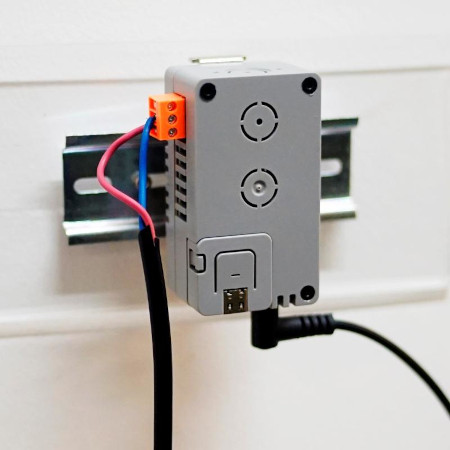

Przykład jak prototypować z wykorzystaniem ATOM HUB PROTO.

Example how to prototype using ATOM HUB PROTO.

Special features of ATOM HUB DIY Proto Board Kit

  • Kit compatible withM5Atom Matrix/M5Atom Lite
  • Compact design
  • Also suitable for industrial applications
  • Equipped with a large number of leads and interfaces, which extend the possibilities of prototyping module
  • The design of the components also includes convenient mounting holes
  • Working with ATOM HUB DIY Proto Board Kit develops creative DIY and allows you to create your own projects using the module from M5Stack

Suggested use

  • A board to extend the capabilities of the M5Atom development module
  • Project component: industrial controller node
  • Peripheral connection
  • DIY hardware

Technical specifications of the kit

  • Pinouts:
    • VH-3.96 mm 4-pin connector - 1 pcs.
    • VH-3.96mm 3-pin connector - 6 pcs.
    • DC 5V power input - 1 pc.
    • Grove connector - 1 pc.
  • Housing material: plastic (PC)
  • Equipped with convenient mounting holes
  • Space for M5Atom developer module
  • Housing color: grey
  • Dimensions of assembled set: 72 x 40 x 30 mm
  • Weight: 93 g

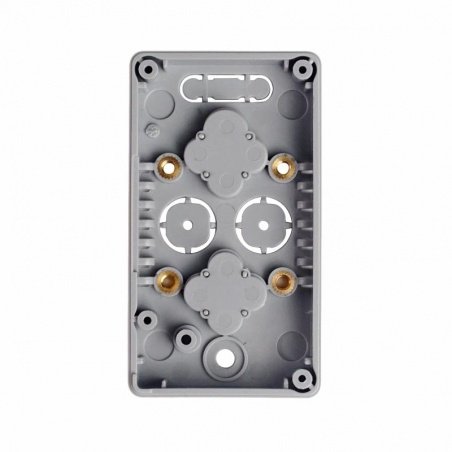

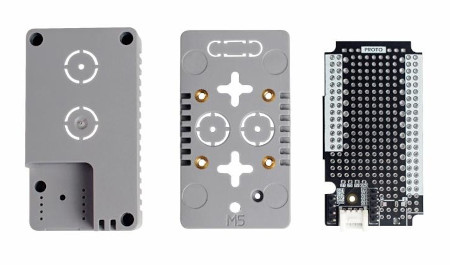

W zestawie, oprócz tablicy prototypowej, znajduje się dwuczęściowa obudowa w kolorze szarym. In addition to the prototyping board, the kit includes a two-piece enclosure in gray.

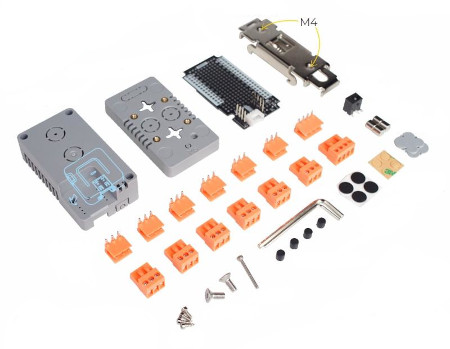

Zawartość zestawu ATOM HUB PROTO
ATOM HUB PROTO kit contents.

Contents of the kit

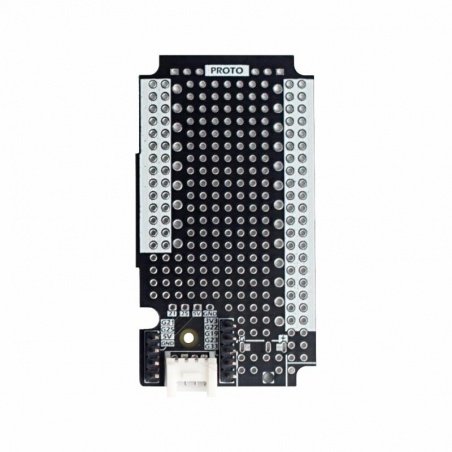

  • Prototyping board with Grove connector

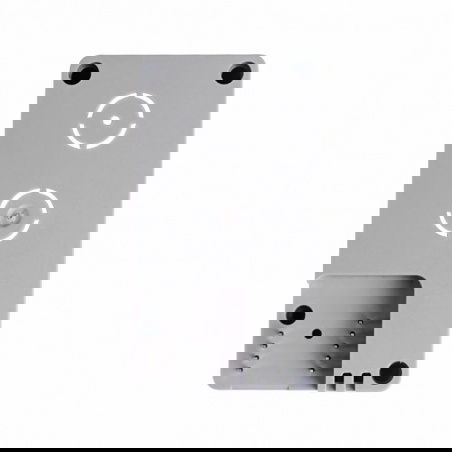

  • Housing in the form of front and back cover
  • DIN rail with M4 mounting holes
  • VH-3.96 mm 4-pin connector - 1 pc. (plug + socket)
  • Connector VH-3.96 mm 3-pin - 6 pcs. (socket + plug)
  • Power supply socket DC 5 V
  • Dust cover - 4 pcs.
  • Plastic cap for the holes - 2 pcs.
  • Double-sided magnetic tape - 4 pcs.
  • Anti-slip rubber feet - 4 pcs.
  • Cylindrical magnets - 4 pcs.
  • Self-tapping hexagonal screw M2 x 6 mm - 4 pcs.
  • Hex head screw M4 x 10 mm - 2 pcs.
  • Hex head machine screw with hexagon socket M2 x 20 mm - 1 pcs.
  • Allen wrench M2 and M4
