AtomS3R Ext Proto Kit - developer module with contact board - M5Stack C126-Ext

Index: MSS-25960 EAN: 6972934175519
AtomS3R-Ext is a compact controller based on ESP32-S3 , designed for rapid prototyping and testing of IoT solutions and embedded systems. Equipped with a prototyping board , a nine-axis sensor set and a USB Type-C port, it allows convenient connection and debugging of peripherals. It will work well in smart device projects and in technical education.
AtomS3R Ext Proto Kit - developer module with contact board - M5Stack C126-Ext
€21.50
€17.48 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: M5Stack

Product description: AtomS3R Ext Proto Kit - development module with breadboard - M5Stack C126-Ext

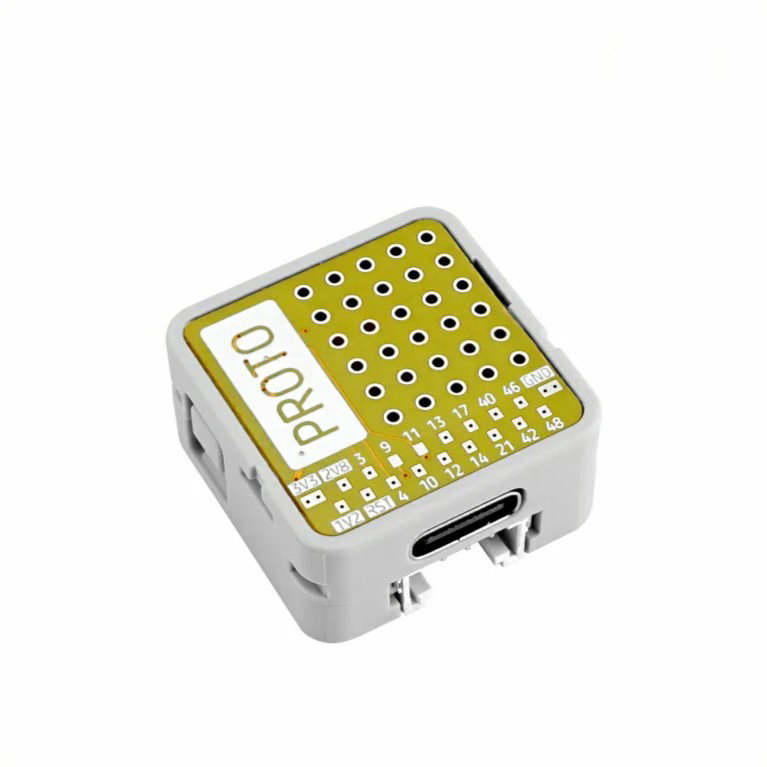

AtomS3R-Ext is a modern development platform designed for embedded system designers and IoT solution creators. Its heart is the efficient ESP32-S3-PICO-1-N8R8 system with a dual-core Xtensa LX7 processor, clocked at up to 240 MHz , supported by 8 MB of Flash memory and 8 MB of PSRAM. On the top of the housing there is a universal prototyping board that allows you to quickly connect and test many GPIO pins. Thanks to the built-in nine-axis IMU (BMI270 + BMM150) , the module is ideal for projects requiring precise motion tracking and spatial orientation. AtomS3R-Ext supports IR transmission, allows easy expansion thanks to the Grove port and provides fast data transfer and power supply via the USB Type-C port. The 3D antenna provides better range and stability of the WiFi connection compared to previous models from the Atom series .

AtomS3R Ext Proto Kit - Development Module with Breadboard - M5Stack C126-Ext AtomS3R Ext Proto Kit - development module with breadboard - M5Stack C126-Ext.
AtomS3R Ext Proto Kit - Development Module with Breadboard - M5Stack C126-Ext AtomS3R-Ext is a modern development platform designed for embedded system designers and IoT solution creators.

Special Features

  • ESP32-S3-PICO-1-N8R8: Dual-core with USB-OTG and WiFi support Nine-axis sensor system: 6-axis BMI270 + 3-axis BMM150
  • 8 MB Flash and 8 MB PSRAM: smooth application operation and data storage
  • IR support: long range infrared transmission (up to 12.46 m at 180°)
  • Universal expansion board: 2.54mm pitch, 5x6 grid
  • USB Type-C port: convenient power supply and programming
  • Improved 3D Antenna: Better WiFi Signal Performance
  • Multiple GPIOs: Available on both the bottom and the breadboard
  • Multi-platform support: Arduino IDE, Platform.IO, ESP-IDF

Practical applications

  • Motion and orientation detection - thanks to the integrated BMI270 and BMM150 sensors, the controller is ideal for projects related to motion monitoring, such as wearable devices, gesture controllers or VR/AR systems
  • Controlling smart devices - WiFi and infrared support enables the creation of remote controls, controllers and automation for home and industrial IoT systems
  • Rapid prototyping - a breadboard on top of the case allows for immediate testing of GPIO connections and integration with other modules
  • Educational Applications - AtomS3R-Ext is a great teaching tool for learning microcontrollers, wireless communication and sensor data processing
  • IoT projects and embedded systems - compact size, low power consumption and wide range of functions make it ideal for integration with smart devices and sensors in production and test environments
AtomS3R Ext Proto Kit - Development Module with Breadboard - M5Stack C126-Ext With a built-in nine-axis IMU, the module is ideal for projects requiring precise motion tracking and spatial orientation.

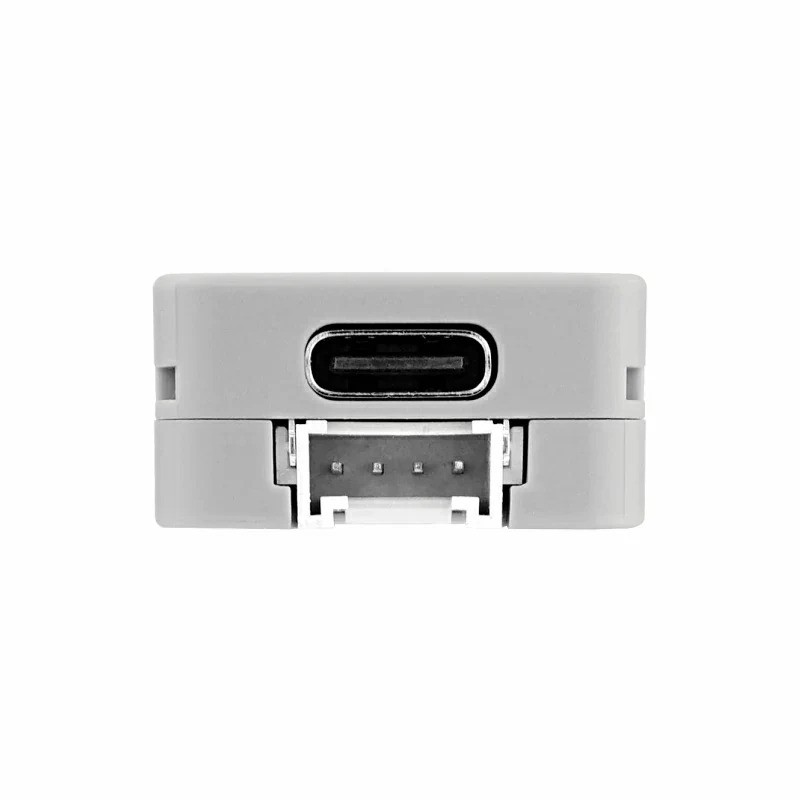

AtomS3R Ext Proto Kit - Development Module with Breadboard - M5Stack C126-Ext AtomS3R-Ext supports IR transmission, enables easy expansion with the Grove port, and provides fast data transfer and power supply via the USB Type-C port.

Technical specification of the module

  • Microcontroller: ESP32-S3-PICO-1-N8R8, Dual-core Xtensa LX7, up to 240 MHz, USB-OTG
  • Memory: 8MB Flash, 8MB PSRAM
  • BMI270 sensor: 6 axes, accuracy 0.05% (acceleration), 0.05°/s (angular velocity), I2C address: 0x68
  • BMM150 sensor: 3 axes, 0.3 μT accuracy, integrated with BMI270
  • IR transmission:
    • 180°: 12.46m>
    • 90°: 1.45m
    • 45°: 3.88m
  • Power consumption in sleep mode:
    • GPIO-5V: 11.63µA
    • Grove - 5V: 10.75µA
    • USB-5V: 92.50µA
  • Prototype board: 5 x 6, 2.54 mm pitch
  • Reserved GPIO (Bottom): G5, G6, G7, G8, G38, G39
  • GPIO on breadboard: G3, G4, G9, G10, G11, G12, G13, G14, G17, G21, G40, G42, G46, G48
  • Operating temperature: 0°C to 40°C
  • Dimensions: 24 x 24 x 12 mm
  • Weight: 6.9 g
