Product description: Atomic TF-Card Reader - micro SD card reader - expansion module for M5Atom - M5Stack A135

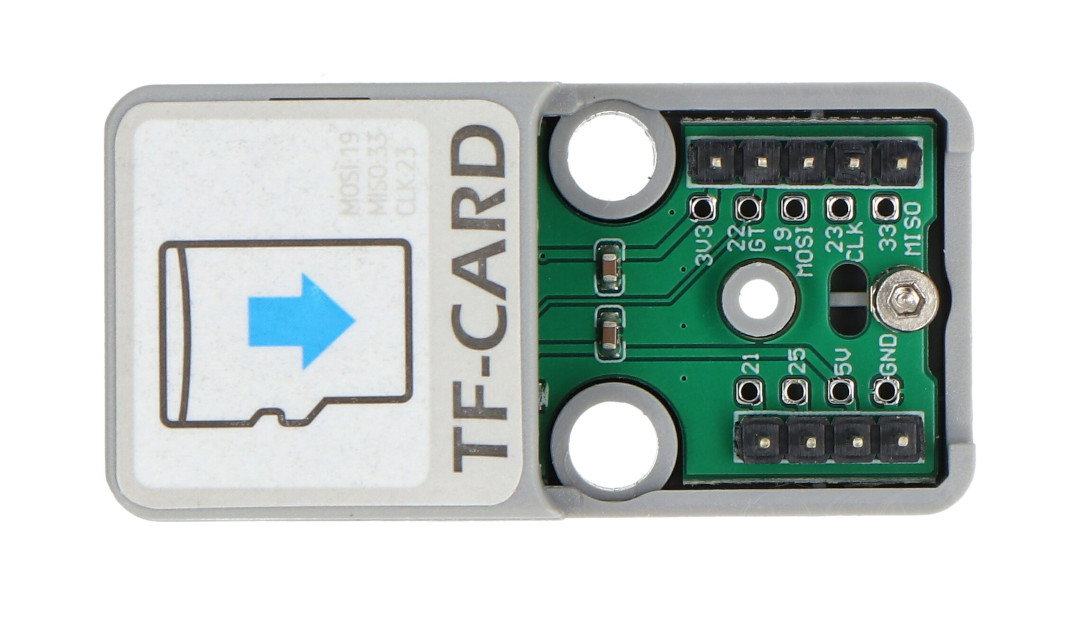

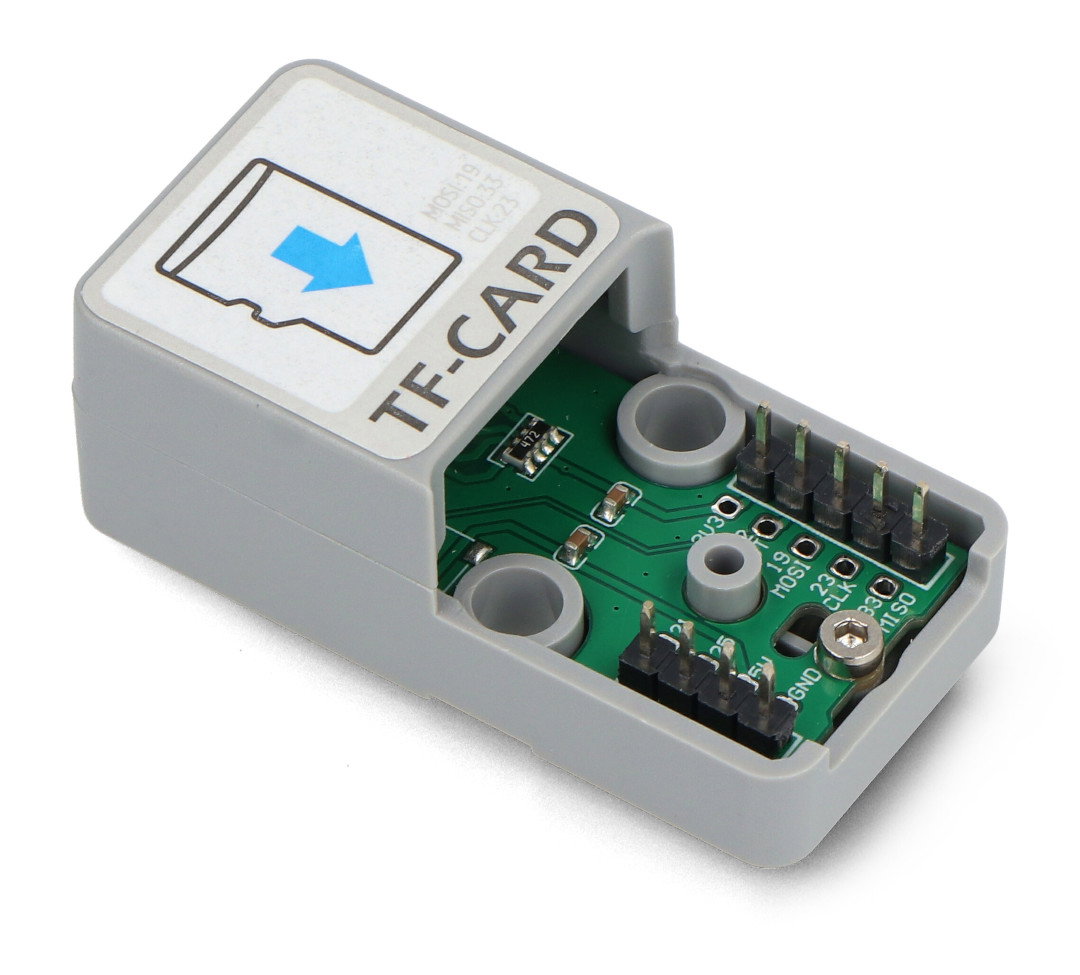

Atomic TF-Card Reader is a functional module dedicated to reading and writing TF cards ( micro SD ), compatible with Atom series controllers : Atom Matrix , Atom Lite , AtomS3 and AtomS3 Lite . The module does not contain its own controller, which makes it ideal for use with Atom series development modules. Equipped with a self-unloading card slot , it allows you to easily insert and remove TF cards, supporting cards with a maximum capacity of up to 16GB . The M5Atom reader is particularly useful in applications that require storing and accessing large amounts of data, such as embedded systems, industrial automation and IoT devices. Storing key configuration files and data on the TF card saves valuable M5Atom Flash memory , enabling more efficient resource management. Atomic TF-Card Reader supports FAT and FAT32 formats, which ensures wide compatibility with various file systems. Thanks to this device, you can easily expand the functionality of Atom series development modules, adding the ability to conveniently store and read data.
Also check out the user guide prepared by the manufacturer!
Atomic TF-Card Reader - micro SD card reader - expansion module for M5Atom - M5Stack A135.
The module is compatible with Atom series controllers.
Special features of the reader
- Compatibility : Works with Atom Matrix, Atom Lite, AtomS3, AtomS3 Lite.
- Support for TF card up to 16GB : provides enough space to store your important files.
- FAT/FAT32 file formats : wide compatibility with various file systems.
- Equipped with a TF card slot : easy insertion and removal of cards.
- Controller Flash Memory Saving : File storage on external TF card.
- Multi-application support : ideal for embedded systems, industrial automation and IoT devices.
Technical specifications of Atomic TF-Card Reader
- Type: TF card reader (micro SD)
- Supported card type: 16 GB FAT / FAT32 micro SD
- Compatible with: Atom Matrix, Atom Lite, AtomS3 and AtomS3 Lite
- Dimensions: 48 x 24 x 18 mm
- Weight: 8.8 g
Atomic TF-Card Reader supports FAT and FAT32 formats. Useful links |
