Product description: Atomic Audio-3.5 Base - audio module with voice recognition for Atom series modules - M5Stack A166
The Atomic Audio-3.5 Base is an audio base for Atom series controllers, designed for voice recognition, audio playback, and interactive voice devices . The module integrates the ES8311 audio codec , a MEMS microphone , an NS4150B power amplifier, and a standard 3.5mm audio connector with a CTIA-standard 4-segment TRRS connector. This allows for both audio output and microphone input. The ES8311 codec enables 24-bit audio processing and supports sampling rates from 16 kHz to 64 kHz . Communication takes place via the I2S interface, enabling high-quality audio signal transmission and processing. The built-in MEMS microphone is optimized for automatic speech recognition, and the integrated speaker allows for convenient playback of audio messages. The module is not compatible with Atom Voice.

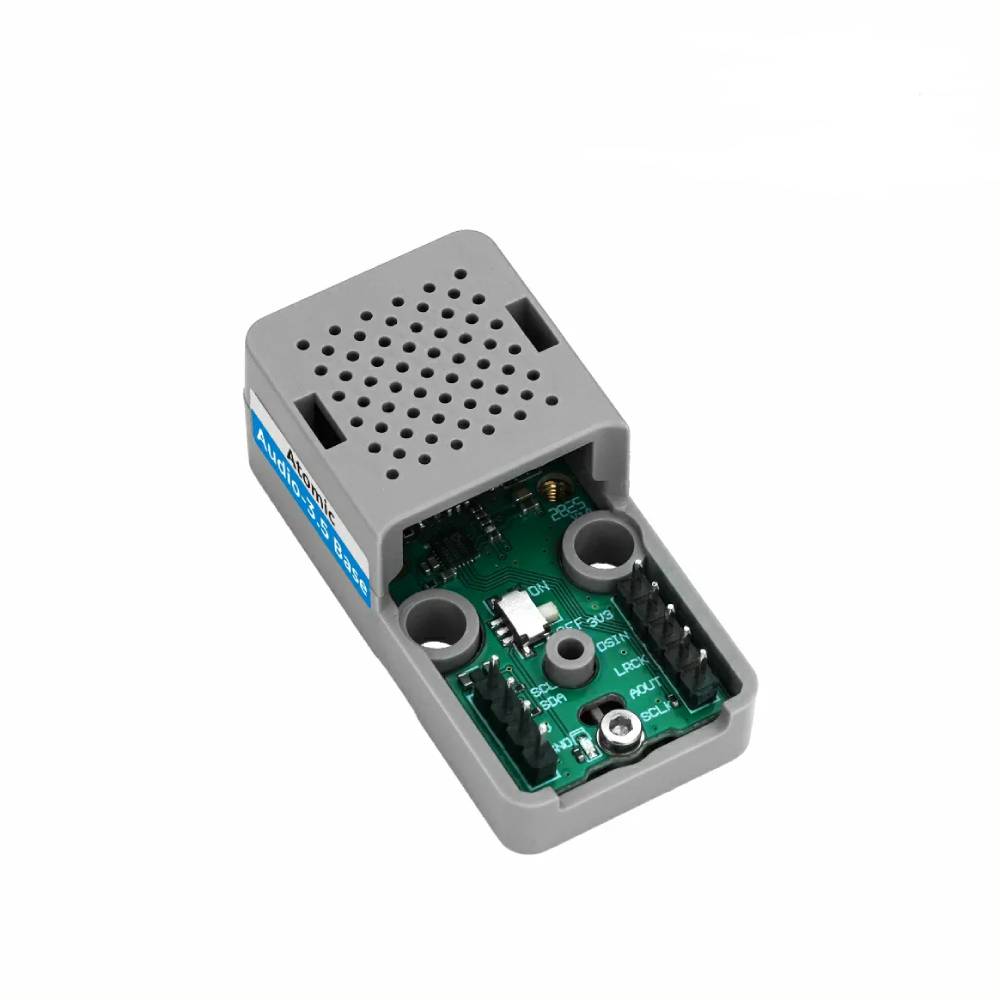

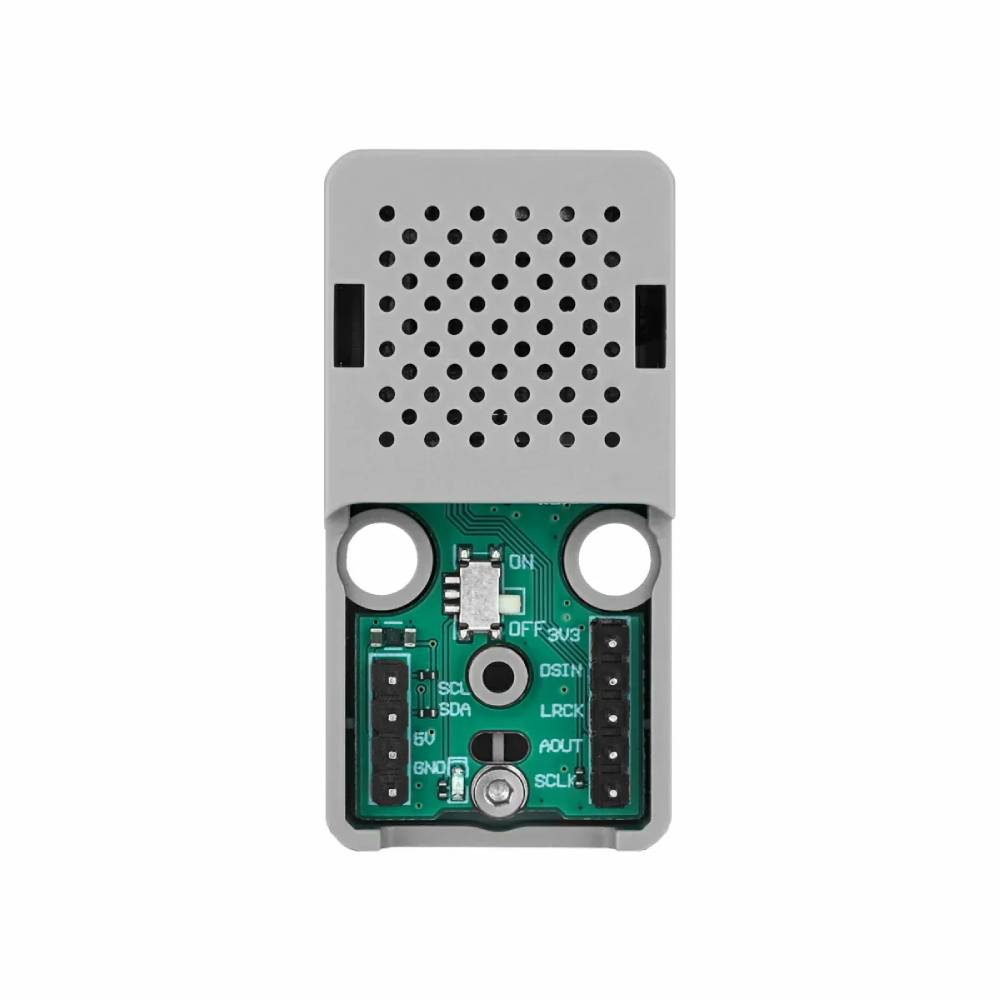

Atomic Audio-3.5 Base - audio module with voice recognition for Atom series modules - M5Stack A166.
The Atomic Audio-3.5 Base is an audio base for the Atom series controllers, designed for voice recognition, audio playback and building interactive voice devices.Special features
- Voice recognition support: the module is suitable for projects with automatic speech recognition and voice control
- ES8311 audio codec: Provides 24-bit audio processing and supports sampling rates from 16 kHz to 64 kHz

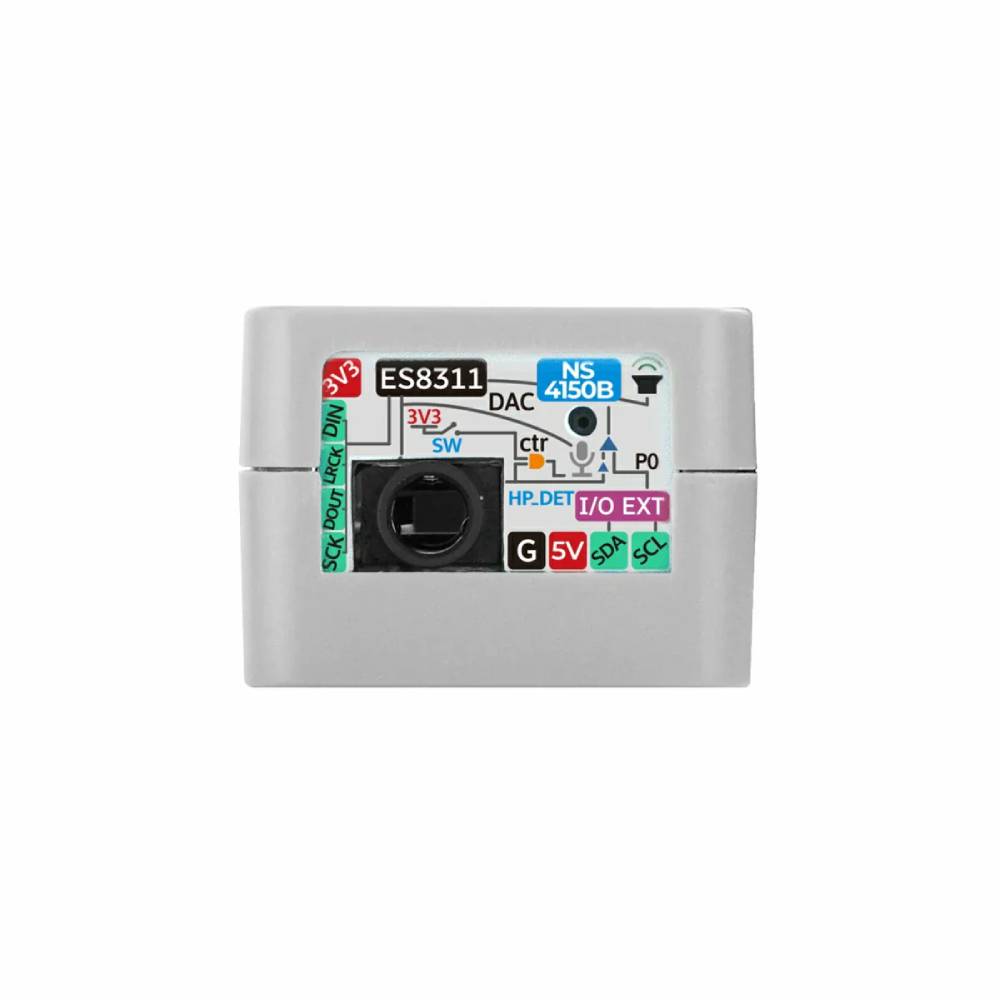

- 3.5mm TRRS audio connector: allows you to connect audio devices with sound output and microphone input support
- ME1502AM5G MEMS microphone: offers a good signal-to-noise ratio and is suitable for voice applications
- NS4150B amplifier: works with 1W/8Ω speaker for efficient audio playback
- Full-duplex communication: allows you to send and receive audio simultaneously
- Automatic audio source switching: the module switches between the on-board source and the external microphone during playback or recording
- Compact design: 48 x 24 x 17.5 mm dimensions for easy integration into Atom-based designs
Technical specifications
- Compatibility: Atom series controllers
- Incompatibility: Atom Voice
- Audio codec: ES8311
- MEMS Microphone: ME1502AM5G
- Speaker/Amplifier: 1W/8Ω, NS4150B
- Audio interface: 3.5mm headphone jack SMID-5P, 5-pin
- Audio connector standard: TRRS, CTIA
- Codec communication interface: I2S
- Audio resolution: 24 bits
- Sampling rate: 16 kHz to 64 kHz
- Voltage regulator: TPS7A2033PDQNR
- GPIO expander: PI4IOE5V6408ZTAEX
- Standby power consumption: 5V/1.83mA
- Power consumption in recording mode: 5V/12.71mA
- Power consumption during playback at 50% volume: 5V/21.19mA
- Power consumption during playback at 100% volume: 5V/26.46mA
- Weight: 12 g
- Dimensions: 48 x 24 x 17.5 mm
Kit contents
- Atomic Audio-3.5 Base
- L-Shape Allen Key 1.5mm for M2 Screws
- M2 x 8mm screw
The ES8311 codec used enables audio processing in 24-bit resolution and supports sampling rates from 16 kHz to 64 kHz. Useful links |
