Product description: AtomS3 Lite Dev Kit - ESP32S3 - development kit - M5Stack C124
AtomS3 Lite development kit - a miniature edition of the new model of the M5Atom series development module . The module is based on the ESP32-S3FN8 chip, has 8 MB Flash memory and supports wireless WiFi communication. AtomS3 Lite Dev Kit can be expanded with further extensions using additional Atom series modules, Unit series expansion modules or sensors compatible with the Grove system. It is also used in the implementation of applications used in smart clothes.
Also check the manufacturer's user guide !

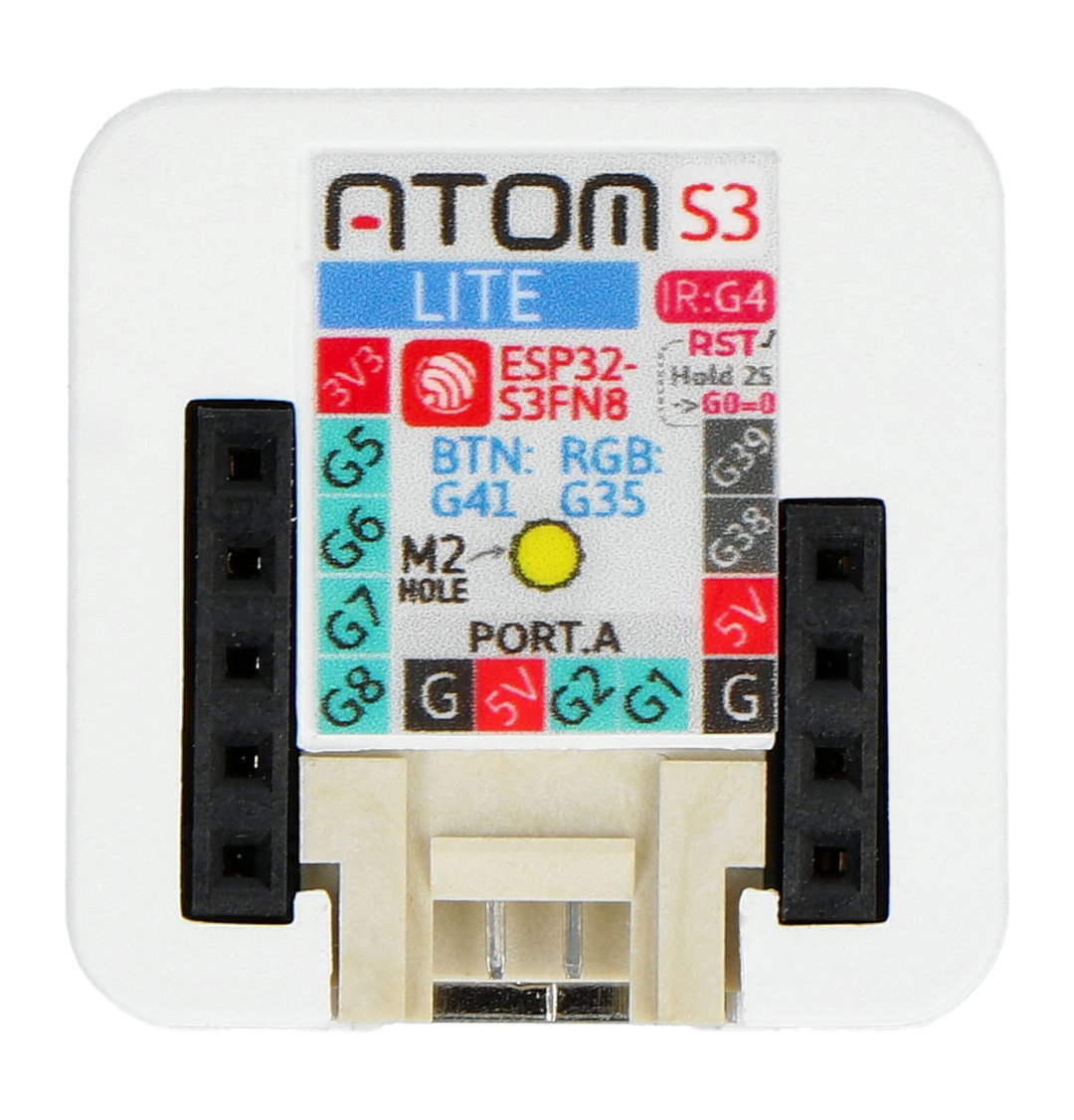

Another version of sandwich modules - AtomS3 development module in Lite version.

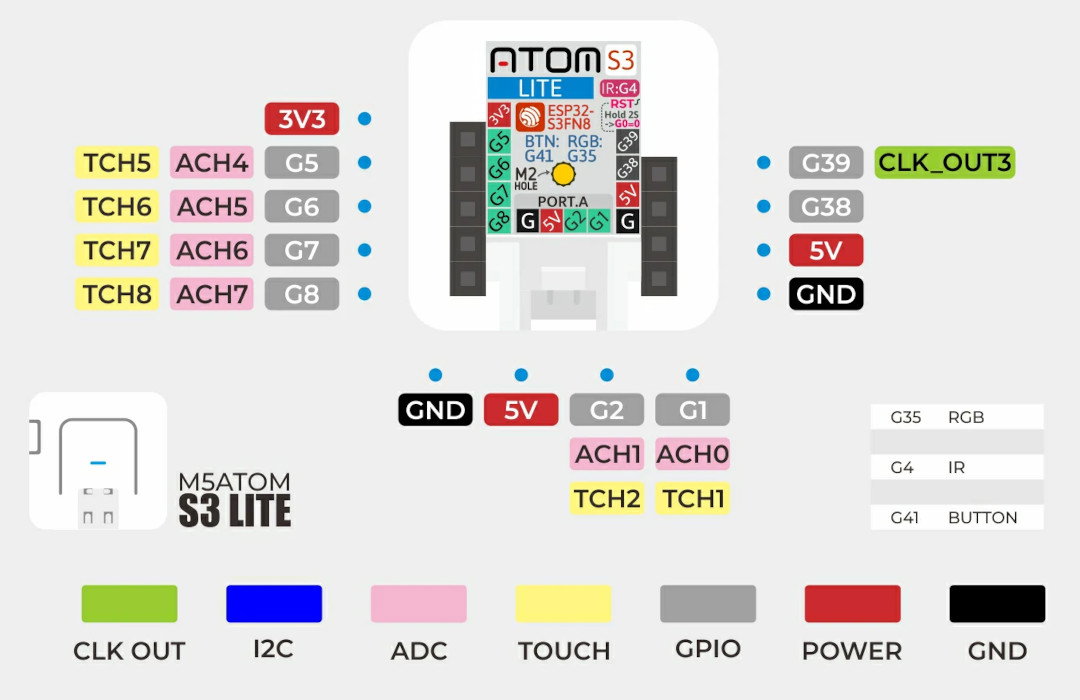

AtomS3 Lite pin placement.
Special features of the AtomS3 Lite
- Based on the ESP32-S3 chip
- It has a built-in IR LED and one utility button
- External reset button and built-in RGB LED (pin G35)
- It has as many as 6 GPIO ports - G5 / G6 / G7 / G8 / G38 / G39
- Programmable using Arduino, UIFlow2.0 or MicroPython
- Powered by 5 V via the USB type C connector
- It can be used as the basis for IoT applications
Check also other M5Stack modules available in our offer!
Module technical specification
- Series: M5Atom
- Model: Atom S3 Lite
- Control chip: ESP32-S3FN8
- Wireless communication: WiFi
- Built-in flash memory: 8MB
- DC-DC chip: SY8089
- RGB LED: WS2812B-2020
- Supply voltage: 5V
- Output voltage: 3.3V
- Power Connector: USB Type-C
- Communication interface: SPI bus
- GPIO communication ports: G5 / G6 / G7 / G8 / G38 / G39
- Operating temperature range: 0°C to 40°C
- Module dimensions: 24 x 24 x 9.5 mm
- Weight: 5.3g
Kit contents
- AtomS3 Lite Dev Kit - ESP32S3 - development kit - M5Stack C124 - 1 piece

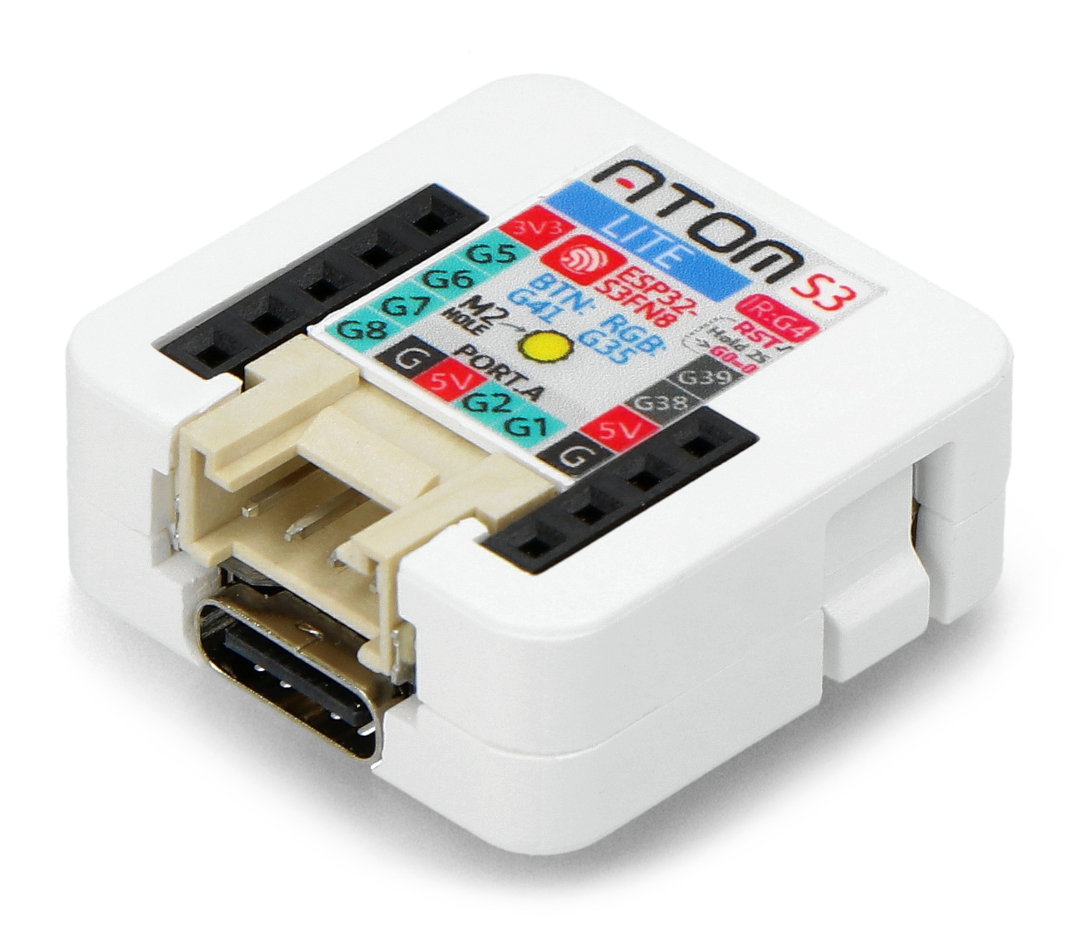

AtomS3 Lite Dev Kit - M5Stack C124.
