Product description: BleBox twilightCompact - twilight sensor for LED 12 V / 24 V
TwilightCompact is another sensor produced by BleBox . The dusk sensor is equipped with a photodiode that allows you to determine the degree of darkening of the room and thus turn on or off the LED lighting. TwilightCompact allows you to gently brighten / dim the LED strip . It works with LED strips powered with a voltage of 12 V or 24 V DC with a power from 60 W to 120 W. Its miniature size allows you to put it in the housing of any other device or hide it so that it is invisible. BleBox twilightCompact is equipped with screw connections for mounting wires.

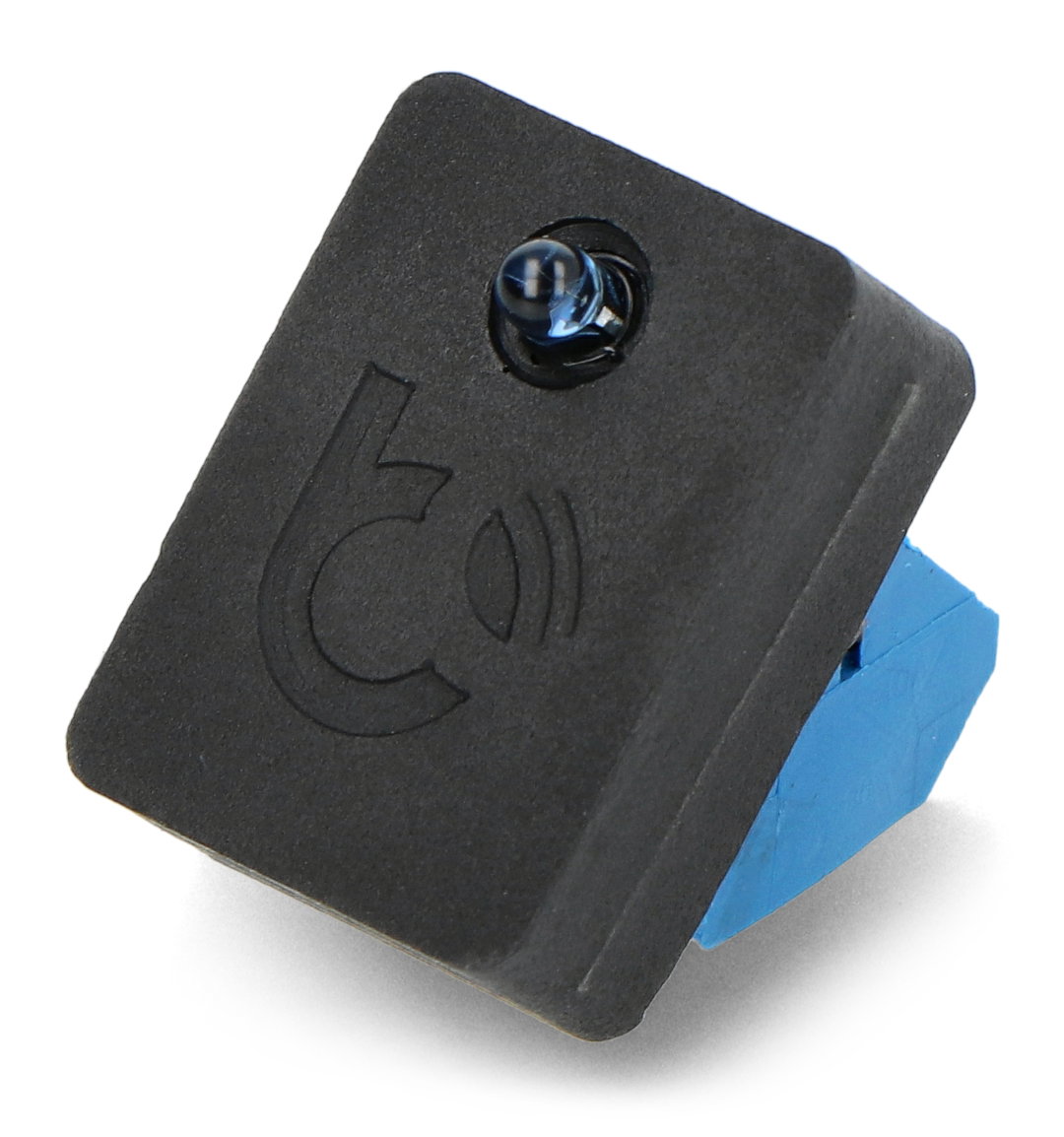

BleBox twilightCompact twilight sensor.
Twilight sensor for LED lighting 12 V / 24 V DC.Main features of the BleBox twilightCompact sensor
- Gentle brightening / dimming of lighting depending on the time of day
- Compact size
- Automatic calibration
- Durable screw joint for cable assembly
- Non-flammable housing
- Supports 12V / 24V LED lighting from 60W to 120W
Application of the twilightCompact twilight sensor
The BleBox twilightCompact twilight sensor can be successfully used in home and garden lighting. Perfect for illuminating trees, gazebos, alleys, benches, parking lots, door handles and other elements with 12 V / 24 V DC LED lighting.
High power
The twilightCompact device allows you to connect LEDs with a total power of up to 60 W to 120 W with a voltage of 12 V or 24 V DC. Additionally, thanks to BleBox ampBox , the power can be increased by an additional 240 W - 480 W (300 - 600 W).

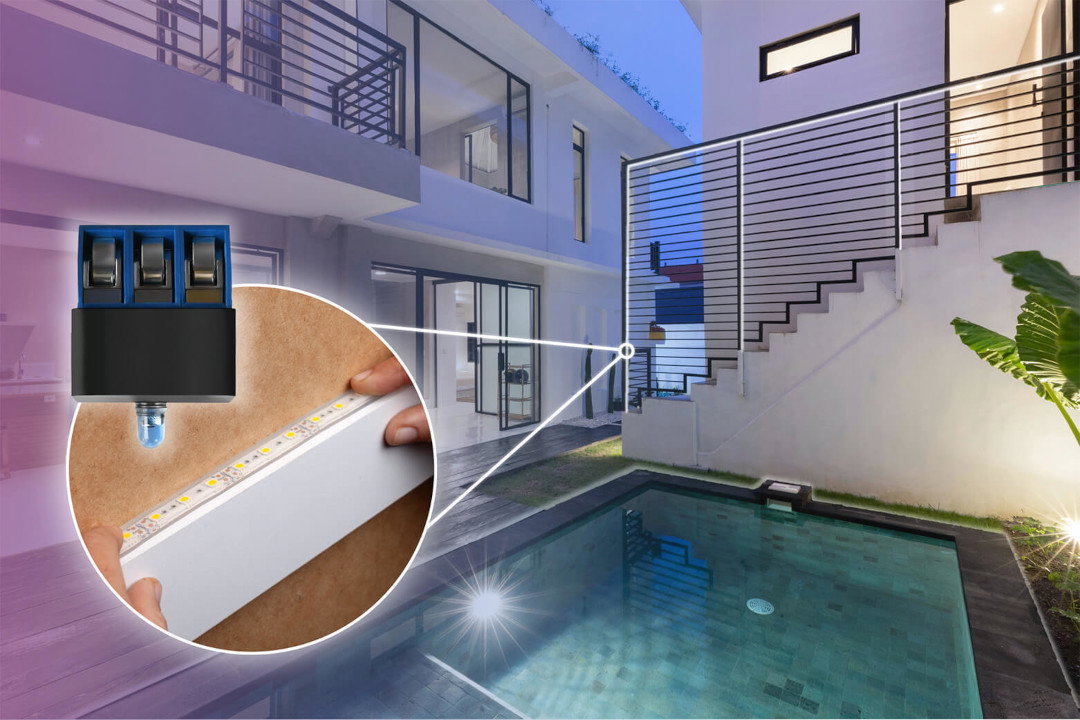

An example of a sensor application.

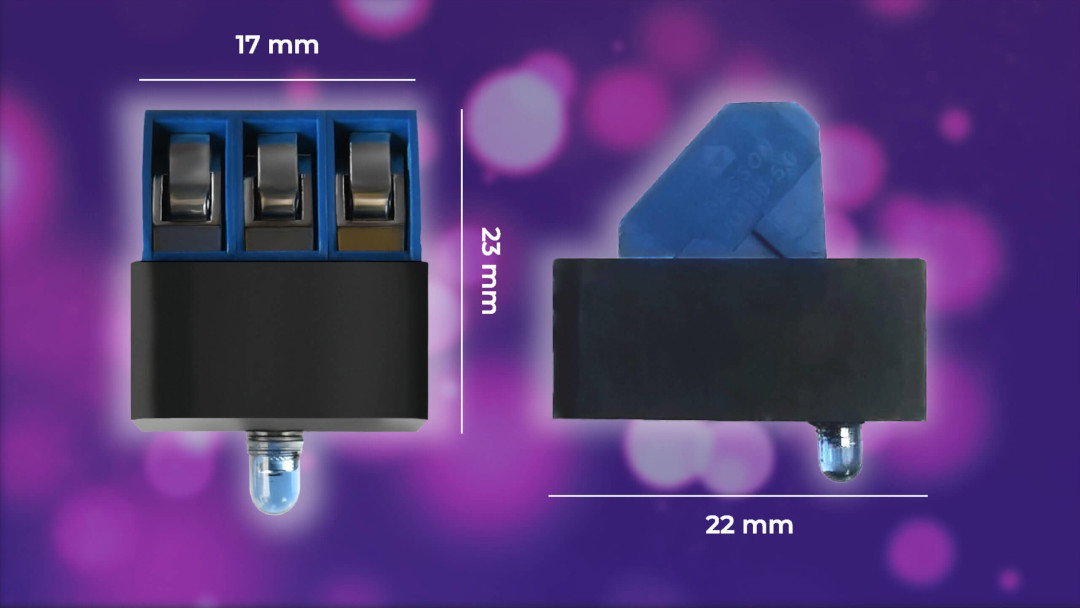

Dimensions of the twilightSensor.Miniature size and non-flammable housing
The small size of the sensor, equal to 23 x 17 x 22 mm, allows you to place it in the housing of any other device or hide it so that it is invisible. The controller is flooded with a polyurethane composition that does not contain halogen, self-extinguishing for thermal class B (130 ° C).
Diagram of twilightCompact sensor connection

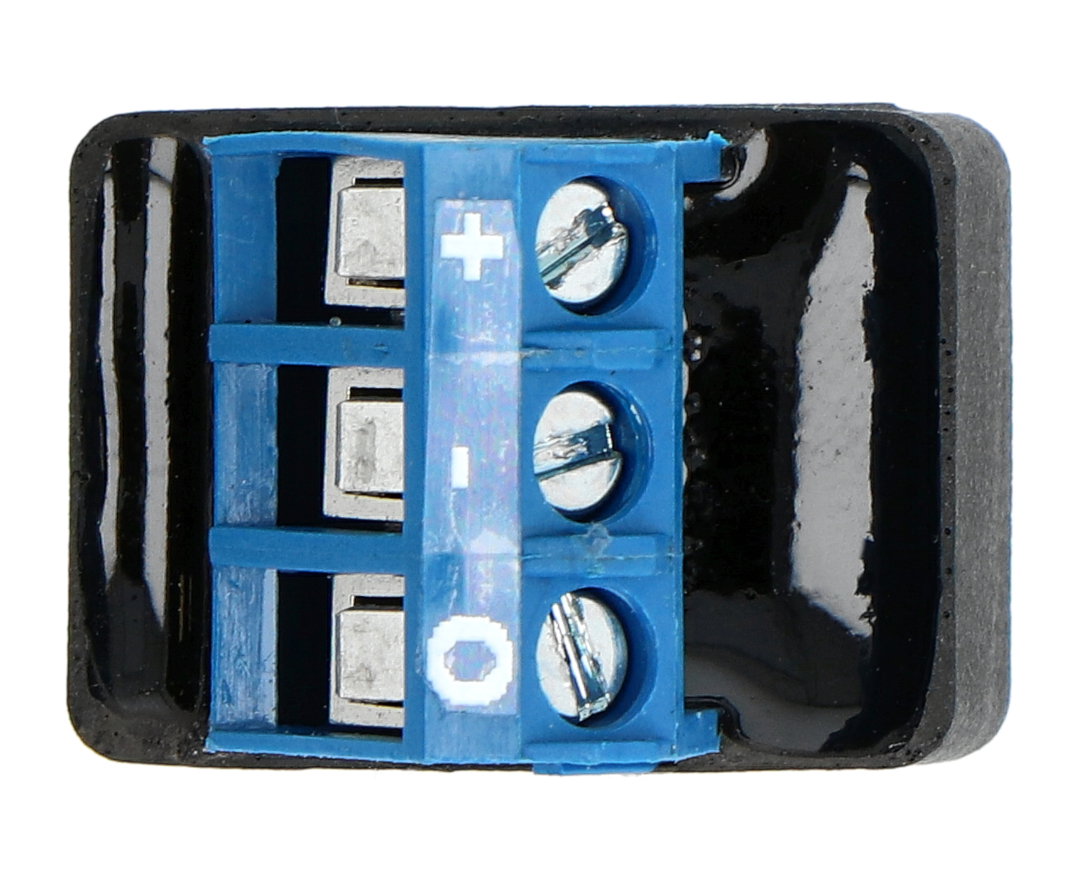

The sensor is equipped with screw connections for easy installation of wires. The module should be placed in a place protected against access by third parties. All connectors are described:
- + - supply voltage from 12 V to 24 V
- - - mass
- ABOUT - output (-) to the LED strip

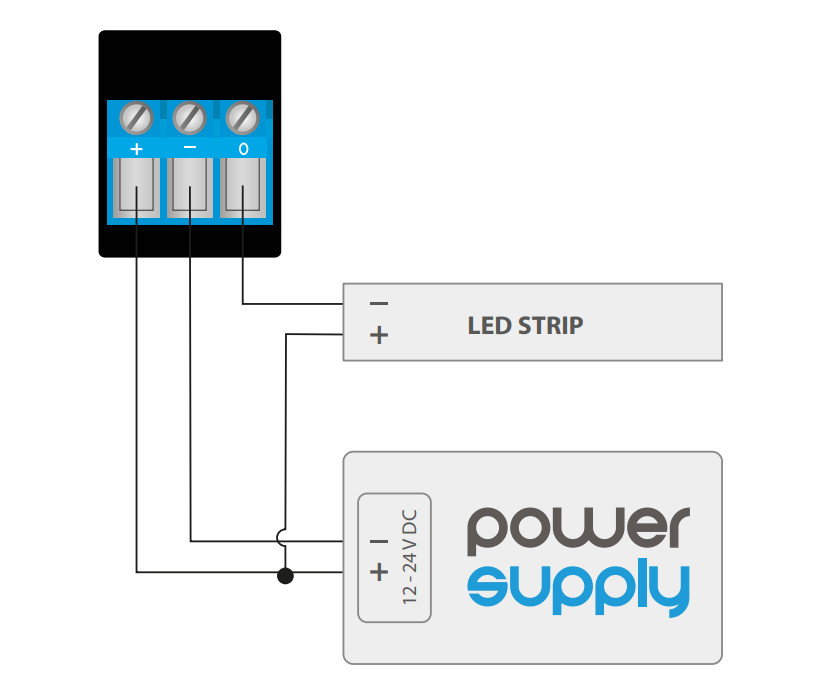

Connection diagram.

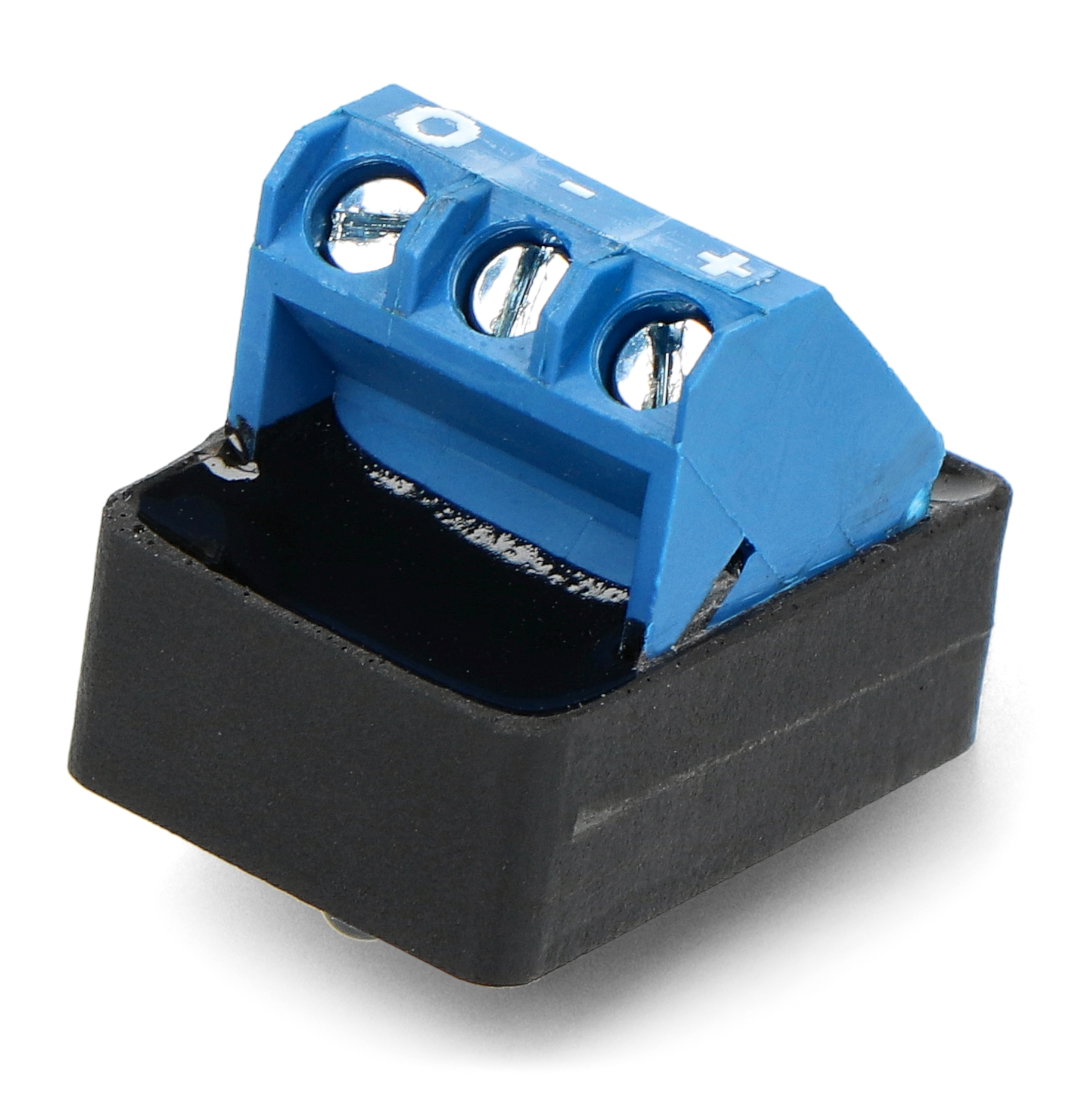

BleBox twilightCompact - twilight sensor for LED 12 V / 24 V.
Specification of the BleBox twilightCompact twilight sensor
- Supply voltage: 12 V or 24 V DC
- Maximum power: from 60 W to 120 W
- Maximum current: 5 A
- Energy consumption: up to 0.1 W
- Sensor: optical, twilight
- Calibration: automatic
- Protection degree: IP20
- Mounting method: in the housing of another device, in the installation box
- Housing: made of halogen-free polyurethane composition, self-extinguishing for thermal class B (130 ° C)
- Connection method: screw connection
- Working temperature: -20 ° C to 50 ° C
- Dimensions: 23 x 17 x 22 mm
Kit contents
- BleBox twilightCompact - twilight sensor for LED 12 V / 24 V
