Product description: BleBox SwitchBox Light - 230V WiFi relay - Android / iOS application
Ready-made brand moduleBleBoxwith small dimensions, which allows you to remotely control home appliances with230Vvoltageand up to 1150Wpower. It is controlled usingWiFinetwork via a mobile device app from anywhere in the world. The device hasscrew connectorsfor mounting cables. Thanks to the small dimensions of the device, it can be hidden in a flush-mounted box. BleBox SwitchBox Light can also be easily integrated with Google Home and Amazon Alexavoice assistants, as well ashome automation systems: Domoticz and Home Assistant.

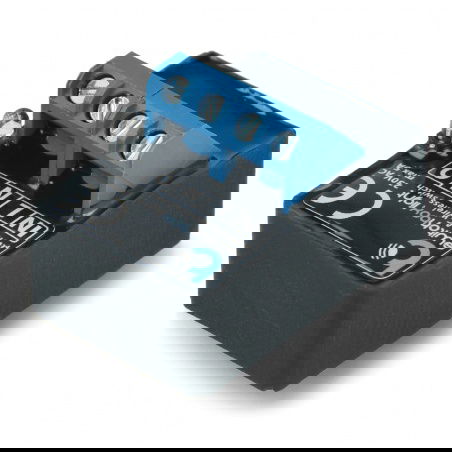

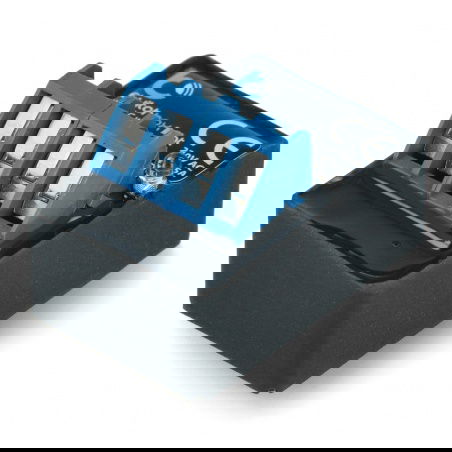

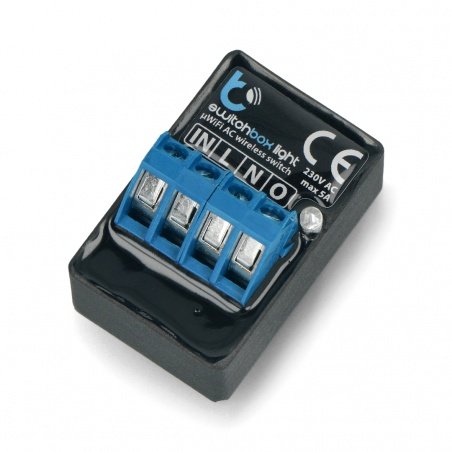

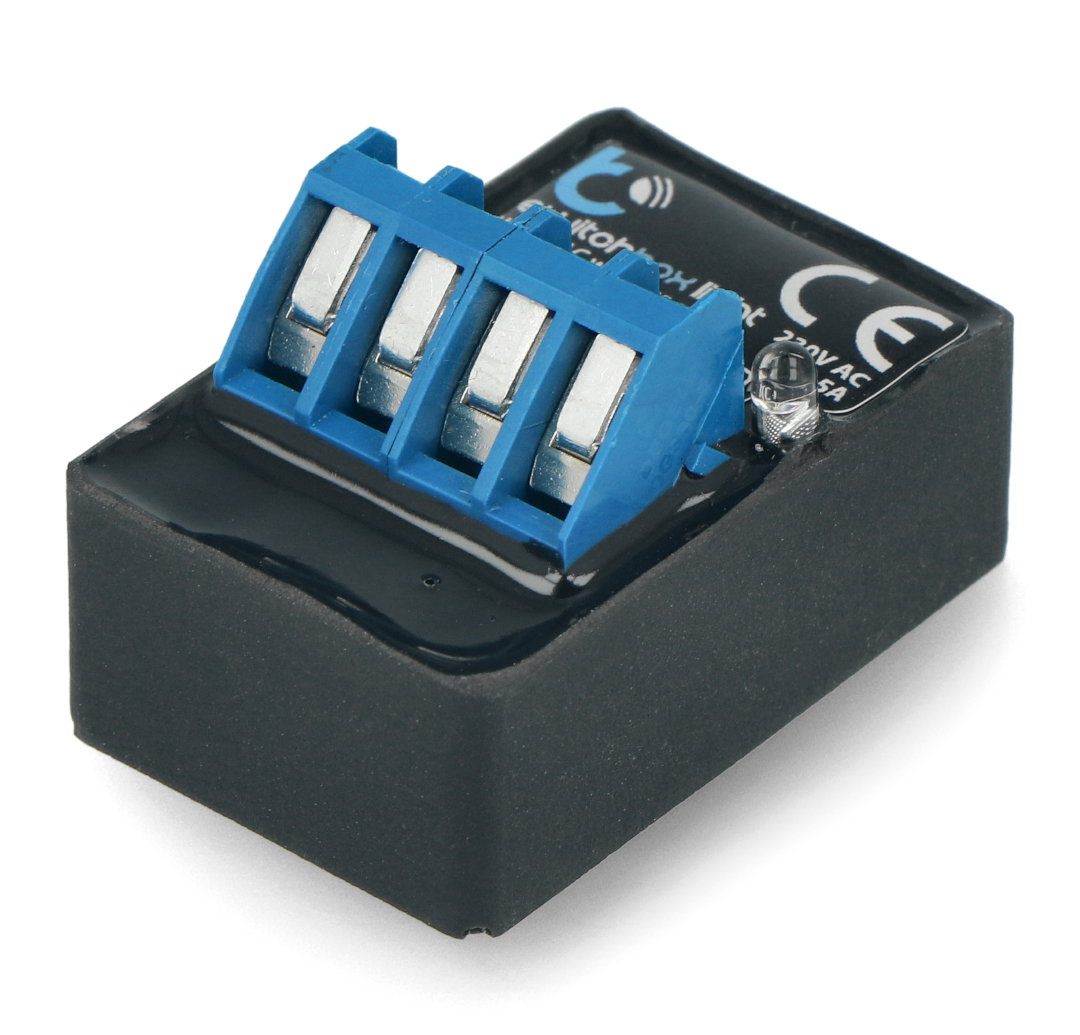

BleBox SwitchBox Light - smart home controller.
Connections of BleBox SwitchBox Light smart home controller.Smart home controller BleBox - connection diagram

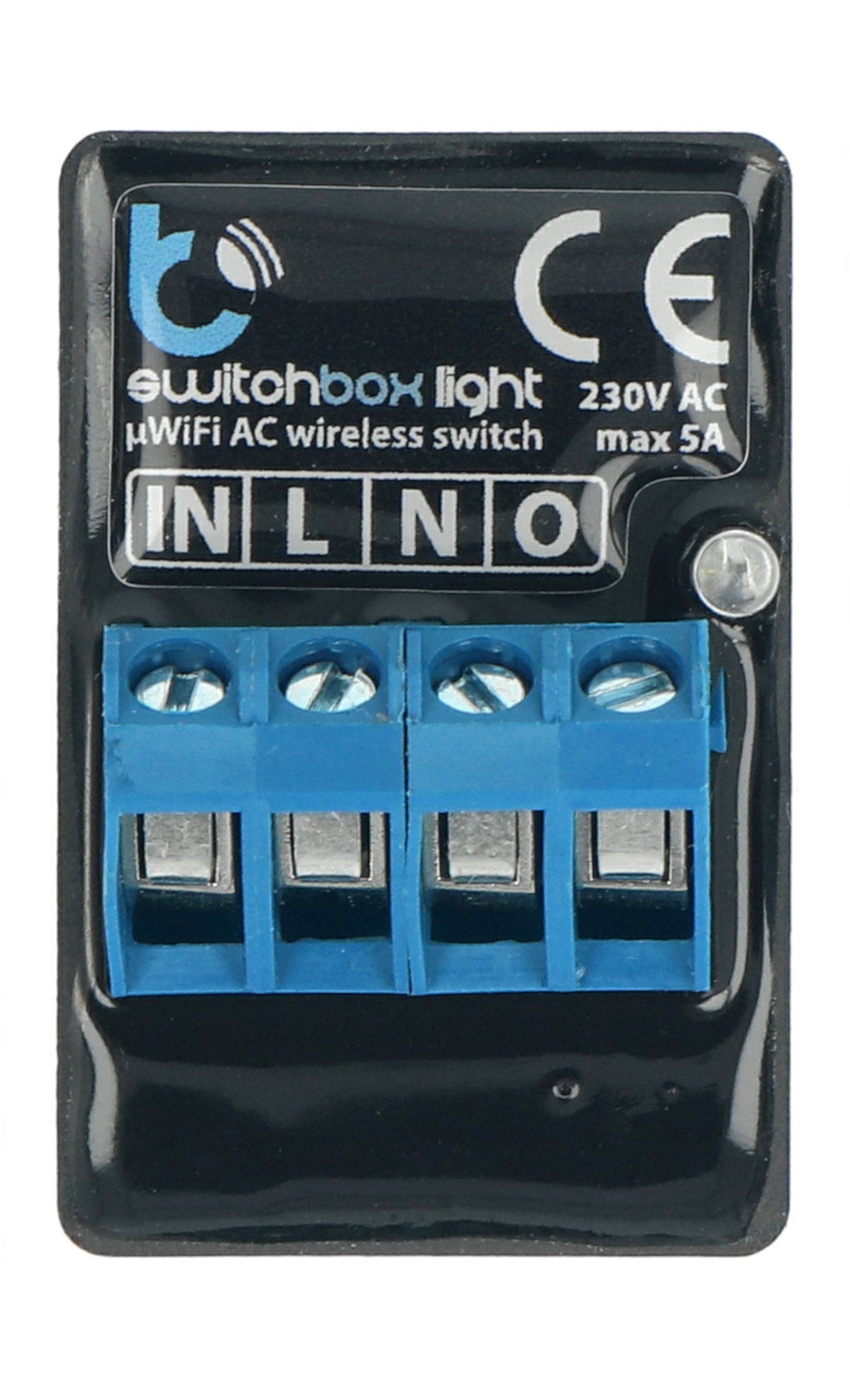

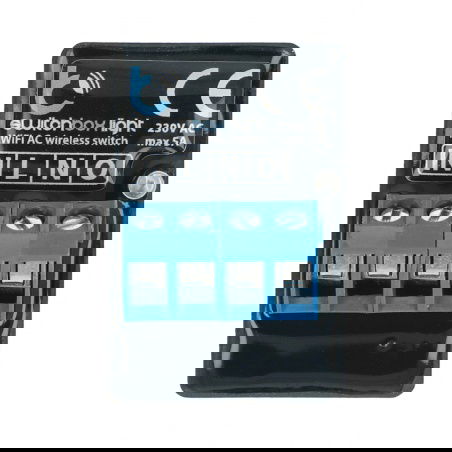

Before installing a smart controller make sure that the circuit has been disconnected from the power supply. The device should be mounted in a place protected from external conditions and access of third parties. Home appliances controller for intelligent home system BleBox Switchbox Light can also be controlled by monostable switches (momentary / bell) and bistable (traditional). Controller module has four outputs in the form of screw connectors, where you can connect the wires with a screwdriver:
- IN- connector for connecting an external monostable or bistable switch, the second line of the switch should be connected to the neutral line of 230 V, marked N.
- L- 230 V power supply, phase wire.
- N- 230 V power supply, neutral wire.
- O- voltage output of relay, for connecting controlled device.
Controller BleBox SwitchBox Light - configuration
After proper connection of device and power supply, controller should be configured. For this purpose, connect to the wireless network of the device named "swtichBox-xxxxxxxx" where "xxxxxxxx" is the serial number of the device, then using thePlay storeorAppStoredownload the applicationwBox - control everything. After running the application at the top of the screen you will see the device, next to the name there will be a "+" sign. To pre-configure the device, click on the default device name and then click on the gear icon in the upper right corner. The device can also be configured using a web browser by typing the IP address of the controller into the search address.
| BleBox SwitchBox Light controller specification | |
|---|---|
| Supply voltage | 230 V AC |
| Power consumption | up to 1 W |
| Number of control outputs | 1 |
| Type of control outputs | relay |
| Maximum load | 5 A |
| Maximum power | 1150 VA (i.e. for 1150 W resistive load e.g. heater) |
| Number of inputs | 1 |
| Input type | Logic, pushbutton, shorted to N, configurable |
| Supported push buttons | monostable (bell), bistable (traditional, cross) - without backlight |
| Enclosure | made of polyurethane composition, halogen-free, self-extinguishing, thermal class B (130°C) |
| Mounting method | in a flush mount box (recessed or double), in a receiver housing, e.g. a lamp, heater, etc. |
| Degree of protection | IP20 |
| Transmission type | Two-way, encrypted |
| Transmission frequency | 2.4 GHz |
| Communication standard | μWiFi, compatible with 2.4 GHz WiFi |
| Operation mode | Direct connection (as an Access Point), WiFi connection via standard router, connection with access from anywhere in the world (only Internet access required) |
| Compatible devices and systemsApi | Apple iPhone, Apple iPad, iPad Mini, Android, computers and mobile devices supporting HTML5 |
| Encryption | WPA2-PSK and authenticated encryption (AEAD) |
| API | open |
| Dimensions | 25 x 39 x 24 mm |
