Product description: BleBox switchBoxT Pro - 3x potential-free relay 230V WiFi - Android / iOS application
The BleBox switchBoxT Pro controller is equipped with three potential-free relays that allow you to control electrical devices from 0 V to 230 V AC / DC . Each output supports devices up to 3680 W. The module enables simultaneous power supply of 12 V DC devices (e.g. power supply ), 24 V AC (e.g. solenoid valve ) or 230 V AC (e.g. lamp ). BleBox switchBoxT Pro has a built-in WiFi system, thanks to which it is possible to remotely control devices from anywhere in the world, using an application for mobile devices.

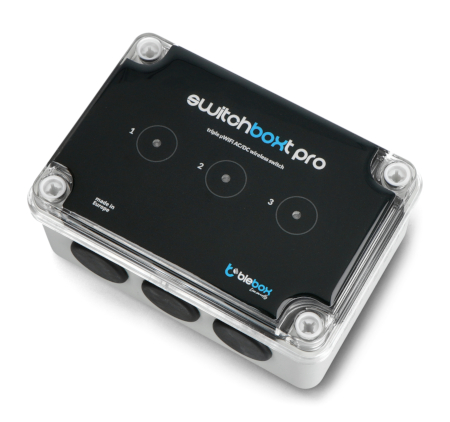

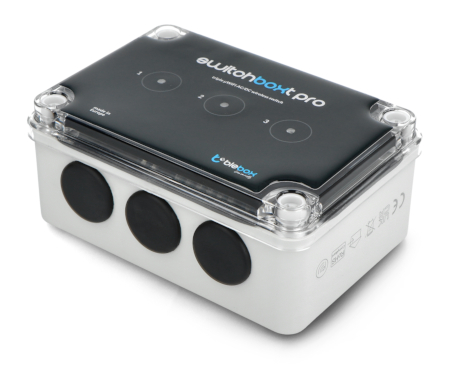

BleBox switchBoxT Pro - controller with three potential-free outputs.
switchBoxT Pro equipped with a touch panel.Main features of the switchBoxT Pro driver
- Wireless control of any three devices using a smartphone
- Time schedule and astronomical clock
- Three touch buttons available on the front panel
- Allows connection of 3 AC/DC control signals
- Wireless automation combined with sensors for temperature, rain, air quality, wind, etc.
- Possibility to create wireless WiFi buttons
- Possibility to pair μWiFi remote controls
- Configurable touch panel backlight color
- External antenna included for improved range
Control with buttons and touch panel
Three buttons (or various control signals from 12 V to 230 V AC / DC) can be connected to the controller. These can be:
- candlestick or bell button
- output (signal) from motion sensor, alarm or liquid level sensor
- signal from another controller / automation system
The BleBox switchBoxT Pro module can also be controlled using devices from the actionBox family or the uRemote, sRemote remote control or the battery inBox module.
On the front panel of the controller you can find 3 touch buttons (1-3) with which you can turn on / off the devices (circuits) connected to the controller. In addition, the front panel has a backlight function. In the wBox application, it is possible to change the color of the backlight.

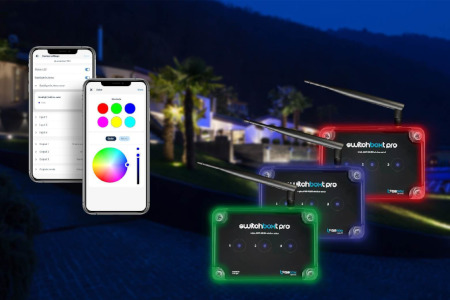

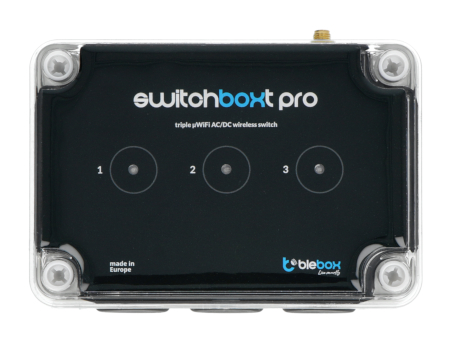

Illuminated color touch panel.

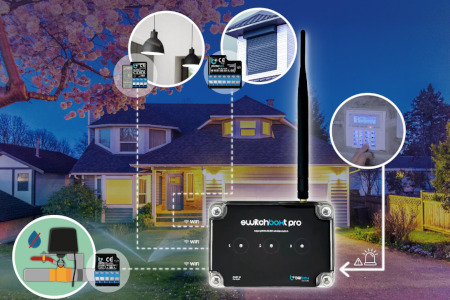

Control via actions, scenes and schedule.
Actions, scenes, schedule and astronomical clock
BleBox switchBoxT Pro, like other sensors and controllers from the switchBox and action Abox family, has actions that allow you to control other controllers (scene triggers). For example, switchBoxT Pro will read the status from the alarm control panel about arming the alarm (leaving the house) and wirelessly send the command to the water valve "close", to the lights "off", to the blinds "close".
Using the schedule with the astronomical clock function, it is possible to control the time and the sunrise and sunset based on geographical location. For example, set your garden lights to turn on automatically when the sun goes down and turn off at 11:59 PM to save electricity.

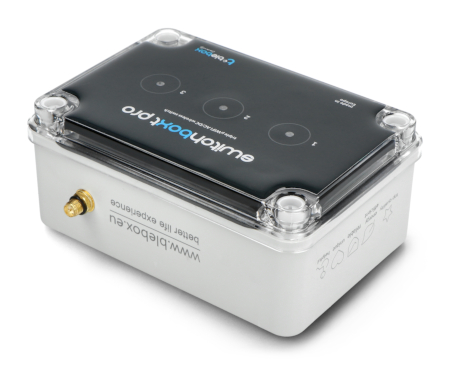

switchBoxT Pro with external antenna
The device is equipped with an external antenna that increases the range of the WiFi network. You can also connect a directional antenna to the socket. This allows you to place the controller in places far from the router / Access Point, where there is a weak or insufficient WiFi signal.
Kit contents
- BleBox switchBoxT Pro - 3x potential-free relay 230 V WiFi - Android / iOS application
- WiFi antenna
The device is equipped with a connector to which you can connect the included antenna.

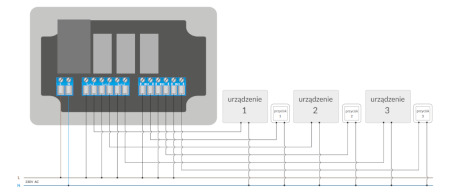

Connection diagram for 230 V devices (e.g. light bulbs with optional buttons).
Connection diagram switchBoxT Pro
The controller has been enclosed in a sealed housing, which must be dismantled before installation. The terminals of the device are screw connectors:
- L - supply voltage (phase wire) 230 V AC
- N - supply voltage (neutral wire)
- 3x relay connector - potential-free output from 0 V to 230 V / 16 A
- IN1 / IN2 / IN3 - switch input / from 12 V to 230 V AC or DC
switchBoxT Pro specification
- Supply voltage: 230V AC
- Energy consumption:
- < 1W (standby)
- < 2W (work)
- Number of control outputs: 3
- Output type: relay, NO
- Maximum power:
- AC1 (resistive, power factor: 0.95):
3x (16 A @ 5 V to 230 V AC) = 3x 3680 W = ~11 kW AC - DC:
3x (16A @ 5V to 24V DC) = 3x 380W DC - AC3 (IEC60947-4-1):
3x ~0.5 kW @ 240 V AC = ~1.5 kW (star motor) - Galvanic separation: yes
- Number of buttons: 3
- Button type: capacitive (touch), illuminated, integrated
- Number of inputs: 3
- Input type: opto-isolated (separation)
- Input voltage range: from 12 V to 230 V AC / DC
- Supported buttons: monostable (bell), bistable (traditional, cross) - without backlight
- Signaling on the housing: colored, luminous front panel informing about the operating status of the device
- Controller signaling: blinking blue diagnostic diode (can be switched off in the controller option)
- Housing: surface-mounted box (controller cast in halogen-free polyurethane composition), self-extinguishing for thermal class B (130°C)
- Mounting method: 2 mounting holes, mounting in a place protected from rain
- Degree of protection: IP44
- Controller operating temperature: from -20°C to 50°C
- Antenna output: yes
- Antenna: omnidirectional, gain 5 dB - included in the set
- Transmission standard: µWiFi, compatible with WiFi 802.11g
- Transmission type: two-way, encrypted
- Operating mode: direct WiFi connection (as an Access Point), WiFi connection (via a standard router), connection with access from anywhere in the world (only Internet access required)
- Transmission frequency: 2.4 GHz
- API: open, documentation available at technical.belebox.eu
- Compatible devices and systems: iOS devices, Android devices, computers and mobile devices supporting HTML5
- Encryption: WPA2-PSK and Authenticated Encryption (AEAD)
- Dimensions: 129 x 89 x 57mm (W x H x L)
BleBox switchBoxT Pro - 3x potential-free relay 230V WiFi - Android / iOS application.
