Product description: M5Stack Cardputer Kit - portable computer with M5Stamp S3 development board - ESP32-S3 - M5Stack K132 - V 1.1
M5Stack Cardputer Kit with M5Stamp S3 is an advanced, portable computer of small size, used to build your own electronic projects. The main element of the computer is the connected M5Stamp S3 development board with a built-in ESP32-S3 microcontroller , which provides wireless WiFi communication . The device has a 56-key keyboard and a 1.14-inch TFT screen , which allows easy entry and reading of information. Additionally, the computer has a built-in speaker and a digital MEMS SPM1423 microphone , which allows for recording and playback of sound.
Check out other M5Stack products in our offer!
M5Stack Cardputer Kit - portable computer with M5Stamp S3 development board - ESP32-S3 - M5Stack K132 - V 1.1.
The computer communicates wirelessly via WiFi.
Characteristic features of the module
- Enables wireless WiFi connectivity
- It allows for Arduino programming, thanks to the use of the ESP32-S3 microcontroller
- It has a 1.14'' TFT screen and a 56-key keyboard for entering and reading data
- Enables interaction with external devices via the built-in IR emitter
- It has a built-in speaker and a MEMS digital microphone for recording and playing sound
- It is equipped with a HY2.0-4P port for connecting I2C sensors and a microSD card slot
IR Infrared Emitter
The device has a built-in infrared emitter, which allows interaction with other infrared-enabled devices, such as televisions or air conditioning systems . Thanks to this, Cardputer can be used to create home automation systems in which various devices are controlled using an infrared emitter.
Arduino Programming
M5Stack Cardputer is programmable using the Arduino environment , so users can take advantage of the rich Arduino library to create complex IoT and home automation projects.
All key information about this product can be found in the documentation on the manufacturer's website.
The device has a built-in infrared emitter.

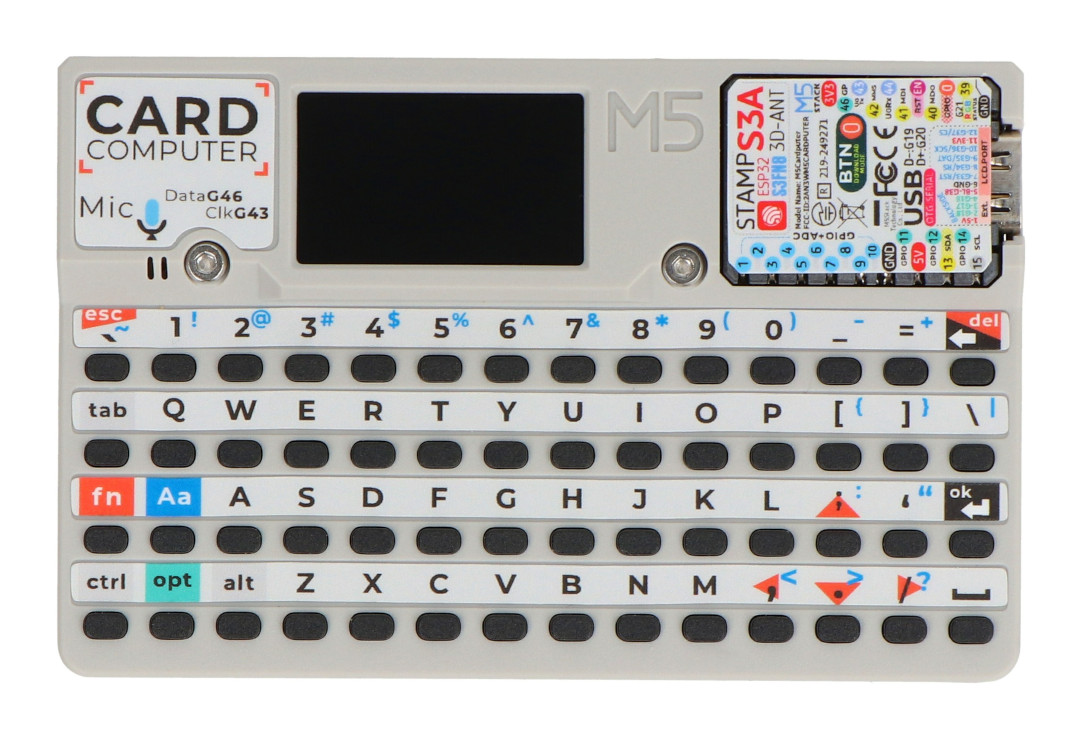

M5Stack Cardputer allows you to control other devices using a 56-key keyboard.
Technical specification of the module
- Device type: portable computer with development board attached
- Development Board: M5Stamp S3
- Microcontroller: ESP32-S3
- Built-in system: Xtensa LX7 dual-core processor
- Flash Memory: 8MB
- Wireless communication: WiFi
- Battery capacity: 120 mAh + 1400 mAh (additional battery in the device base)
- Screen: TFT, 1.14'', resolution 240 x 135 pixels
- Microphone: SPM1423 digital MEMS
- Speaker: 8 Ω, power 1 W
- Keyboard: 56 keys
- Ports: HY2.0-4P for connecting additional I2C sensors, microSD card slot
- Infrared emission range: up to 410 cm
- Supply voltage: 4.2 V
- Standby current consumption: 0.26 uA
- Operating current consumption: IR emission - 255.6 mA; keyboard - 165.7 mA
- Dimensions: 84 x 54 x 17 mm
- Weight: 92.8 g
