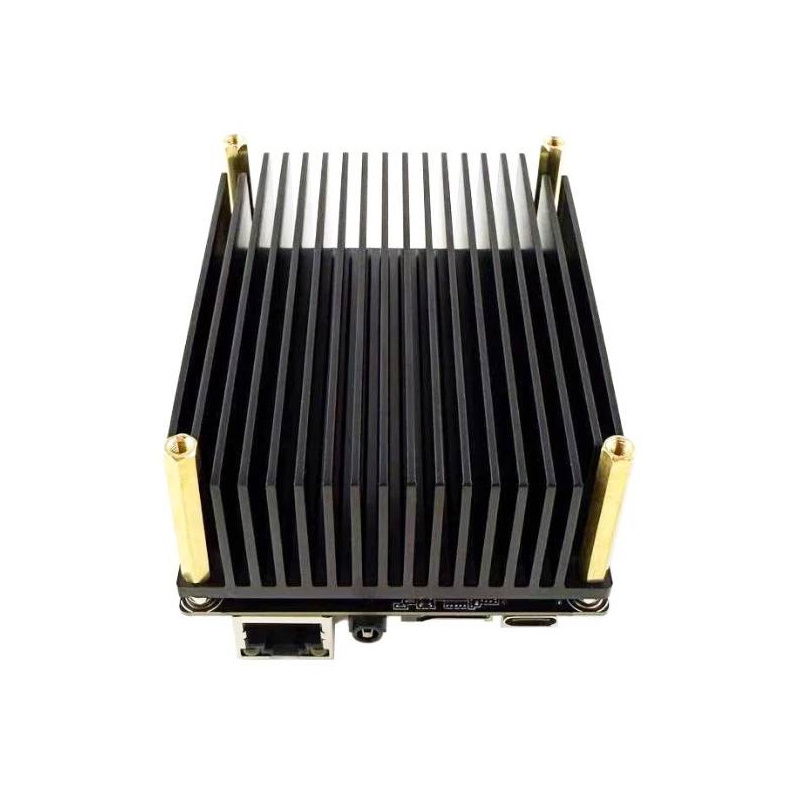

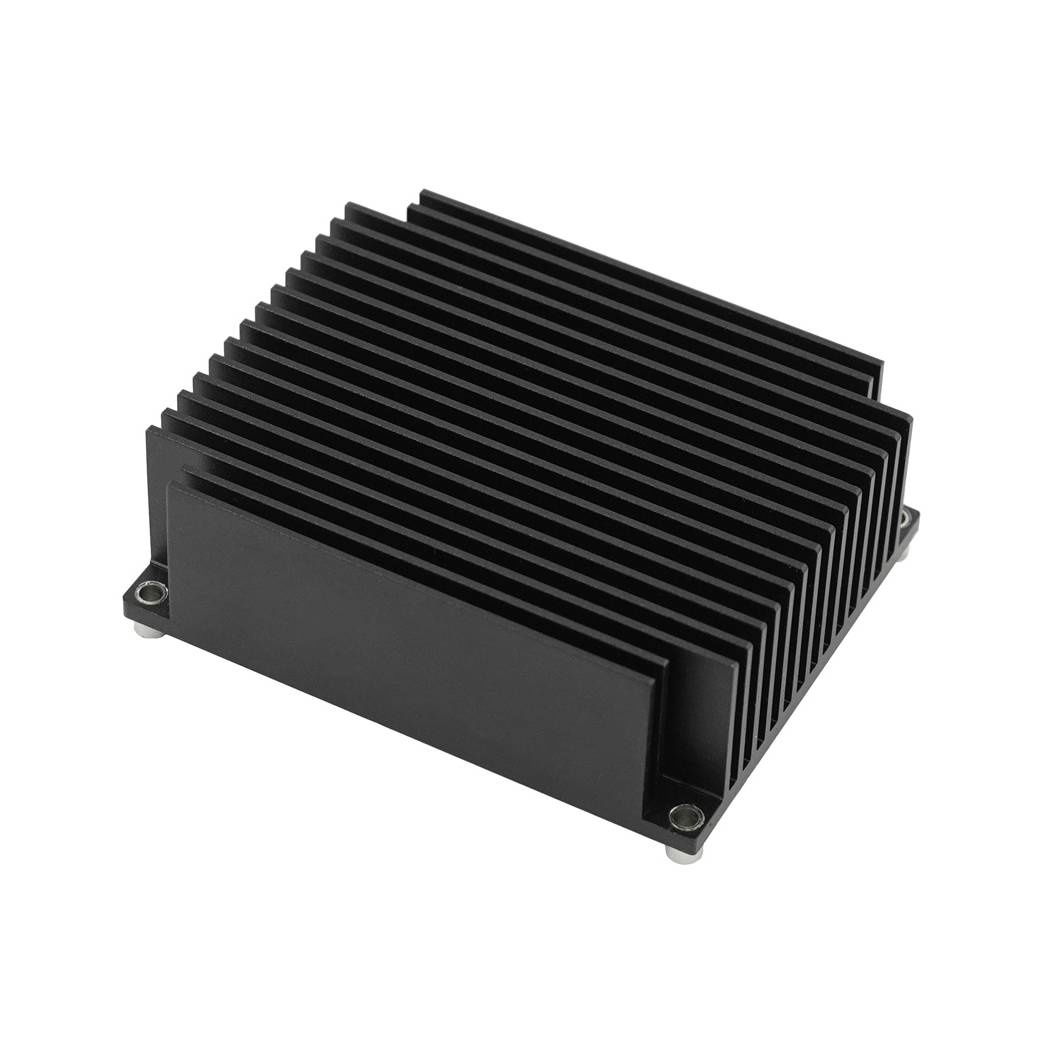

Product description: Aluminum passive heatsink for LattePanda IOTA - 87 x 69.4 x 31.5 mm - DFRobot FIT1028
The LattePanda IOTA passive heatsink is a dedicated cooling solution that eliminates fan noise and increases system reliability. Crafted from solid, precision-machined aluminum , it features an enlarged heat dissipation surface thanks to densely spaced cooling fins. High-performance thermal paste is included to ensure efficient heat transfer from the processor to the heatsink and even distribution throughout the entire system. With a TDP of 10W, an ambient temperature of 25°C, and a heatsink temperature rise of 40°C, the system ensures stable operation even under sustained load . It's ideal for industrial applications, IoT systems, automation, interactive kiosks, and projects requiring completely silent operation.
Attention!
Installation and removal of the heat sink must be performed with the power off , and direct contact with skin should be avoided during operation - the surface of the heat sink may be hot.
Technical specifications of the radiator
- Compatibility: LattePanda IOTA
- Cooling type: passive
- Supported thermal power: TDP 10 W
- Test conditions: ambient temperature 25°C, heatsink temperature rise 40°C
- Material: aluminum alloy
- Dimensions: 87 x 69.4 x 31.5 mm
- Weight: 203 g

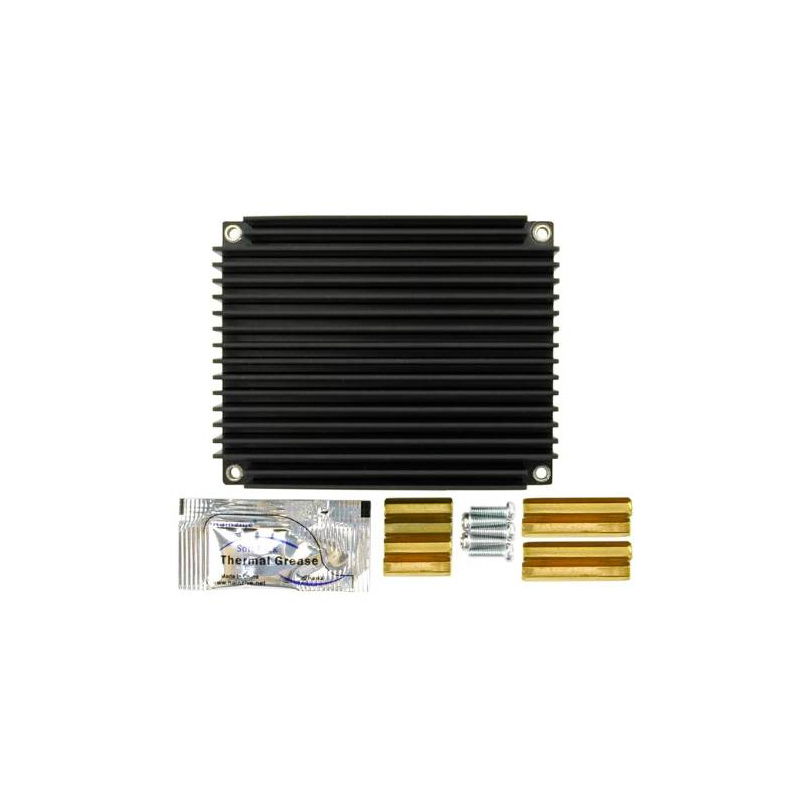

Contents of the set
- 1x Passive Heatsink for LattePanda IOTA
- 1x Radiator Mounting Kit
