Product description: FNIRSI 2C53P 3-in-1 portable oscilloscope with multimeter and 50 MHz signal generator, 2 channels

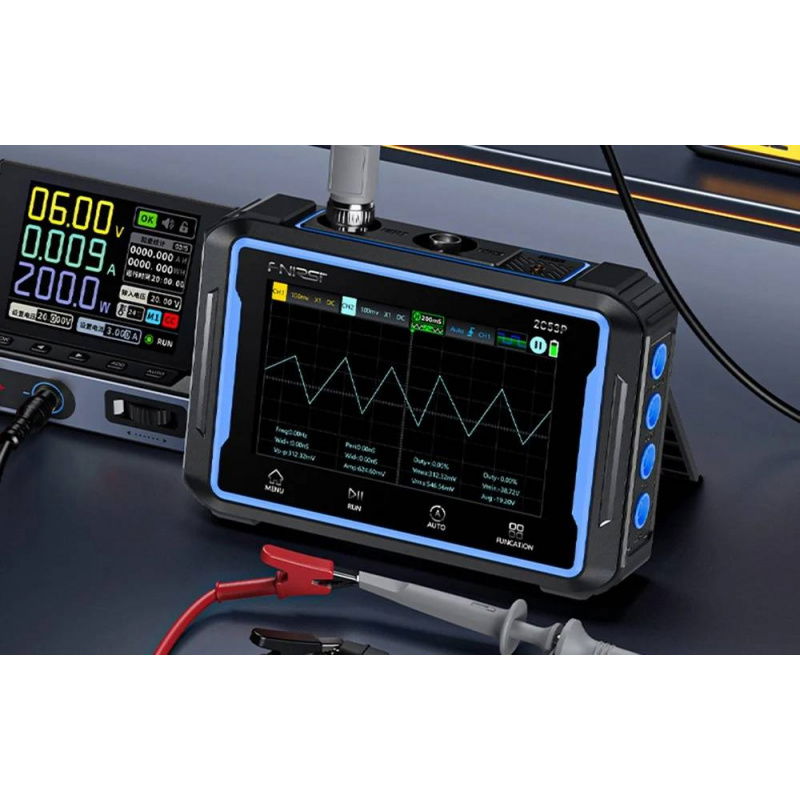

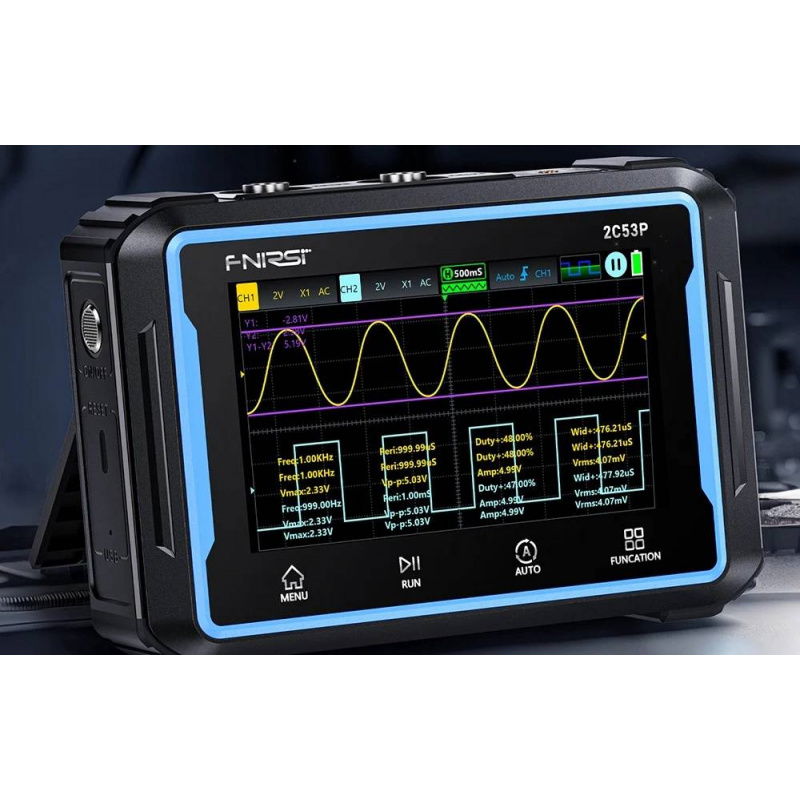

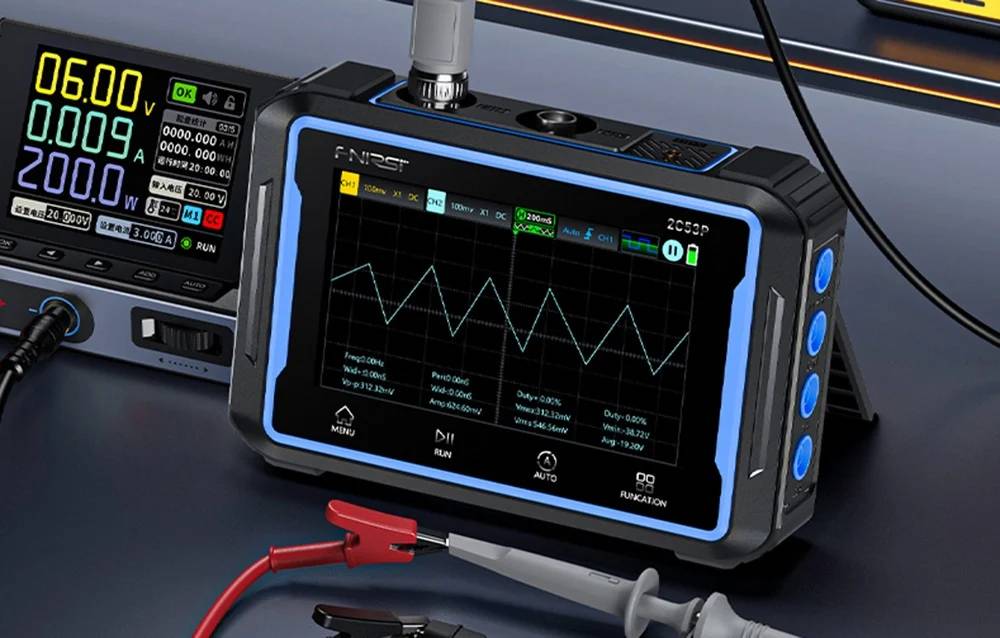

The FNIRSI 2C53P is a multifunctional 3-in-1 portable oscilloscope that integrates a digital oscilloscope, multimeter , and DDS signal generator into a single compact device. A 50 MHz bandwidth and 250 MSa/s sampling rate enable accurate analysis of analog and digital signals. The 4.3" IPS touchscreen ensures convenient operation and intuitive waveform viewing. The device supports automatic, normal, and single trigger modes , while FFT, XY, cursor measurements, and mathematical calculations enable professional signal analysis. A built-in 4000 mAh battery and USB Type-C (5V/2A) power supply make it an ideal mobile tool.

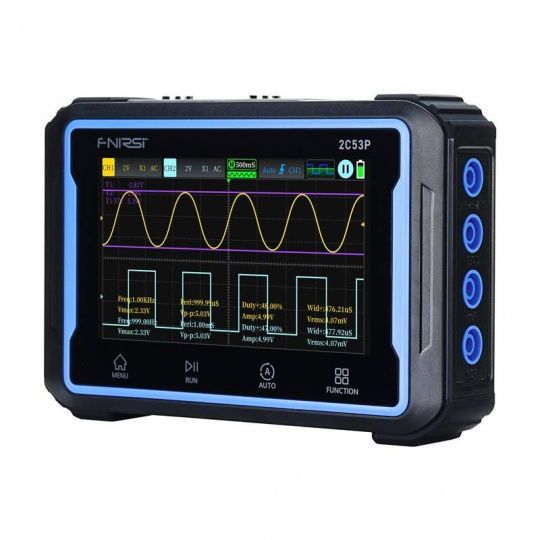

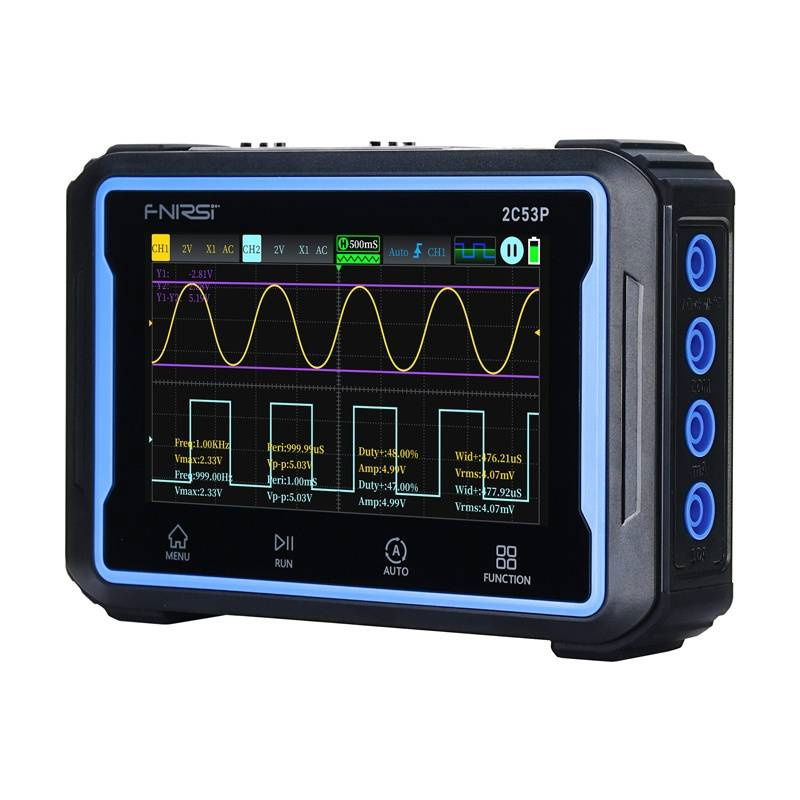

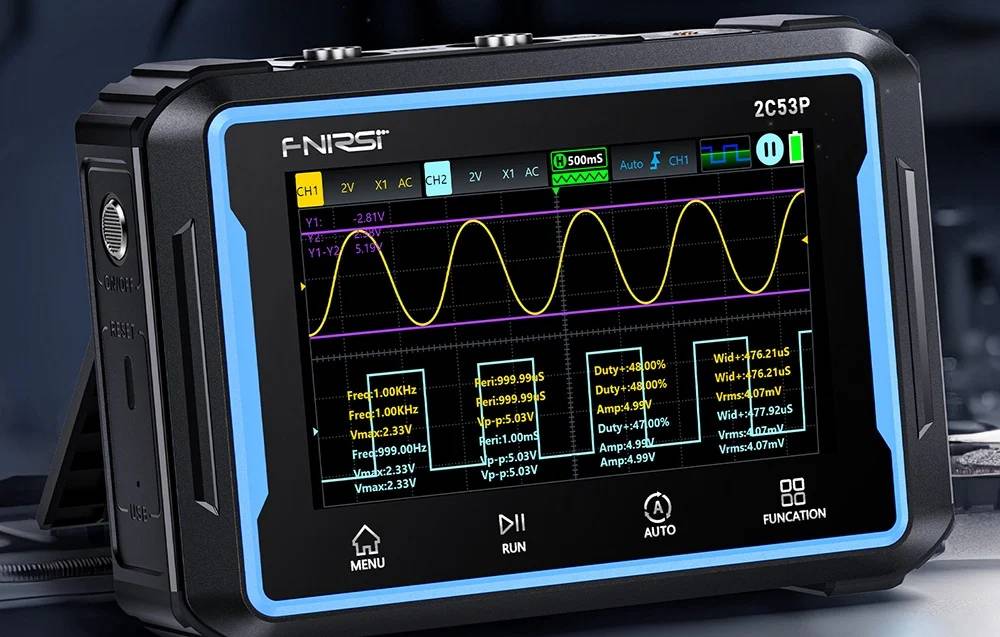

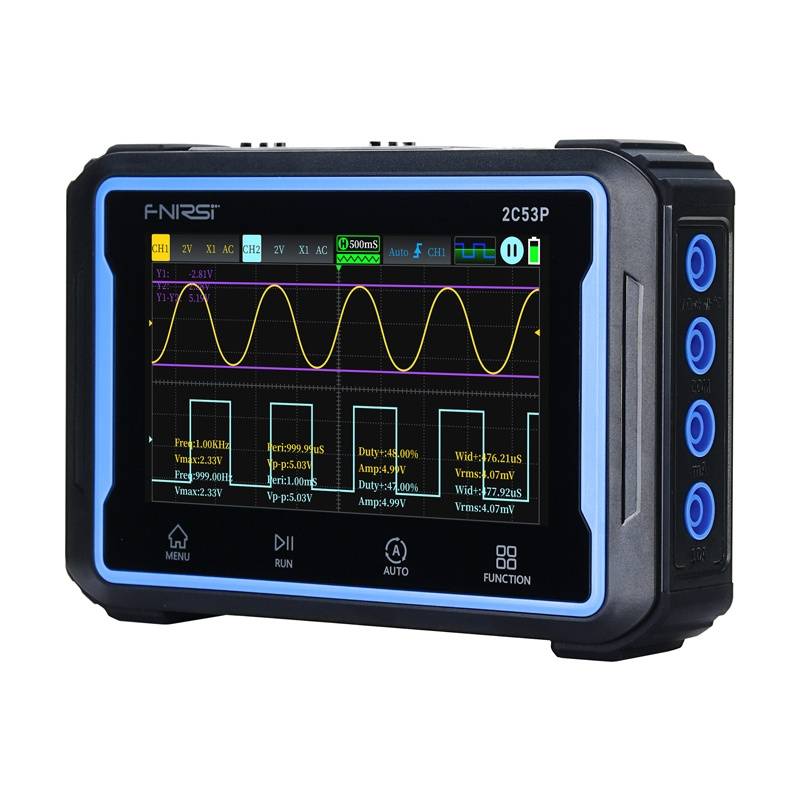

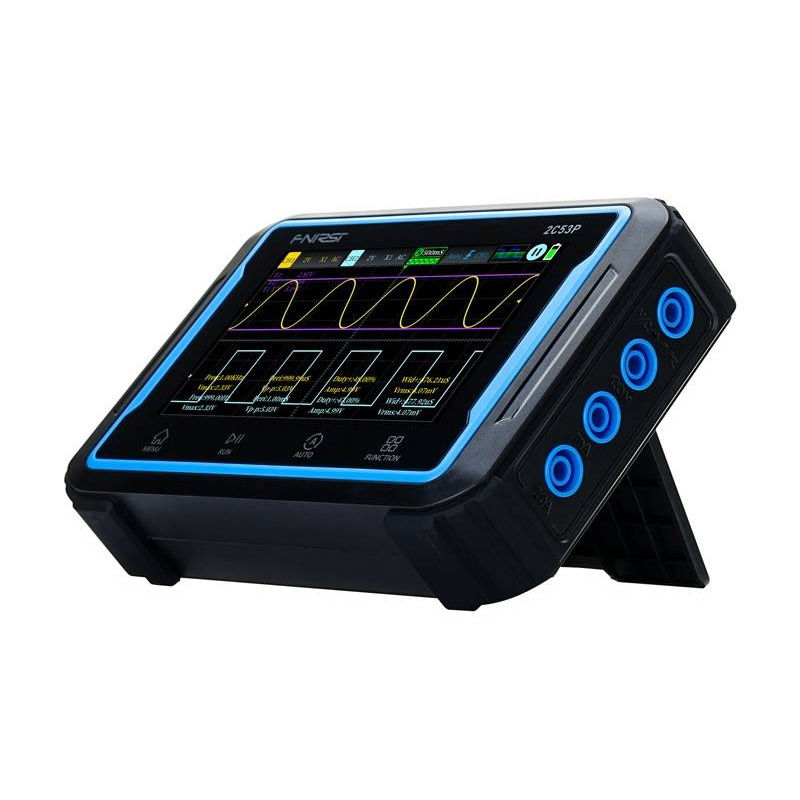

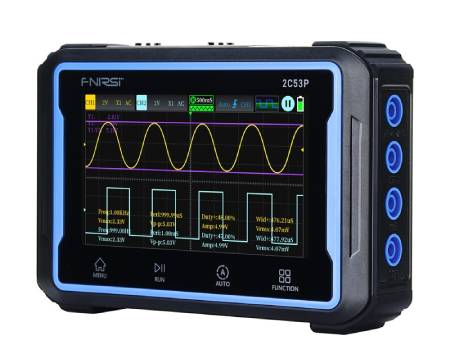

FNIRSI 2C53P 3-in-1 portable oscilloscope with multimeter and 50 MHz signal generator, 2 channels.

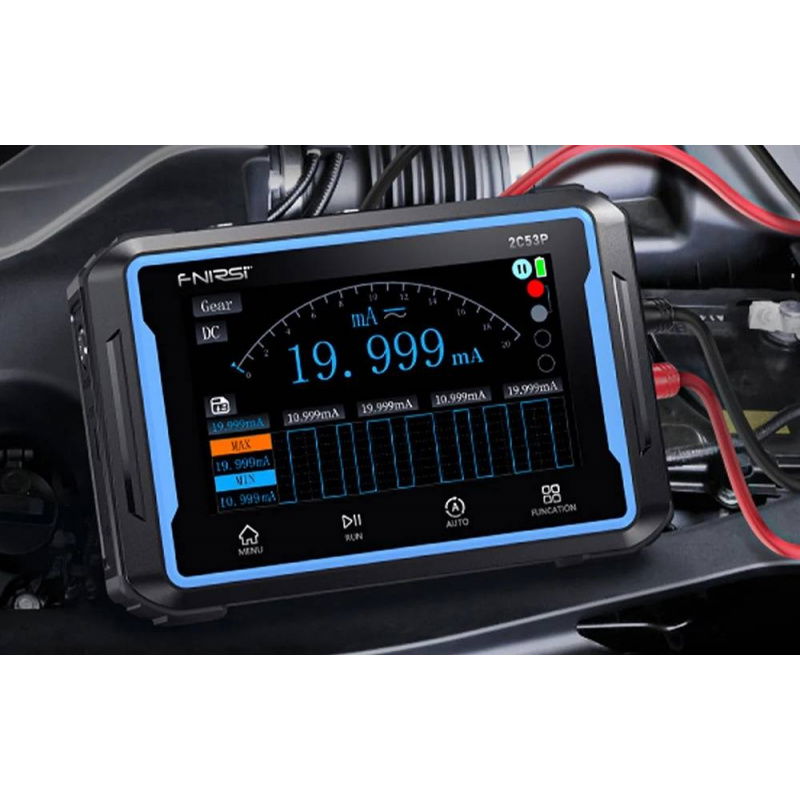

The integrated multimeter allows you to measure AC and DC voltage, current, resistance, capacitance, temperature and offers diode test and continuity testing functions.
Main features of the FNIRSI 2C53P
- 50 MHz oscilloscope : sampling 250 MSa/s, 2 channels, maximum voltage ±400 V
- True RMS 19999 multimeter : measures AC/DC voltage, current, resistance, capacitance and temperature
- 10 MHz DDS Generator : 12 waveform types, adjustable amplitude and duty cycle
- 4.3'' IPS screen : 480 x 272 px resolution, touchscreen operation
- 4000 mAh battery : up to 4 hours of mobile operation
| Oscilloscope parameters | |
|---|---|
| Canal | two channels |
| Bandwidth | 50 MHz |
| Sampling rate | 250 MSa/s |
| Time base range | from 10 ns/div to 10 s/div |
| Vertical sensitivity | from 10 mV/div to 10 V/div |
| Vertical resolution | 8 bits |
| Input impedance | 1 MΩ |
| Bandwidth limit | 20 MHz |
| Maximum voltage | ±400V |
| Trigger modes | automatic / normal / single |
| Recording waveforms | Yes |
| USB transfer | Yes |
| Multimeter parameters | ||
|---|---|---|
| Function | Range | Accuracy |
| DC voltage | from 1.9999 V to 1000 V | ±(0.5%+3) |
| AC voltage | from 1.9999 V to 760 V | ±(1%+3) |
| DC current | from 19.999 mA to 9.999 A | ±(1.2%+3) |
| AC current | from 19.999 mA to 9.999 A | ±(1.5%+3) |
| Resistance | from 199.99 Ω to 19.999 MΩ | ±(0.5%+3) / ±(1.5%+3) |
| Capacity | from 9.999 nF to 99.99 mF | ±(2.0%+5) / ±(5.0%+20) |
| Temperature | from -55°C to 1300°C | ±(2.5%+5) |
| Diode test | Yes | |
| Continuity test | Yes | |
| DDS signal generator parameters | |
|---|---|
| Canal | single-channel |
| Frequency | from 0 Hz to 10 MHz (sine up to 10 MHz, others up to 5 MHz) |
| Amplitude | from 0.1 V to 3 V |
| Filling | from 0% to 100% |
| Signal types | sine, square, sawtooth, half wave, full wave, DC, sync pulse and others |
Technical specifications of the FNIRSI 2C53P
- Model: 2C53P
- Screen: 4.3'' IPS, 480 x 272 px
- Power supply: USB Type-C (5V/2A)
- Battery: 4000 mAh
- Supported languages: Chinese, English, Russian, Japanese, Spanish, Portuguese, German, Korean
- Dimensions: 145 x 98 x 35 mm
- Weight: 360 g
Contents of the set
- 1x FNIRSI 2C53P Oscilloscope
- 2x P6100 Probe (1x / 10x)
- 1x Multimeter probe
- 1x Probe with alligator clip
- 1x USB cable
- 1x User Manual
The oscilloscope provides a bandwidth of up to 50 MHz, a sampling rate of 250 MSa/s and the ability to choose from 12 different waveform types.
