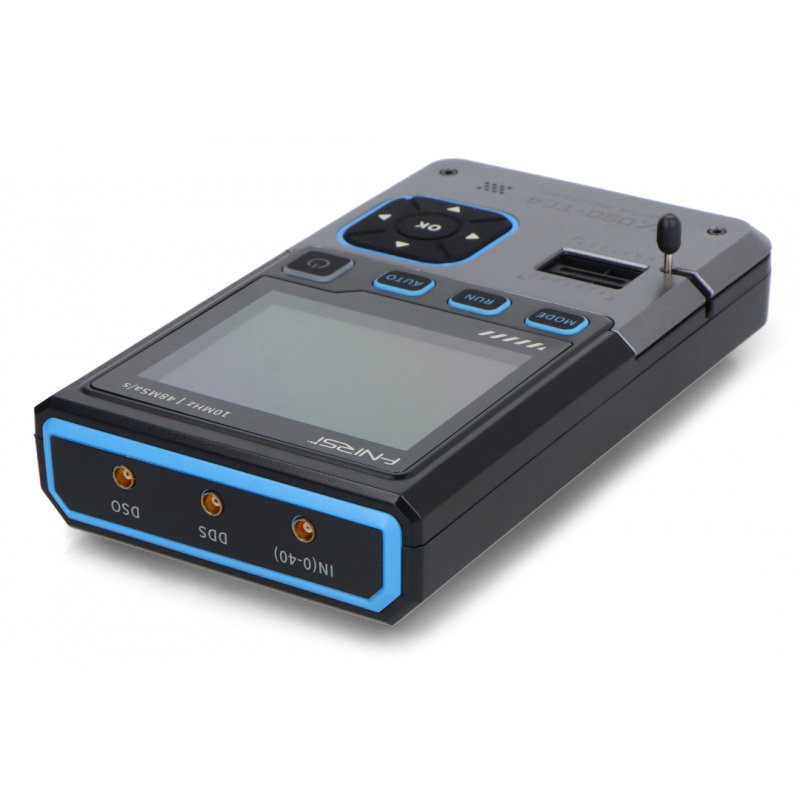

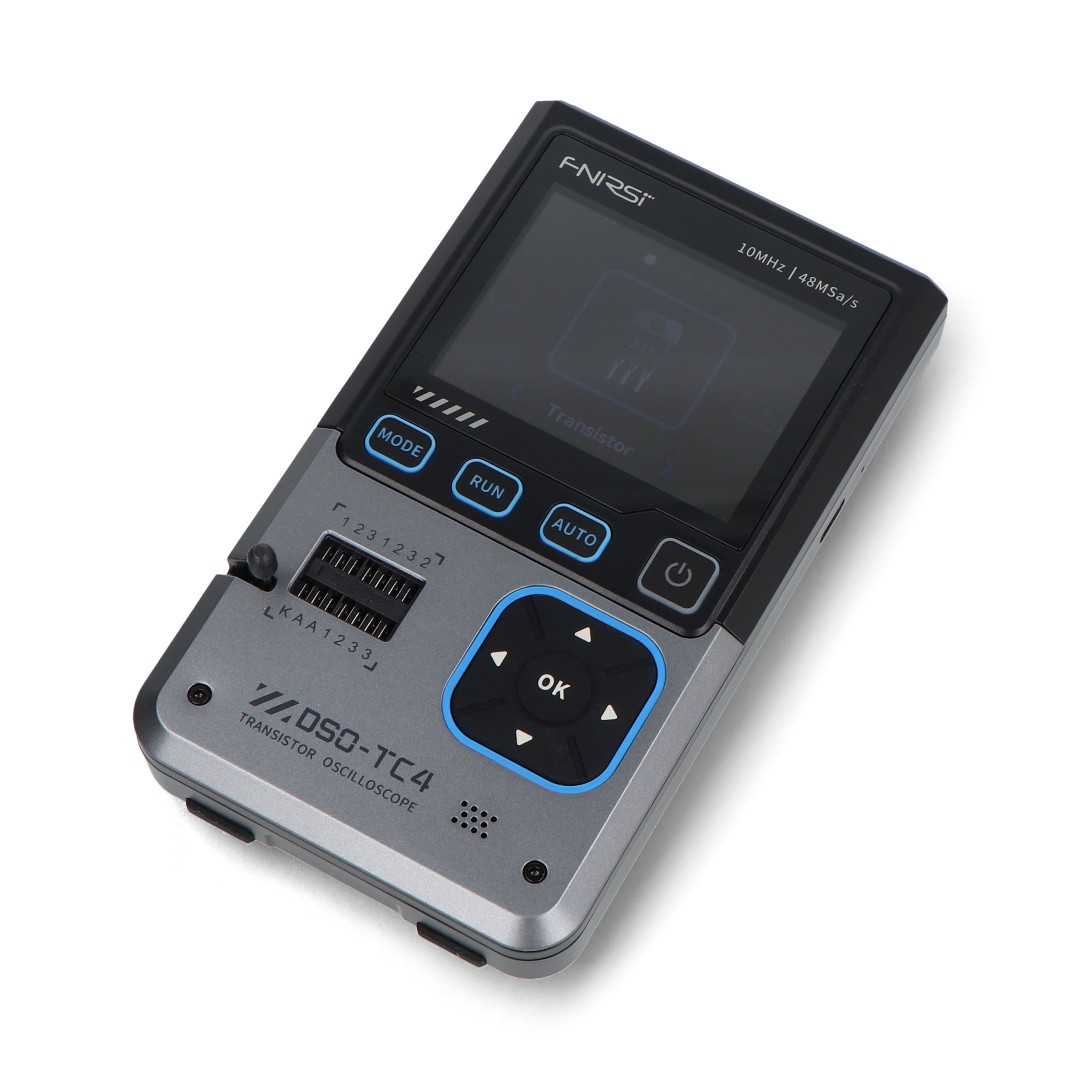

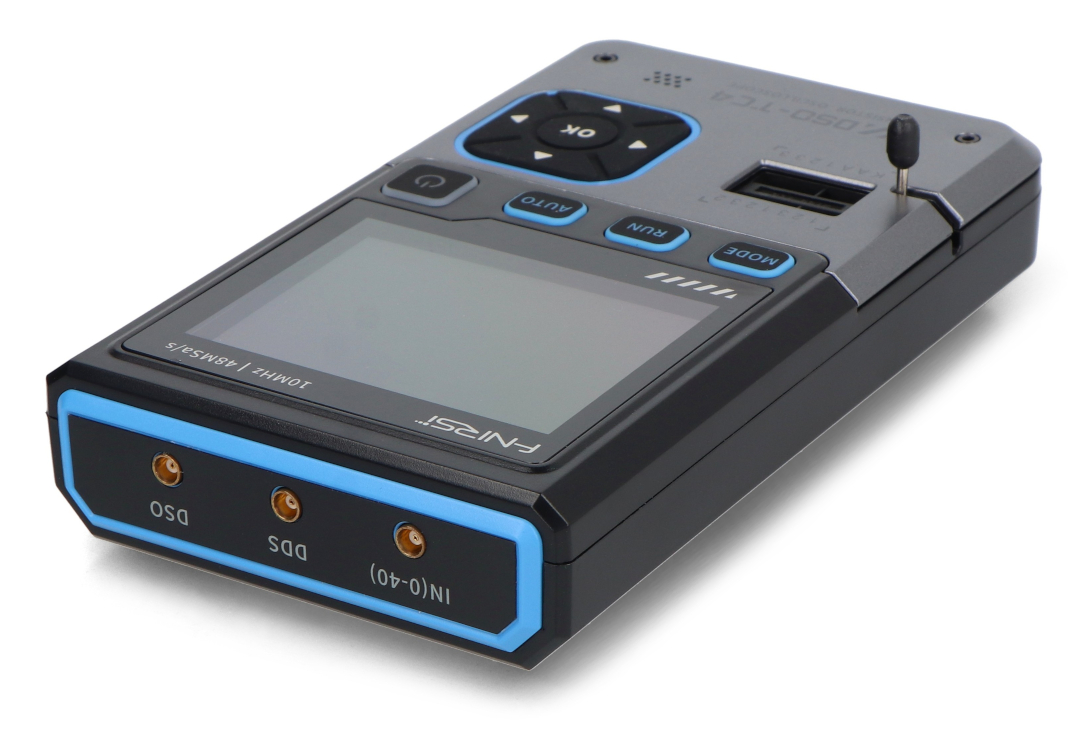

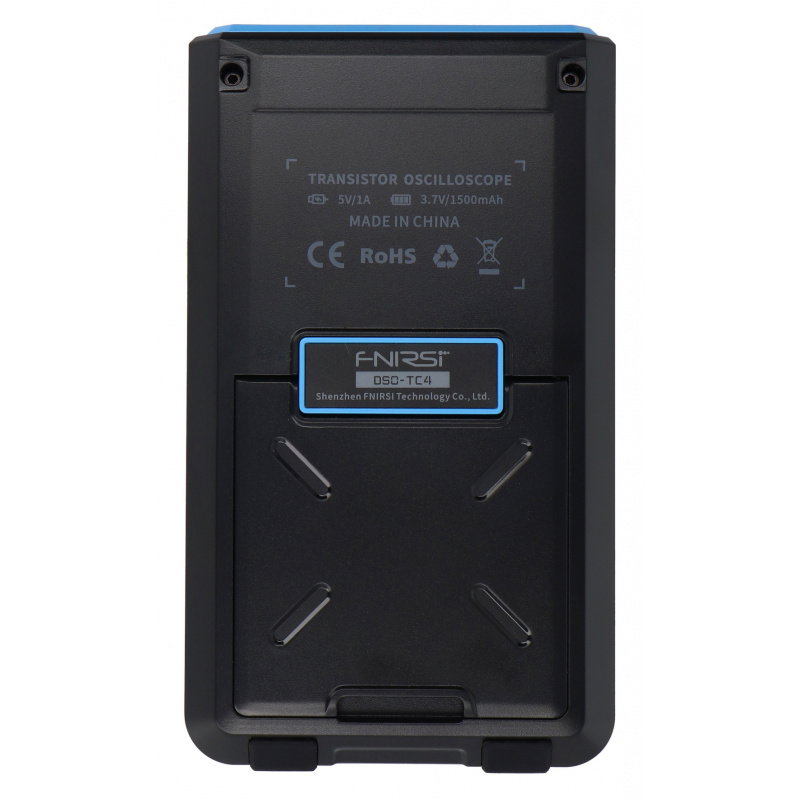

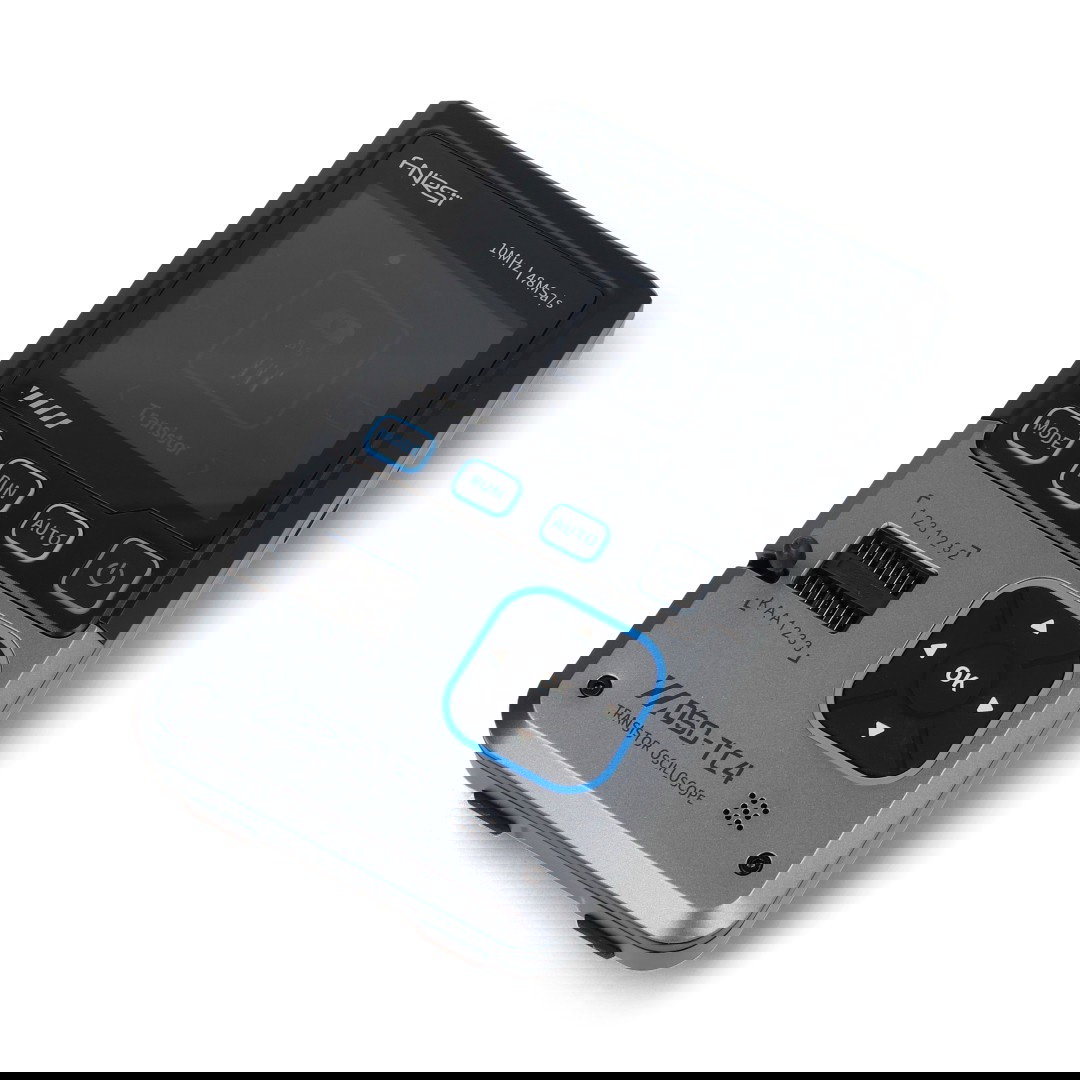

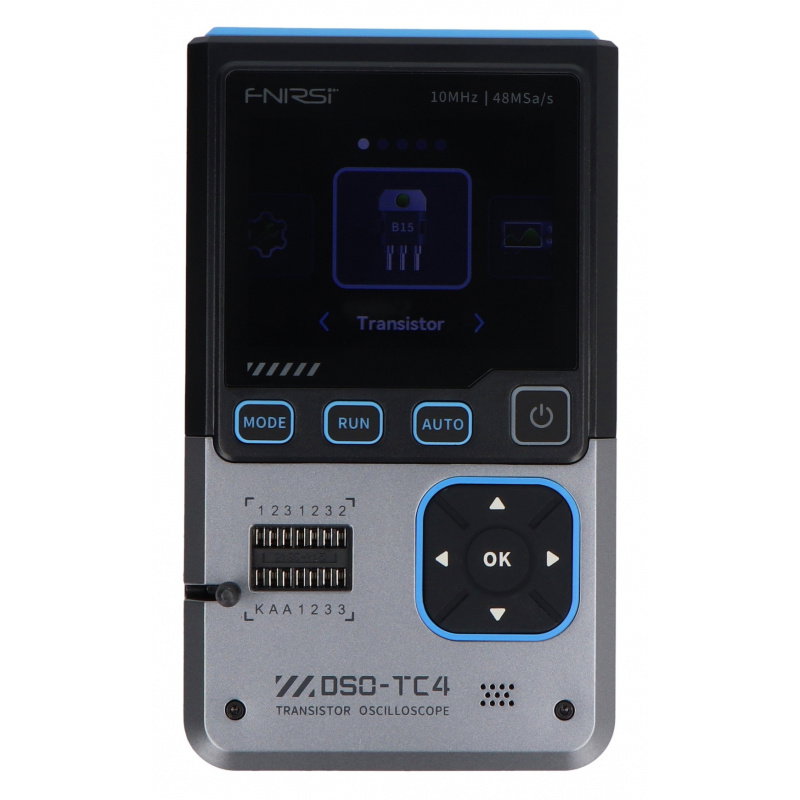

FNIRSI DSO-TC4 3-in-1 portable oscilloscope with transistor tester and signal generator 10MHz
The FNIRSI DSO-TC4 is a portable 3-in-1 mini oscilloscope that combines three functions: a digital oscilloscope, an electronic component tester, and a signal generator . Combining waveform analysis with automatic component recognition and signal testing, it's ideal for service and workshop applications. Intelligent Anti-Burn protection protects the input circuit from damage if incorrectly connected, improving operational safety.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: FNIRSI DSO-TC4 3-in-1 portable oscilloscope with transistor tester and 10 MHz signal generator
The FNIRSI DSO-TC4 is a compact measurement tool designed for electronics technicians, service technicians, and system diagnosticians. The device integrates a digital oscilloscope , component tester , and signal generator , allowing for a wide range of measurement and control tasks without the need for additional equipment. The oscilloscope offers a 10 MHz bandwidth and a 48 MSa/s sampling rate , enabling real-time signal analysis. The signal generator supports 13 waveform types and allows for adjustable output parameters within a frequency range of 0 kHz to 50 kHz . A built-in 1500 mAh battery and USB Type-C charging ensure portability and convenience for field work.

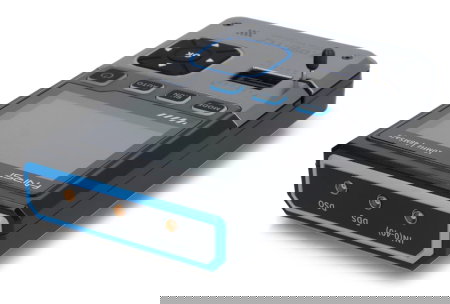

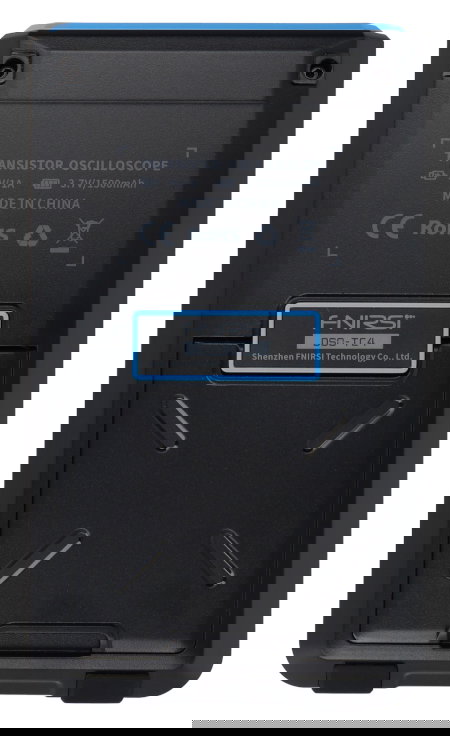

FNIRSI DSO-TC4 3-in-1 portable oscilloscope with transistor tester and 10 MHz signal generator.
FNIRSI DSO-TC4 combines three functions - a digital oscilloscope, an electronic component tester and a signal generator.
Main features of the 3-in-1 oscilloscope
- Three devices in one : oscilloscope, component tester and signal generator in one compact housing, saving you space and time
- Precise signal analysis : 10 MHz bandwidth and 48 MSa/s sampling rate allow you to conveniently observe waveforms in real time
- Safe high voltage measurements : Anti-Burn protection and 1:1 and 10:1 probe support increase work safety
- Versatile Signal Generator : 13 waveform types with adjustable frequency and amplitude for testing various systems
- Automatic measurements with one click : quick reading of parameters such as RMS, Vpp, frequency or duty cycle
- Easy-to-read color screen : clear 2.8" TFT display with brightness adjustment ensures comfortable work
- Mobile design : built-in 1500 mAh battery and USB Type-C charging allow you to work without a constant power supply
What measurements can you take?
In oscilloscope mode, the FNIRSI DSO-TC4 enables the analysis of AC/DC coupled signals and the rapid capture of waveforms using auto, normal, and single-shot triggering modes. The device can measure values such as max, min, average, RMS, Vpp, frequency, period, and duty cycle . The HOLD function makes it easy to freeze a waveform and analyze the results. The integrated component tester automatically recognizes and measures the parameters of passive and semiconductor components such as diodes, Zener diodes, transistors, MOSFETs, JFETs, IGBTs, SCRs, resistors, capacitors, and inductors. The signal generator allows you to simulate circuit operating conditions, simplifying testing of inputs, filters, and audio and control paths.
Convenient operation and mobile power supply

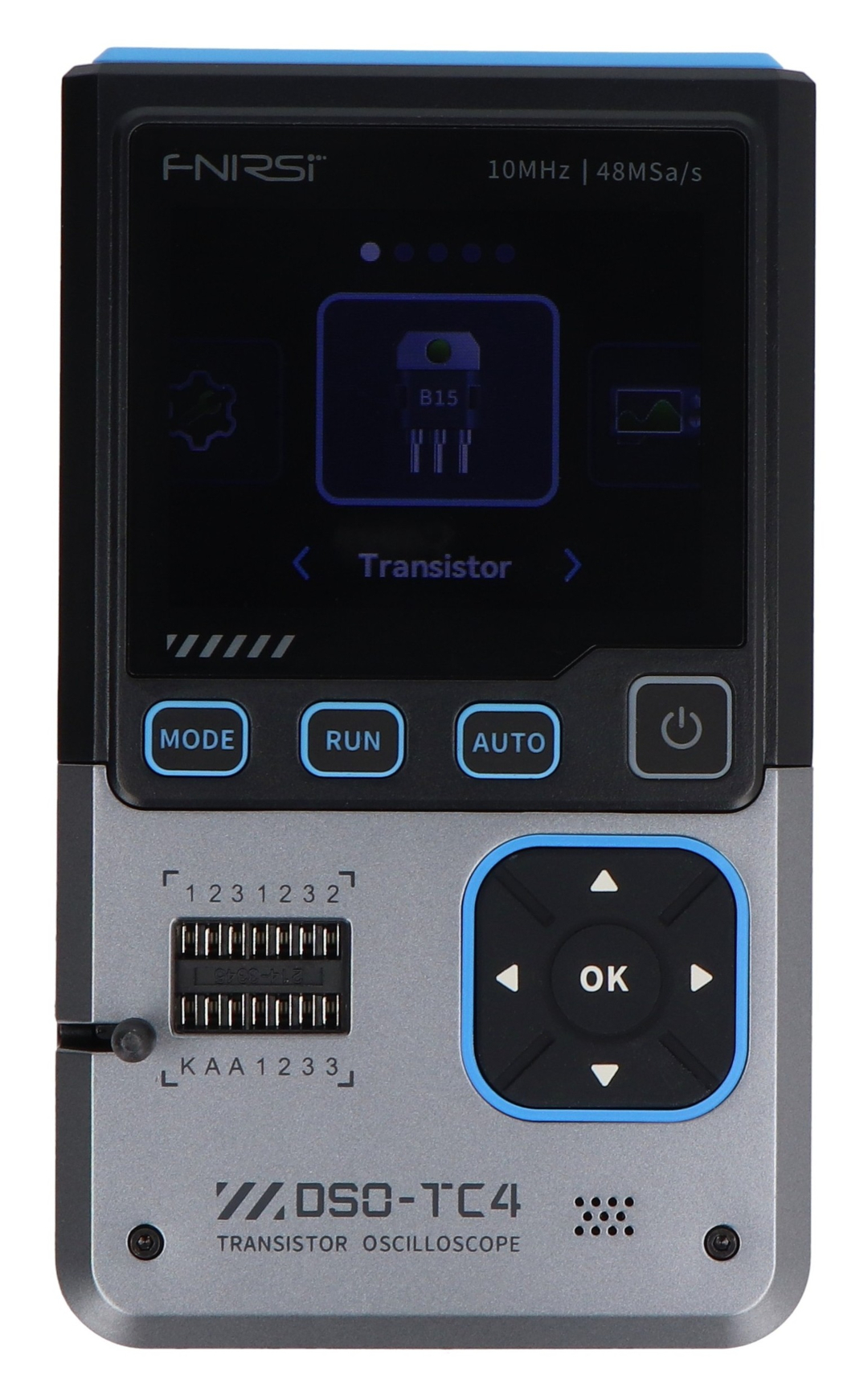

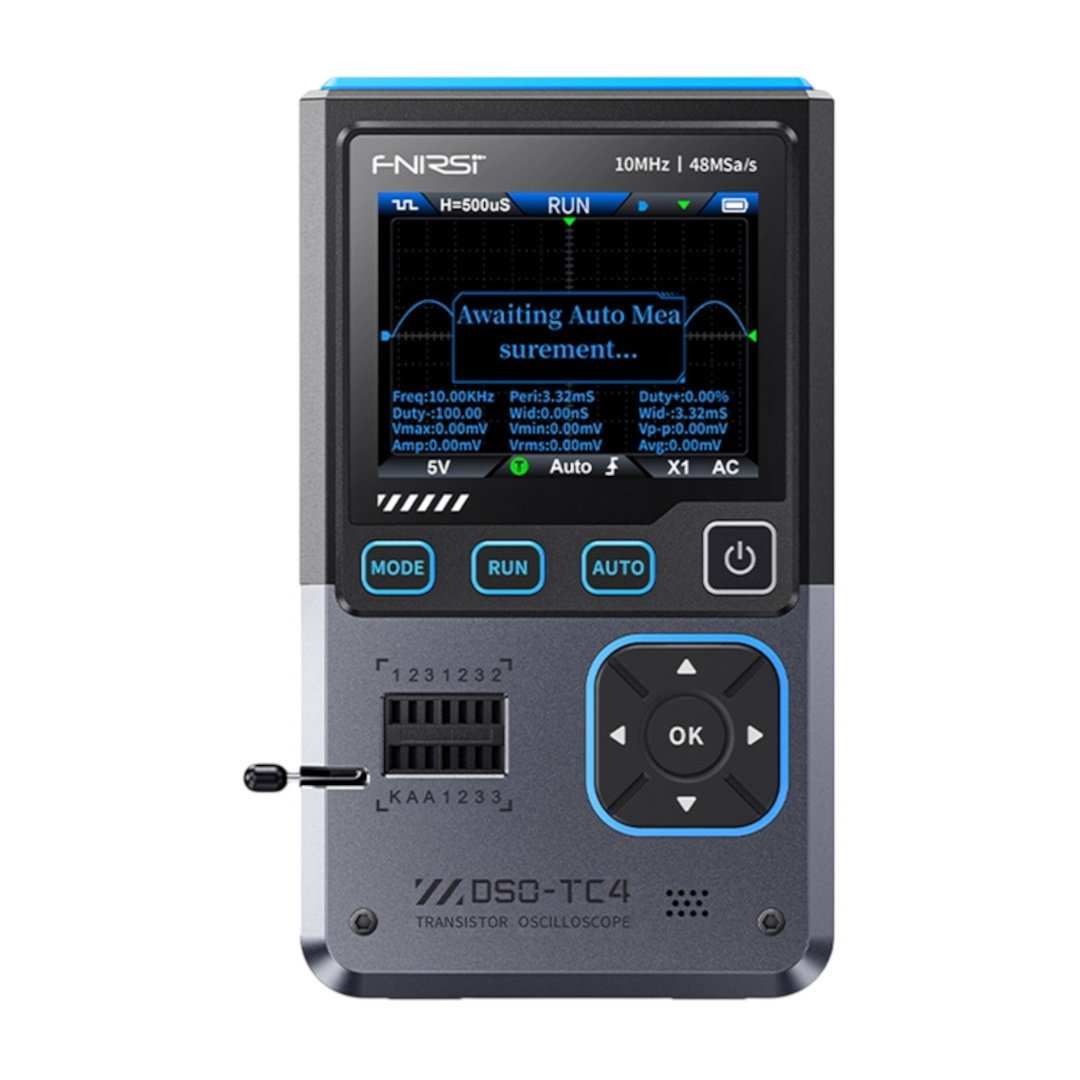

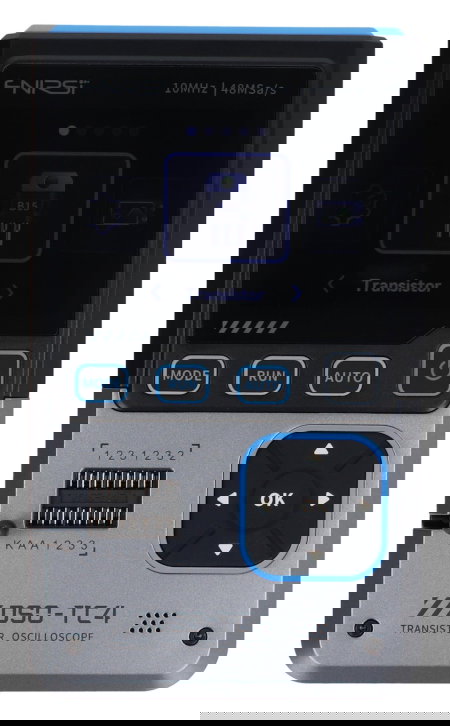

The 2.8" TFT color screen with adjustable brightness ensures clear readings of waveforms and measurement results. The intuitive control panel allows for quick switching between operating modes . AUTO mode helps instantly stabilize the signal image. A screenshot function simplifies results archiving and subsequent analysis. The USB Type-C port is used for charging and data transfer. The built-in 3.7 V / 1500 mAh battery ensures mobile operation, while automatic sleep mode extends the operating time between charges. This makes the device suitable for both service desk and field work.
The generator supports 13 waveform types.

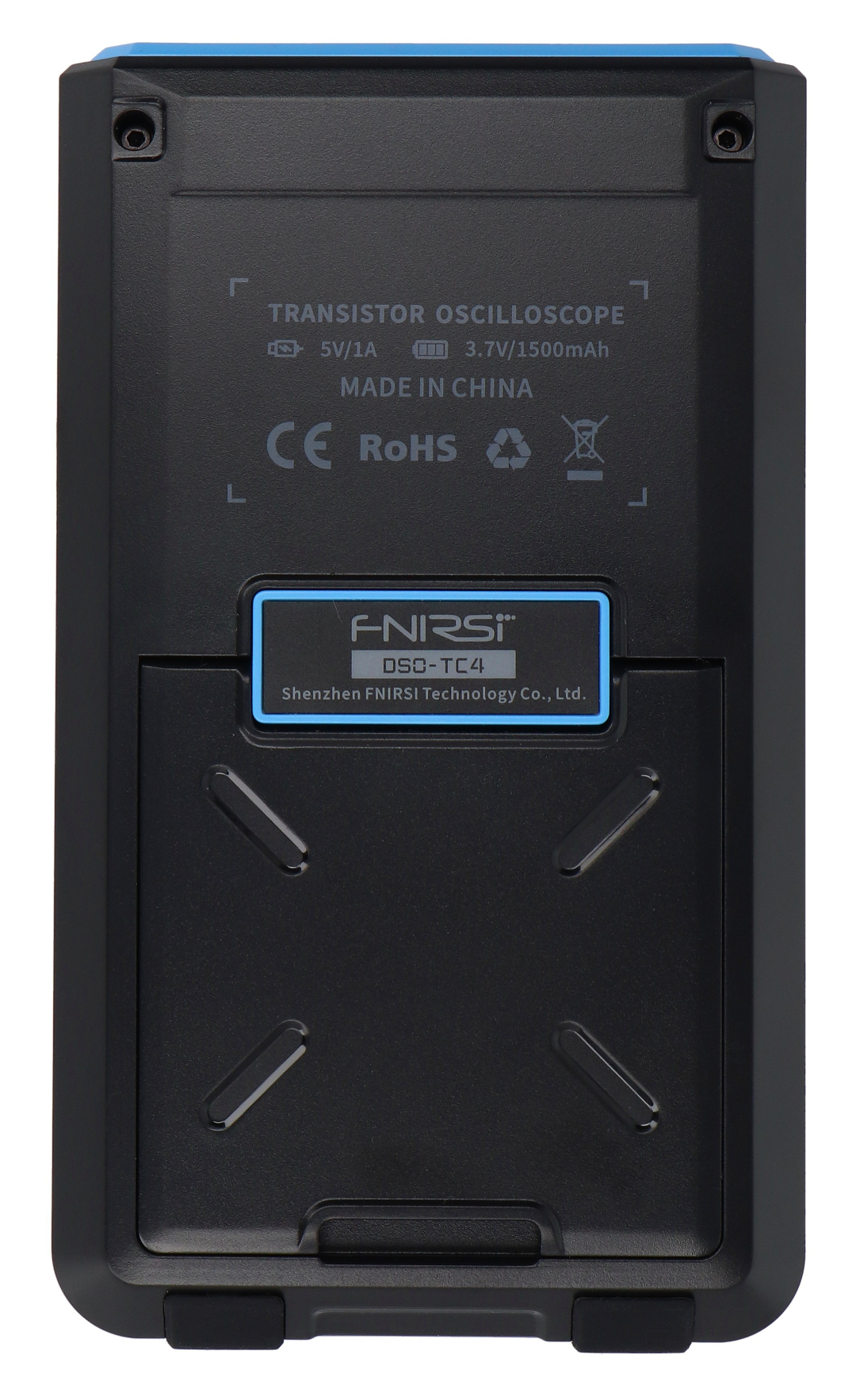

The 1500 mAh battery and USB Type-C charging allow you to work without a constant power supply.
Technical specifications of the oscilloscope
- Model: DSO-TC4
- Sampling rate: 48 MSa/s
- Analog bandwidth: 10 MHz
- Input impedance: 1 MΩ
- Coupling mode: AC/DC
- Test voltage range: 1:1 probe - 80 Vpp (±40 V), 10:1 probe - 800 Vpp (±400 V)
- Vertical sensitivity: 10 mV/div to 10 V/div
- Time base range: 50 ns to 20 s
- Trigger modes: Auto / Normal / Single
- Trigger type: rising edge, falling edge
- Trigger level: adjustable with indication
- Waveform freezing: yes (HOLD)
- Automatic measurement: max, min, average, RMS, Vpp, frequency, period, duty cycle
- Display: 2.8" color TFT
- Backlight: brightness adjustment
- Power supply: USB Type-C (5V/1A)
- Battery: Lithium-ion 3.7V/1500mAh
- Supported languages: Chinese, English, German, Portuguese, Japanese, Spanish, Korean, Russian
- Dimensions: approx. 90 x 142 x 27.5 mm
- Weight: 186 g
Component Tester Technical Specifications
- Transistors: hFE, Ube, Ic/Ie, leakage current Iceo/Ices, voltage drop across the protective diode Uf
- Diodes: forward voltage drop <5V, junction capacitance, reverse leakage current
- Zener diodes: range from 0.01 V to 32 V
- Field Effect Transistors: JFET (Cg, Id at Vgs, Uf), IGBT (Id at Vgs, Uf), MOSFET (Vt, Cg, Rds, Uf)
- Thyristors: SCR unidirectional (trigger voltage <5 v="" bidirectional="" trigger="" current="" 6="" ma="" li="">
- Capacitors: 25 pF to 100 mF (capacitance, Vloss)
- Resistors: 0.01 Ω to 50 MΩ
- Inductors: from 10 µH to 1000 µH (inductance, DC resistance)
- Supported sensors: DS18B20 (GND, DQ, VDD), DHT11 (VDD, DATA, GND)
Technical specifications of the signal generator
- Types of runs: 13
- Frequency: 0 kHz to 50 kHz
- Duty cycle: 0% to 100%
- Amplitude: 0.1 V to 3 V

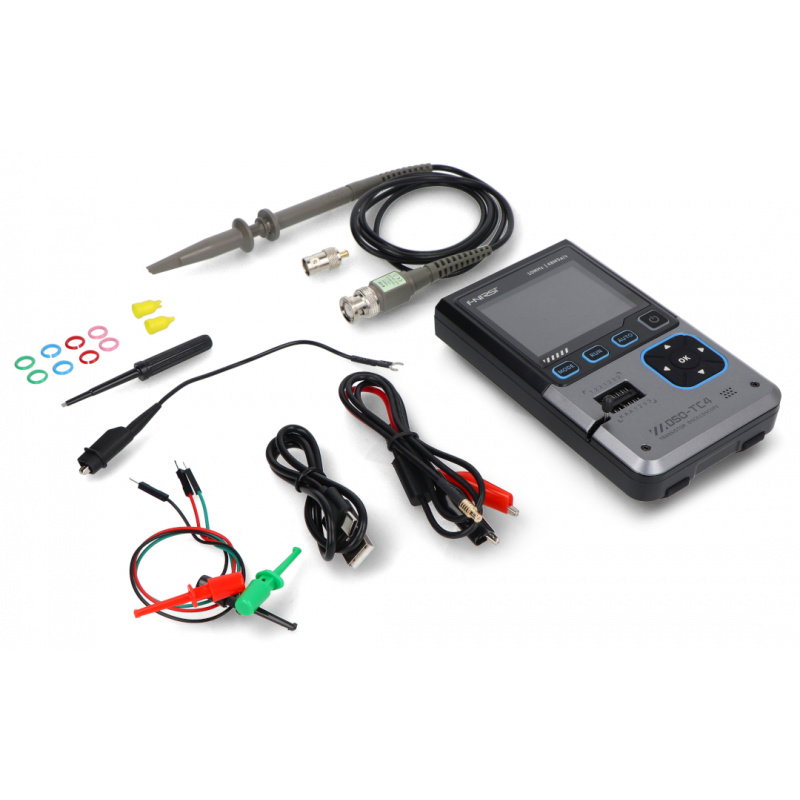

Contents of the set
- FNIRSI DSO-TC4 Oscilloscope
- P6100 probe
- Alligator clip
- Test Hooks x3
- USB Type-C cable
- Adapter
- User manual

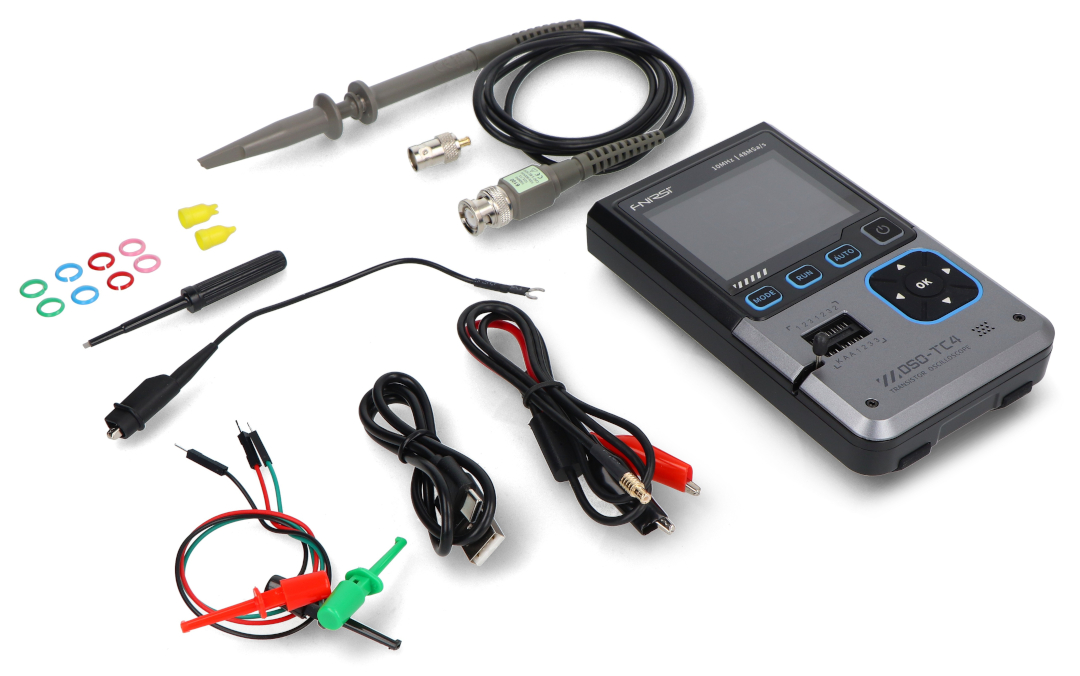

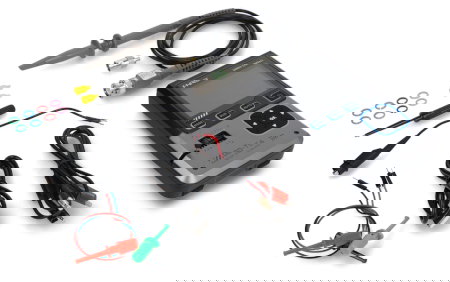

Elements included in the set.
Useful links
| Name | Value |
|---|---|
| Channels | 1 |
| Frequency to | 10 MHz |
| Oscilloscope - Type | portable |
| Oscilloscope - Sampling | 48 MS/s |
| Width | 20.5 cm |
| Height | 10 cm |
| Depth | 7 cm |
| Weight | 0.433 kg |
