Product description: Portable 3 in 1 oscilloscope with multimeter and signal generator - Joy-IT OMS01

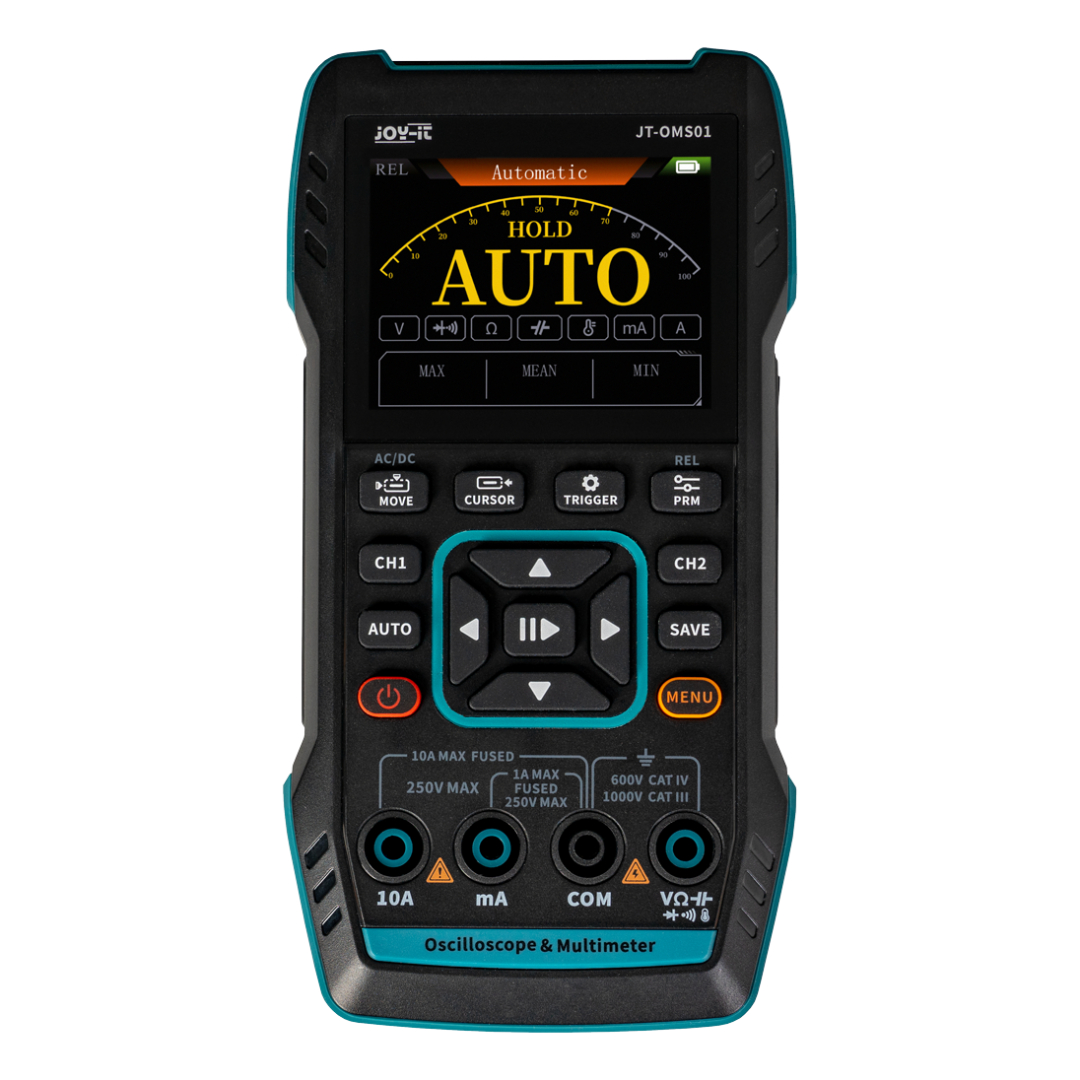

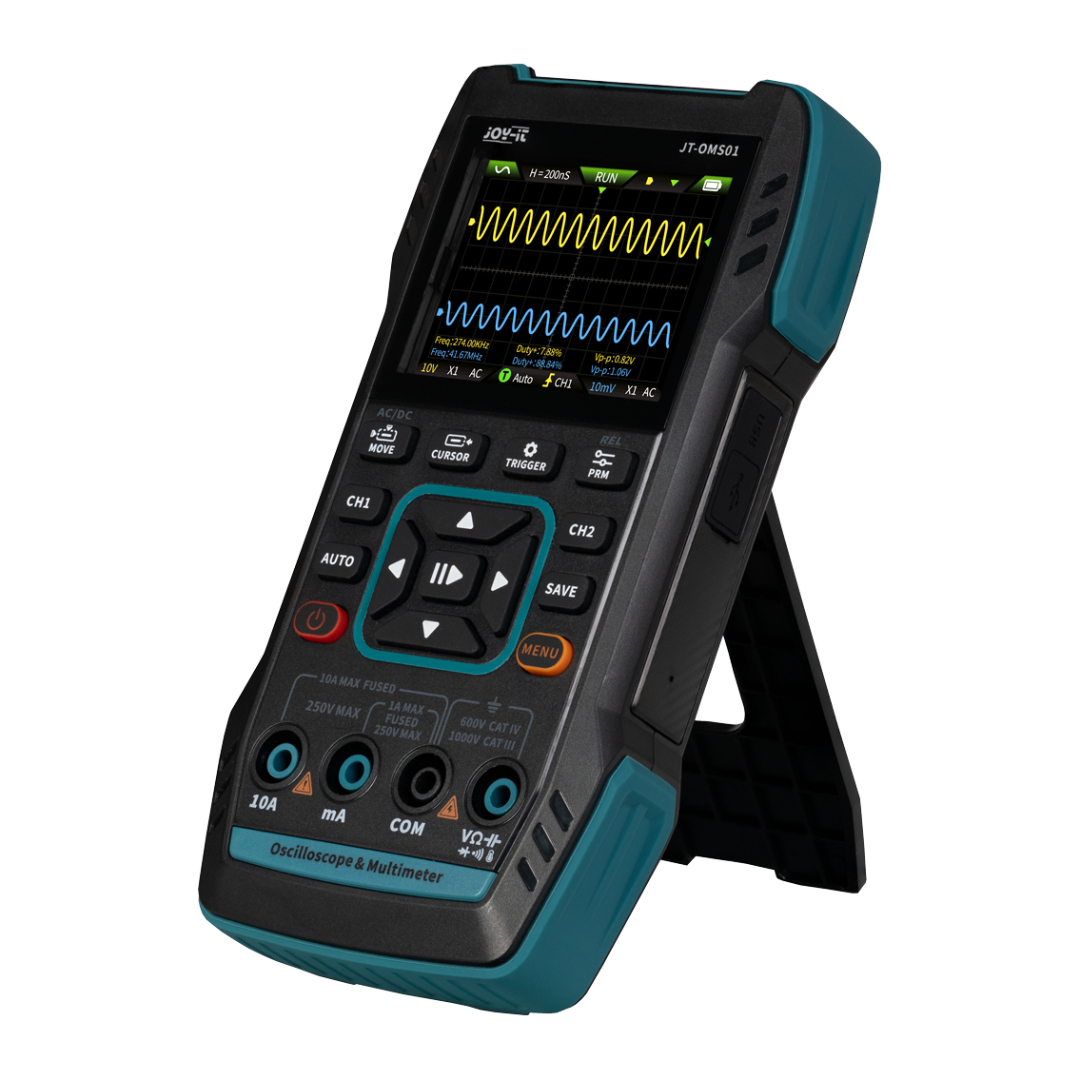

The Joy-IT OMS01 is an advanced, handheld 3-in-1 diagnostic device that combines the functionality of an oscilloscope , digital multimeter , and signal generator . It has been designed with maximum mobility and versatility in mind. With a 2.8-inch color display , a damage-resistant body, and an integrated stand, the OMS01 is perfect for both field and desk work. The device is intuitive to use, with the option of selecting a menu in Polish, English, German, or French . Powered by a built-in lithium-ion battery charged via USB Type-C , the device is always ready to use. The set includes a complete set of accessories and a practical protective bag.
3 in 1 portable oscilloscope with multimeter and signal generator - Joy-IT OMS01.
The set includes a set of accessories and a practical protective bag.Special Features
- Dual-channel oscilloscope - allows simultaneous monitoring of two signals, the oscilloscope sampling rate is 250 MSa/s with an analog bandwidth of 50 MHz for both channels Digital multimeter - measurement of AC / DC voltage, current, resistance, capacitance and temperature
- Signal Generator - Create sine, square, triangle and other waveforms for testing and experimenting
- 2.8'' color display - clear presentation of measurement curves and the ability to save screenshots
- Intuitive operation and multilingual menu - simplified navigation in English, German and French

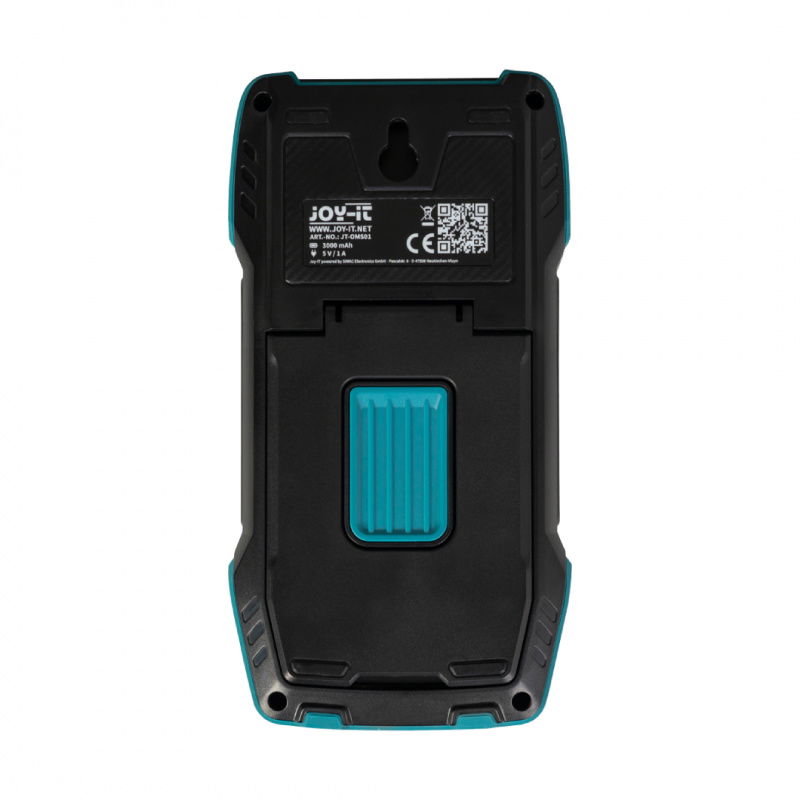

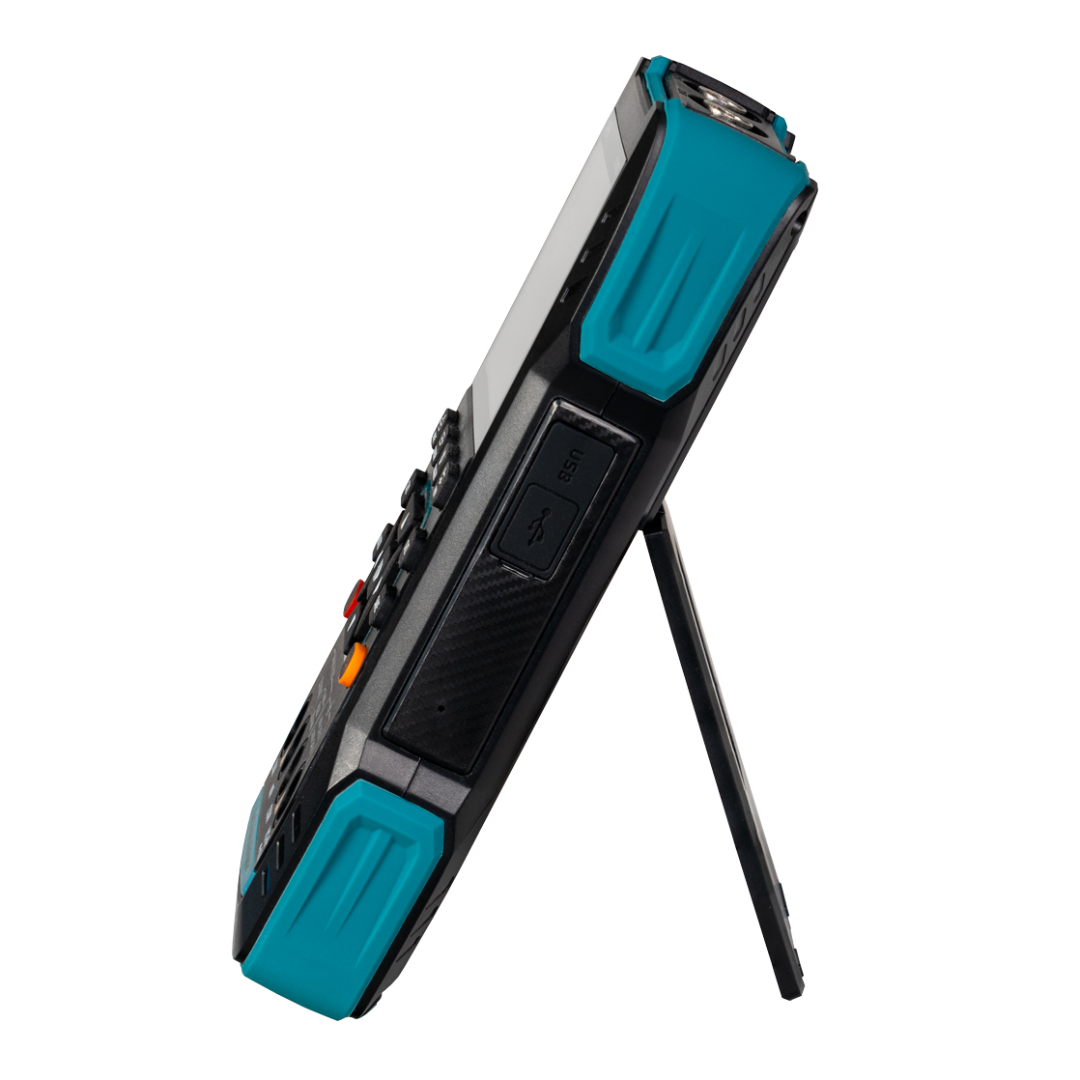

- Solid and mobile design - durable housing with a stand, ideal for work in various conditions
- Powered by USB Type-C - built-in lithium-ion battery for long operating time
- A set of accessories and a case included - everything you need for measurements, in one place
Technical specifications of the oscilloscope
Display:
-
Diagonal: 2.8 inches (7.11 cm)
- Resolution: 320 x 240 px
Battery:
- Capacity: 3000mAh
- Type: Lithium-ion, charged via USB Type-C (5V/1A)
Oscilloscope:
- Channels: 2
- Sampling rate: 250 MSa/s
- Analog Bandwidth: 50 MHz for both channels
- Internal memory: 32 KB
- Input impedance: 1MΩ
- Base time range: 10 ns to 20 s
- Vertical sensitivity: 10 mV/div to 10 V/div (X1)
- Maximum measuring voltage:
- X1: 80Vpp (-40V to 40V)
- X10: 800Vpp (-400V to 400V)
- Trigger modes: auto, normal, single
- Trigger types: rising edge, falling edge
- Coupling: AC, DC
- Recording Depth: 1 Kpts
- Display modes: YT, scroll, XY
- Mathematical functions: 8 basic operations, FFT
It was designed with maximum mobility and versatility in mind.
The Joy-IT OMS01 is an advanced 3-in-1 handheld diagnostic device that combines the functionality of an oscilloscope, digital multimeter, and signal generator.Technical specifications of the multimeter and signal generator
Multimeter:
- Voltage measurement range: up to 999.9 V DC, up to 750 V AC
- Current measurement range: up to 9,999 A DC and AC
- Resistance measurement range: up to 19.999 MΩ
- Capacitance measurement range: up to 99.99 mF
- Temperature measurement range:
- Device: -55°C to 1300°C
- Included probe: -50°C to 300°C
- Voltage measurement accuracy:
- DC: ± (0.5% + 3 digits)
- AC: ± (1% + 3 digits)
- Current measurement accuracy:
- DC: ± (1.2% + 3 digits)
- AC: ± (1.5% + 3 digits)
- Resistance measurement accuracy:
- < 2 kΩ: ± (2% + 5 digits)
- 2kΩ: ± (0.5% + 3 digits)
- Capacitance measurement accuracy:
- < 1 mF: ± (2% + 5 digits)
- 1 mF: ± (5% + 20 digits)
- Temperature measurement accuracy: ± (2.5% + 5 digits)
- Additional multimeter functions: diode measurement, circuit continuity test
Signal generator:
- Available waveforms: Sine, Square, Saw, Half Wave, Full Wave, Step Wave, Inverted Step Wave, Exponential Rise, Exponential Fall, DC, Multi-Audio, Decay Pulse, Lorenz Wave
- Output Frequency Range: 1 Hz to 50 kHz
- Output Amplitude: 0.1V to 3V
- Dimensions: 167 x 89 x 35 mm
- Weight: 300 g

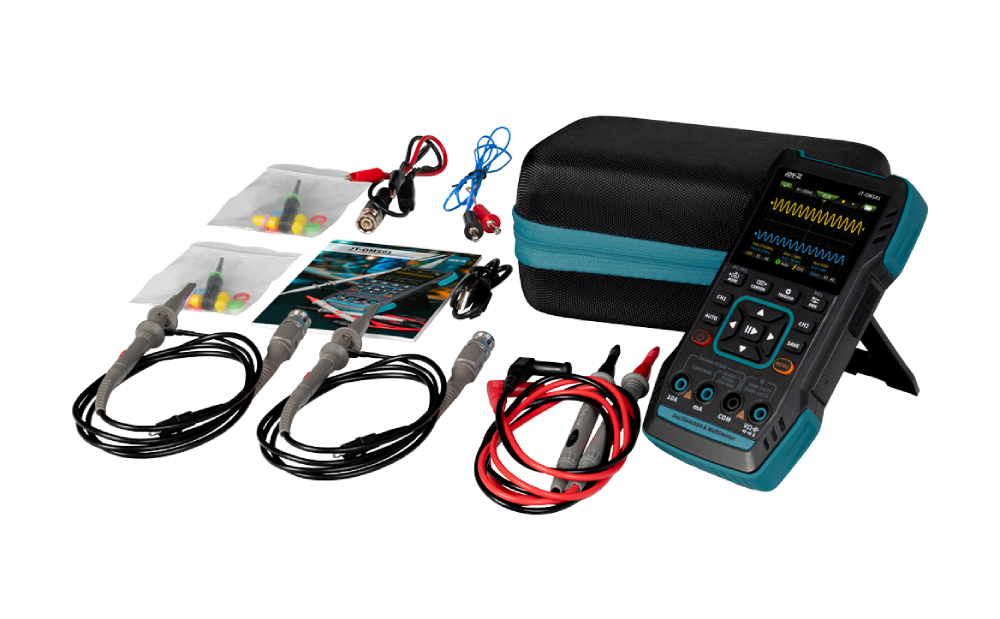

Kit Contents
- Joy-IT OMS01
- Test leads and probes - 2x oscilloscope probe, 2x test probes, 1x test clamp, 1x temperature probe
- USB Type-C Charging Cable
- Protective cover
