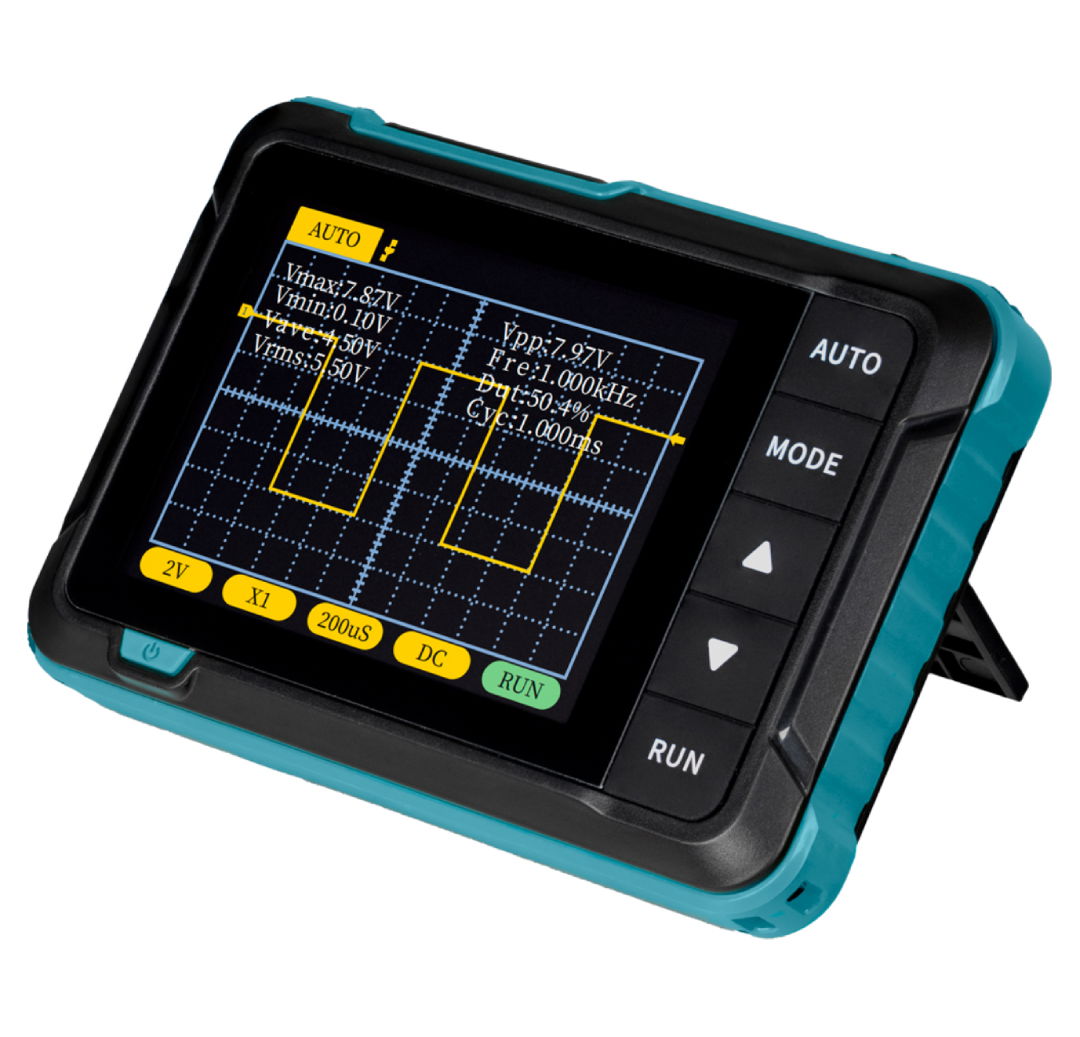

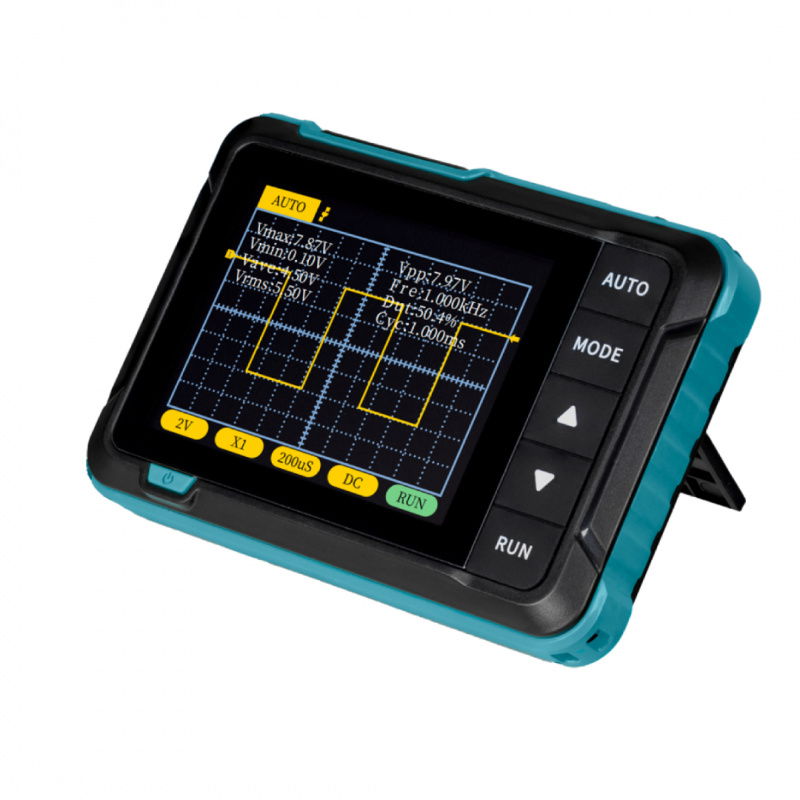

Joy-IT DSO-200 portable oscilloscope 200kHz 1 channel
DSO-200 is a modern, handheld digital oscilloscope designed with comfort and mobility in mind. With its ergonomic shape and integrated, foldable stand, the device is perfect for both desktop and field work. DSO-200 operates in the 200 kHz band with a sampling rate of 2.5 MS/s and a wide range of vertical sensitivity (from 10 mV/div to 20 V/div) , which enables precise measurements of analog signals.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Joy-IT DSO-200 portable oscilloscope 200 kHz 1 channel
DSO-200 is a modern, handheld digital oscilloscope designed with comfort and mobility in mind. With its ergonomic shape and integrated, foldable stand, the device is perfect for both desktop and field work. DSO-200 operates in the 200 kHz band with a sampling rate of 2.5 MS/s and a wide range of vertical sensitivity (from 10 mV/div to 20 V/div) , which enables precise measurements of analog signals. The 2.8" color LCD screen provides a clear view of waveforms, and the power supply from the built-in 1000 mAh lithium battery charged via USB Type-C allows for long operation without the need to connect an external power source. Additionally, the DSO-200 offers various trigger and signal coupling modes, making it an ideal diagnostic tool for educational and service applications.
Joy-IT DSO-200 portable oscilloscope 200 kHz 1 channel.
The DSO-200 is a modern, handheld digital oscilloscope designed with comfort and mobility in mind.
Special Features
- Compact design: light and handy, ideal for mobile and service work

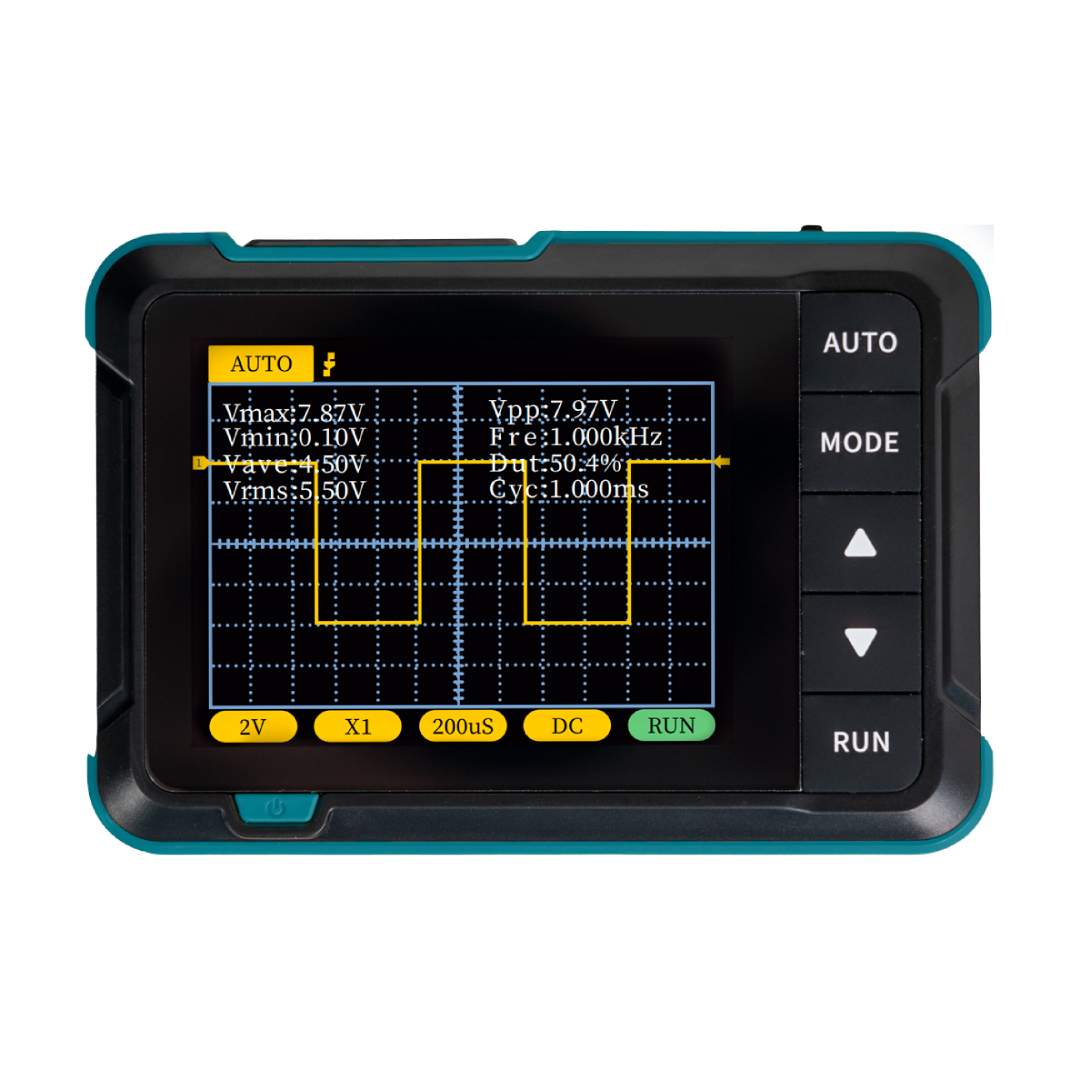

- 2.8" 320 x 240 px LCD display: clear display of signal waveforms
- 2.5 MS/s Sampling: Fast and Precise Data Acquisition
- 200 kHz bandwidth: suitable for most educational and hobby applications
- Built-in 1000mAh battery: charging via USB Type-C port
- Measuring voltage range: up to 800 Vpp (with probe x10)
- Trigger modes: Auto, Normal, Single
- Built-in calibration generator: 1 kHz, 50% duty cycle

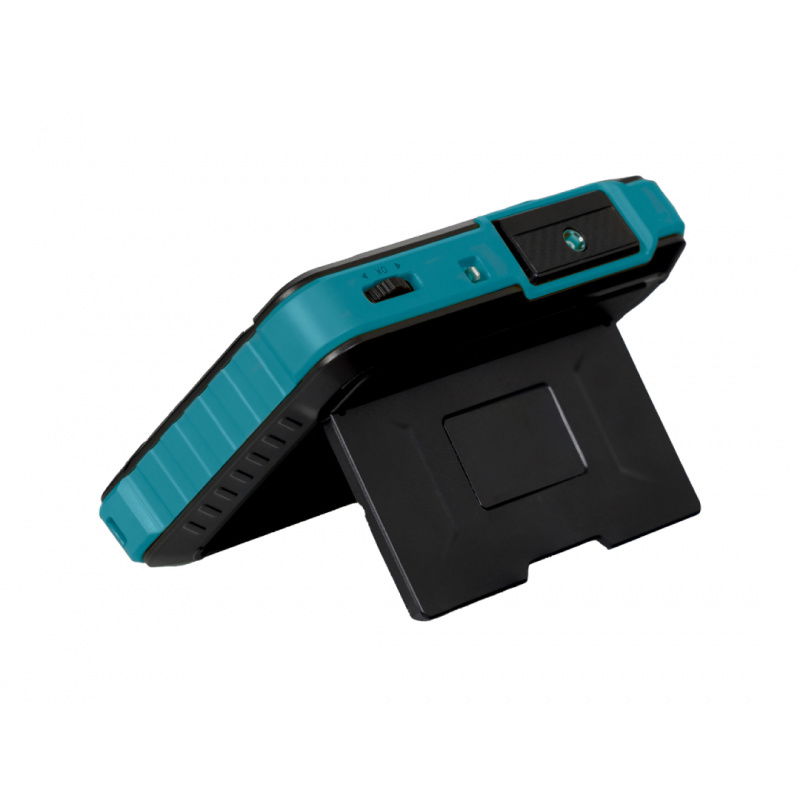

- Housing with handle and foldable stand: stable work on the table
Technical specification
- Sampling: 2.5 MS/s
- Bandwidth: 200 kHz
- Display: LCD 2.8" 320 x 240 px
- Vertical Sensitivity Range: 10 mV/div to 20 V/div
- Time base range: 10 μs/div to 50 s/div
- Trigger modes: Auto, Normal, Single
- Coupling: AC/DC
- Calibration Generator: 1 kHz, 50% duty cycle
- Measuring voltage range: x1: 80 Vpp (-40 V to 40 V), x10: 800 Vpp (-400 V to 400 V)

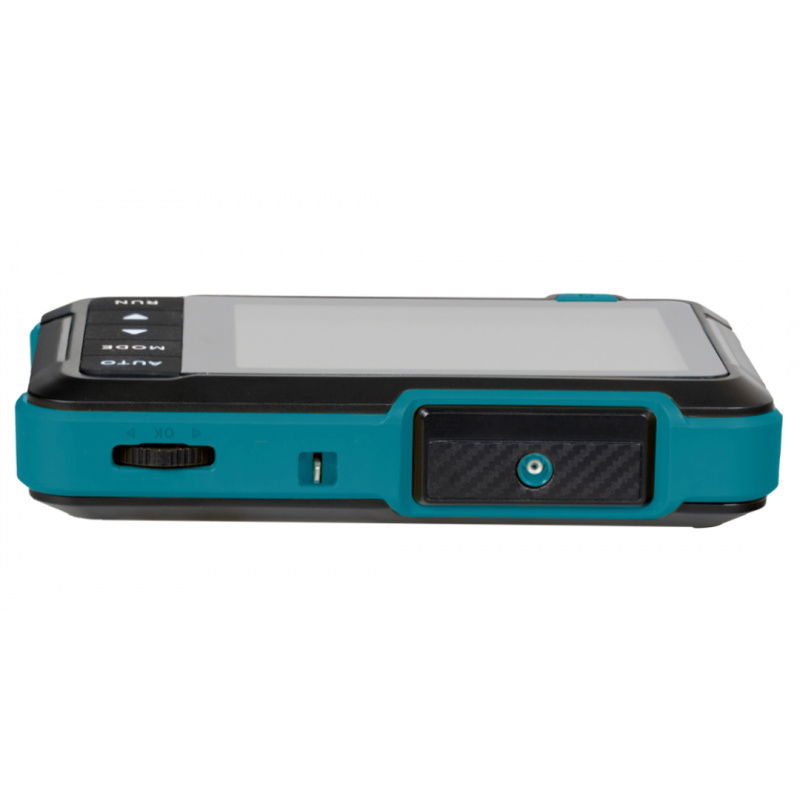

- Probe Port: MCX
- Power supply: 1000 mAh battery, charging via USB Type-C (5V/1A)
- Dimensions: 99 x 69 x 20 mm

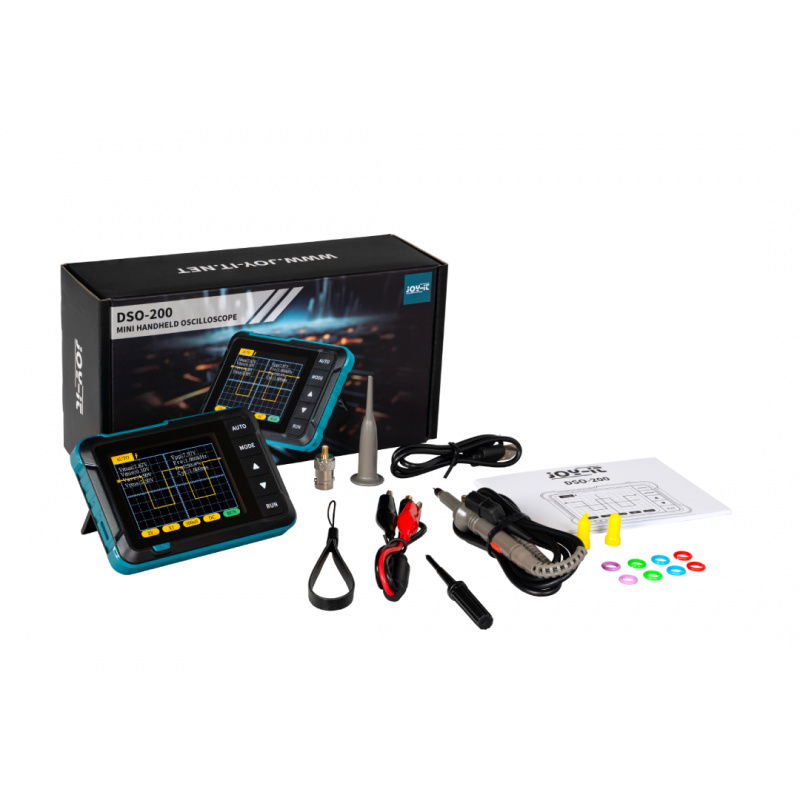

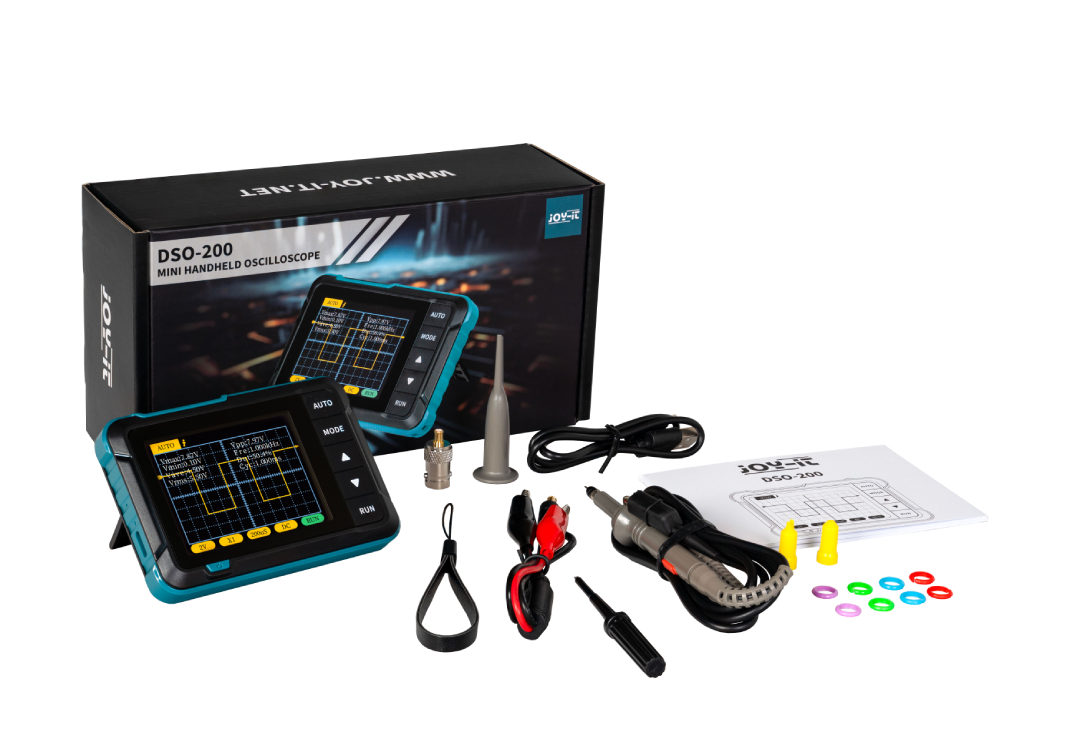

Kit Contents
- 1x Oscilloscope DSO-200
- 1x USB Type-C Cable
- 1x Hand strap
- 1x Oscilloscope probe
- 1x Test Cable with Crocodile Clips
- 1x BNC adapter
- 1x User Manual
Thanks to its ergonomic shape and integrated, foldable stand, the device is perfect for both desk and field use.
Useful links
- Manufacturer's website
- Technical documentation
- User manual
- How does an oscilloscope work?
| Name | Value |
|---|---|
| Frequency to | 200 kHz |
| Oscilloscope - Type | portable |
| Oscilloscope - Sampling | 2,5 MS/s |
| Width | 19.5 cm |
| Height | 6 cm |
| Depth | 10.5 cm |
| Weight | 0.3 kg |
