Product description: STM32 NUCLEO-G474RE - STM32G474RE - ARM Cortex M4
The NUCLEO-G474RE board is a versatile development tool that enables rapid prototyping of applications. Equipped with the STM32G474RE 32-bit ARM Cortex M4 microcontroller, it offers high computing performance, optimized for applications requiring precise control, such as motor control, industrial automation systems, and signal processing in real time. The board is compatible with the popular Arduino environment , which allows the use of many ready-made libraries and accessories. Additionally, full compatibility with ST Morpho tools allows for the expansion of functionality with additional modules. Thanks to the built-in programmer / debugger ST-LINK/V2- 1 board offers hassle-free programming and code testing. It also provides extensive support for development environments such as STM32CubeIDE, IAR, and Keil, making it a versatile tool for professionals and hobbyists.
The manufacturer has prepared a detailed user guide that includes instructions on how to build and run a sample application.
STM32 NUCLEO-G474RE - STM32G474RE - ARM Cortex M4.

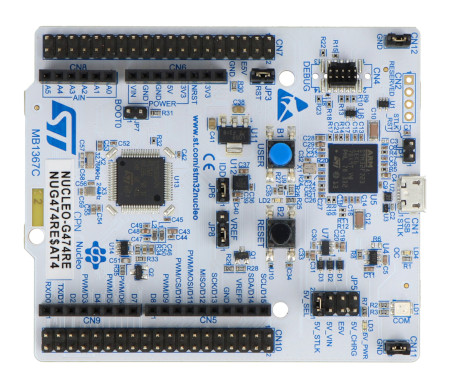

Nucleo board with STM32G474RE microcontroller.
Key Features of the NUCLEO-G474RE
- STM32G474RE microcontroller with ARM Cortex M4 core (170 MHz, 512 kB Flash, 128 kB SRAM)
- Compatibility with Arduino Uno R3 and ST Morpho, allowing easy expansion with additional modules
- Built-in ST-LINK/V2-1 programmer/debugger that eliminates the need for external development tools
- Extensive communication capabilities including I2C, SPI, UART, USB and CAN
- Support for advanced DSP and FPU functions, enabling fast signal processing
- Powered by USB or external source (3.3V or 5V)
Module Applications
- Motor Control - Advanced PWM functions, precise speed and position control
- Industrial automation - reliability and stability in harsh industrial conditions
- Measurement systems - real-time data acquisition and analysis
- IoT Device Prototyping - Rapid Prototyping with Arduino Compatibility
- Signal Processing - DSP functions for real-time signal analysis

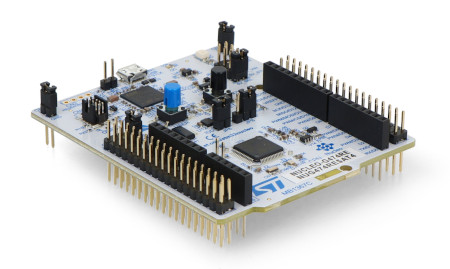

The board has a connector compatible with Arduino R3.

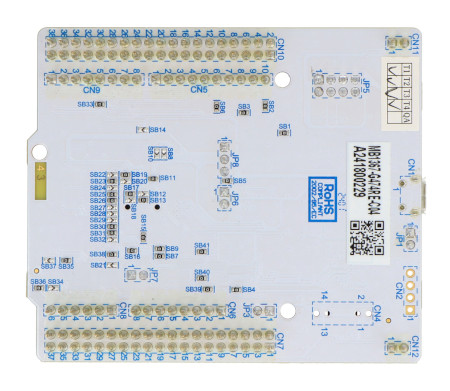

The board can be powered via USB or from an external source.
Technical Specifications NUCLEO-G474RE
- Microcontroller: STM32G474RE
- Core: ARM Cortex M4
- Clock speed: 170 MHz
- Flash Memory: 512 KB
- SRAM memory: 128 KB
- Power supply voltage: 5V from USB or 3.3V/5V external
- Interface: I2C, SPI, USART/UART, USB, CAN
- Expansion connectors: Arduino Uno R3, ST Morpho
- Built-in ST-LINK/V2-1: programmer and debugger
- Number of I/Os: 52 GPIOs
- Number of ADC channels: 26
- Expansion ports: ST Zio, ST Morpho, SWD
- LEDs: 3 user, 1 power
- Buttons: reset, user
- USB connector: microUSB
- Supported software: STM32CubeIDE, STM32CubeMX, IAR, Keil
