SenseCAP S-CO2-03B - temperature, humidity and gas sensor - RS485/SDI-12 - Seeedstudio 101991029

Index: SEE-23756
SenseCAP S-CO2-03B is a multifunctional sensor that measures temperature, humidity and CO2 concentration in the air . It uses NDIR technology to measure carbon dioxide and supports RS485 and SDI-12 protocols , making it an ideal tool for environmental monitoring in various locations.
SenseCAP S-CO2-03B - temperature, humidity and gas sensor - RS485/SDI-12 - Seeedstudio 101991029
€99.50
€80.89 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Seeedstudio

Product description: SenseCAP S-CO2-03B - temperature, humidity and gas sensor - RS485 / SDI-12 - Seeedstudio 101991029

SenseCAP S-CO2-03B is an advanced sensor used to measure temperature , humidity and CO2 concentration in the air . It uses non-dispersive NDIR infrared technology, which provides accurate and reliable carbon dioxide readings. It is compatible with Modbus RTU/ASCII RS485 and SDI-12 communication protocols, making it easy to integrate with various systems. The sensor has an IP65 protection rating , which makes it an excellent tool for monitoring air quality also outdoors.

The gray sensor module with a black-blue connector lie on a white background. SenseCAP S-CO2-03B - temperature, humidity and gas sensor - RS485 / SDI-12 - Seeedstudio 101991029.

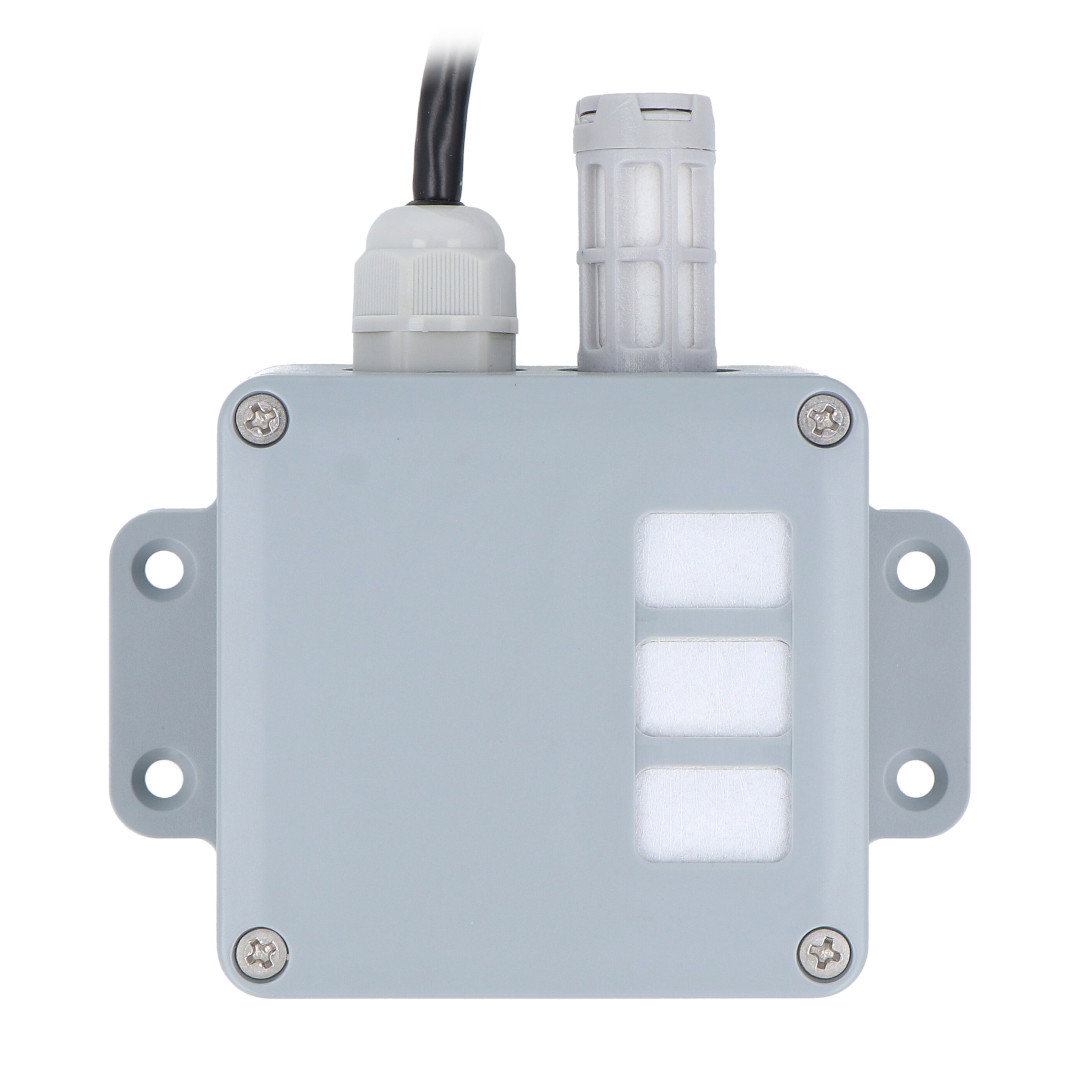

The gray sensor module lies on a white background. The sensor is used to measure temperature, humidity and CO2 concentration in the air.

Main features of the sensor

  • It uses NDIR technology to accurately measure CO2 concentration in the air
  • Measures air temperature and humidity, providing detailed environmental information
  • It is compatible with Modbus RTU/ASCII RS485 and SDI-12 communication protocols
  • It offers automatic sensor calibration by holding the button for 5 seconds
  • Perfect for use in a variety of environments such as greenhouses, laboratories and research stations
  • It has an IP65 protection rating
  • It is intended to perform measurements mainly in closed spaces

If attempting to install the sensor outdoors, appropriate shading measures are required to prevent damage to the device from direct sunlight and rainwater.

Communication protocols Modbus RTU / ASCII RS485 and SDI-12

RS485 is a data transmission standard enabling serial communication over long distances and in difficult environmental conditions . It is often used in industrial systems due to its ability to maintain reliable communication even in the presence of electromagnetic interference.

SDI-12 is an interface standard for connecting microprocessors with environmental sensors, where the number "12" means 1200 baud, i.e. the data transmission speed. It is particularly popular in environmental monitoring applications because it allows multiple sensors to be connected to a single data recording device simply and efficiently .

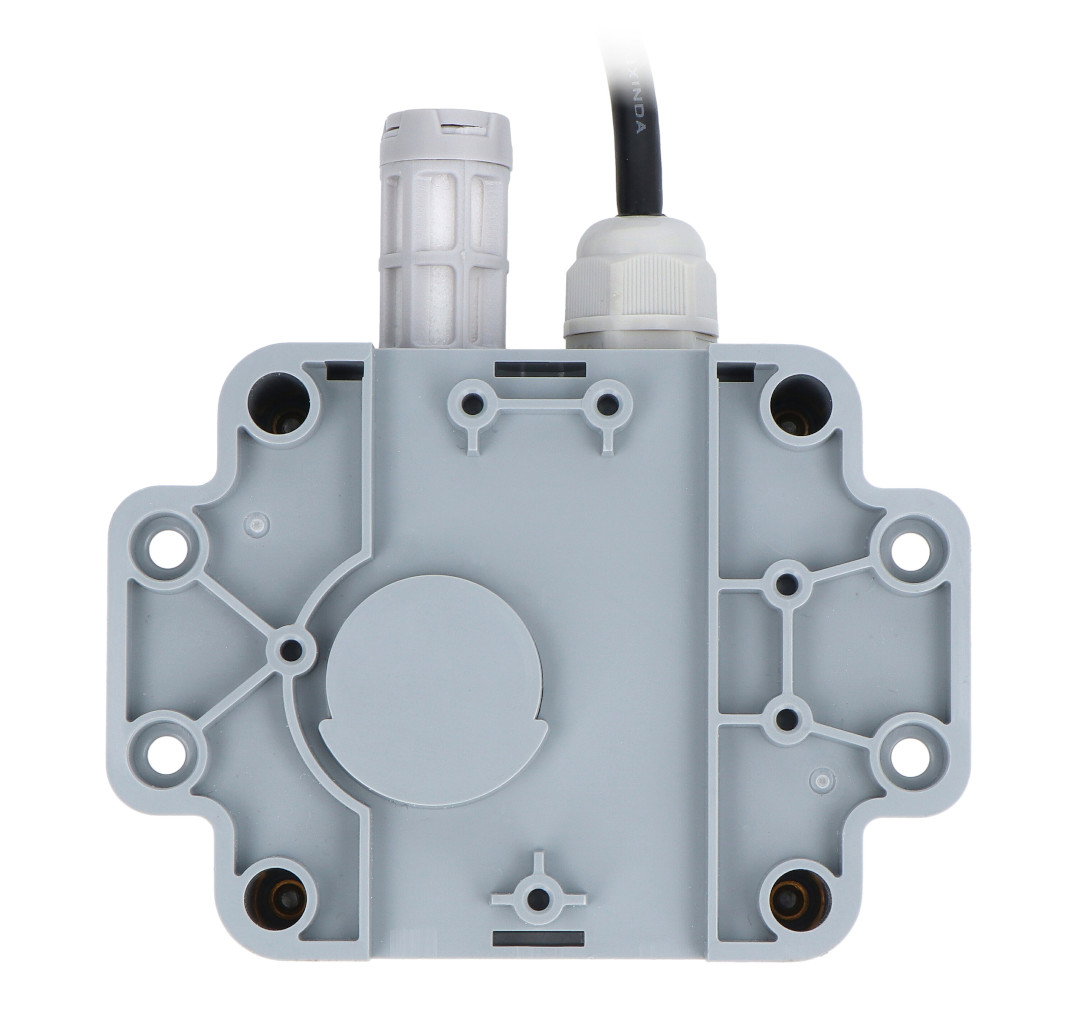

The gray sensor module lies upside down on a white background. The product is compatible with Modbus RTU / ASCII RS485 and SDI-12 communication protocols.

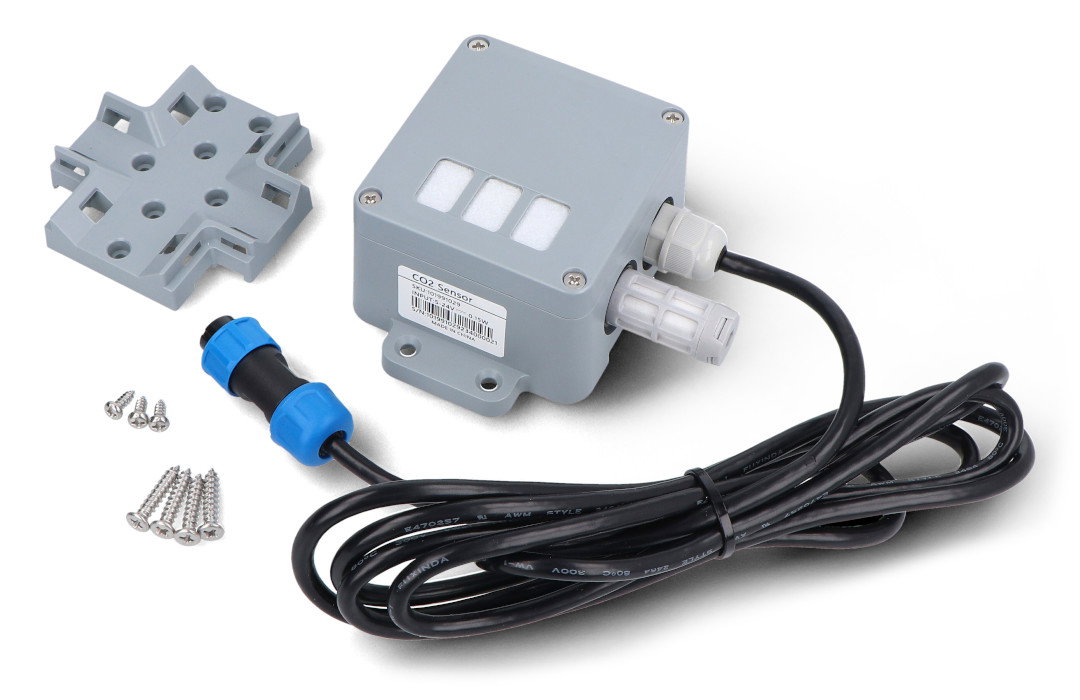

The gray sensor module lies on a white background along with the kit components. SenseCAP S-CO2-03B has an automatic sensor calibration function.

Applications of the SenseCAP S-CO2-03B sensor

The SenseCAP S-CO2-03B sensor can be used, for example, to measure temperature and humidity in greenhouses in order to monitor the environment for the proper development of plants. It is also used in domestic rooms , where it measures CO2 concentration in the air. The device is also useful in places such as air quality research stations , as well as in agriculture and the fermentation industry .

Check out other Seeedstudio products in our offer!

Technical specifications of the sensor

  • Device type: temperature, humidity and carbon dioxide CO2 sensor
  • Communication protocols: Modbus RTU RS485, Modbus ASCII RS485, SDI-12
  • CO2 measurement: from 0 ppm to 10000 ppm, accuracy ±(50 ppm + 3% MV), resolution 1 ppm
  • Temperature measurement: from -40°C to 85°C, accuracy ±0.2°C, resolution 0.01°C
  • Operating temperature range: from 0°C to 50°C
  • Humidity measurement: from 0% to 100% RH, accuracy ±1.8% RH, resolution 0.01% RH
  • Operating humidity range: 0% to 95% RH, non-condensing
  • Supply voltage: 5V to 24V
  • IP housing protection rating: IP65
  • Length of built-in sensor cable: 2 m
  • Module dimensions: 71 x 68 x 43 mm
  • Module dimensions with mounting brackets: 95 x 68 x 43 mm

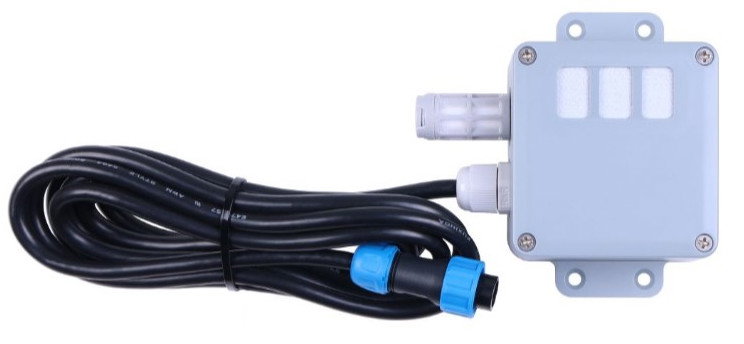

A gray sensor module with a cable lies on a white background. The sensor has a housing protection class of IP65.

Voltage to 5.0 V
Voltage from 24.0 V
Sensor - Temperature to 85 °C
Sensor - Temperature accuracy +/- 0.2°C
Sensor - Temperature from -40 °C - 120 °C
Smart Home Gas sensor
Smart Home Temperature sensor
Smart Home Czujnik wilgotności
Package width 10.5 cm
Package height 21 cm
Package depth 10.5 cm
Package weight 0.354 kg
