Product description: SenseCAP K1100 - development kit with LoRa and AI sensors - Seeedstudio 110991748
SenseCAP K1100 is a set developed by Seeedstudio and equipped with a number of devices and sensors enabling the implementation of applications based on artificial intelligence and machine learning. It enables instant digitization of the world using LoRaWAN communication. The product has a wide integration, which makes it compatible with popular cloud storage platforms. It can be used, among others with SenseCAP gateway - check it out!
Check also the user's guide , prepared by the manufacturer!

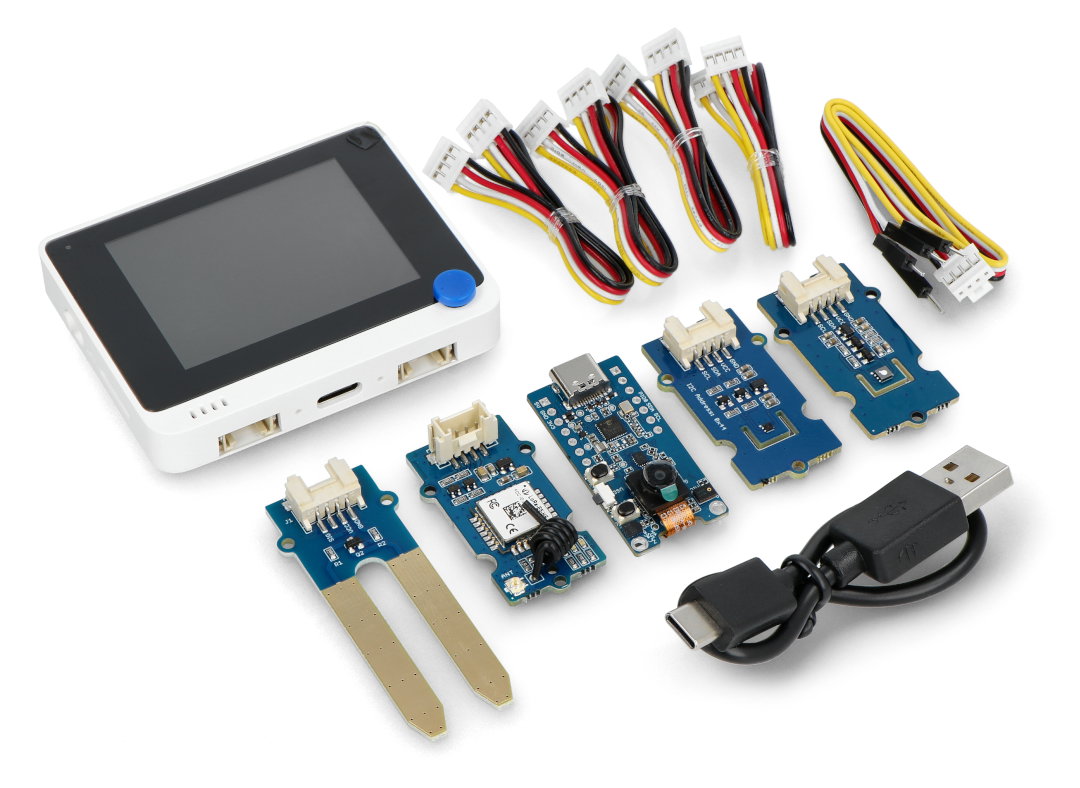

Elements included in the kit.

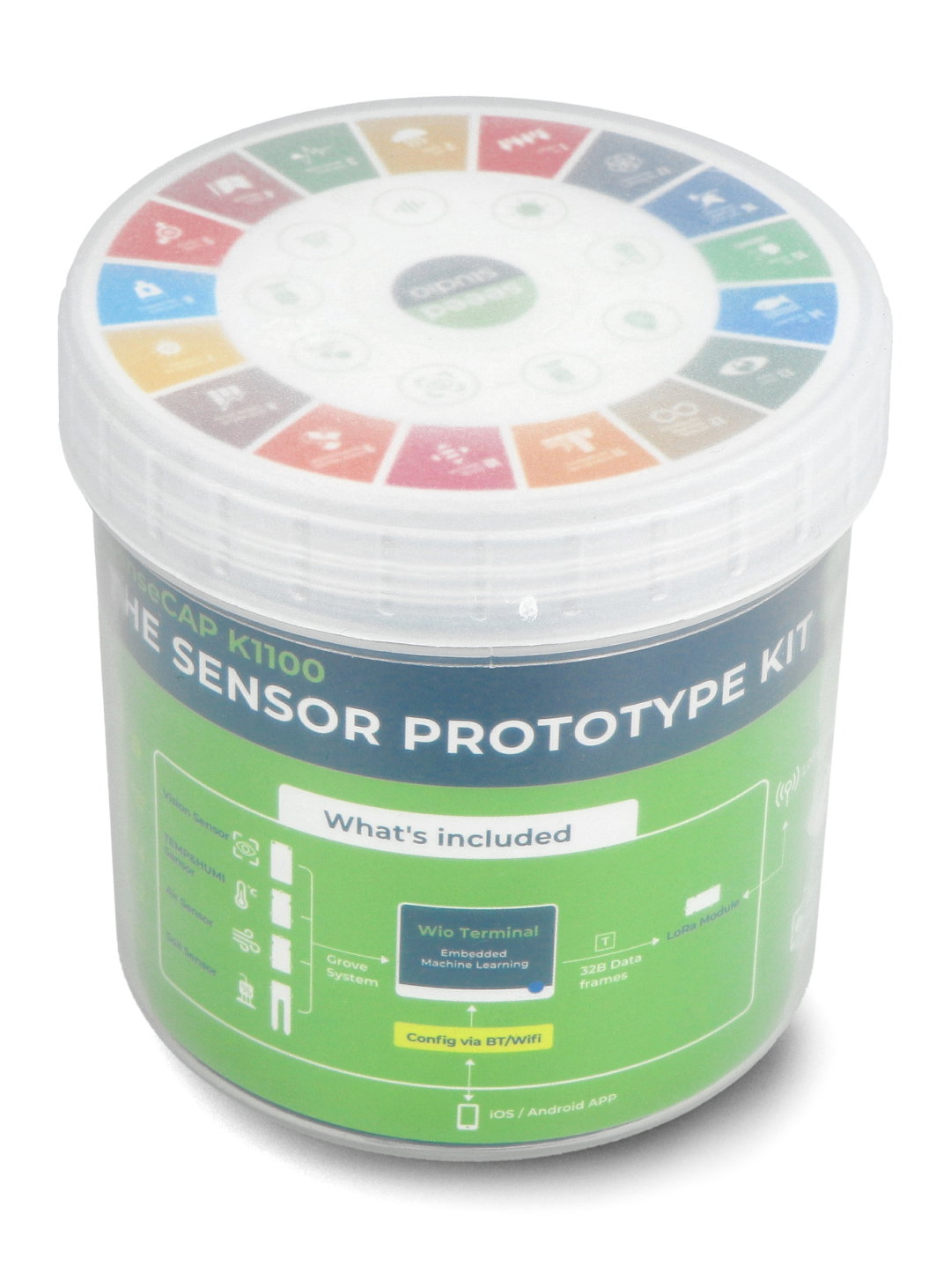

The elements included in the kit are delivered in a convenient container.
Special features of the SenseCAP K1100
- Specially selected sensors allow you to build a basic AIoT project in just 3 steps
- The set is a combination of advanced technologies - machine learning, LoRa technology and the AI Vision sensor
- It has a universal interface that makes it compatible with over 400 sensors of the Grove series, which gives you the freedom to extend the functionality of your projects
- It has wide integration, which makes it compatible with popular cloud storage platforms
- Open Source software especially attracts novice users
Suggested use
- Detecting the flow of human traffic in a specific area with the AI Vision Sensor
- Indoor air quality control including multi-gas and carbon dioxide detection
- Monitor the condition of your potted plants, including temperature, air humidity and soil moisture data to maintain an optimal environment
Kit contents
| No. | Picture | Description |
|---|---|---|
| 1 |  |

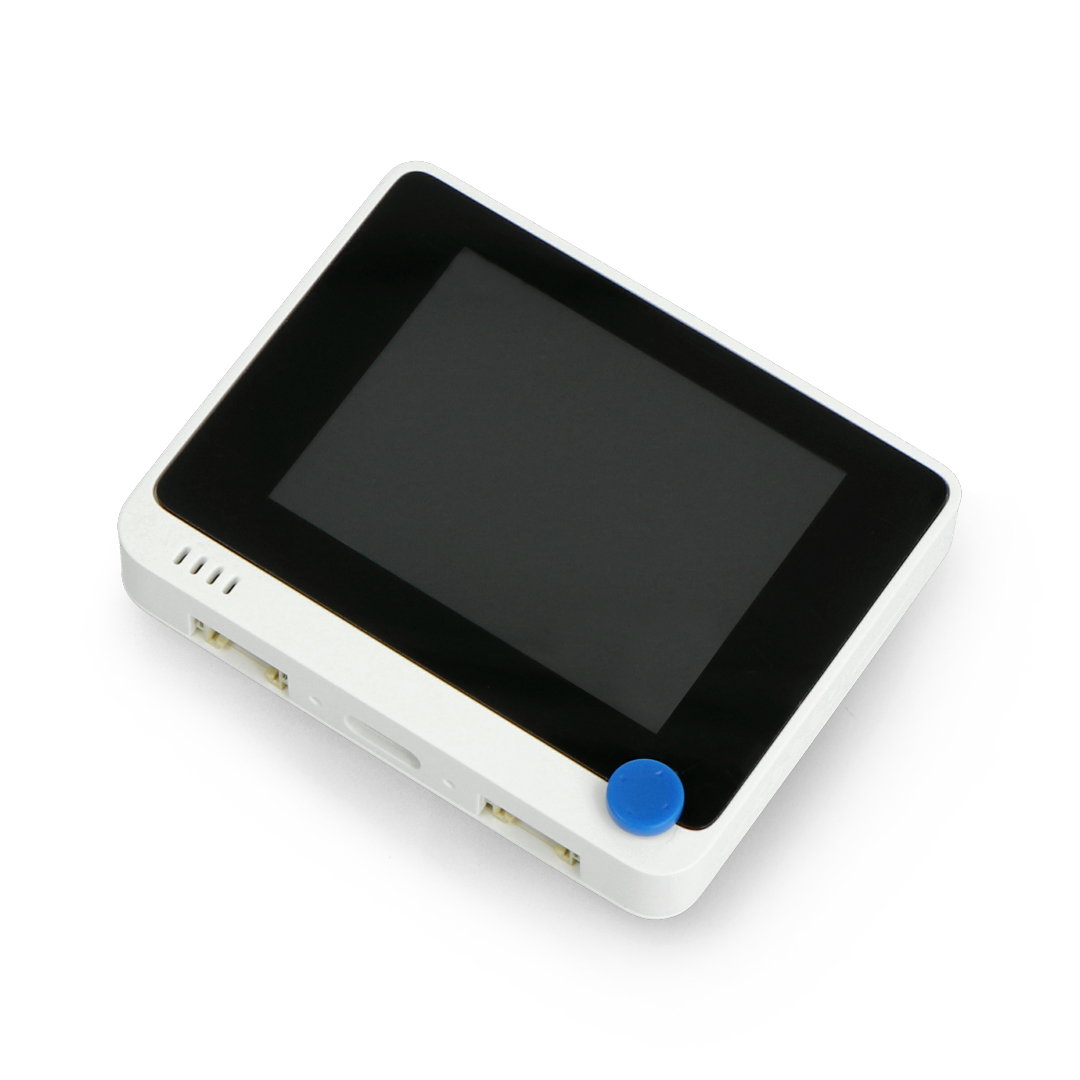

Wio Terminal - ATSAMD51 - RTL8720DN WiFi Bluetooth - Seeedstudio 102991299 Development board with ATSAMD51 microcontroller and ARM Cortex-M4F processor, supports Bluetooth LE 5.0 and WiFi 2.4 GHz / 5 GHz. Wio Terminal also has a 2.4 "LCD screen, IMU sensor, microphone, buzzer, microSD slot, light sensor and IR diode. It is compatible with Arduino and Raspberry Pi. |
| 2 |  |

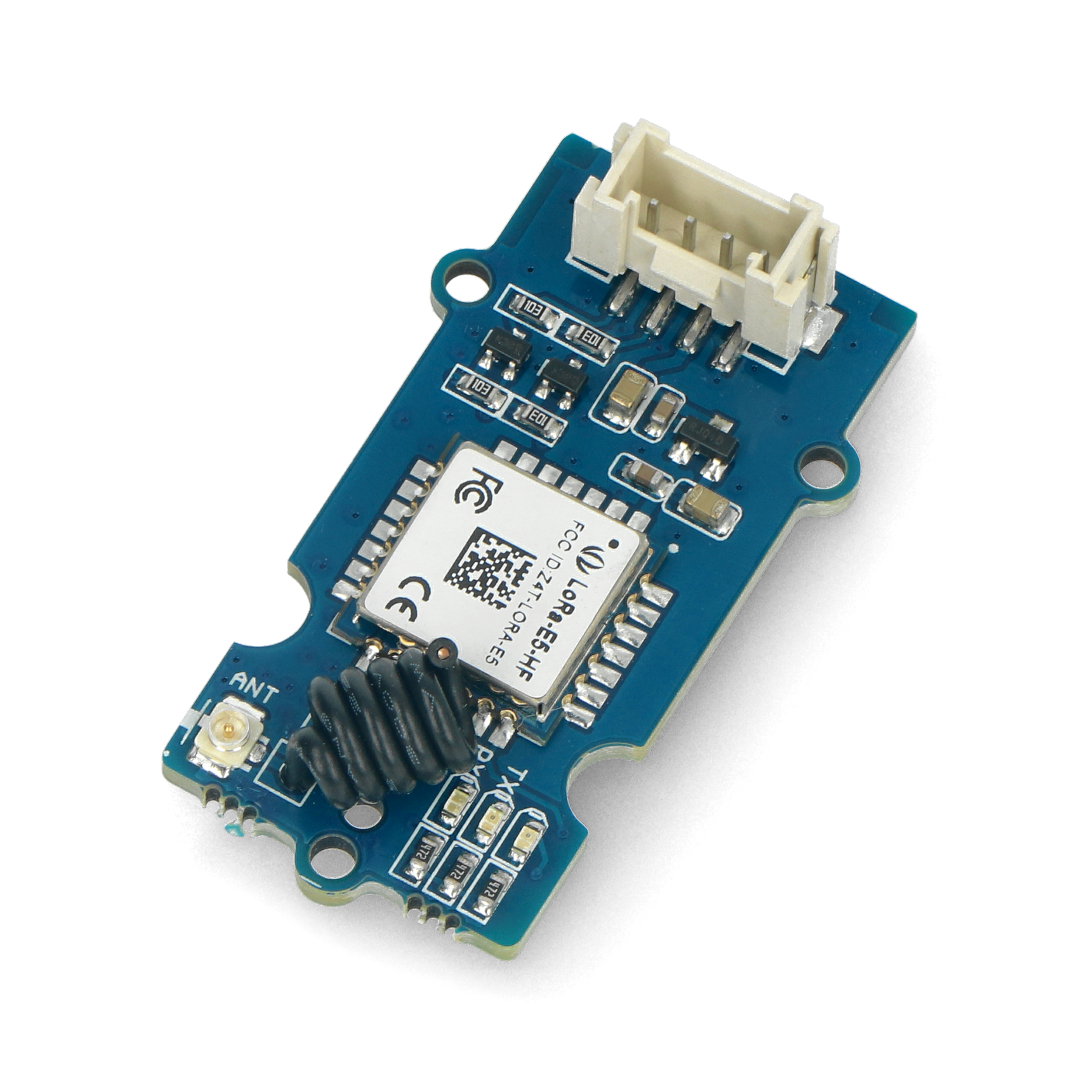

Grove - LoRa-E5 STM32WLE5JC radio module - EU868 / US915 - LoRaWAN - Seeedstudio 113020091 LoRa-E5 radio module with STM32WLE5JC chip and 32-bit ARM Cortex M4 processor . Supports the LoRaWAN protocol in the EU868 / US915 frequency band. The transmission range in open space is up to 10 km. |
| 3 |  |

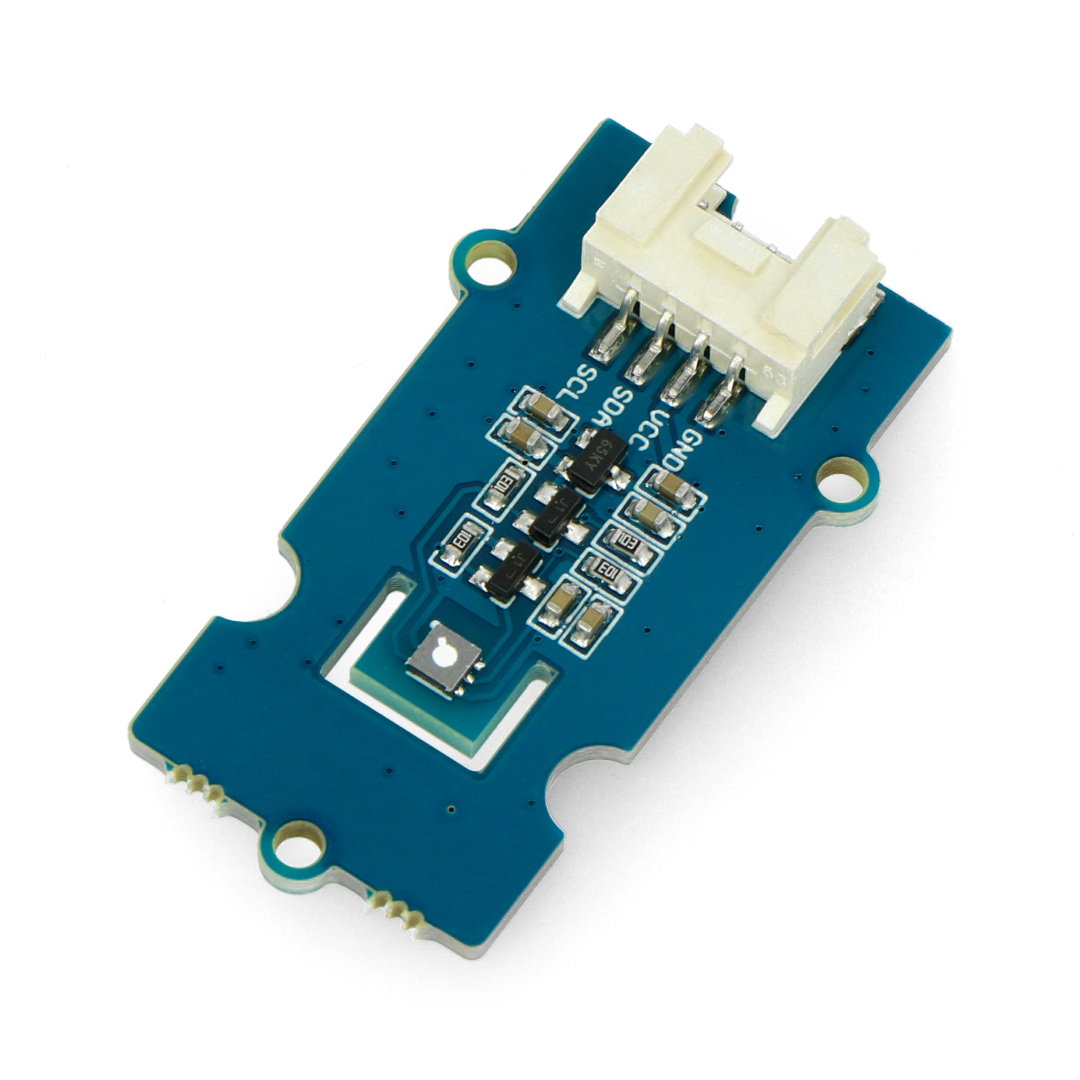

Grove - VOC and CO2 gas sensor SGP30 - semiconductor MOS - Seeedstudio 101020512 SGP30 sensor module for the detection of volatile organic compounds (VOC) and carbon dioxide (CO2). |
| 4 |  |

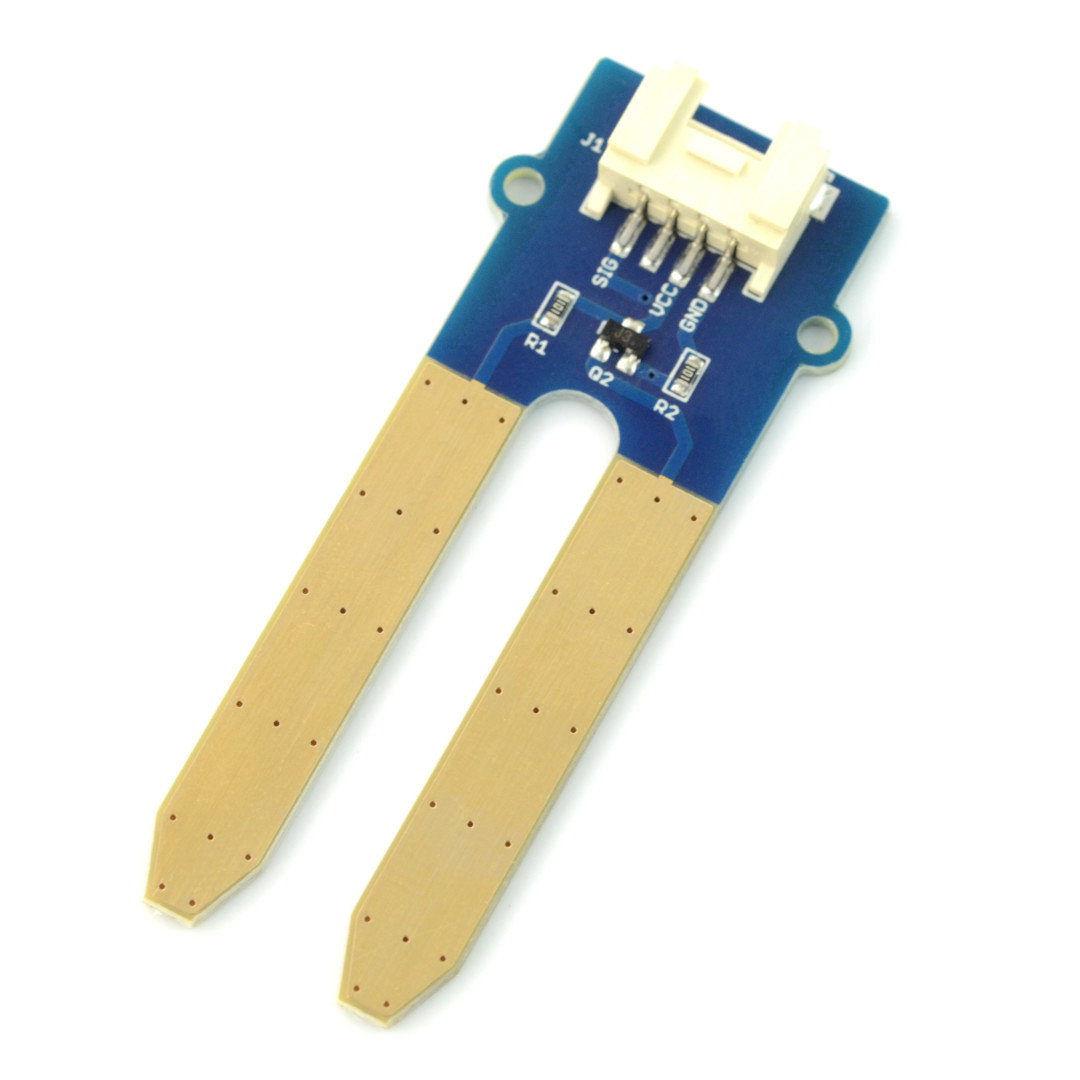

Grove - soil moisture sensor / probe v1.4 - analog Analog sensor detecting the level of soil moisture. For dry soil, the reading will vary from 0 to 300, for moist soil from 300 to 700, and if the sensor is immersed in water, from 700 to 950. |
| 5 |  |

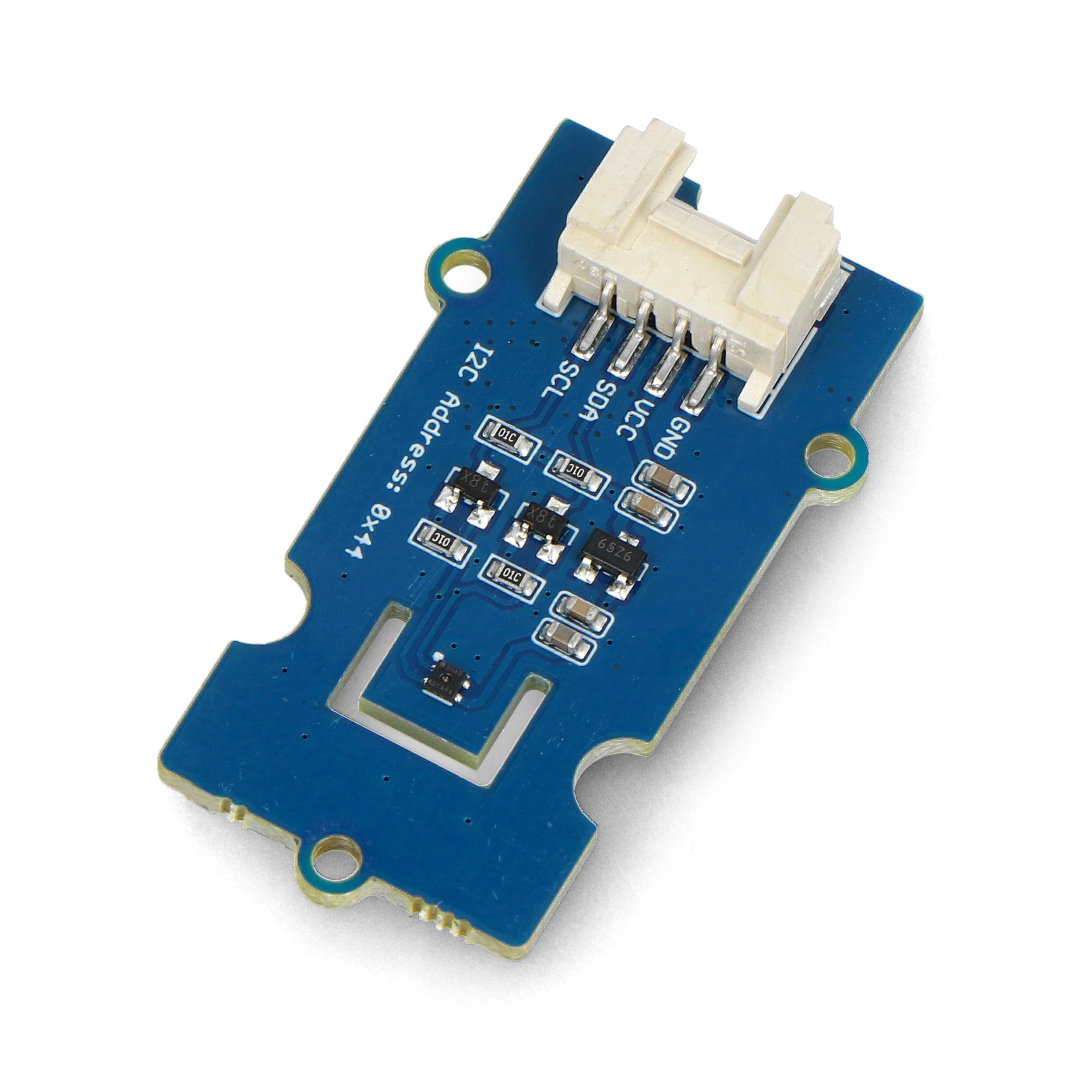

Grove - temperature and humidity sensor - SHT40 - Seeedstudio 101021032 Temperature and humidity sensor equipped with the Sensirion SHT40 system. It enables temperature measurement in the range from -40 ° C to 125 ° C with an accuracy of ± 0.2 ° C and humidity measurement in the range from 0% RH to 100% RH with an accuracy of ± 1.8% RH. |
| 6 |  |

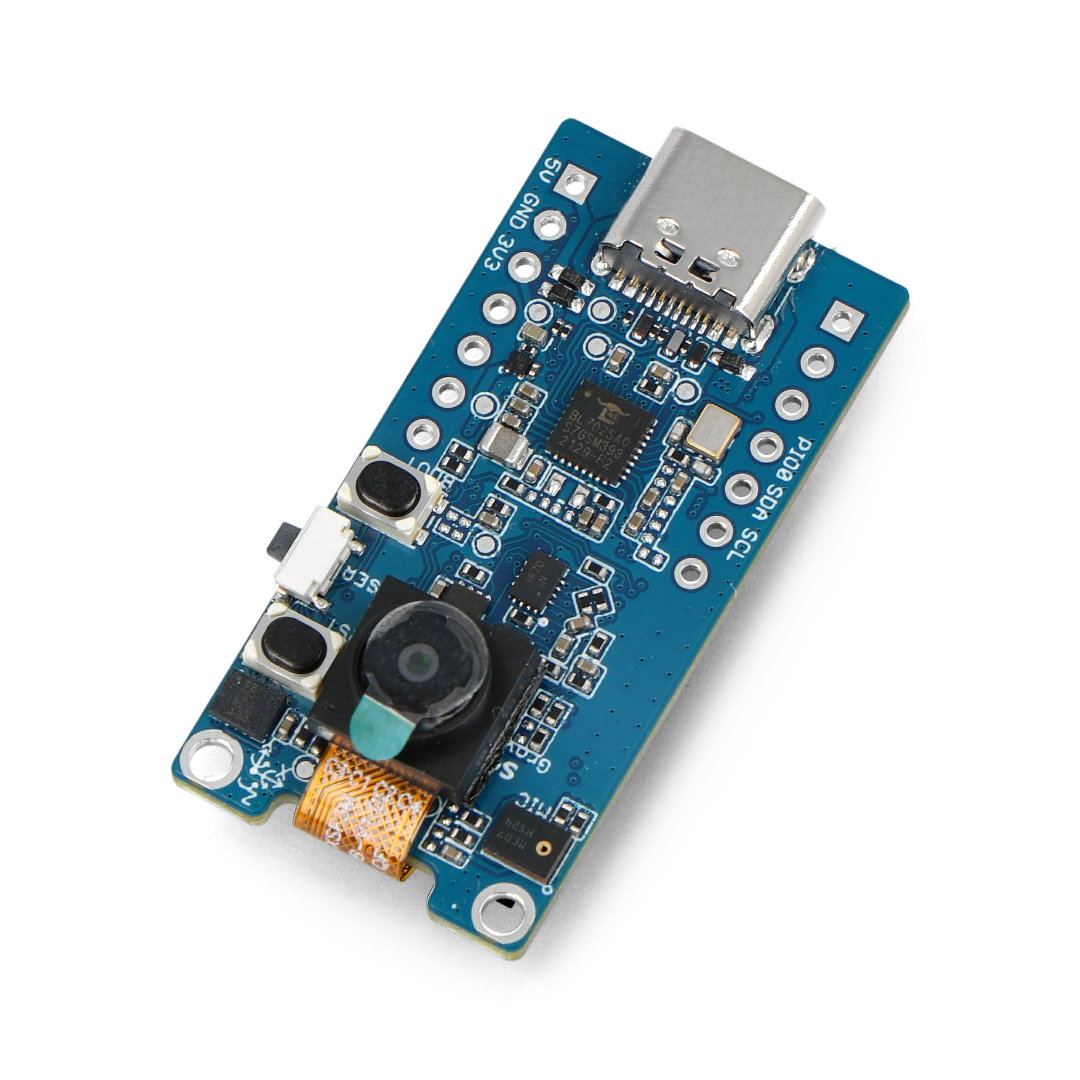

Grove - Vision AI Himax HX6537 module - Seeedstudio 114992866 The module allows the implementation of applications related to artificial intelligence AI and machine learning . It was equipped with a chip Himax HX6537, an OV2640 smart camera with a resolution of up to 1600 x 1200 pixels and with built-in Edge Machine Learning algorithms, as well as a flash, microphone and IMU sensors. |
| 7 |  |

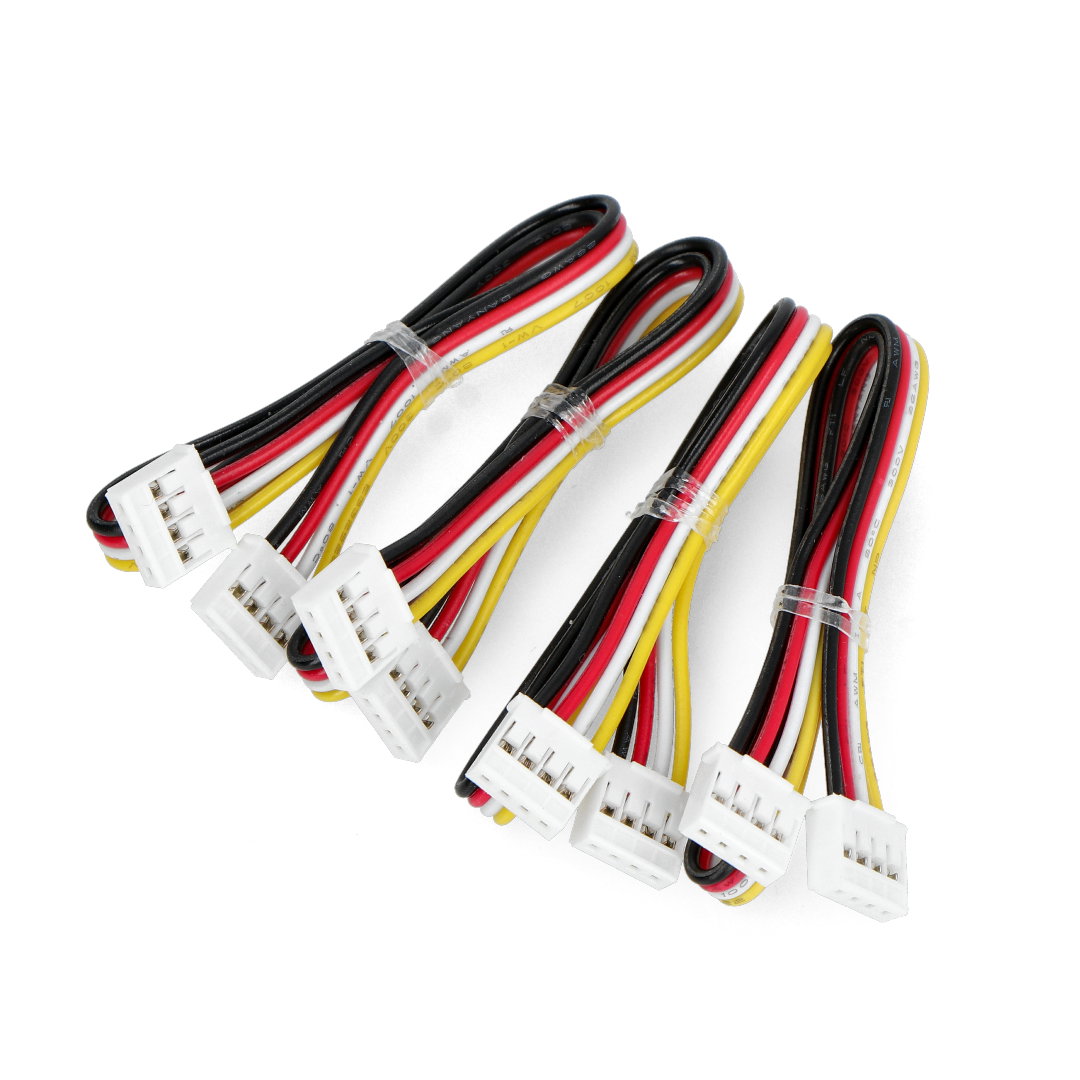

Connecting cables with a Grove connector - 4 pieces |
| 8 |  |

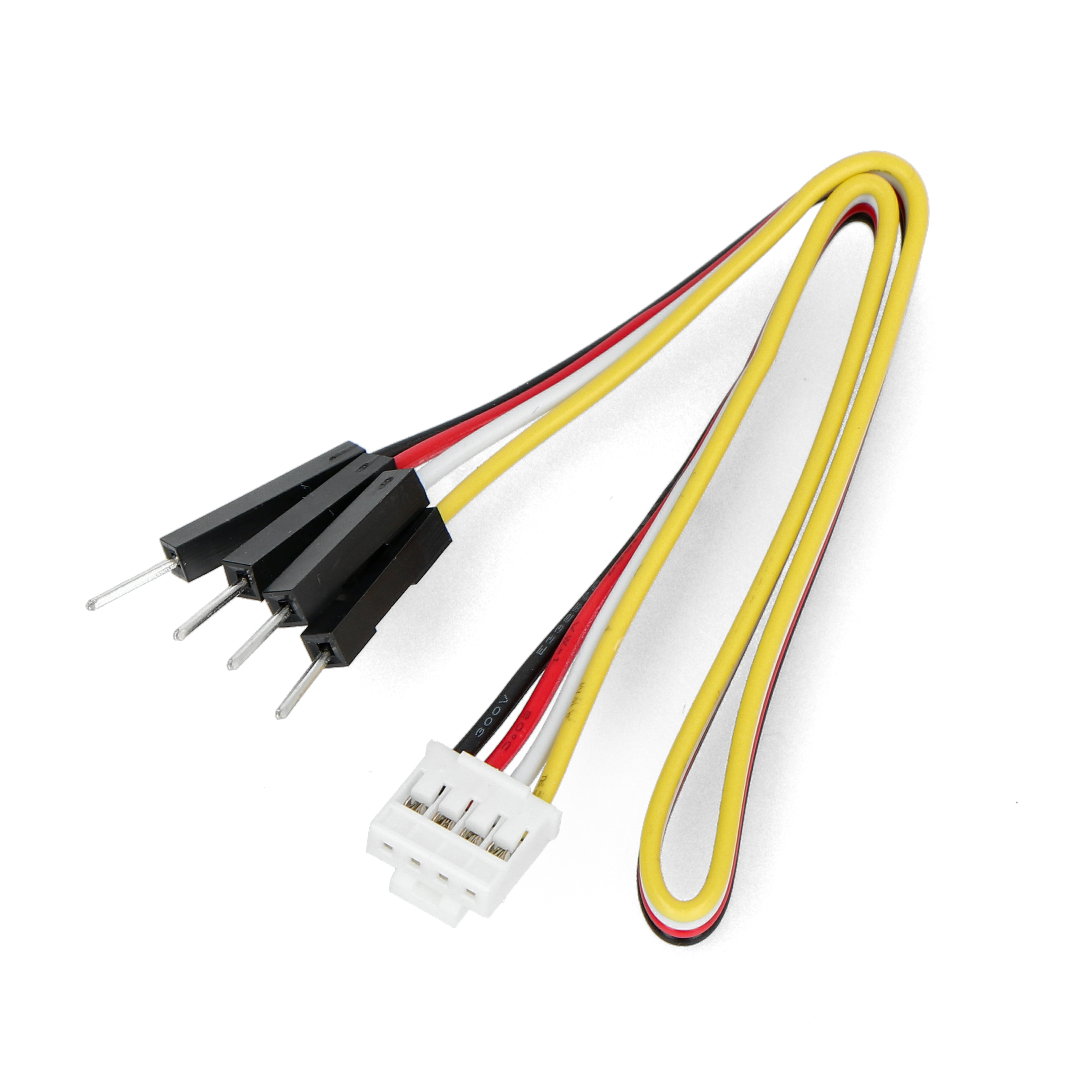

Connecting cable with a Grove connector and female pins - 1 piece |
| 9 |  |

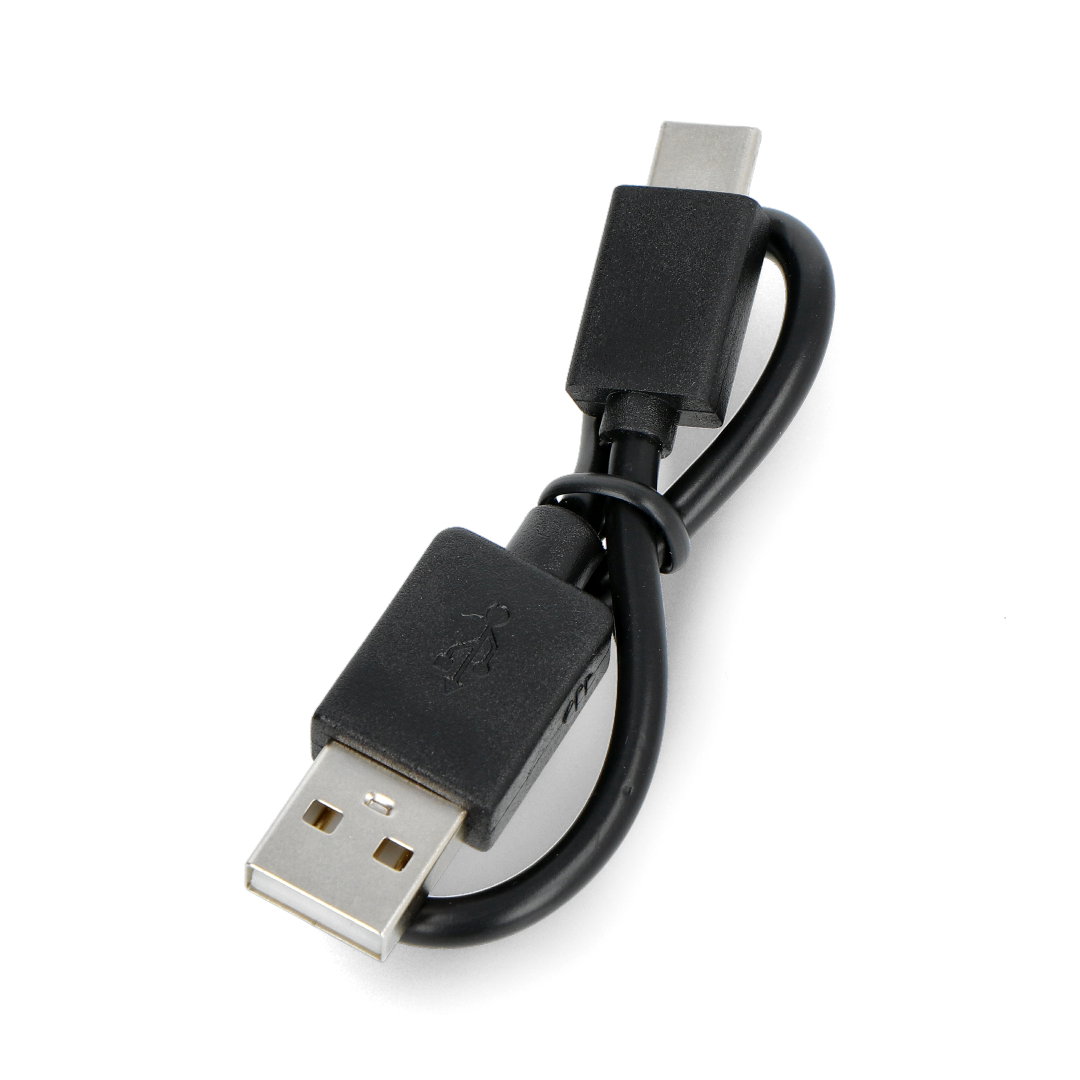

USB type A cable - USB type C |
